### Titration Curves of Strong and Weak Acids and Bases

Maureen C. Miller

Chatham Hall AP Chemistry

Grades 11, 12

Goal of the Lesson

• To compare empirical equivalence points and pH on graph to calculated values from pre-lab.

• To become more familiar with titration curves by observing differences in initial pH and length of the vertical region of the curve near the eq.pt.

• To determine the most suitable indicator for each of the four reactions.

1. Given a sample titration curve, students will correctly identify a reaction between weak and strong acids and bases

2. Given a sample titration curve, students will correctly choose a suitable indicator for the equivalence point.

3. Given a specific acid and base of known concentration, students will correctly determine the pH at the equivalence point.

• Obtain safety goggles!

• Place 8 mL of acid solution into a 250-mL beaker. Add approximately 100-mL water. Add 3 drops of phenolphthalein indicator solution.

• Fill buret with 50-mL base.

• Connect the pH amplifier to the Verneir data collector and to computer

• In the Logger Pro Program, open Probes and Sensor, pH Sensor. Select pH versus Time.

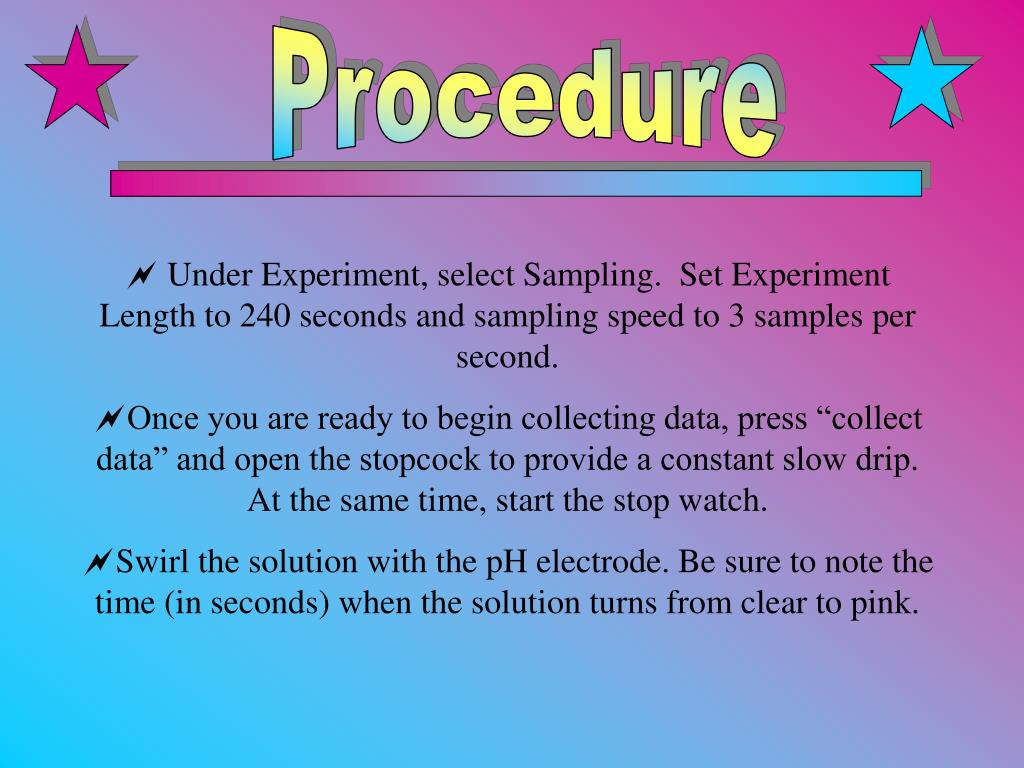

• Under Experiment, select Sampling. Set Experiment Length to 240 seconds and sampling speed to 3 samples per second.

• Once you are ready to begin collecting data, press “collect data” and open the stopcock to provide a constant slow drip. At the same time, start the stop watch.

• Swirl the solution with the pH electrode. Be sure to note the time (in seconds) when the solution turns from clear to pink.

Strong Acid / Weak Base

Strong Acid / Strong Base

Weak Acid / Strong Base

Weak Acid / Weak Base

Students will complete the following:

Pre-Lab Assignment

Purpose

Procedure

Data: labeled graphs, time of phenolphthalein color change

Conclusion Questions

• Great Lab to visualize the change in pH as base is added!

• Although we did the lab using the TI calculator and computer, we found the computer to:

• be much easier to set-up

• provide a more accessible visual to all students

• be easier to manipulate data after the completion of the lab

• give nice print out that students can use directly in their reports
