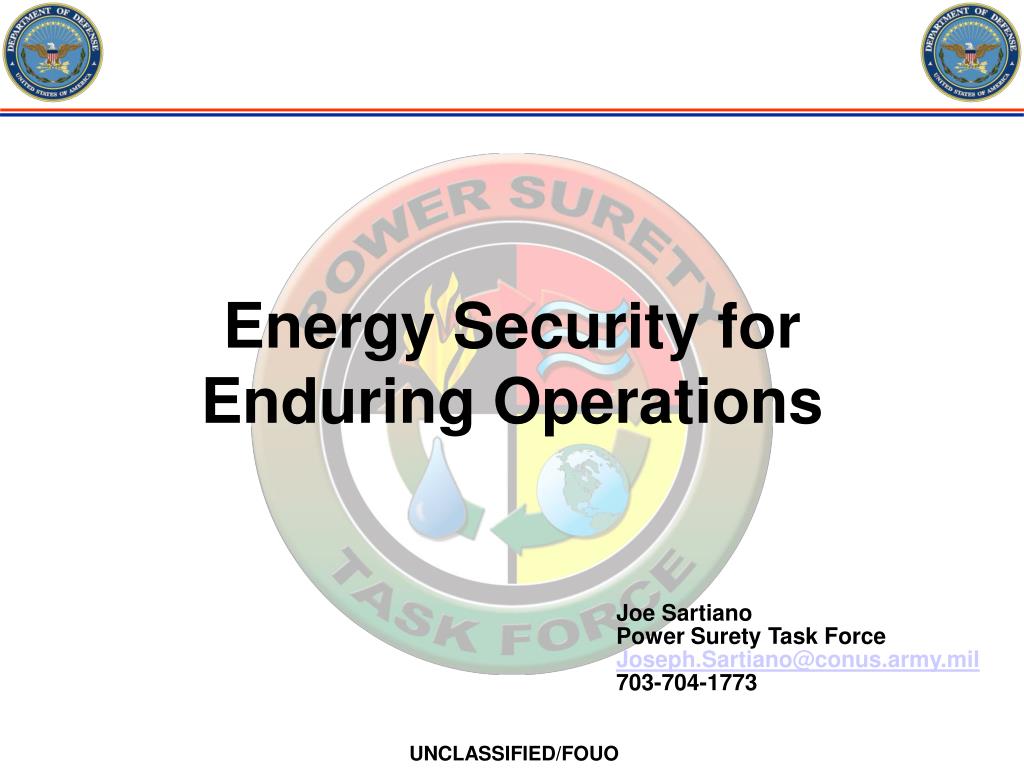

Energy Security for Enduring Operations

Joe SartianoPower Surety Task [email protected]


Confluence of issues l.jpg
Confluence of Issues

“Create good jobs by investing in renewable energy and new technologies for an energy independent America.”

…And the other is energy. …It’s not just an economical security issue, it’s a national security issue.

National

Security

Economic

Growth

Nancy Pelosi, Press Release, 28 Jun 05

President Bush, NBC Nightly News, 30AUG06

Force

Protection

…”reducing the military's dependence on fuel for power generation could reduce the number of road-

bound convoys”...

Bottom-line

  • Power Surety

    • Saves lives

    • Impacts

      • Strategic

      • Operational

      • Tactical

      • Full Spectrum Contribution

Maj. Gen. Richard Zilmer, Defense News, AUG06


Power surety task force history l.jpg
Power Surety Task Force History

Iraq

Afghanistan

Before Spray Foam

Kuwait

Transportable Hybrid Electric Power Station

Ft. Irwin, CA

Feb 08: PSTF Transitions to OSD Energy Security Task Force

After Spray Foam

Dec 07: NZ+ JCTD Approved as Rolling Start

Summer 07: Demand Reduction in Kuwait, Iraq, Afghanistan, Horn of Africa

Jan 07: Demand Reduction Demonstration at Ft. Benning

Oct 07 – Jan 08: Net Zero Structures Constructed at National Training Center, Ft. Irwin, CA

Aug 06: REF Funds THEPS Development

Oct 06: REF establishes Power Surety Task Force

Jul 06: MNF-West Renewable Energy JUONS


Pstf construct l.jpg
PSTF Construct

Transparent Demand Reduction

Supplemental

Alternative/

Renewable Power

Systems Engineering

Energy is the New Bandwidth for Commanders


Outreach l.jpg
Outreach

Commercial Industry and Government Labs

Combatant Commands

National Training Center

Iraq

PSTF

PSTF

Identifying Operational Needs and Technological Capabilities


Initiatives l.jpg
Initiatives

External Spray Foam

Enduring Efficient Structure

External Spray Foam

External Spray Foam

Djibouti

Afghanistan

Ft. Irwin

Iraq

Transparent Demand Reduction

Tactical Hybrid Power

Supplemental

Alternative/

Renewable Power

Ft. Irwin

Systems Engineering

Ft. Irwin

SolarStik

Tactical Hybrid Power--THEPS

Camp Slayer, Iraq

Camp Shocker, Iraq

Iraq

Ft. Irwin


Slide7 l.jpg

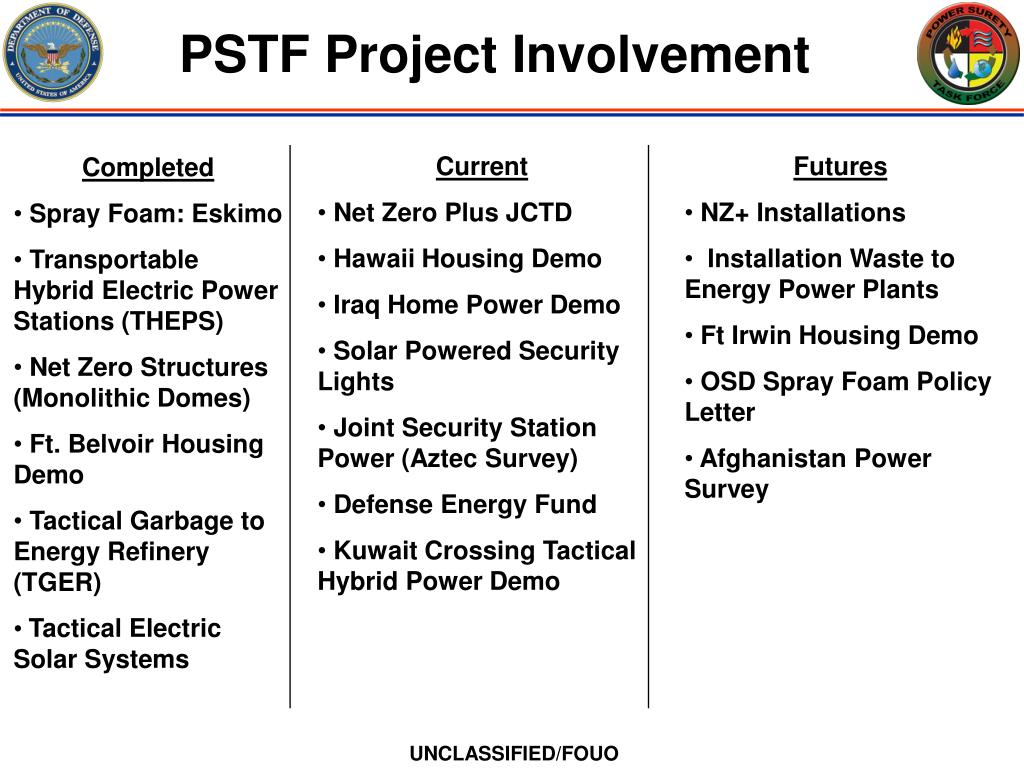

PSTF Project Involvement

  • Current

  • Net Zero Plus JCTD

  • Hawaii Housing Demo

  • Iraq Home Power Demo

  • Solar Powered Security Lights

  • Joint Security Station Power (Aztec Survey)

  • Defense Energy Fund

  • Kuwait Crossing Tactical Hybrid Power Demo

  • Futures

  • NZ+ Installations

  • Installation Waste to Energy Power Plants

  • Ft Irwin Housing Demo

  • OSD Spray Foam Policy Letter

  • Afghanistan Power Survey

  • Completed

  • Spray Foam: Eskimo

  • Transportable Hybrid Electric Power Stations (THEPS)

  • Net Zero Structures (Monolithic Domes)

  • Ft. Belvoir Housing Demo

  • Tactical Garbage to Energy Refinery (TGER)

  • Tactical Electric Solar Systems


Fundamentals l.jpg
Fundamentals

  • Fundamentals are not sexy…reduce demand then… size supply

  • Rapid Model (our DNA from REF)

    • Apply proven commercial strategies (like for-profit companies do…)

    • Demo (sole source)

    • If success, Warfighter buys (competitive)

    • Way ahead: transition to PM or… catalog (like GSA)/website where unit orders directly + IDIQ contract vehicle in every Unified Cmd (all services)


Slide9 l.jpg

Demand Reduction Using Spray Foam Insulation

Can be used across the DoD Spectrum: I&E, Operations, Training, etc

TRAINING AND MILITARY EXERCISE SITES

FORWARD OPERATING BASES

National Training Center,

Ft. Irwin, CA

INSTALLATIONS

Camp Lemonier, Djibouti

Camp Victory, Iraq

FOB Naray, Afghanistan

Ft. Belvoir, VA


Slide10 l.jpg

UNCLASSIFIED

Current GLOC

Results: Iraq Forward Operating Base Fuel Savings from Spray Foam

Dahuk

200K JP8

100K DF

12.2K MOGAS

Bashur

Dahuk

Tigris R.

Mosul

Q-WEST

Arbil

  • MNF-I initially plans 9M sq ft of Spray Foam

  • CENTCOM predicts 50% fuel savings for power generation--180K gal/day

  • Potential Cost Avoided @ $3/gal fuel: $540,000/day

  • @ $20/gal fuel:

  • $3.6M/day

MOSUL

2

Ninawa

Kirkuk

IRAN

Dayr az Zawr

At Tamim

As Sulaymaniyah

SPIECHER

Salah ad Din

Euphrates R.

5

Samarra

12

AlQaim

SYRIA

Diyala

Al ASAD

Baqubah

Ar Ramadi

Baghdad

Ar Rutbah

1

Fallujah

Wasit

Babil

H3

H4

Al Hillah

Karbala

TQ

AlKut

Dezful

Al Anbar

Karbala

Al Kufa

JORDAN

350K JP8

25K DF

10K MOGAS

AlAmarah

Al Qadisiyah

1.0M JP8

250K DF

32K MOGAS

AnNajaf

Maysan

AsSamawah

Dhi Qar

Ahvaz

6

Ad Diwaniyah

22

AnNasiriyah

Tallil

Al Basrah

Ar’ar

CEDAR II

1

Az Zubayr

An Najaf

SAUDI

ARABIA

Safwan

9

BUEHRING

  • 3 GLOCS

  • 3 Suppliers

  • All Escorted From Border

ALI AL SALEM

Rafha

KUWAIT

MINA ABDULLAH TRUCK FILL STAND

UNCLASSIFIED


Slide11 l.jpg

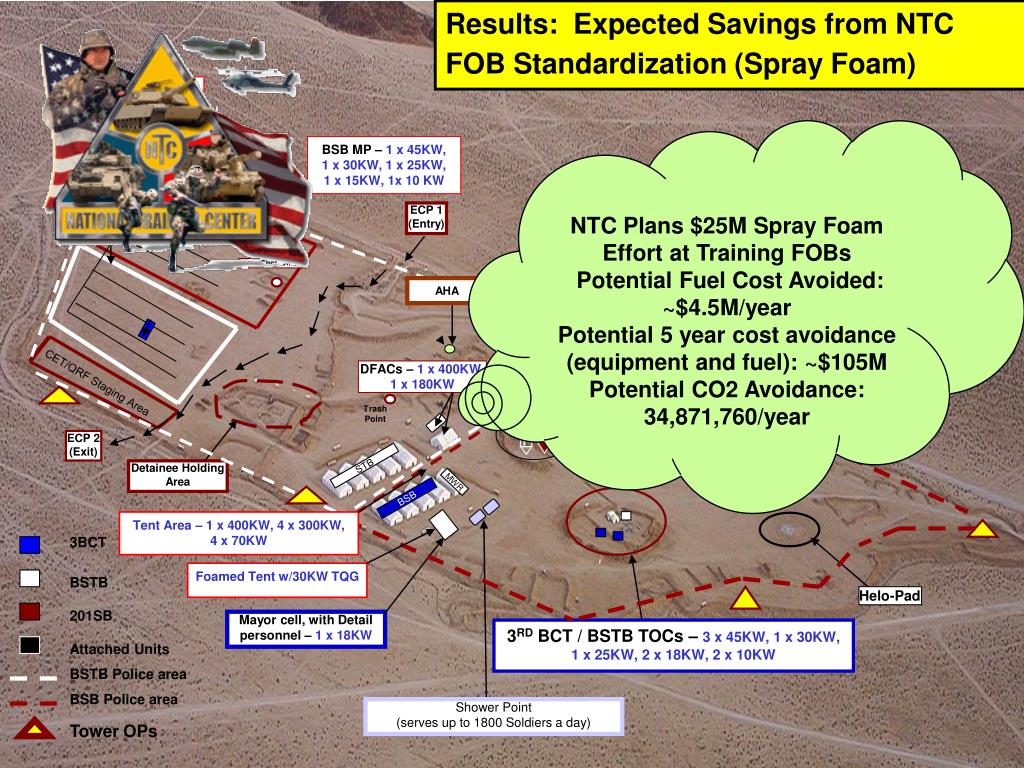

Results: Expected Savings from NTC FOB Standardization (Spray Foam)

STB MP –1 x 30KW, 1 x 15KW, 2 x 5KW

NTC Plans $25M Spray Foam Effort at Training FOBs

Potential Fuel Cost Avoided: ~$4.5M/year

Potential 5 year cost avoidance (equipment and fuel): ~$105M

Potential CO2 Avoidance:

34,871,760/year

Water Point

BSB MP – 1 x 45KW, 1 x 30KW, 1 x 25KW, 1 x 15KW, 1x 10 KW

Fuel Point

ECP 1

(Entry)

B co Shop Office

201SB Medical Clinic

(Level 2) – 1 x 125KW, 3 x 45KW

AHA

Mortuary Affairs – 1 x 180KW, 2 x 45 KW

DFACs – 1 x 400KW, 1 x 180KW

201SB TOC / SPO OPS/ BDOC – 3 x 45KW, 2 x 30KW, 2 x 25KW, 5 x 15KW, 3 x 10KW

CET/QRF Staging Area

Trash

Point

ECP 2

(Exit)

Detainee Holding Area

STB

MWR

BSB

Tent Area – 1 x 400KW, 4 x 300KW, 4 x 70KW

3BCT

Foamed Tent w/30KW TQG

BSTB

Helo-Pad

201SB

Mayor cell, with Detail personnel – 1 x 18KW

3RD BCT / BSTB TOCs – 3 x 45KW, 1 x 30KW, 1 x 25KW, 2 x 18KW, 2 x 10KW

Attached Units

BSTB Police area

BSB Police area

Shower Point

(serves up to 1800 Soldiers a day)

Tower OPs


Slide12 l.jpg

DoD Applications for Net Zero Structures and Sites (Spray Foam)

Can be used across the DoD Spectrum: I&E, Operations, Training, etc

TRAINING AND MILITARY EXERCISE SITES

Forward Operating Bases and Border Crossings

National Training Center,

Ft. Irwin, CA

INSTALLATIONS

USCENTCOM Sponsored Demonstration at Ft. Irwin, CA

Ft. Belvoir, VA

K-Crossing, Kuwait


Estimated benefits net zero homes l.jpg
Estimated Benefits*: Net Zero Homes (Spray Foam)

  • Control House (Phase I)

  • Spray Foam Attic (Phase II)

  • Assume 30% utility savings

  • ~$2000 up-front cost / home

  • Break Even Point in about 5 years

  • Spray Foam Attic and Walls (Phase III)

  • Assume 50% utility savings

  • ~$5500 up-front cost / home

  • Break Even Point just over 8 years

  • Spray Foam Plus Micro Power (Phase III)

  • Assume 75% to 100% utility savings

  • Energy secure -- capable of operating without grid

Spray-Foam insulation prevents

all air infiltration

* Reports forthcoming


Slide14 l.jpg

Hybrid Prime Power (Spray Foam)

***

Prime

Genset

Controls

Storage

CPP

MoDome

2300 sq ft

TCP

HVAC

Plans

Foam Tent

Hybrid

Tactical

Sustainment

Foam Tent

“Soft” Power

Foam Tent

ACP

Movement and

Maneuver / Protection

LSD

LSD

LSD

Excess Power

DTSS

Trojan

Spirit

**

XBTJ

Intelligence

ACP

SCIF

Current

Operations

Fire Support

MoDome

2300 sq ft

**

CGS

ACT-E

Hybrid

Tactical

CDR

TENT

GRT

JNN

Small SICPS

Net Zero Plus Technologies

  • Monolithic Domes

  • Auto-on/Auto-off generators

  • Solar and Wind

  • Spray Foamed Structures

  • Power Sequencers

  • Efficient HVAC


Slide15 l.jpg

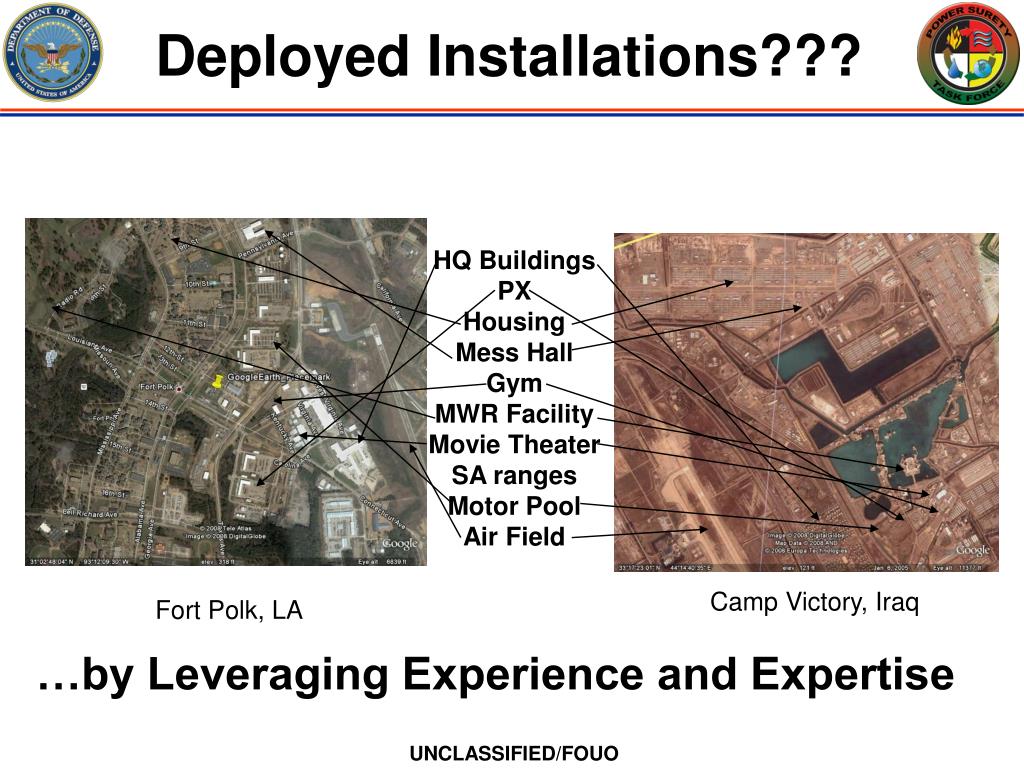

Deployed Installations??? (Spray Foam)

HQ Buildings

PX

HousingMess HallGymMWR Facility

Movie Theater

SA ranges

Motor PoolAir Field

Camp Victory, Iraq

Fort Polk, LA

…by Leveraging Experience and Expertise


Ft irwin energy installation of excellence l.jpg
Ft. Irwin Energy Installation of Excellence (Spray Foam)

EUL, UESC or other COA

- NZ+ Demo—Completed

- NZ+ JCTD—Working

- NZ+ Installation—Great Potential

National Training Center, Ft. Irwin, CA

High Density Foam for Fixed Structures

LED Lighting

On-Demand Hot Water

External Spray Foam

Net Zero Structure

Ground Source Heat Pump

LED

Tactical Hybrid Power

Micro Power/Hybrid Prime Power

Micro Power/Tactical Hybrid Power


The way ahead l.jpg

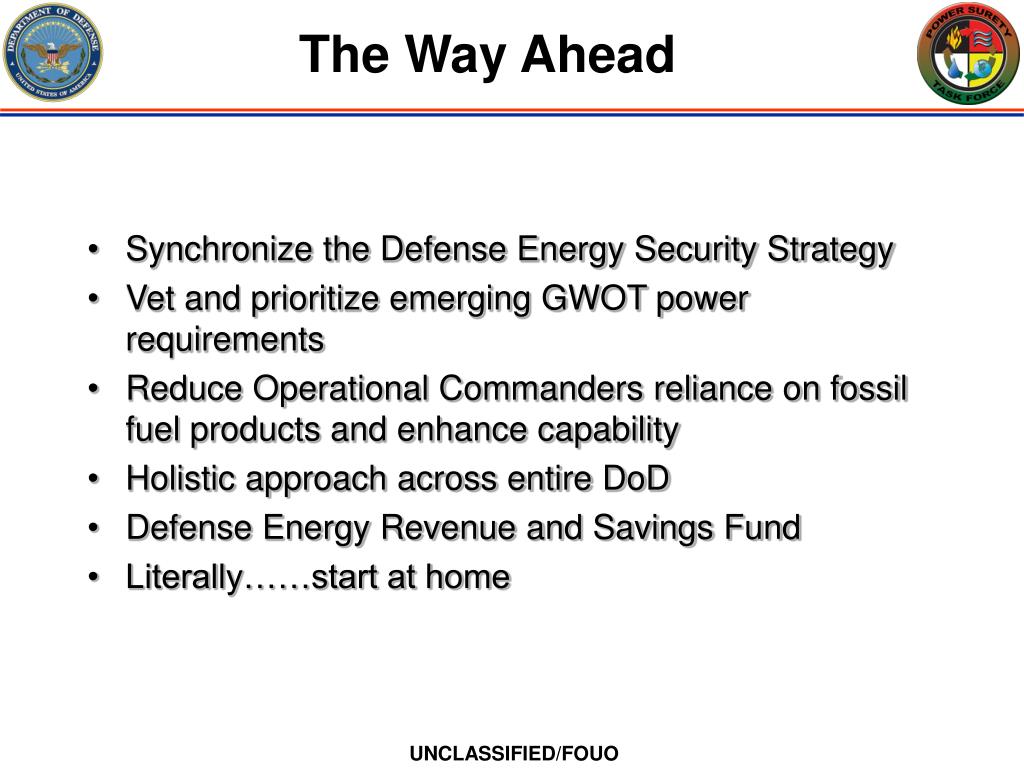

The Way Ahead (Spray Foam)

Synchronize the Defense Energy Security Strategy

Vet and prioritize emerging GWOT power requirements

Reduce Operational Commanders reliance on fossil fuel products and enhance capability

Holistic approach across entire DoD

Defense Energy Revenue and Savings Fund

Literally……start at home
