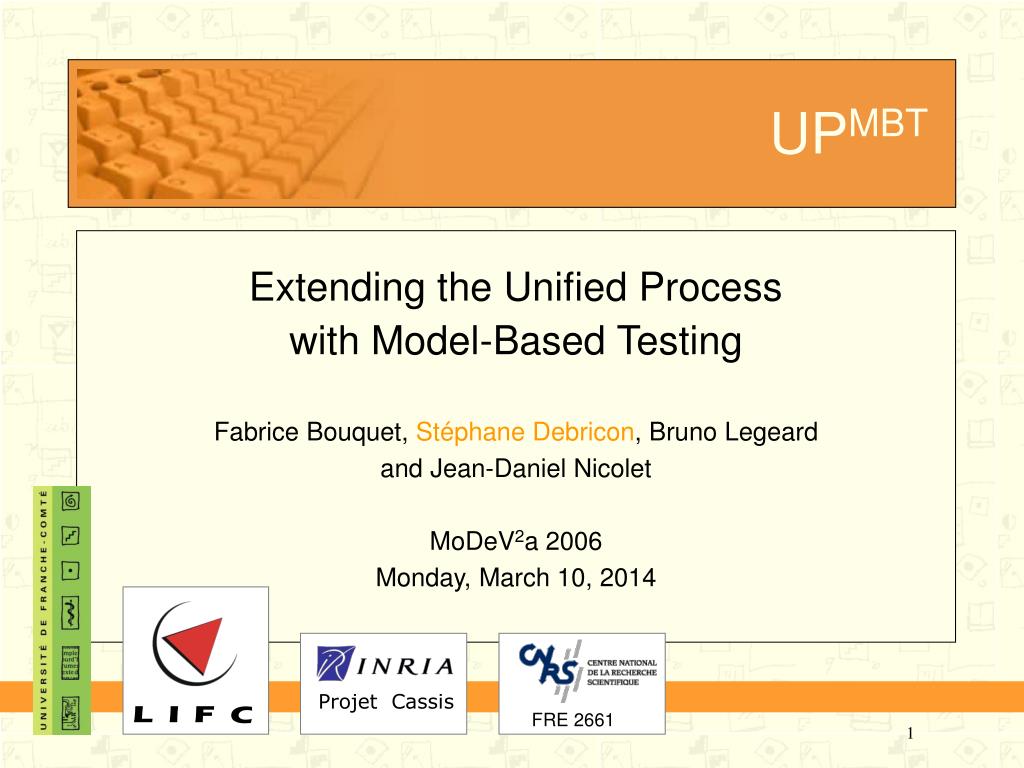

Up mbt l.jpg

FRE 2661

Projet Cassis

UPMBT

  • Extending the Unified Process

  • with Model-Based Testing

  • Fabrice Bouquet, Stéphane Debricon, Bruno Legeard

  • and Jean-Daniel Nicolet

  • MoDeV2a 2006

  • Monday, March 10, 2014


Outline l.jpg
> Outline

1. Unified Process (UP)

1.1 Overview

1.2 Structure

2. Model-Based Testing (MBT)

3. Extending the Unified Process with Model-Based Testing (UPMBT)

3.1 Process

3.2 Workflows

3.3 Phases

4. RTAXPM case study

5. Conclusion and Future work

UPMBT


Introduction l.jpg

Test Model

Design model

Analysis model

<<refine>>

<<refine>>

> Introduction

  • Process

    • The UP : a software engineering process (SEP).

    • MBT : a process conducting the generation and execution of tests.

    • UP + MBT = UPMBT : methodological framework for MBT.

  • Modeling

UPMBT


Outline4 l.jpg
> Outline

1. Unified Process (UP)

1.1 Overview

1.2 Structure

2. Model-Based Testing (MBT)

3. Extending the Unified Process with Model-Based Testing (UPMBT)

3.1 Process

3.2 Workflows

3.3 Phases

4. RTaxPM case study

5. Conclusion and Future work

UPMBT


Up overview 1 l.jpg

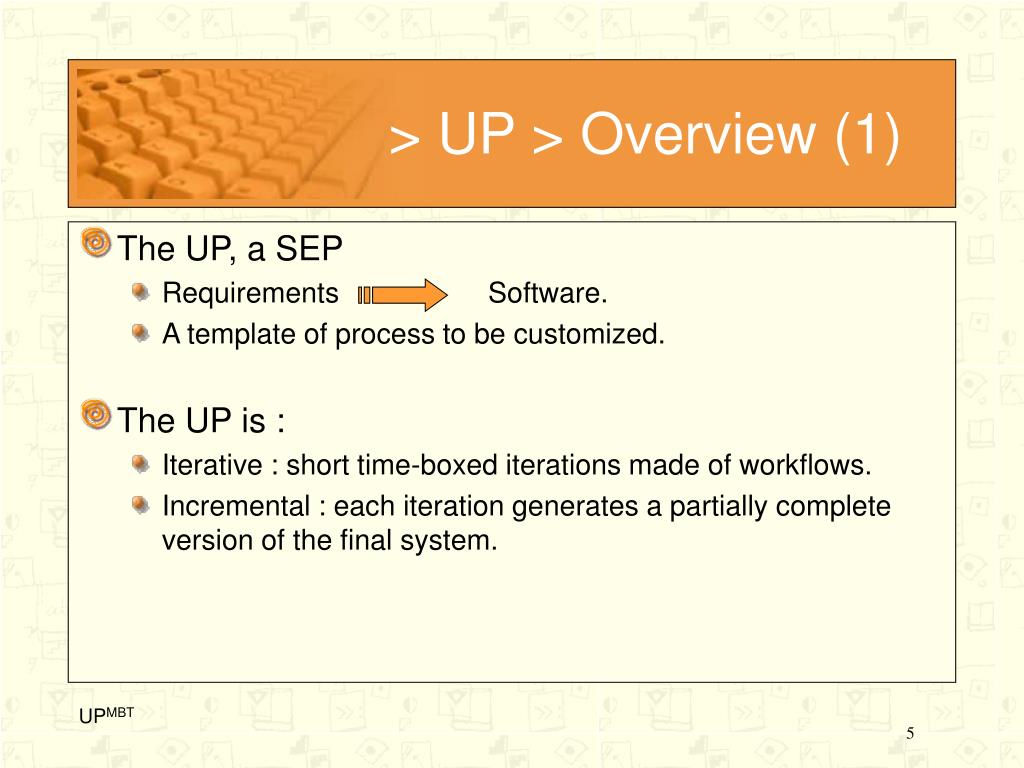

> UP > Overview (1)

  • The UP, a SEP

    • Requirements Software.

    • A template of process to be customized.

  • The UP is :

    • Iterative : short time-boxed iterations made of workflows.

    • Incremental : each iteration generates a partially complete version of the final system.

UPMBT


Up overview 2 l.jpg
> UP > Overview (2)

  • Architecture-centric :

    • Develop and evolve a robust system architecture.

    • Focus of early iterations.

  • Risk driven :

    • Develop high-risk elements in early iterations.

  • Requirements driven through use case :

    • To help plan iteration.

UPMBT


Up structure l.jpg
> UP > Structure

  • A SEP (here the UP) defines :

    • WHO participate?

    • WHAT is there to do?

    • HOW to develop it?

    • WHEN to deliver a version?

  • A 2 axes structure :

    • Workflows

    • Phases

UPMBT


Outline8 l.jpg

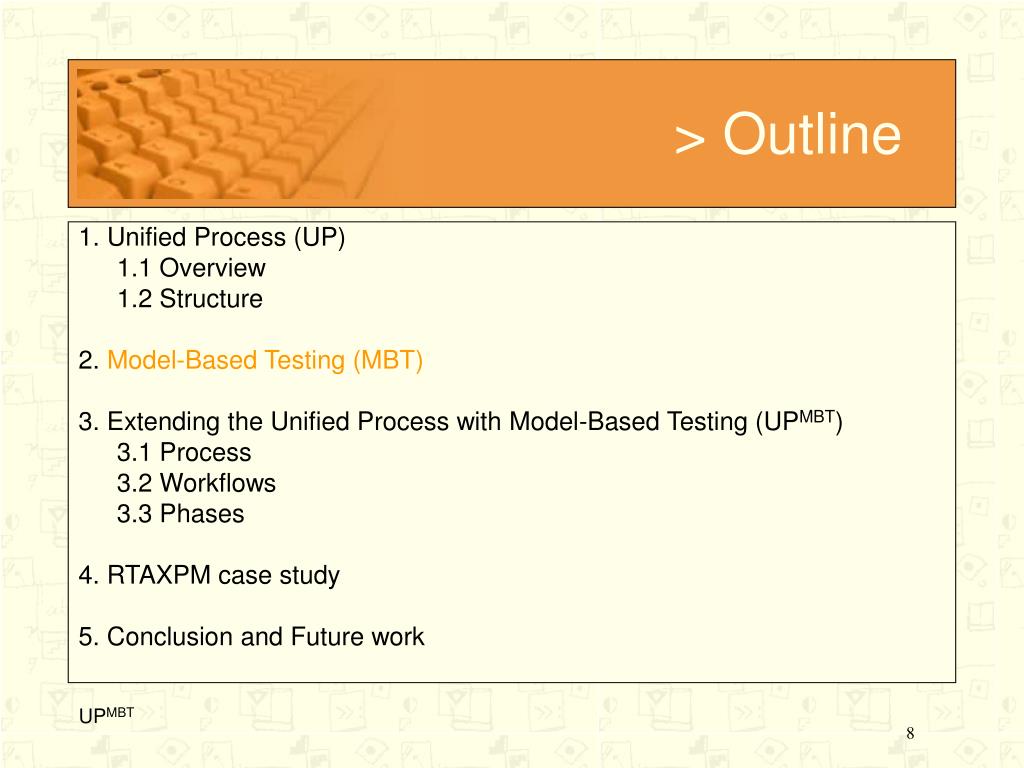

> Outline

1. Unified Process (UP)

1.1 Overview

1.2 Structure

2. Model-Based Testing (MBT)

3. Extending the Unified Process with Model-Based Testing (UPMBT)

3.1 Process

3.2 Workflows

3.3 Phases

4. RTAXPM case study

5. Conclusion and Future work

UPMBT


Mbt overview l.jpg

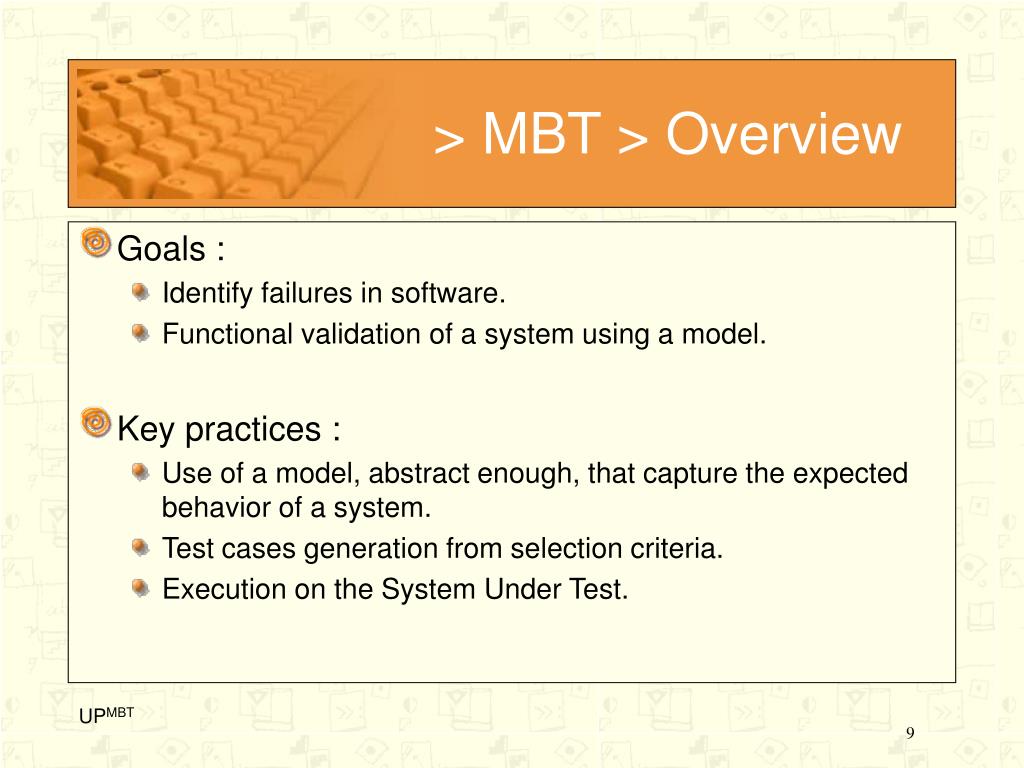

> MBT > Overview

  • Goals :

    • Identify failures in software.

    • Functional validation of a system using a model.

  • Key practices :

    • Use of a model, abstract enough, that capture the expected behavior of a system.

    • Test cases generation from selection criteria.

    • Execution on the System Under Test.

UPMBT


Slide10 l.jpg

Activities

Documents

1

Building a model

2

Defining test selection criteria

3

Generating tests

4

adapter

Setting up adapter

adapter layer

SUT

5

Executing tests

Test selection criteria

Model

Test cases

Test scripts

verdict

> MBT > Processes

UPMBT


Outline11 l.jpg
> Outline

1. Unified Process (UP)

1.1 Overview

1.2 Structure

2. Model-Based Testing (MBT)

3. Extending the Unified Process with Model-Based Testing (UPMBT)

3.1 Process

3.2 Workflows

3.3 Phases

4. RTAXPM case study

5. Conclusion and Future work

UPMBT


Up mbt process l.jpg

Use case model

Test Model

Design model

<<realize>>

<<refine>>

<<implement>>

Adaptation layer

Implementation model

<<refine>>

<<use>>

Development

Process

Validation

Analysis model

<<implement>>

Executable scripts

<<use>>

Tests generation

Validation

Process

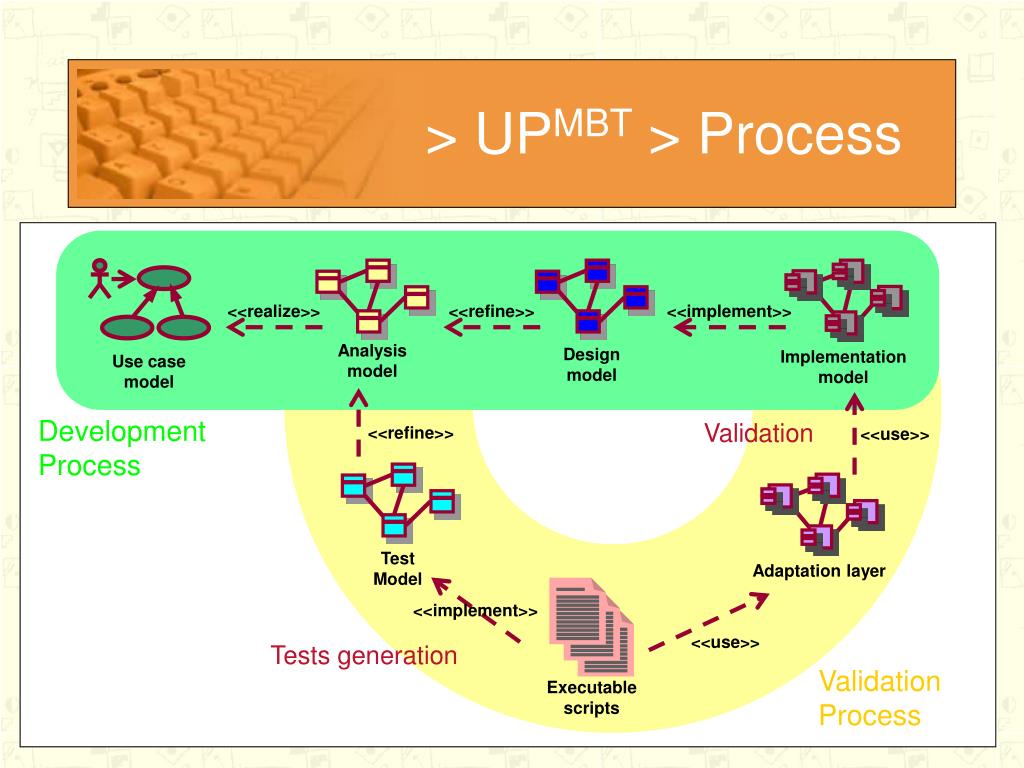

> UPMBT > Process


Up mbt workflows l.jpg
> UPMBT > Workflows

  • Design workflow :

    • Production of the test model,

    • Design and Test models are :

      • Produced in parallel,

      • Independent to ensure the quality of the generated tests.

    • Test target and selection criteria definition

      • Test Cases

UPMBT


Up mbt workflows14 l.jpg
> UPMBT > Workflows

  • Implementation workflow :

    • Production of an implementation for the design model,

    • Production of the adapter and the adaptation layer,

    • Generation of test scripts from the adapter and the test cases.

  • Test workflow :

    • Execution of tests scripts on the system.

UPMBT


Up mbt phases l.jpg
> UPMBT > Phases

  • Inception :

    • Not impacted by the approach.

  • Elaboration :

    • Production of the test model, the adapter and the adaptation layer.

    • The adaptation layer architecture should be defined.

UPMBT


Up mbt phases16 l.jpg
> UPMBT > Phases

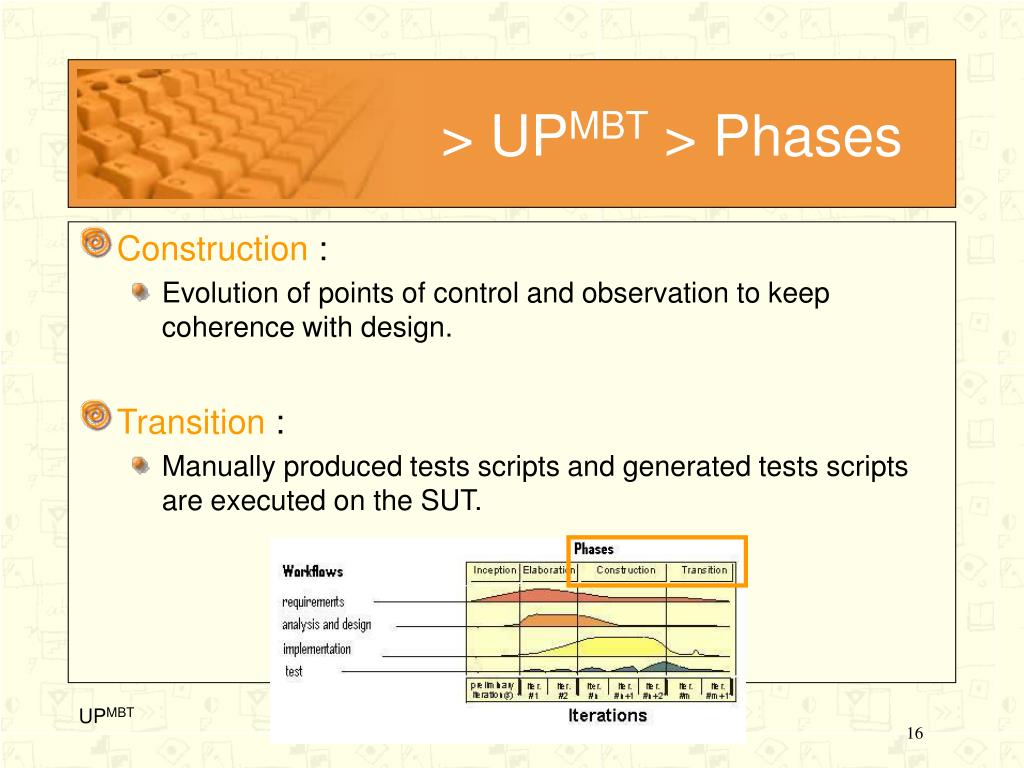

  • Construction :

    • Evolution of points of control and observation to keep coherence with design.

  • Transition :

    • Manually produced tests scripts and generated tests scripts are executed on the SUT.

UPMBT


Up mbt benefits l.jpg

Test Model

Analysis model

> UPMBT > Benefits

  • Corrections produced earlier in the process.

  • Quality improvement and better coverage of produced tests.

  • Increased productivity :

    • Automatic tests generation.

    • Functional evolutions are easy to introduce in test campaign.

    • From an incremental point of view.

Feedback

Questions

UPMBT

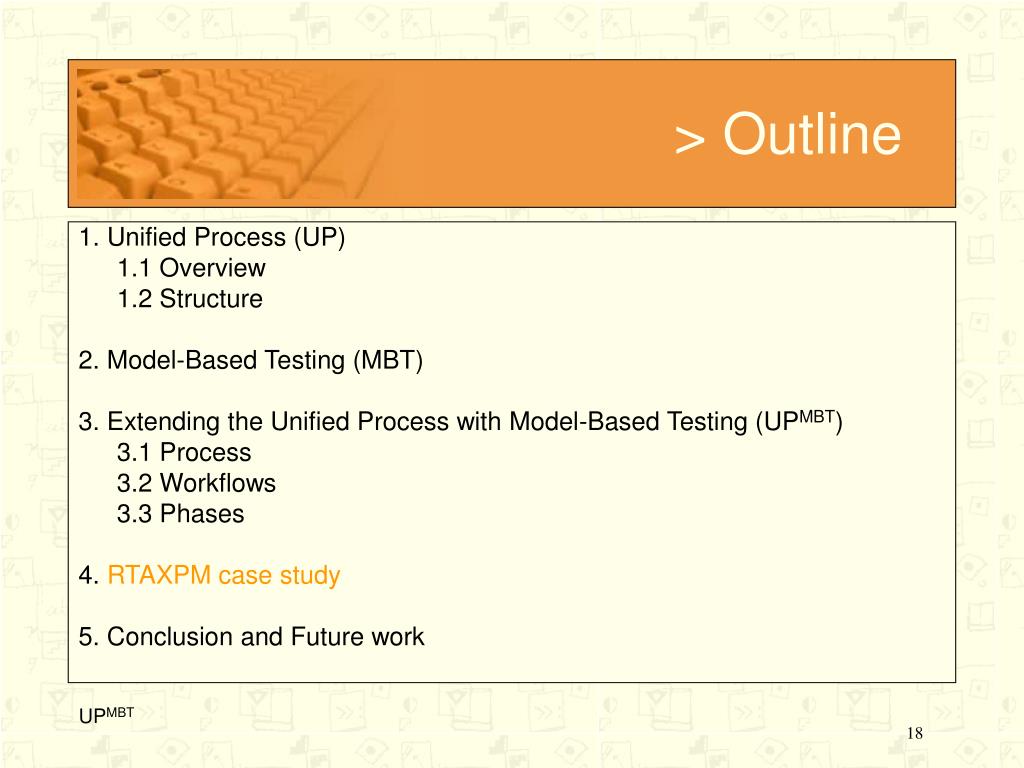

Outline18 l.jpg
> Outline

1. Unified Process (UP)

1.1 Overview

1.2 Structure

2. Model-Based Testing (MBT)

3. Extending the Unified Process with Model-Based Testing (UPMBT)

3.1 Process

3.2 Workflows

3.3 Phases

4. RTAXPM case study

5. Conclusion and Future work

UPMBT


Rtaxpm context l.jpg
> RTaxPM > Context

  • Project with the Canton of Geneva Information and Technology Center (CTI), Switzerland.

  • Good practices exist, but they are not applied systematically in every project

    • A reference UML model used to capture many project aspects, like business modeling, use cases, analysis, design...

    • Most projects perform some testing, but neither in asystematic nor uniform way.

UPMBT


Rtaxpm overview l.jpg

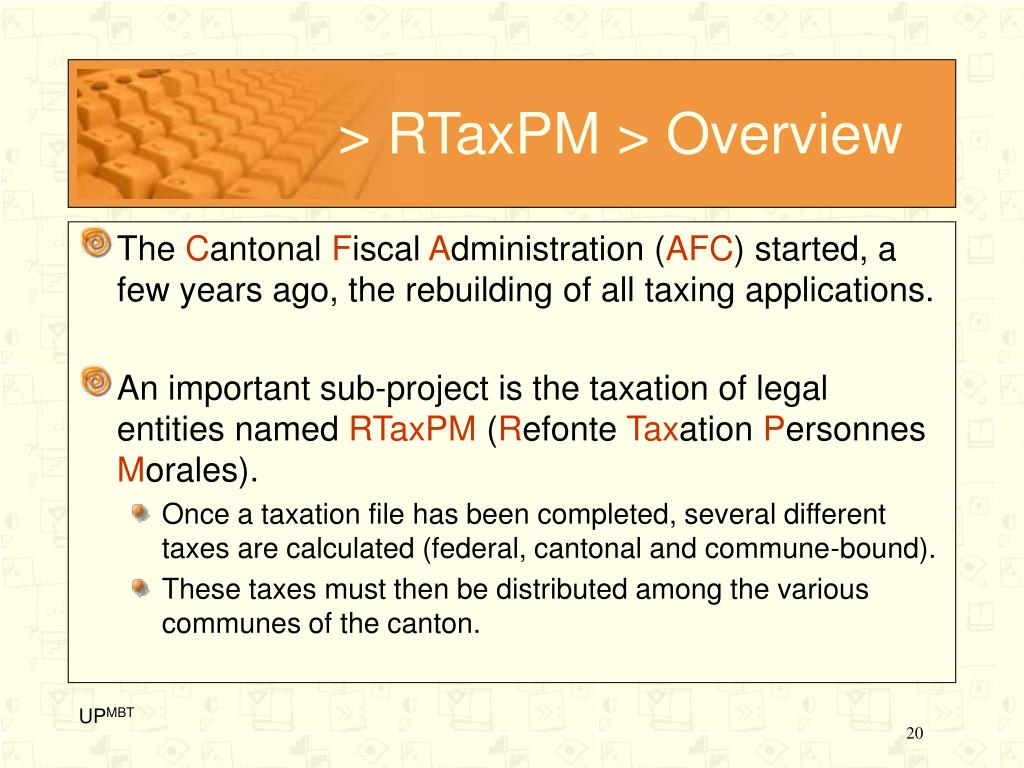

> RTaxPM > Overview

  • The Cantonal Fiscal Administration (AFC) started, a few years ago, the rebuilding of all taxing applications.

  • An important sub-project is the taxation of legal entities named RTaxPM (Refonte Taxation Personnes Morales).

    • Once a taxation file has been completed, several different taxes are calculated (federal, cantonal and commune-bound).

    • These taxes must then be distributed among the various communes of the canton.

UPMBT

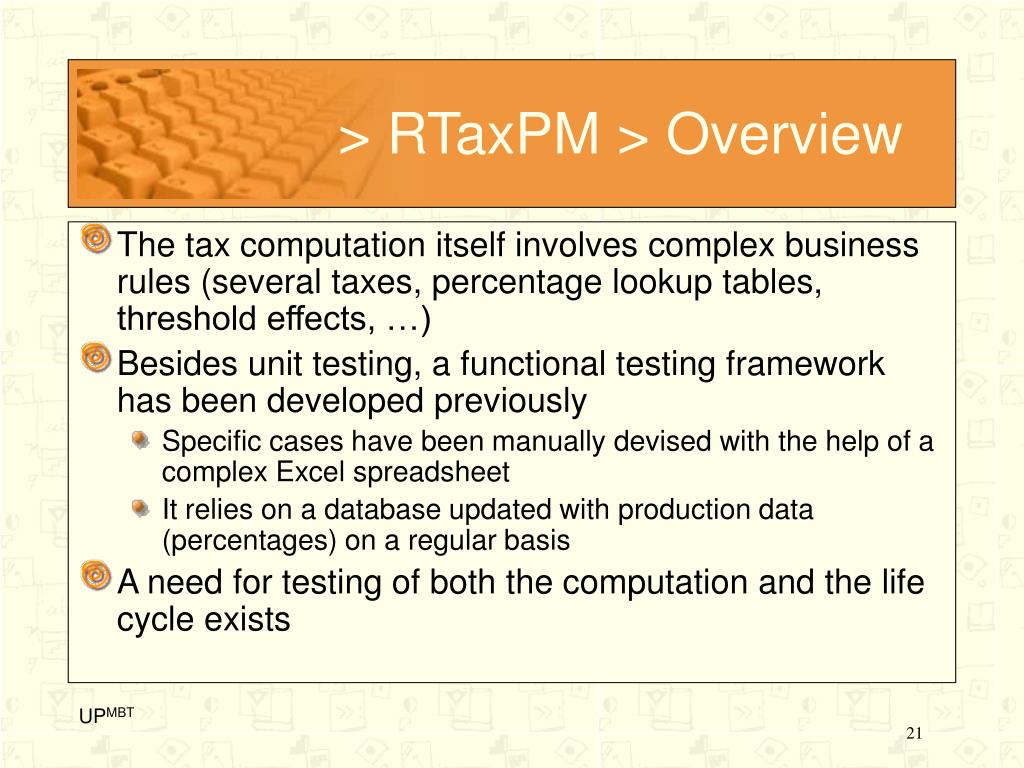

Rtaxpm overview21 l.jpg
> RTaxPM > Overview

  • The tax computation itself involves complex business rules (several taxes, percentage lookup tables, threshold effects, …)

  • Besides unit testing, a functional testing framework has been developed previously

    • Specific cases have been manually devised with the help of a complex Excel spreadsheet

    • It relies on a database updated with production data (percentages) on a regular basis

  • A need for testing of both the computation and the life cycle exists

UPMBT

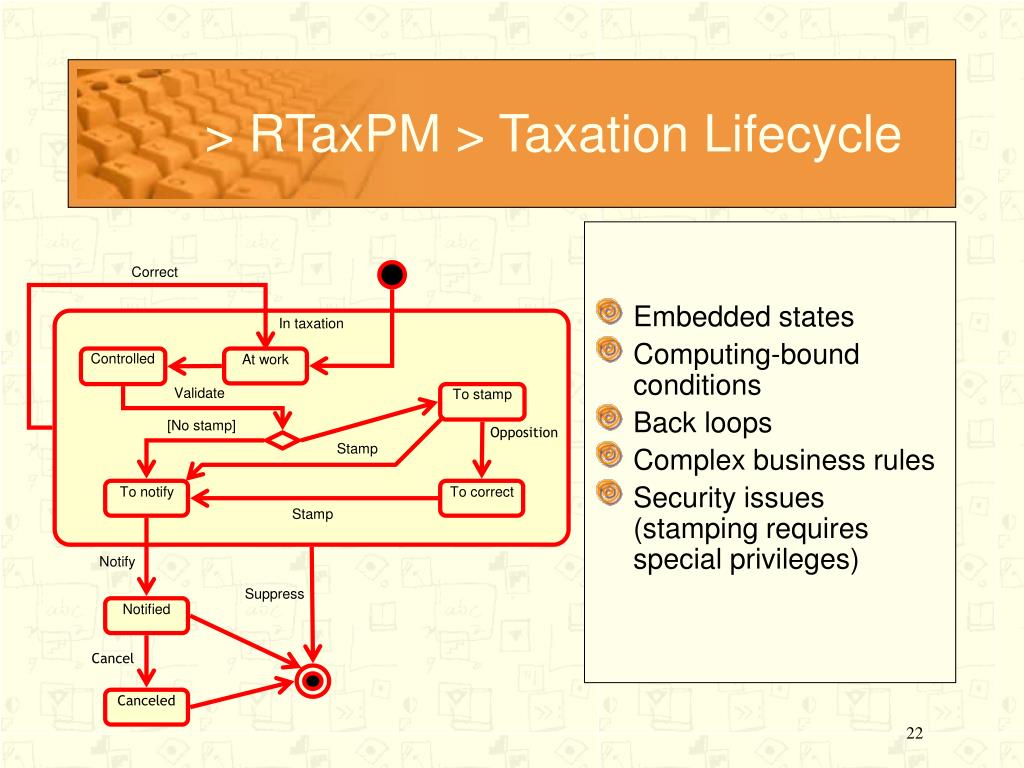

Rtaxpm taxation lifecycle l.jpg

Embedded states

Computing-bound conditions

Back loops

Complex business rules

Security issues (stamping requires special privileges)

In taxation

Controlled

To stamp

To correct

Canceled

To notify

Notified

At work

Correct

Validate

[No stamp]

Opposition

Stamp

Notify

Suppress

Cancel

> RTaxPM > Taxation Lifecycle

Stamp


Rtaxpm lifecycle for mbt l.jpg

Correct

In taxation

To stamp

Controlled

Canceled

To correct

At work

To notify

Notified

Creation

Login( taxer)

Logout( taxer)

Check

Login( group leader)

Validate

[taxer.allow_stamp=true or taxation.stamp_needed=false]

Taxer logged out

Taxer logged in

Group leader logged in

[taxer.allow_stamp=false and taxation.stamp_needed=true]

Opposition

Stamp

Stamp

Notify

Suppress

Cancel

> RTaxPM > Lifecycle for MBT


Rtaxpm generated test cases l.jpg

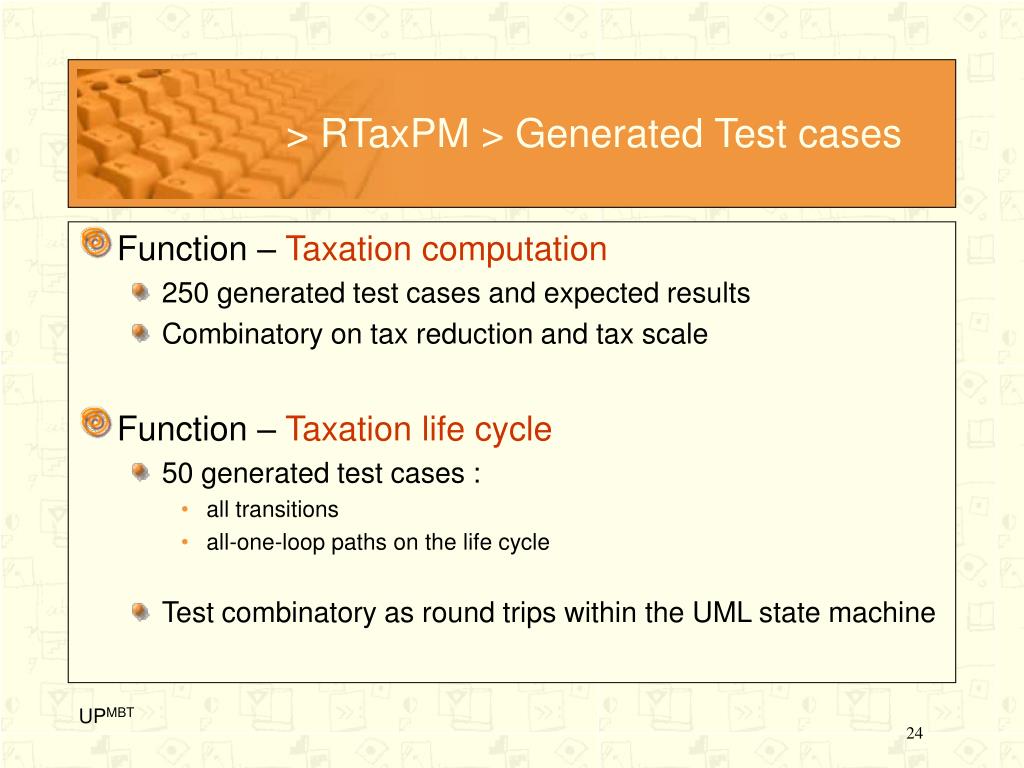

> RTaxPM > Generated Test cases

  • Function – Taxation computation

    • 250 generated test cases and expected results

    • Combinatory on tax reduction and tax scale

  • Function – Taxation life cycle

    • 50 generated test cases :

      • all transitions

      • all-one-loop paths on the life cycle

    • Test combinatory as round trips within the UML state machine

UPMBT


Rtaxpm tests execution l.jpg
> RTaxPM > Tests execution

  • Use a XML framework with JUnit to execute generated test cases


Outline26 l.jpg

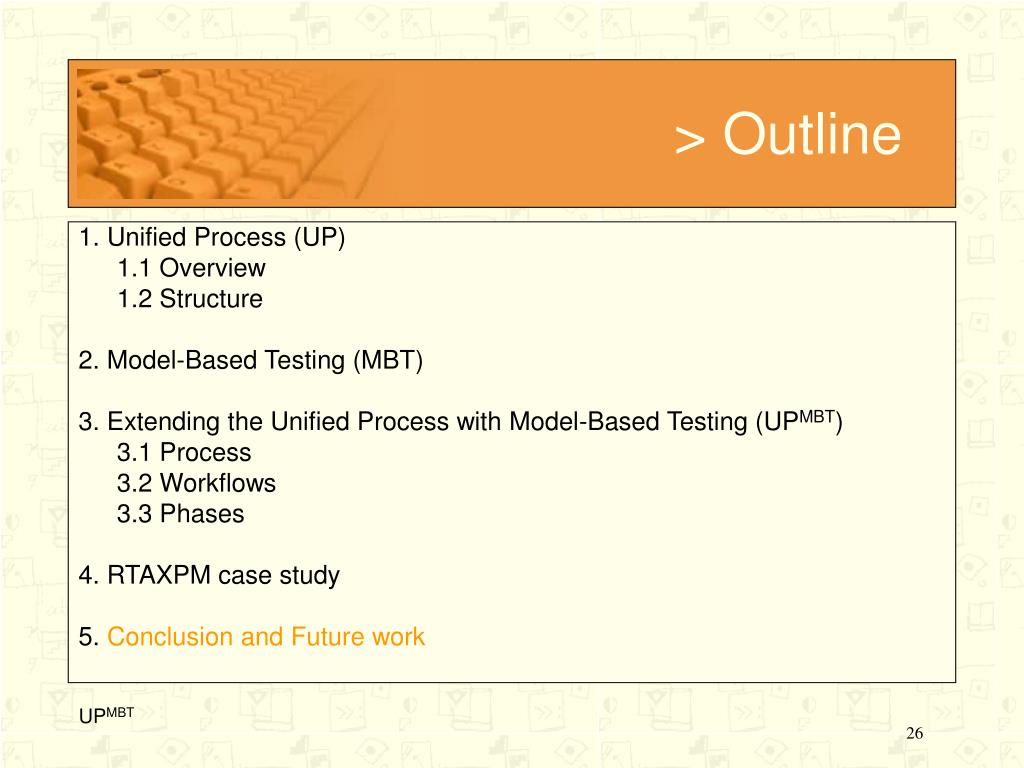

> Outline

1. Unified Process (UP)

1.1 Overview

1.2 Structure

2. Model-Based Testing (MBT)

3. Extending the Unified Process with Model-Based Testing (UPMBT)

3.1 Process

3.2 Workflows

3.3 Phases

4. RTAXPM case study

5. Conclusion and Future work

UPMBT


Conclusion l.jpg
> Conclusion

  • This first experimentation is a success for the CTI and UPMBT

  • Integration of MBT into a SEP :

    • Can accelerate its adoption.

    • Reduce the risk of incoherence between design and test model.

    • Give permanent feedback from the test model to the analysis model.

    • Don’t start from scratch but use the analysis model to derive the test model.

  • UPMBT can be used with any tools supporting UP

UPMBT

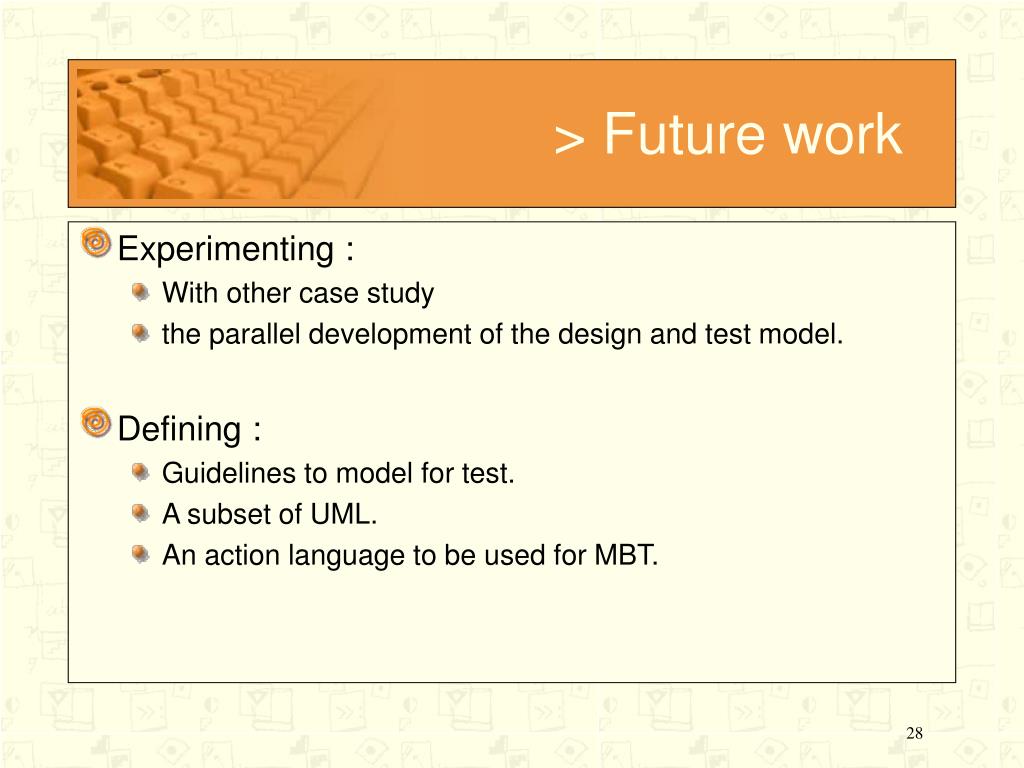

Future work l.jpg
> Future work

  • Experimenting :

    • With other case study

    • the parallel development of the design and test model.

  • Defining :

    • Guidelines to model for test.

    • A subset of UML.

    • An action language to be used for MBT.
