Presentation Transcript


Slide1 l.jpg

Paper Review of Why Events Are A Bad Idea(for high-concurrency servers)Rob von Behren, Jeremy Condit and Eric Brewer

By Anandhi Sundaram


The stage l.jpg

THE STAGE

  • Highly Concurrent Applications

    • Internet Servers

    • Transaction Processing Databases

  • Challenges Posed

    • Large numbers of Concurrent tasks, require scalable Data Structures

    • Operate near max capacity, Resource Contention, Scheduling Sensitivity

    • Inevitable Overload, must be handled to avoid thrashing, well-conditioned

    • Race Conditions, Code Complexity

Ideal

Peak: some resource at max

Performance

Overload: someresource thrashing

Load (concurrent tasks)

CS533 - Concepts of Operating Systems


Events are better l.jpg

Events are Better

  • Recent Arguments for Events

    • Inexpensive synchronization due to co-operative multitasking

    • Lower Overhead for managing state (no stacks)

    • Better scheduling and locality

    • More Flexible Control Flow

  • True But

    • All above properties can be implemented in Threads

    • Problem is with Thread Implementations, and not Threads

CS533 - Concepts of Operating Systems


Overcoming the problems with threads l.jpg

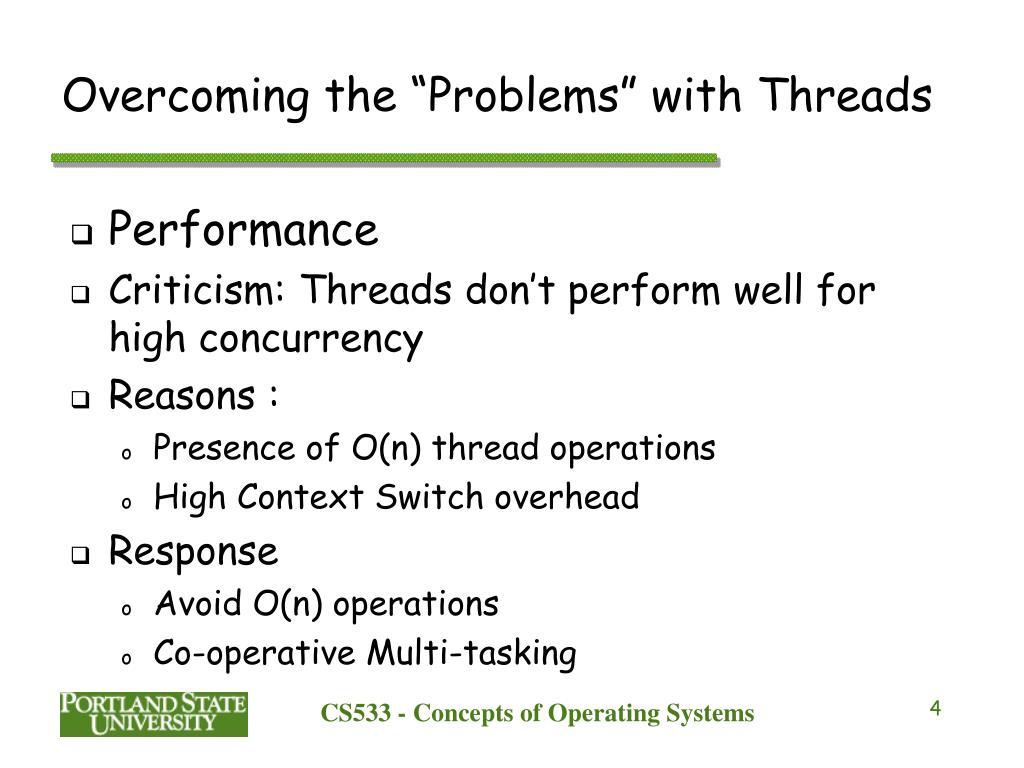

Overcoming the “Problems” with Threads

  • Performance

  • Criticism: Threads don’t perform well for high concurrency

  • Reasons :

    • Presence of O(n) thread operations

    • High Context Switch overhead

  • Response

    • Avoid O(n) operations

    • Co-operative Multi-tasking

CS533 - Concepts of Operating Systems


Simple scalability test l.jpg

Simple Scalability Test

  • Slightly modified GNU Pth

  • Removed O(n) operations from scheduler

  • Thread-per-task Vs Single Thread

  • Same Performance

CS533 - Concepts of Operating Systems


Overcoming the problems with threads6 l.jpg

Overcoming the “Problems” with Threads

  • Control Flow

  • Criticism: Threads have restrictive Control flow

  • Response: Code Structure of Web Server and applications fall under three simple categories

    - call/return

    - Parallel Calls

    - Pipeline

    Threads express the above more

    naturally

    Complex Patterns are unnatural,

    hard to understand, Error-prone

CS533 - Concepts of Operating Systems


Overcoming the problems with threads7 l.jpg

Overcoming the “Problems” with Threads

  • Synchronization

  • Criticism: Thread Synchronization mechanisms are too heavyweight

  • Response :

    • Co-operative Multitasking works for threads too

    • Compiler Support in MultiProcessor Systems

CS533 - Concepts of Operating Systems


Slide8 l.jpg

Overcoming the “Problems” with Threads

  • State Management

  • Criticism: Thread Stacks are an ineffective way to manage live state

  • Response :

    • Compiler support for Dynamic Stack Growth

    • Compiler support for better Live State Management

      • Entire frame could be popped in case of tail call

      • Variables with overlapping lifetimes could be moved off stack

    • Compiler warns about inefficiency

CS533 - Concepts of Operating Systems


Slide9 l.jpg

Overcoming the “Problems” with Threads

  • Scheduling

  • Criticism: Thread schedulers are too generic

    • Can’t use application-specific information

  • Response

    • 2D scheduling: task & program location

      • Threads schedule based on task only

      • Events schedule by location (e.g. SEDA)

        • Allows batching, prediction for SRCT

    • Resource Aware Scheduling in Capriccio

      • Runtime system tracks current location

      • Block graph allows prediction

Task

Program Location

Events

Threads

CS533 - Concepts of Operating Systems


Slide10 l.jpg

The Case For Threads

  • Observations About Modern Servers

    • Concurrent Requests are Largely Independent

    • Code handling each request is Sequential

  • Threads – A more Natural Programming Model

    • Express Better Control Flow

    • Automatic State Management

    • Exception Handling Easier in Threads

CS533 - Concepts of Operating Systems


The case for threads l.jpg

The Case for Threads

  • Lots of Infrastructure for Threads

    • Debuggers, Languages, Compilers

  • Consequences

    • More amenable to Analysis

    • Less effort to get working systems

CS533 - Concepts of Operating Systems


The duality argument l.jpg

The Duality Argument

  • Two Models are Duals of Each other

  • With Good Practices both approaches should yield equivalent performance

    • No inherent problem with threads!

    • Equivalent Good Thread implementations possible

  • Thread-based approach is preferrable

    • More natural Programming Model

    • Co-operative multitasking threads

    • Compiler Support

CS533 - Concepts of Operating Systems


Evaluation l.jpg

Evaluation

  • User-level cooperative threads package

    • Minimal context switching

    • Converts Blocking I/O to Asynchronous I/O

    • No O(n) operations

    • Support > 100K threads

  • Simple web server: Knot

  • Knot-A : Favors accepting new clients over processing

  • Knot-C : Favors processing existing clients over accepting new clients

CS533 - Concepts of Operating Systems


Slide14 l.jpg

900

800

KnotC (Favor Connections)

KnotA (Favor Accept)

700

Haboob

Mbits / second

600

500

400

300

200

100

0

1

4

16

64

256

1024

4096

16384

Concurrent Clients

Evaluation

  • Compared performance of Haboob with Knot-A, Knot-C

  • The Steady-state bandwidth of

  • Knot-C higher than Haboob

  • Performance degradation of Knot-A, Haboob is due to poor scalability of poll()

  • Haboob ran out of memory with 16384 clients

CS533 - Concepts of Operating Systems


Evaluation15 l.jpg

Evaluation

  • Reasons for Haboob’s Poor Performance

    • Haboob’s context switches 6X times as Knot

    • Large number of queueing operations

    • Relies heavily on garbage collection

    • Ambiguous control flow, reduces compiler optimization, increases CPU-stalls

      Conclusion :

      A well-designed thread package can achieve

      the same scaling behaviour as a well-designed

      event system.

CS533 - Concepts of Operating Systems


References l.jpg

References

  • 1. Why Events are a Bad Idea (for high-concurrency servers), Rob von Behren, Jeremy Condit, and Eric Brewer. In Proceedings of the 10th Workshop on Hot Topics in Operating Systems (HotOS IX), Lihue, Hawaii, May 2003. [pdf]

    http://warthog.cs.berkeley.edu/pubs/threads_hotos_2003_slides.ppt

  • 2. On the Duality of Operating System Structures, Hugh C.Lauer, Roger M.Needham

  • 3. Event Driven Programming for Robust Software, Frank Dabek, Nickolai Zeldovich, Frans Kaashoek, David Mazieres, Robert Morris

  • 4. SEDA: An Architecture for Well-Conditioned, Scalable Internet Services, Matt Welsh, David Culler, and Eric Brewer

  • 5. Capriccio: Scalable Threads for Internet Services, Rob von Behren, Jeremy Condit, Feng Zhou, George C. Necula, and Eric Brewer. In Proceedings of the Ninteenth Symposium on Operating System Principles (SOSP-19), Lake George, New York. October 2003

    http://warthog.cs.berkeley.edu/pubs/capriccio-sosp-2003.pdf

CS533 - Concepts of Operating Systems


References17 l.jpg

References

  • GNU Pth – The GNU Portable Threads http://www.gnu.org/software/pth
