Presentation Transcript
Improving forensic identification in bayesian networks accounting for population substructure l.jpg

Improving Forensic Identification in Bayesian Networks :Accounting for Population Substructure

Amanda B. Hepler


Outline l.jpg
Outline

  • Population Substructure (PS)

  • Bayesian Networks

    • Introduction

    • Incorporating PS into Paternity Networks

    • Example


What is population substructure l.jpg
What Is Population Substructure?

  • Any deviation from random mating

  • Commonly due to geographical subdivision

  • Mating pairs often have remote relatives in common

  • Inbreeding coefficient ():

    - measures the extent of common ancestry


Why should we account for ps l.jpg
Why Should We Account for PS?

  • Ignoring PS “would unfairly overstate the strength of the evidence against the defendant.” (Balding & Nichols, 1995)

  • “If the allele frequencies for the subgroup are not available…[forensic] calculations should use the population-structure equations.” (1996 NRC Report)


Assumptions l.jpg
Assumptions

  • Population allele frequencies are known

  • Inbreeding coefficient is known

  • Loci are independent

  • Within a subpopulation:

    • Mating is random

    • Migration and mutation events independent and constant


What is a bayesian network bn l.jpg

Graphical Portion

Hair Color

Eye Color

Red

0.5

Hair Color:

Red

Brown

Numerical Portion

Brown

0.5

Blue

0.2

0.9

Green

0.8

0.1

What is a Bayesian Network (BN)?

  • A graphical model that expresses probabilistic relationships among variables or events1

  • HUGIN used to create BNs, free version available at http://www.hugin.dk


Why use bayesian networks l.jpg
Why Use Bayesian Networks?

BNs provide:

  • Simple representations of complex problems

  • Automation of complex algebraic manipulations

  • Communication aide


Notation for paternity case l.jpg
Notation for Paternity Case

  • M = mother, C = child, PF = putative father

  • Hp: PF is the father of CHd: Some other man is the father of C

  • Likelihood ratio, or paternity index (PI):

  • Interpretation: “The evidence is PI times more probable if PF is the father of C than if some other man is the father.”


Genotype and allele nodes l.jpg

Genotype Nodes(A1A1, A1A2, A2A2)

Mother

Putative Father

Allele/Gene Nodes(A1, A2)

Child

Genotype and Allele Nodes

  • One locus, two alleles: A1and A2

  • Observe genotypes of M, C, and PF


Probability tables for genotype and allele nodes l.jpg

PF’s Maternal Gene

PF’s Paternal Gene

PF’s Genotype

Probability Tables for Genotype and Allele Nodes


Original paternity network 2 l.jpg

Hypothesis Node (Yes, No)

Original Paternity Network2

  • A.P. Dawid, J. Mortera, V.L. Pascali, and D. Van Boxel. Probabilistic expert systems for forensic inference from genetic markers. Scandinavian Journal of Statistics, 29:577-595. 2002.


Accounting for population substructure l.jpg
Accounting for Population Substructure

  • Probability of allele Aidepends on how many Aialready observed

  • Modified allele frequencies3:

  • pi = frequency of the ith allele in the pop’n

  • ni = number of observed alleles of type Ai

  • n = total number of alleles observed

  • D.J. Balding and R.A. Nichols. DNA profile match probability calculation. Forensic Science International, 64(2-3):125-140, 1994.


New network nodes l.jpg
New Network Nodes

  •  : p1:

  • Keep track of founder genes:

  • Counting nodes:

    is the value of n1 after founder 2

    is the value of n1 after founder 3, etc.





New probability table l.jpg
New Probability Table

now depends on


Paternity calculations by hand l.jpg
Paternity Calculations By Hand

  • θ = 0.03, p1 = 0.10

  • M = A1A1, C = A1A1, PF = A1A2

  • PIfor this case4:

  • I.W. Evett and B.S. Weir. Interpreting DNA Evidence. Sinauer, Sunderland,MA., 1998.


Paternity calculations using hugin l.jpg
Paternity Calculations Using HUGIN

This same result can be obtained using HUGIN:


Effect of introducing l.jpg
Effect of Introducing θ

  • Assume no population substructure (θ = 0):

  • 2.91 more “conservative” than 5.00


Other examples considered l.jpg

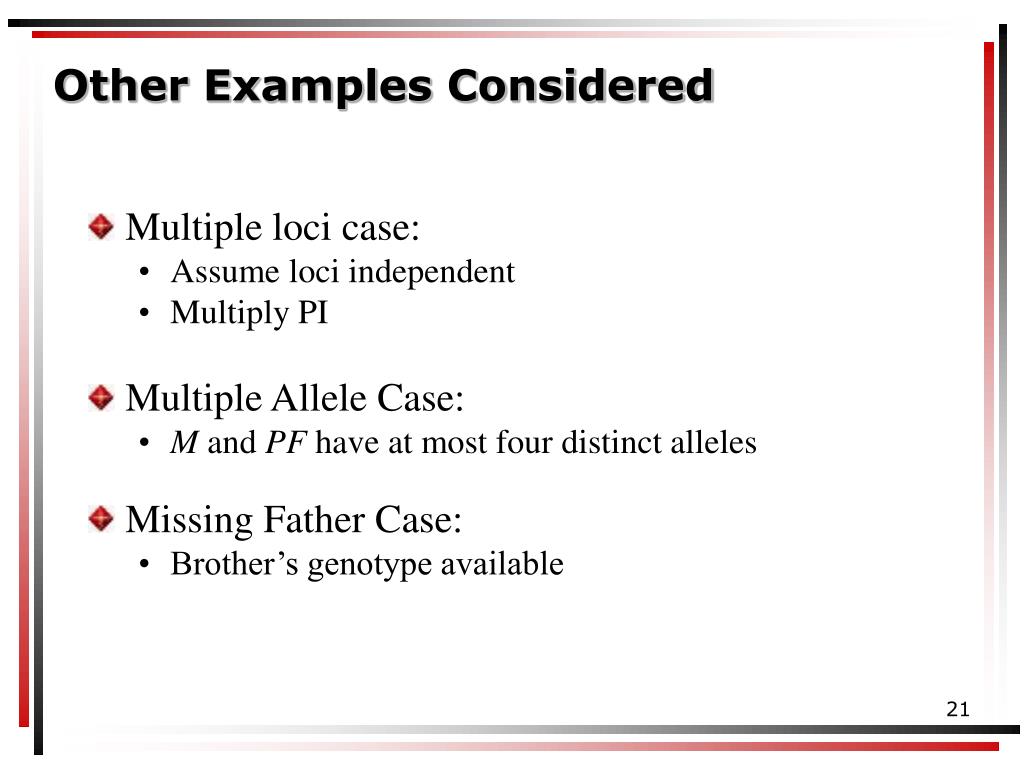

Other Examples Considered

  • Multiple loci case:

    • Assume loci independent

    • Multiply PI

  • Multiple Allele Case:

    • M and PF have at most four distinct alleles

  • Missing Father Case:

    • Brother’s genotype available


Areas for future research l.jpg

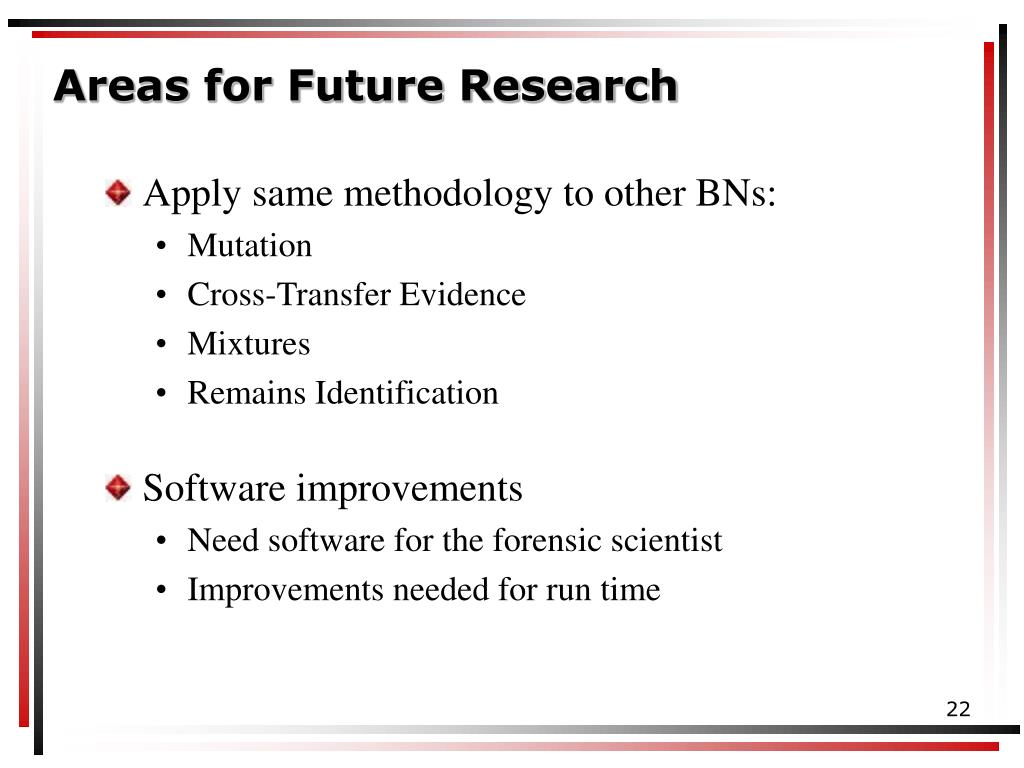

Areas for Future Research

  • Apply same methodology to other BNs:

    • Mutation

    • Cross-Transfer Evidence

    • Mixtures

    • Remains Identification

  • Software improvements

    • Need software for the forensic scientist

    • Improvements needed for run time
