High performance computing course notes 2007 2008 message passing programming i l.jpg

High Performance ComputingCourse Notes 2007-2008Message Passing Programming I


Message passing programming l.jpg

Message Passing Programming

  • Message Passing is the most widely used parallel programming model

  • Message passing works by creating a number of tasks, uniquely named, that interact by sending and receiving messages to and from one another (hence the message passing)

    • Generally, processes communicate through sending the data from the address space of one process to that of another

      • Communication of processes (via files, pipe, socket)

      • Communication of threads within a process (via global data area)

  • Programs based on message passing can be based on standard sequential language programs (C/C++, Fortran), augmented with calls to library functions for sending and receiving messages


Message passing interface mpi l.jpg

Message Passing Interface (MPI)

  • MPI is a specification, not a particular implementation

    • Does not specify process startup, error codes, amount of system buffer, etc

  • MPI is a library, not a language

  • The goals of MPI: functionality, portability and efficiency

  • Message passing model > MPI specification > MPI implementation


Openmp vs mpi l.jpg

OpenMP vs MPI

  • In a nutshell

    MPI is used on distributed-memory systems

    OpenMP is used for code parallelisation on shared-memory systems

    • Both are explicit parallelism

    • High-level control (OpenMP), lower-level control (MPI)


A little history l.jpg

A little history

  • Message-passing libraries developed for a number of early distributed memory computers

  • By 1993 there were loads of vendor specific implementations

  • By 1994 MPI-1 came into being

  • By 1996 MPI-2 was finalized


The mpi programming model l.jpg

The MPI programming model

  • MPI standards -

    • MPI-1 (1.1, 1.2), MPI-2 (2.0)

    • Forwards compatibility preserved between versions

  • Standard bindings - for C, C++ and Fortran. Have seen MPI bindings for Python, Java etc (all non-standard)

  • We will stick to the C binding, for the lectures and coursework. More info on MPI www.mpi-forum.org

  • Implementations - For your laptop pick up MPICH (free portable implementation of MPI (http://www-unix.mcs.anl. gov/mpi/mpich/index.htm)

  • Coursework will use MPICH


Slide7 l.jpg

MPI

  • MPI is a complex system comprising of 129 functions with numerous parameters and variants

  • Six of them are indispensable, but can write a large number of useful programs already

  • Other functions add flexibility (datatype), robustness (non-blocking send/receive), efficiency (ready-mode communication), modularity (communicators, groups) or convenience (collective operations, topology).

  • In the lectures, we are going to cover most commonly encountered functions

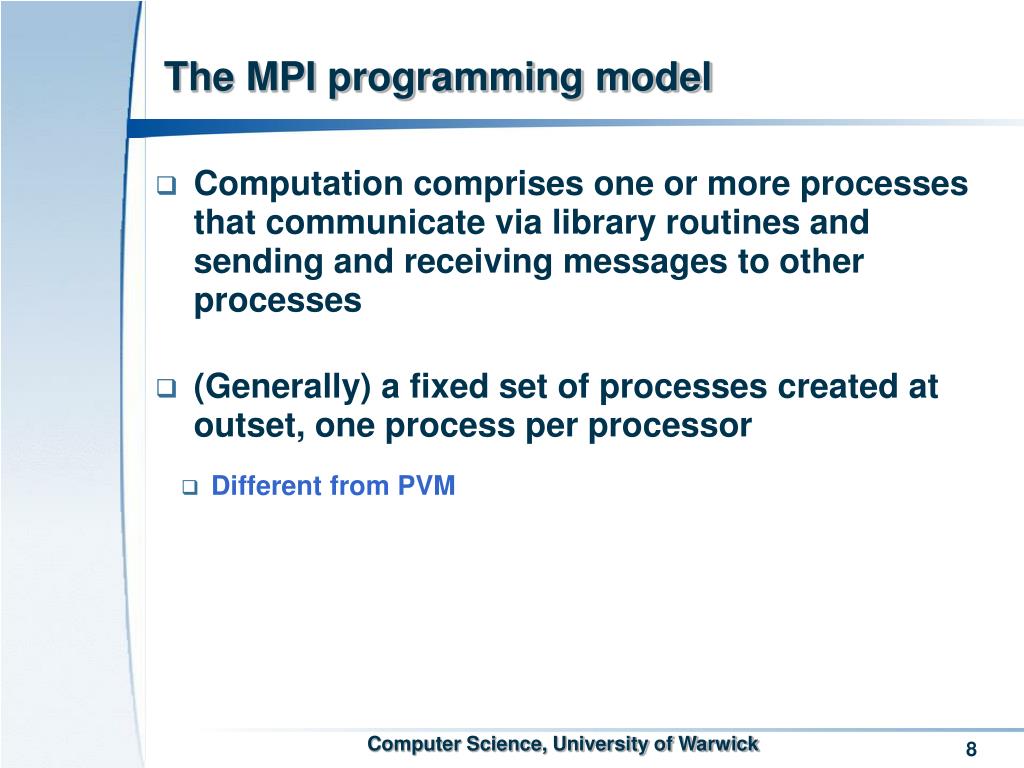

The mpi programming model8 l.jpg

The MPI programming model

  • Computation comprises one or more processes that communicate via library routines and sending and receiving messages to other processes

  • (Generally) a fixed set of processes created at outset, one process per processor

    • Different from PVM


Intuitive interfaces for sending and receiving messages l.jpg

Intuitive Interfaces for sending and receiving messages

  • Send(data, destination), Receive(data, source)

    • minimal interface

  • Not enough in some situations, we also need

    • Message matching – add message_id at both send and receive interfaces

    • they become Send(data, destination, msg_id), receive(data, source, msg_id)

    • Message_id

      • Is expressed using an integer, termed as message tag

      • Allows the programmer to deal with the arrival of messages in an orderly fashion (queue and then deal with


How to express the data in the send receive interfaces l.jpg

How to express the data in the send/receive interfaces

  • Early stages:

    • (address, length) for the send interface

    • (address, max_length) for the receive interface

  • They are not always good

    • The data to be sent may not be in the contiguous memory locations

    • Storing format for data may not be the same or known in advance in heterogeneous platform

  • Enventually, a triple (address, count, datatype) is used to express the data to be sent and (address, max_count, datatype) for the data to be received

    • Reflecting the fact that a message contains much more structures than just a string of bits, For example, (vector_A, 300, MPI_REAL)

    • Programmers can construct their own datatype

  • Now, the interfaces become send(address, count, datatype, destination, msg_id) and receive(address, max_count, datatype, source, msg_id)

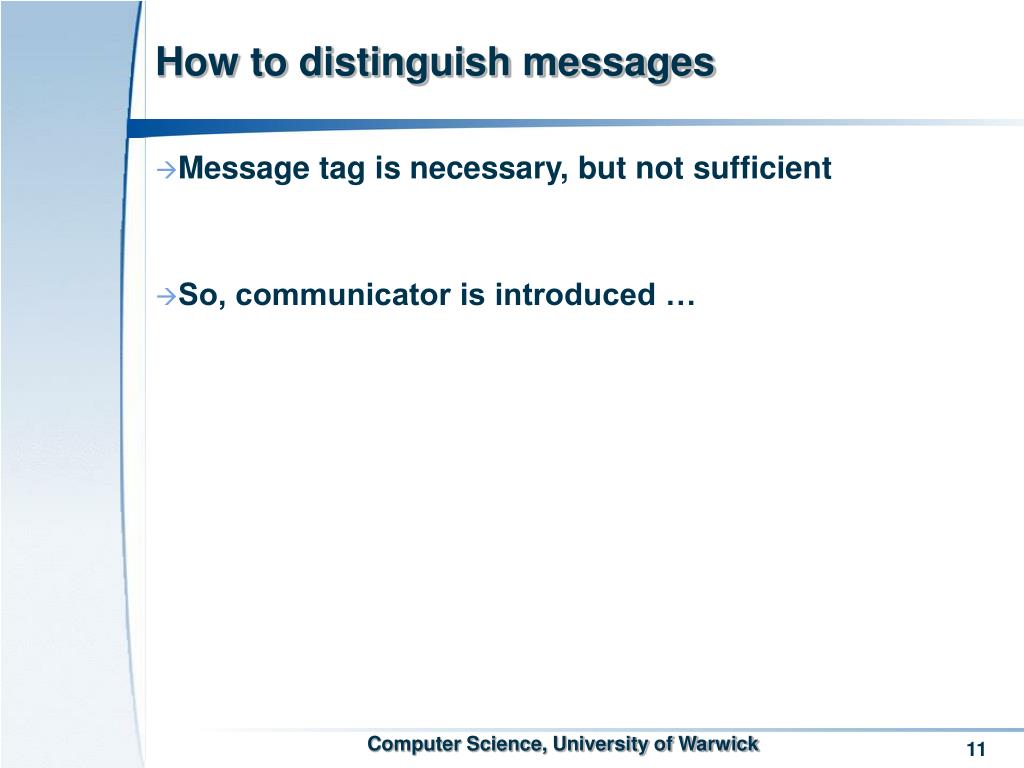

How to distinguish messages l.jpg

How to distinguish messages

  • Message tag is necessary, but not sufficient

  • So, communicator is introduced …


Communicators l.jpg

Communicators

  • Messages are put into contexts

    • Contexts are allocated at run time by the system in response to programmer requests

    • The system can guarantee that each generated context is unique

  • The processes belong to groups

  • The notions of context and group are combined in a single object, which is called a communicator

    • A communicator identifies a group of processes and a communication context

    • The MPI library defines a initial communicator, MPI_COMM_WORLD, which contains all the processes running in the system

    • The messages from different process groups can have the same tag

  • So the send interface becomes send(address, count, datatype, destination, tag, comm)


Status of the received messages l.jpg

Status of the received messages

  • The structure of the message status is added to the receive interface

  • Status holds the information about source, tag and actual message size

    • In the C language, source can be retrieved by accessing status.MPI_SOURCE,

    • tag can be retrieved by status.MPI_TAG and

    • actual message size can be retrieved by calling the function MPI_Get_count(&status, datatype, &count)

  • The receive interface becomes receive(address, maxcount, datatype, source, tag, communicator, status)


How to express source and destination l.jpg

How to express source and destination

  • The processes in a communicator (group) are identified by ranks

  • If a communicator contains n processes, process ranks are integers from 0 to n-1

  • Source and destination processes in the send/receive interface are the ranks


Some other issues l.jpg

Some other issues

  • In the receive interface, tag can be a wildcard, which means any message will be received

  • In the receive interface, source can also be a wildcard, which match any source

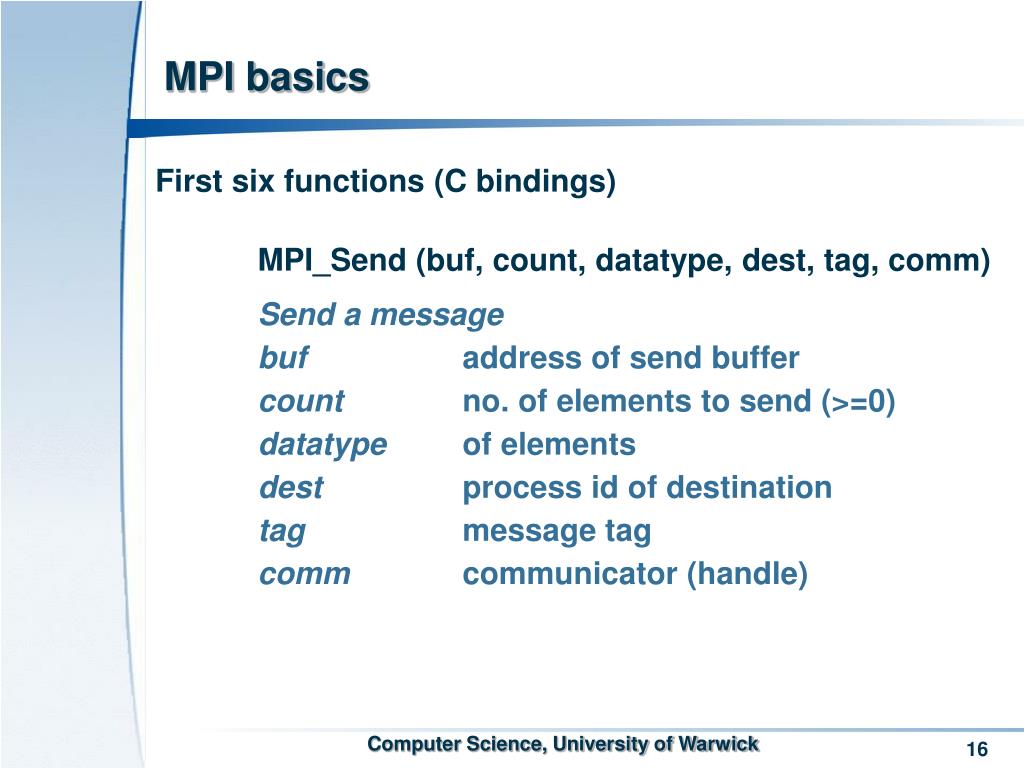

Mpi basics l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Send (buf, count, datatype, dest, tag, comm)

  • Send a message

  • buf address of send buffer

  • countno. of elements to send (>=0)

  • datatype of elements

  • destprocess id of destination

  • tagmessage tag

  • commcommunicator (handle)


Mpi basics17 l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Send (buf, count, datatype, dest, tag, comm)

  • Send a message

  • buf address of send buffer

  • countno. of elements to send (>=0)

  • datatype of elements

  • destprocess id of destination

  • tagmessage tag

  • commcommunicator (handle)

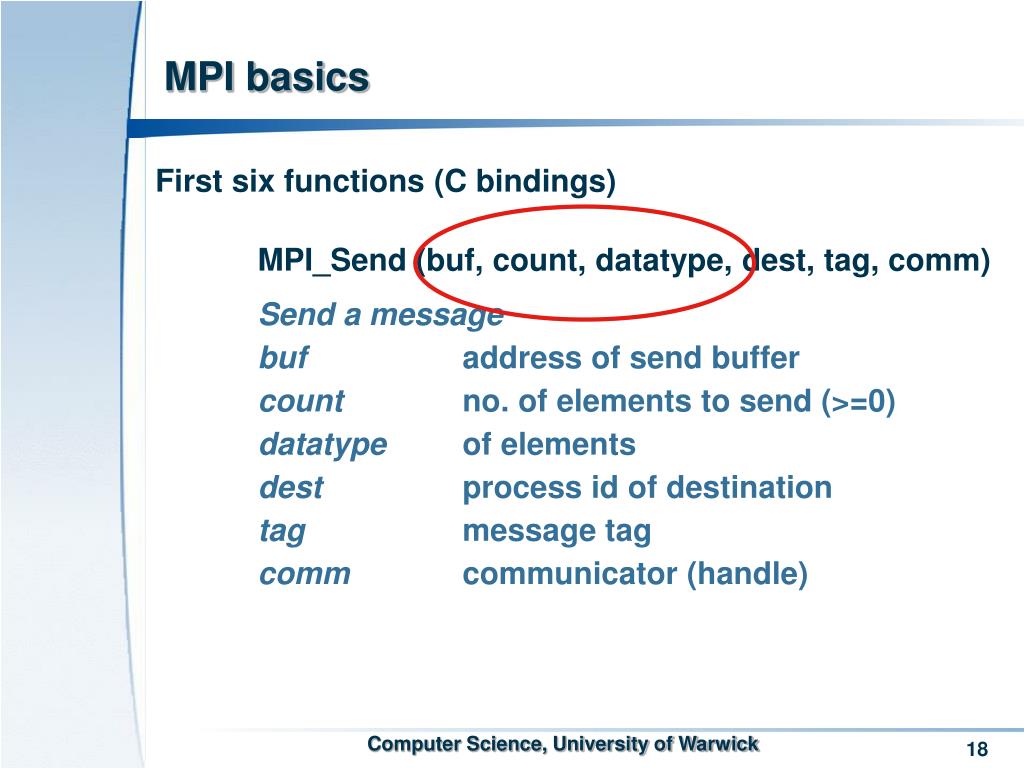

Mpi basics18 l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Send (buf, count, datatype, dest, tag, comm)

  • Send a message

  • buf address of send buffer

  • countno. of elements to send (>=0)

  • datatype of elements

  • destprocess id of destination

  • tagmessage tag

  • commcommunicator (handle)


Mpi basics19 l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Send (buf, count, datatype, dest, tag, comm)

  • Calculating the size of the data to be send …

  • buf address of send buffer

  • count* sizeof (datatype) bytes of data

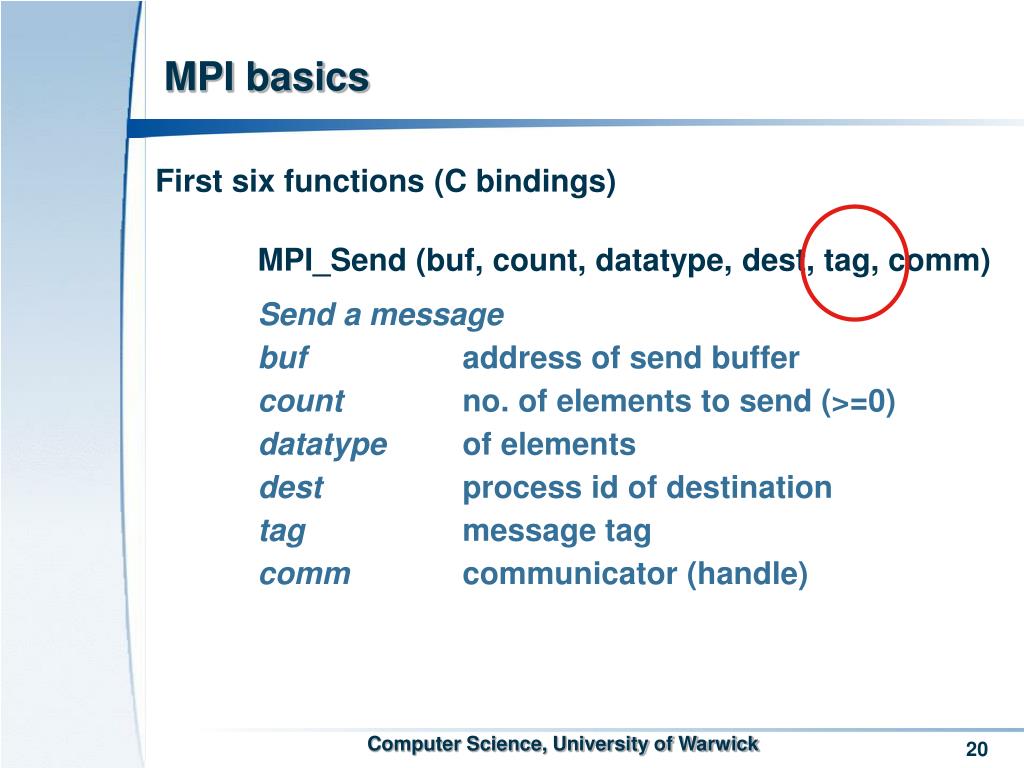

Mpi basics20 l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Send (buf, count, datatype, dest, tag, comm)

  • Send a message

  • buf address of send buffer

  • countno. of elements to send (>=0)

  • datatype of elements

  • destprocess id of destination

  • tagmessage tag

  • commcommunicator (handle)


Mpi basics21 l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Send (buf, count, datatype, dest, tag, comm)

  • Send a message

  • buf address of send buffer

  • countno. of elements to send (>=0)

  • datatype of elements

  • destprocess id of destination

  • tagmessage tag

  • commcommunicator (handle)


Mpi basics22 l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Recv (buf, count, datatype, source, tag, comm, status)

  • Receive a message

  • buf address of receive buffer (var param)

  • countmax no. of elements in receive buffer (>=0)

  • datatype of receive buffer elements

  • sourceprocess id of source process, or MPI_ANY_SOURCE

  • tagmessage tag, or MPI_ANY_TAG

  • commcommunicator

  • statusstatus object


Mpi basics23 l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Init (int *argc, char ***argv)

  • Initiate a computation

  • argc (number of arguments) and argv (argument vector) are main program’s arguments

  • Must be called first, and once per process

  • MPI_Finalize ( )

  • Shut down a computation

  • The last thing that happens


Mpi basics24 l.jpg

MPI basics

  • First six functions (C bindings)

  • MPI_Comm_size (MPI_Comm comm, int *size)

  • Determine number of processes in comm

  • comm is communicator handle, MPI_COMM_WORLD is the default (including all MPI processes)

  • size holds number of processes in group

  • MPI_Comm_rank (MPI_Comm comm, int *pid)

  • Determine id of current (or calling) process

  • pid holdsid of current process


Mpi basics a basic example l.jpg

MPI basics – a basic example

  • #include "mpi.h" #include <stdio.h> int main(int argc, char *argv[]) {     int rank, nprocs;MPI_Init(&argc,&argv); MPI_Comm_size(MPI_COMM_WORLD,&nprocs); MPI_Comm_rank(MPI_COMM_WORLD,&rank);     printf("Hello, world.  I am %d of %d\n", rank, nprocs); MPI_Finalize(); }

mpirun –np 4 myprog

Hello, world. I am 1 of 4

Hello, world.I am 3 of 4

Hello, world. I am 0 of 4

Hello, world. I am 2 of 4


Mpi basics send and recv example 1 l.jpg

MPI basics – send and recv example (1)

#include "mpi.h"#include <stdio.h>int main(int argc, char *argv[]){    int rank, size, i;    int buffer[10];    MPI_Status status;MPI_Init(&argc, &argv);MPI_Comm_size(MPI_COMM_WORLD, &size);MPI_Comm_rank(MPI_COMM_WORLD, &rank);    if (size < 2)    {        printf("Please run with two processes.\n"); MPI_Finalize();        return 0;    }    if (rank == 0)    {        for (i=0; i<10; i++)            buffer[i] = i;MPI_Send(buffer, 10, MPI_INT, 1, 123, MPI_COMM_WORLD);    }

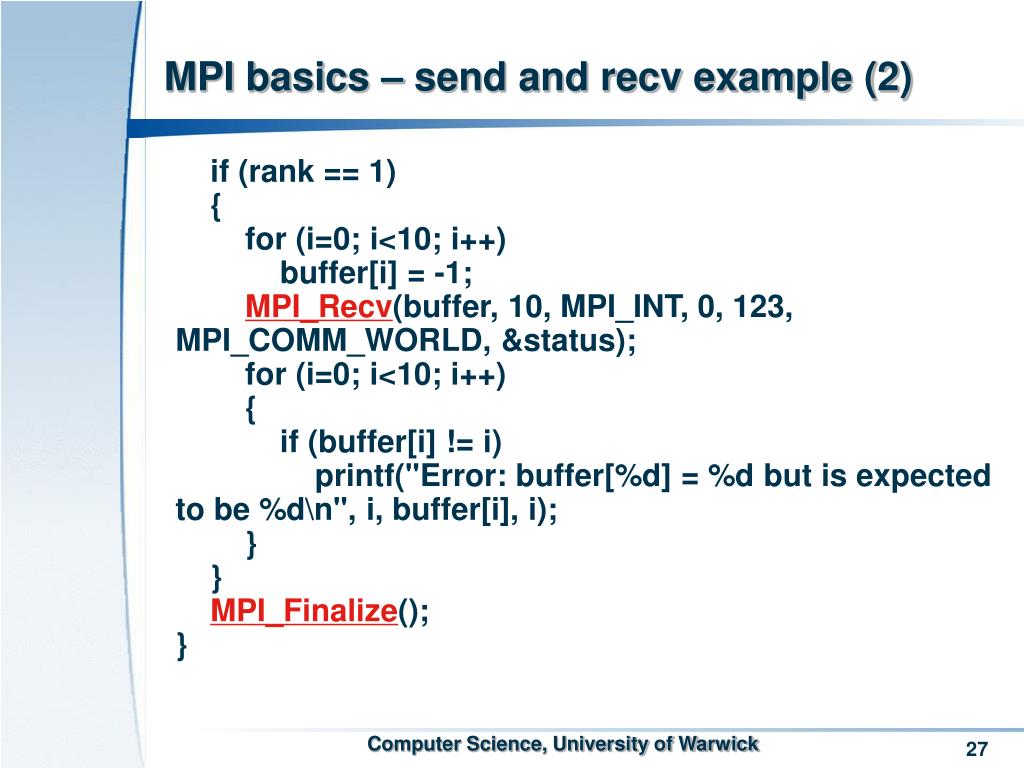

Mpi basics send and recv example 2 l.jpg

MPI basics – send and recv example (2)

    if (rank == 1)    {        for (i=0; i<10; i++)            buffer[i] = -1;MPI_Recv(buffer, 10, MPI_INT, 0, 123, MPI_COMM_WORLD, &status);        for (i=0; i<10; i++)        {            if (buffer[i] != i)                printf("Error: buffer[%d] = %d but is expected to be %d\n", i, buffer[i], i);        }    }MPI_Finalize();}

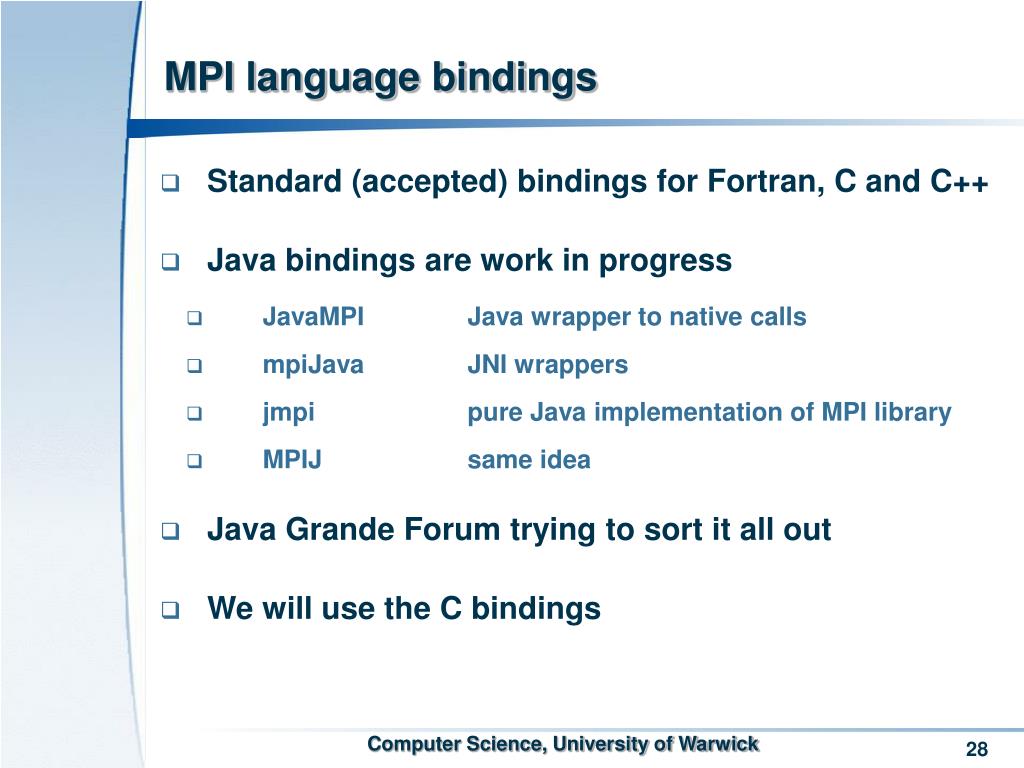

Mpi language bindings l.jpg

MPI language bindings

  • Standard (accepted) bindings for Fortran, C and C++

  • Java bindings are work in progress

    • JavaMPIJava wrapper to native calls

    • mpiJavaJNI wrappers

    • jmpipure Java implementation of MPI library

    • MPIJsame idea

  • Java Grande Forum trying to sort it all out

  • We will use the C bindings


High performance computing course notes 2007 2008 l.jpg

High Performance ComputingCourse Notes 2007-2008

  • Message Passing Programming II


Modularity l.jpg

Modularity

  • MPI supports modular programming via communicators

  • Provides information hiding by encapsulating local communications and having local namespaces for processes

  • All MPI communication operations specify a communicator (process group that is engaged in the communication)


Forming new communicators one approach l.jpg

Forming new communicators – one approach

  • MPI_Comm world, workers;

  • MPI_Group world_group, worker_group;

  • int ranks[1];

  • MPI_Init(&argc, &argv);

  • world=MPI_COMM_WORLD;

  • MPI_Comm_size(world, &numprocs);

  • MPI_Comm_rank(world, &myid);

  • server=numprocs-1;

  • MPI_Comm_group(world, &world_group);

  • ranks[0]=server;

  • MPI_Group_excl(world_group, 1, ranks, &worker_group);

  • MPI_Comm_create(world, worker_group, &workers);

  • MPI_Group_free(&world_group);

  • MPI_Comm_free(&workers);


Forming new communicators functions l.jpg

Forming new communicators - functions

  • int MPI_Comm_group(MPI_Comm comm, MPI_Group *group)

  • int MPI_Group_excl(MPI_Group group, int n, int *ranks, MPI_Group *newgroup)

  • Int MPI_Group_incl(MPI_Group group, int n, int *ranks, MPI_Group *newgroup)

  • int MPI_Comm_create(MPI_Comm comm, MPI_Group group, MPI_Comm *newcomm)

  • int MPI_Group_free(MPI_Group *group)

  • int MPI_Comm_free(MPI_Comm *comm)


Forming new communicators another approach 1 l.jpg

Forming new communicators – another approach (1)

  • MPI_Comm_split (comm, colour, key, newcomm)

  • Creates one or more new communicators from the original comm

  • commcommunicator (handle)

  • colourcontrol of subset assignment (processes with same colour are in same new communicator)

  • keycontrol of rank assignment

  • newcommnew communicator

  • Is a collective communication operation (must be executed by all processes in the process group comm)

  • Is used to (re-) allocate processes to communicator (groups)


Forming new communicators another approach 2 l.jpg

Forming new communicators – another approach (2)

  • MPI_Comm_split (comm, colour, key, newcomm)

  • MPI_Comm comm, newcomm; int myid, color;

  • MPI_Comm_rank(comm, &myid); // id of current process

  • color = myid%3;

  • MPI_Comm_split(comm, colour, myid, *newcomm);

0

4

5

6

7

1

2

3

0

0

1

0:

0

1

2

1:

1

2

2:


Forming new communicators another approach 3 l.jpg

Forming new communicators – another approach (3)

  • MPI_Comm_split (comm, colour, key, newcomm)

  • New communicator created for each new value of colour

  • Each new communicator (sub-group) comprises those processes that specify its value in colour

  • These processes are assigned new identifiers (ranks, starting at zero) with the order determined by the value of key (or by their ranks in the old communicator in event of ties)


Communications l.jpg

Communications

  • Point-to-point communications: involving exact two processes, one sender and one receiver

    • For example, MPI_Send() and MPI_Recv()

  • Collective communications: involving a group of processes


Collective operations l.jpg

Collective operations

  • i.e. coordinated communication operations involving multiple processes

  • Programmer could do this by hand (tedious), MPI provides a specialized collective communications

    • barrier – synchronize all processes

    • broadcast – sends data from one to all processes

    • gather – gathers data from all processes to one process

    • scatter – scatters data from one process to all processes

    • reduction operations – sums, multiplies etc. distributed data

  • all executed collectively (on all processes in the group, at the same time, with the same parameters)

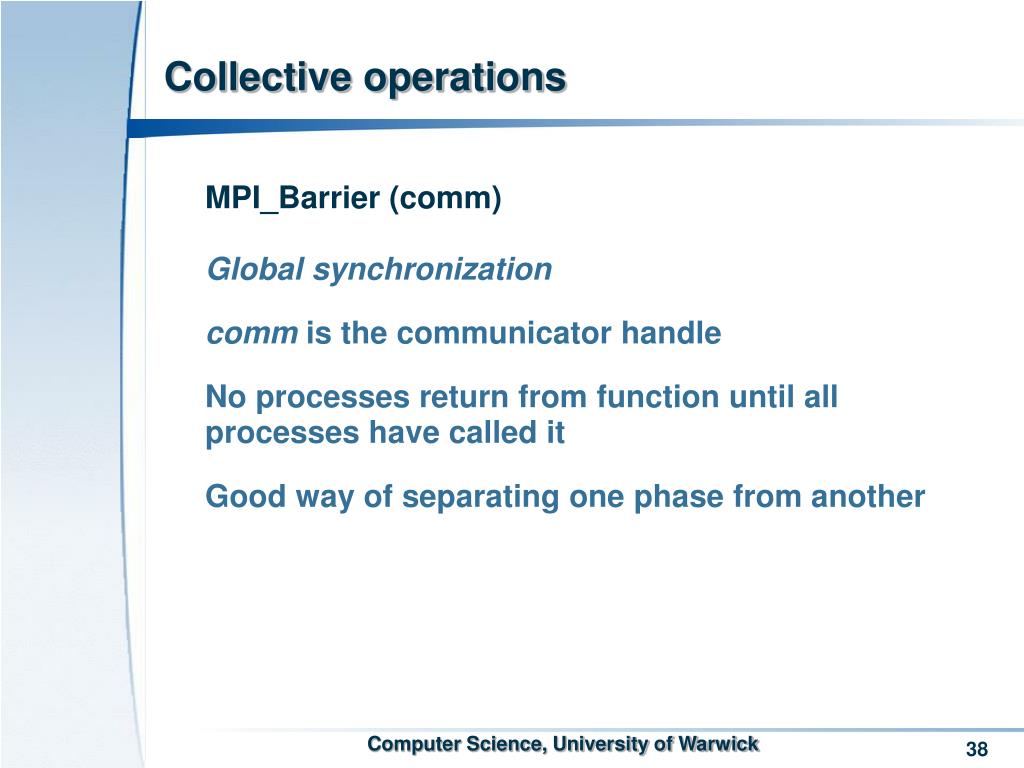

Collective operations38 l.jpg

Collective operations

  • MPI_Barrier (comm)

  • Global synchronization

  • comm is the communicator handle

  • No processes return from function until all processes have called it

  • Good way of separating one phase from another


Barrier synchronizations l.jpg

Barrier synchronizations

  • You are only as quick as your slowest process

Barrier sync.

Barrier sync.


Collective operations40 l.jpg

Collective operations

  • MPI_Bcast (buf, count, type, root, comm)

  • Broadcast data from root to all processes

  • buf address of input buffer or output buffer (root)

  • countno. of entries in buffer (>=0)

  • type datatype of buffer elements

  • rootprocess id of root process

  • commcommunicator

data

One to all

broadcast

proc.

A0

A0

A0

A0

MPI_BCAST

A0


Example of mpi bcast l.jpg

Example of MPI_Bcast

  • Broadcast 100 ints from process 0 to every process in the group

  • MPI_Comm comm;

  • int array[100];

  • int root = 0;

  • MPI_Bcast (array, 100, MPI_INT, root, comm);


Collective operations42 l.jpg

Collective operations

  • MPI_Gather (inbuf, incount, intype, outbuf, outcount, outtype, root, comm)

  • Collective data movement function

  • inbuf address of input buffer

  • incountno. of elements sent from each (>=0)

  • intype datatype of input buffer elements

  • outbufaddress of output buffer (var param)

  • outcountno. of elements received from each

  • outtypedatatype of output buffer elements

  • rootprocess id of root process

  • commcommunicator

data

All to one

gather

proc.

A0

A0

A1

A2

A3

A1

A2

MPI_GATHER

A3


Collective operations43 l.jpg

Collective operations

  • MPI_Gather (inbuf, incount, intype, outbuf, outcount, outtype, root, comm)

  • Collective data movement function

  • inbuf address of input buffer

  • incountno. of elements sent from each (>=0)

  • intype datatype of input buffer elements

  • outbufaddress of output buffer

  • outcountno. of elements received from each

  • outtypedatatype of output buffer elements

  • rootprocess id of root process

  • commcommunicator

Input to gather

data

All to one

gather

proc.

A0

A0

A1

A2

A3

A1

A2

MPI_GATHER

A3


Collective operations44 l.jpg

Collective operations

  • MPI_Gather (inbuf, incount, intype, outbuf, outcount, outtype, root, comm)

  • Collective data movement function

  • inbuf address of input buffer

  • incountno. of elements sent from each (>=0)

  • intype datatype of input buffer elements

  • outbufaddress of output buffer (var param)

  • outcountno. of elements received from each

  • outtypedatatype of output buffer elements

  • rootprocess id of root process

  • commcommunicator

Output gather

data

All to one

gather

proc.

A0

A0

A1

A2

A3

A1

A2

MPI_GATHER

A3


Collective operations45 l.jpg

Collective operations

  • MPI_Gather (inbuf, incount, intype, outbuf, outcount, outtype, root, comm)

  • Collective data movement function

  • inbuf address of input buffer

  • incountno. of elements sent from each (>=0)

  • intype datatype of input buffer elements

  • outbufaddress of output buffer (var param)

  • outcountno. of elements received from each

  • outtypedatatype of output buffer elements

  • rootprocess id of root process

  • commcommunicator

Receiving proc.

data

All to one

gather

proc.

A0

A0

A1

A2

A3

A1

A2

MPI_GATHER

A3


Mpi gather example l.jpg

MPI_Gather example

  • Gather 100 ints from every process in group to root

  • MPI_Comm comm;

  • int gsize, sendarray[100];

  • int root, myrank, *rbuf;

  • ...

  • MPI_Comm_rank( comm, myrank);// find proc. id

  • If (myrank == root) {

  • MPI_Comm_size( comm, &gsize); // find group size

  • rbuf = (int *) malloc(gsize*100*sizeof(int)); // calc. receive buffer

  • }

  • MPI_Gather( sendarray, 100, MPI_INT, rbuf, 100, MPI_INT, root, comm);


Collective operations47 l.jpg

Collective operations

  • MPI_Scatter (inbuf, incount, intype, outbuf, outcount, outtype, root, comm)

  • Collective data movement function

  • inbuf address of input buffer

  • incountno. of elements sent to each (>=0)

  • intype datatype of input buffer elements

  • outbufaddress of output buffer

  • outcountno. of elements received by each

  • outtypedatatype of output buffer elements

  • rootprocess id of root process

  • commcommunicator

data

One to all

scatter

proc.

A1

A0

A0

A2

A3

A1

A2

MPI_SCATTER

A3


Example of mpi scatter l.jpg

Example of MPI_Scatter

  • MPI_Scatter is reverse of MPI_Gather

  • It is as if the root sends using

  • MPI_Send(inbuf+i*incount * sizeof(intype), incount, intype, i, …)

  • MPI_Comm comm;

  • int gsize, *sendbuf;

  • int root, rbuff[100];

  • MPI_Comm_size (comm, &gsize);

  • sendbuf = (int *) malloc (gsize*100*sizeof(int));

  • MPI_Scatter (sendbuf, 100, MPI_INT, rbuf, 100, MPI_INT, root, comm);


Collective operations49 l.jpg

Collective operations

  • MPI_Reduce (inbuf, outbuf, count, type, op, root, comm)

  • Collective reduction function

  • inbuf address of input buffer

  • outbufaddress of output buffer

  • countno. of elements in input buffer (>=0)

  • type datatype of input buffer elements

  • opoperation

  • rootprocess id of root process

  • commcommunicator

data

proc.

2

4

0

2

Using MPI_MIN

Root = 0

5

7

0

3

MPI_REDUCE

6

2


Collective operations50 l.jpg

Collective operations

  • MPI_Reduce (inbuf, outbuf, count, type, op, root, comm)

  • Collective reduction function

  • inbuf address of input buffer

  • outbufaddress of output buffer

  • countno. of elements in input buffer (>=0)

  • type datatype of input buffer elements

  • opoperation

  • rootprocess id of root process

  • commcommunicator

data

proc.

2

4

Using MPI_SUM

Root = 1

5

7

13

16

0

3

MPI_REDUCE

6

2


Collective operations51 l.jpg

Collective operations

  • MPI_Allreduce (inbuf, outbuf, count, type, op, comm)

  • Collective reduction function

  • inbuf address of input buffer

  • outbufaddress of output buffer (var param)

  • countno. of elements in input buffer (>=0)

  • type datatype of input buffer elements

  • opoperation

  • commcommunicator

data

proc.

2

4

0

2

Using MPI_MIN

5

7

0

2

0

3

0

2

MPI_ALLREDUCE

6

2

0

2


Buffering in mpi communications l.jpg

Buffering in MPI communications

  • Application buffer: specified by the first parameter in MPI_Send/Recv functions

  • System buffer:

    • Hidden from the programmer and managed by the MPI library

  • Is limitted and can be easy to exhaust


Blocking and non blocking communications l.jpg

Blocking and non-blocking communications

  • Blocking send

    • The sender doesn’t return until the application buffer can be re-used (which often means that the data have been copied from application buffer to system buffer), but doesn’t mean that the data will be received

      MPI_Send (buf, count, datatype, dest, tag, comm)

  • Blocking receive

    • The receiver doesn’t return until the data have been ready to use by the receiver (which often means that the data have been copied from system buffer to application buffer)

  • Non-blocking send/receive

    • The calling process returns immediately

    • Just request the MPI library to perform the operation, the user cannot predict when that will happen

    • Unsafe to modify the application buffer until you can make sure the requested operation has been performed (MPI provides routines to test this)

    • Can be used to overlap computation with communication and have possible performance gains

      MPI_Isend (buf, count, datatype, dest, tag, comm, request)


Testing non blocking communications for completion l.jpg

Testing non-blocking communications for completion

  • Completion tests come in two types:

    • WAIT type

    • TEST type

  • WAIT type: the WAIT type testing routines block until the communication has completed.

    • A non-blocking communication immediately followed by a WAIT-type test is equivalent to the corresponding blocking communication

  • TEST type: these routines return TRUE or FALSE value

    • The process can perform some other tasks when the communication has not completed


Testing non blocking communications for completion55 l.jpg

Testing non-blocking communications for completion

  • The WAIT-type test is:

  • MPI_Wait (request, status)

  • This routine blocks until the communication specified by the handle request has completed. The request handle will have been returned by an earlier call to a non-blocking communication routine.

  • The TEST-type test is:

  • MPI_Test (request, flag, status)

  • In this case the communication specified by the handle request is simply queried to see if the communication has completed and the result of the query (TRUE or FALSE) is returned immediately in flag.


Testing multiple non blocking communications for completion l.jpg

Testing multiple non-blocking communications for completion

  • Wait for all communications to complete

  • MPI_Waitall (count, array_of_requests, array_of_statuses)

  • This routine blocks until all the communications specified by the request handles, array_of_requests, have completed. The statuses of the communications are returned in the array array_of_statuses and each can be queried in the usual way for the source and tag if required

  • Test if all communications have completed

  • MPI_Testall (count, array_of_requests, flag, array_of_statuses)

  • If all the communications have completed, flag is set to TRUE, and information about each of the communications is returned in array_of_statuses. Otherwise flag is set to FALSE and array_of_statuses is undefined.


Testing multiple non blocking communications for completion57 l.jpg

Testing multiple non-blocking communications for completion

  • Query a number of communications at a time to find out if any of them have completed

  • Wait: MPI_Waitany (count, array_of_requests, index, status)

  • MPI_WAITANY blocks until one or more of the communications associated with the array of request handles, array_of_requests, has completed.

  • The index of the completed communication in the array_of_requests handles is returned in index, and its status is returned in status.

  • Should more than one communication have completed, the choice of which is returned is arbitrary.

  • Test: MPI_Testany (count, array_of_requests, index, flag, status)

  • The result of the test (TRUE or FALSE) is returned immediately in flag.


  • Login
