Presentation Transcript

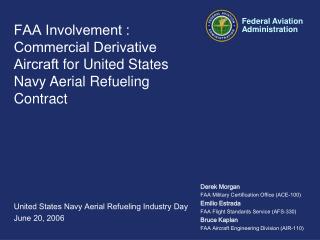

Faa involvement commercial derivative aircraft for united states navy aerial refueling contract l.jpg

FAA Involvement : Commercial Derivative Aircraftfor United States Navy Aerial Refueling Contract

United States Navy Aerial Refueling Industry Day

June 20, 2006

Derek Morgan

FAA Military Certification Office (ACE-100)

Emilio Estrada

FAA Flight Standards Service (AFS-330)

Bruce Kaplan

FAA Aircraft Engineering Division (AIR-110)


Why are there faa requirements in usn draft pws l.jpg
Why are there FAA Requirements in USN Draft PWS?

  • USN desires contractor to utilize existing commercial baseline aircraft to reduce cost and development time

  • FAA uses established and proven airworthiness standards

  • Ensures that modifications to baseline platforms consider original design requirements and limitations

  • Takes advantage of FAA systems for design approval (type certification), production approvals, maintenance, and operational aspects

  • Utilizes best available commercial business models for fleet aircraft operation

  • Supports DoD policy for use of commercial derivative aircraft

  • Allows contractor aircraft to be operated, maintained, and potentially share in benefits of the commercial aircraft baseline fleet

    • Commonality

    • Potential spares pooling

    • Training, maintenance, and logistics networks


What is extent of faa involvement and contractor oversight l.jpg
What is Extent of FAA Involvement and Contractor Oversight?

  • FAA has limited exposure and has no applicable airworthiness or operational regulations for aerial refueling

  • Civil airworthiness standards will not be developed until refueling is an approved civil operation

  • FAA traditionally has “hands-off” approach to military public use operations

  • Requirements posed by USN will require various civil FAA approvals to be obtained by contractor

  • Contractor may be required to obtain type certification, production approval, and become Part 125 operator – all subject to FAA approval and surveillance

  • FAA involvement will depend upon USN requirements and contractor’s proposal


What are usn s requirements invoking faa support l.jpg
What are USN’s Requirements Invoking FAA Support?

Draft Performance Work Statement prescribes the following…

  • Civil aircraft contracted to perform aerial refueling for military aircraft

  • USN flight clearances to refuel specific military aircraft

  • Contracted installer/maintainers, aircraft crews, mission coordinators

  • FAA type certification for aircraft modifications

  • FAA Standard Airworthiness Certificate

  • 14 CFR Part 125 based maintenance and operation


Civil aircraft performing military aerial refueling mission l.jpg
Civil Aircraft Performing Military Aerial Refueling Mission

  • Assumes contractor will own and operate civil registered commercial aircraft performing military (public use) function

  • Civil aircraft performing public use operations can be exempt from civil airworthiness certification and certain operational regulations - USN is requiring compliance where possible

  • Airworthiness and safety of aircraft under public use statute is the responsibility of the agency conducting operations

  • USN chose to impose civil criteria for airworthiness certification, maintenance, and some operational aspects


Usn flight clearances for refueling operations l.jpg
USN Flight Clearances for Refueling Operations

  • USN assumes airworthiness and operational authority role for contractor aircraft during military public use operation

  • USN approves aircraft, refueling equipment function, flight planning, and operations for required military missions

  • Assumes USN flight clearance will be required for all contract authorized military operations

  • Assumes contractor will operate and maintain aircraft considered to be airworthy by FAA with standard airworthiness certificate


Faa qualified and licensed airmen l.jpg
FAA Qualified and Licensed Airmen

  • USN requirements require FAA certificated personnel to conduct maintenance and operation of aircraft

  • FAA approved maintenance practices in accordance with 14 CFR Parts 91 and 125

  • FAA rated pilots and crew members for aircraft operation

  • In addition, USN trained and qualified crew members specific to actual aerial refueling operations


Faa type certification for aircraft configuration l.jpg
FAA Type Certification for Aircraft Configuration

  • Modified commercial aircraft configuration certified to existing Part 25 airworthiness requirements

  • Part 25 does not have airworthiness standards for refueling equipment – compliance shown to Part 25 structural, systems, and equipment design criteria

  • Performance specifications, validation, and verification of refueling system operation must be performed by USN

  • FAA “Level of Certification” for mission equipment must be defined


Faa type certification for aircraft configuration continued l.jpg
FAA Type Certification for Aircraft Configuration (continued)

FAA Certification – “Levels of Approval” and Options

  • Full approval, including refueling function and operation

    • Not possible – no airworthiness standards for refueling systems

  • Equipment installation approval (partial approval)

    • Equipment installed and functional with power on

    • No adverse affect on aircraft or aircraft systems

    • Refueling not approved for civil operations

  • Safe carriage (partial approval)

    • Equipment installed but not operational

    • Physical, structural, and aerodynamic aspects examined and compliant

    • Equipment not evaluated for effects on aircraft

    • Power and signal interfaces disconnected and stowed

  • Provisions only (partial approval)

    • Equipment not installed

    • Structural and aircraft system modifications provisions only

    • Establishes interface points and design limits only


Aircraft must have faa standard airworthiness certificate l.jpg
Aircraft Must Have FAA Standard Airworthiness Certificate (continued)

  • Requires all modifications to baseline aircraft obtain FAA Part 25 certification for type design configuration

  • Requires aircraft to conform to approved FAA type design

  • Requires aircraft to be maintained and operated in accordance with FAA approved maintenance program and within envelope defined by FAA approved flight manual

  • Requires aircraft to be in condition for safe operation

  • Public use operation does not invalidate FAA airworthiness certificate if above conditions are not compromised

  • Must have FAA approved maintenance plan to assume dual role operation as civil/public aircraft


Contractor must meet requirements of 14 cfr parts 91 and 125 for maintenance and operation l.jpg
Contractor Must Meet Requirements of 14 CFR Parts 91 and 125 for Maintenance and Operation

  • PWS assumes contractor must comply with all requirements of Parts 91 and 125 civil operator

  • Aircraft will be public use when conducting missions under military authorization – outside of FAA oversight

  • Will require USN, contract operator, and FAA to define ground rules and areas of responsibility


What is faa involvement with usn and aerial refueling contractor l.jpg
What is FAA Involvement with USN and Aerial Refueling Contractor?

  • FAA will need to work with USN and potential contractors to define RFP requirements that FAA can support

    • Type certification of modifications

    • Production approvals for commercial fleet modification spares

    • FAA issuance of approvals and oversight of contractor facilities and procedures

  • Clear understanding, definitions, and plans for military “public use” operation of these aircraft

  • Investigate operation of these aircraft in foreign airspace


Faa u s armed services memorandum of agreement moa l.jpg
FAA / U.S. Armed Services Memorandum of Agreement (MoA) Contractor?

  • Memorandum of Agreement (MoA) between U.S. Armed Services and FAA was signed 10 September 2004

  • MoA formalizes FAA role in providing support of national defense and acquisition of Commercial Derivative Aircraft (CDA).

  • MoA requires the Armed Services to reimburse FAA for expenditures on CDA certification and authorized services

  • MoA provides for two levels of service: “Baseline” and “Program Specific”

    • Program Specific Service Agreement required for projects outside scope of Baseline services

    • This program will require a PSSA

  • The MoA established the Military Certification Office


Faa military certification office l.jpg
FAA Military Certification Office Contractor?

  • MCO ensures Armed Service’s projects receive adequate prioritization and support

  • MCO is the technical liaison between FAA and Armed Services

  • MCO provides certification services to applicants that are under contract to Armed Services

    Contact:Ronald K. Rathgeber, Manager

    FAA Military Certification Office

    8200 East 34th Street North

    Building 1000, Suite 1005

    Wichita, KS 67226

    316-350-1580 FAX 316-350-1592

    [email protected]


Questions l.jpg
Questions Contractor?

?
