A Data Management System (DMS) for Air Quality Management Agencies

  • Prepared by:

  • Mark Stoelting

  • Bay Area Air Quality Management District

  • San Francisco, CA

  • and

  • Eric Gray

  • Sonoma Technology, Inc.

  • Petaluma, CA

  • Presented at:

  • U.S. EPA 2008 National Air Quality Conference

  • Portland, OR

  • April 6-9, 2008


Dms why what how who l.jpg

DMS: Why, What, How, Who

  • Why build a DMS?

  • What is it?

  • How does DMS work?

  • What are the DMS capabilities?

  • Who is involved?

  • Who paid for DMS?

  • Where is it going?


Why the dms l.jpg

Why the DMS?

  • New technology: instruments, communications, data access

  • Real-time data access

  • Improve data quality (QC checks)

  • Graphical data reviewing tools

  • Minimize/eliminate need for paper

  • Track instruments and performance

  • Shared need by all monitoring agencies


What is dms l.jpg

What is DMS?

  • Data Management System

    • Database to ingest, process, export data

    • Archive

  • Programmable database with optional features

    • Process sub-hourly data (1 minute)

    • Collect instrument metadata

    • Track instruments and performance (OpCodes)

    • Automatic Quality Checks

    • Export (AirNow, AQS)

    • Notification (email, process controls)


Simple data structure l.jpg

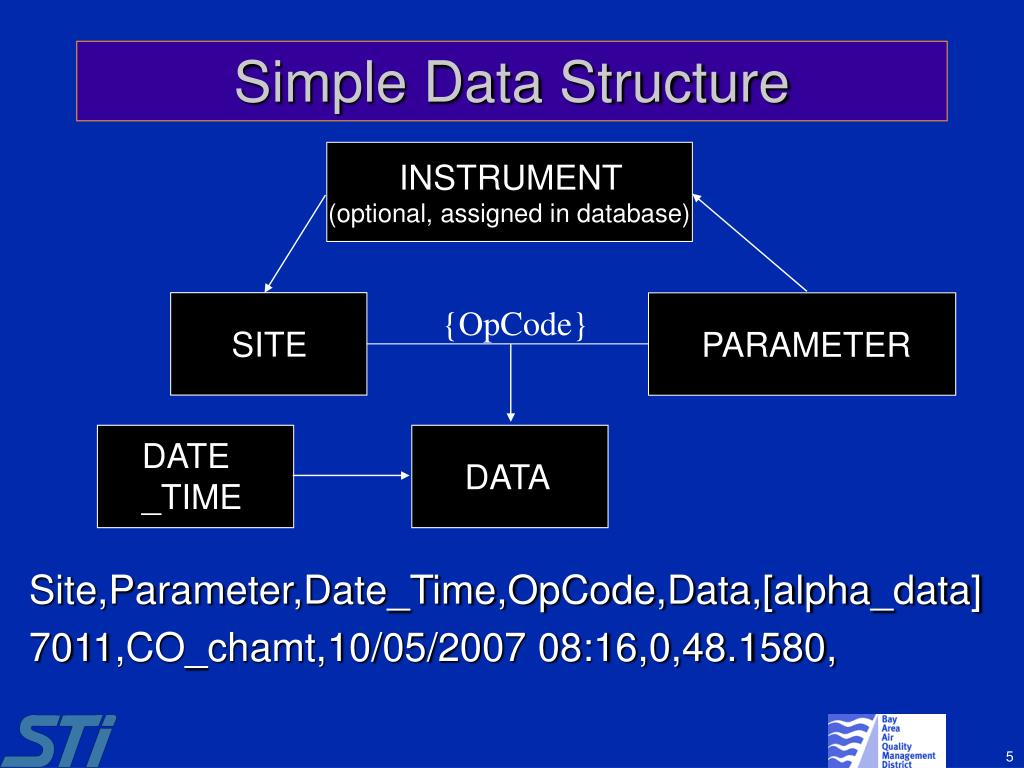

Simple Data Structure

INSTRUMENT

  • Site,Parameter,Date_Time,OpCode,Data,[alpha_data]

  • 7011,CO_chamt,10/05/2007 08:16,0,48.1580,

(optional, assigned in database)

{OpCode}

SITE

PARAMETER

DATE_TIME

DATA


Sites parameters instruments l.jpg

Sites, Parameters, Instruments

Establish Monitoring

Sites

Create Parameters

Create

Instruments


Assign parameters to instruments and instruments to sites l.jpg

Assign Parameters to Instruments and Instruments to Sites

Assign Parameters

to Instruments

Assign Instruments

to Sites


Automated quality checks export l.jpg

Automated Quality Checks/Export

Ambient

Air Quality

Data

Raw

Data

Range

checks

Instrument

checks

AIRNow

Site checks

Network (off-site)

checks

District

Web Page

Exports filtered by QC code


Automatic quality checks l.jpg

Automatic Quality Checks

Assign Automatic

Quality Control

Checks to

Parameters


Data input process l.jpg

Data Input Process

  • Ingests data files generated by datalogger or data formatting software

  • Duplicate input data is automatically rejected

  • Automated Quality Checks establish initial QC code

    • Min/max, zero drift, sticking, rate-of-change, compare

  • QC conditions can activate process/alarm

  • Electronic chain-of-custody created

  • Sub-hourly data aggregated to 1-hr averages

  • Automated data export to AIRNow and Air District web site


Dms status l.jpg

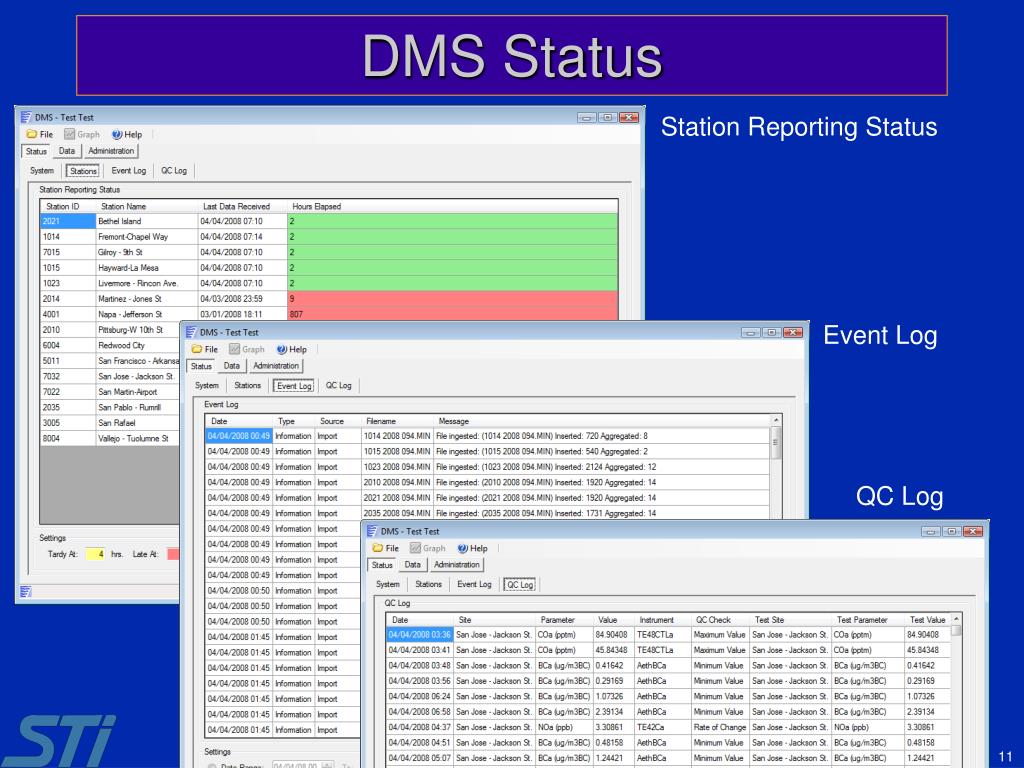

DMS Status

Station Reporting Status

Event Log

QC Log


Manual data review l.jpg

Manual Data Review

  • Time-series graphical editing and QC tools for staff data review

  • DMS records all reviews and manual adjustments to QC status and data values (electronic chain-of-custody)

  • Tracks manual data reviewer status

  • Lock final data prior to export

  • Exports final data for regulatory submission to AQS or other agencies


Time series edit qc screen l.jpg

Time Series Edit/QC Screen


Scatter plot analysis l.jpg

Scatter Plot Analysis


Other dms features l.jpg

Other DMS Features

  • Data access security (user rights management)

  • Maintains instrument equipment database

  • Supports electronic instrument and site logs

  • Daily instrument performance reports (using OpCodes)


Dms software requirements l.jpg

DMS Software Requirements

  • DMS host computer:

    • Windows Server 2000/2003 or XP/Vista

    • Microsoft SQL Server 2005 (all editions)

  • DMS Client Software:

    • .NET 2.0 Framework

    • Windows 2000, XP, Vista

  • Future tools may require Java and ERSI arcGIS


Dms hardware l.jpg

DMS Hardware

  • DMS Server:

  • Minimum server requirements – Pentium 4 laptop

  • Must support Microsoft Windows

  • Hardware determined by processing needs

  • Laptop processes hundreds of thousands of records per hour and store millions

  • Server can process millions of records per hour and store billions

  • DMS Client:

  • Pentium III class PC or better

  • Broadband connection to DMS Server


Dms performance benchmarks l.jpg

DMS Performance Benchmarks

  • AIRNow DMC DMS will be running in August on a Quad Core Intel processor with 8 GB of RAM. The operating system will be Windows Server 2003 64-bit Edition

  • •Currently, AIRNow DMC processes 12 million records a day for over 5000 sites

  • •The DMS system can process 22 million records per hour or ½ billion a day (historical data import)

  • •The Bay Area DMS system will process 1 million data records per day


Dms storage benchmarks l.jpg

DMS Storage Benchmarks

  • The database will grow by 100 MB for every one million records

  • One billion records can be stored in 100 GB data

  • DMS query performance has been tested with ½ billion data records

  • AIRNow DMC will test performance for over a billion records by fall


Dms can be l.jpg

DMS Can Be …

  • An instrument monitoring system

  • A data analysis system

  • A data Quality Check and Review system

  • A data export tool (to AirNow, AQS)

  • A data warehouse for historical data


Agency deployment l.jpg

Agency Deployment

  • DMS developed using AIRNow technology in 2004

  • DMS to replace AIRNow technology by fall 2008

  • DMS in use by BAAQMD, SCAQMD, and CARB by end of 2008

  • AIRNow International will be based on DMS for 2009

  • Stable DMS distribution package available for agency use by early 2009

  • Looking for 3 or 4 additional agency development partners in 2008


Development and funding l.jpg

Development and Funding

  • DMS was development and funded by agencies with an interest in the result

  • Contributors include:

    • Bay Area AQMD (BAAQMD)

    • EPA Region IX, 103 Grant

    • EPA National Environmental Information Exchange Network (NEIEN) Challenge Grant

    • South Coast AQMD (SCAQMD)

    • EPA (AirNow and AirNow International)

    • California Air Resources Board (CARB) soon

  • New DMS features must be available to all agencies

  • New features must not reduce DMS functionality to other agencies


Future dms development l.jpg

Future DMS Development

  • Enhanced view/edit features

    • Viewing tools - fingerprint plots

    • Statistical tools - box plots, reports

  • Support for toxics, PM filter data, Special Purpose Monitoring

  • Expanded reporting capabilities

  • Instrument Control Charts

  • GIS mapping capability, web services, and NEIEN XML data exchange node


Dms summary l.jpg

DMS Summary

  • Simple, scalable, cost-effective

  • Fast, secure, and efficient operation

  • Comprehensive quality control tools

  • Applicable to a wide variety of data

  • Free to public agencies under a share-ware use agreement


Contact information l.jpg

Contact Information

  • Mark Stoelting

  • Bay Area Air Quality Management District

  • mstoelting@baaqmd.gov

  • (415) 749-4619

  • Eric Gray

  • Sonoma Technology, Inc.

  • eric@sonomatech.com

  • (707) 665-9900
