Presentation Transcript
Water conservation l.jpg

WATER CONSERVATION

MML presentation

October 23, 2008

By: Joanne Throwe


Slide2 l.jpg

TWO MAIN APPROACHES TO

WATER CONSERVATION:

Pricing Programs & Nonprice Programs

http://stateplanning.delaware.gov/livedel/information/ln_water.shtml


Slide3 l.jpg

1. Pricing Programs

-rate structures that provide incentives to reduce water use

-might increase revenues for municipality (without increasing water use)


Slide4 l.jpg

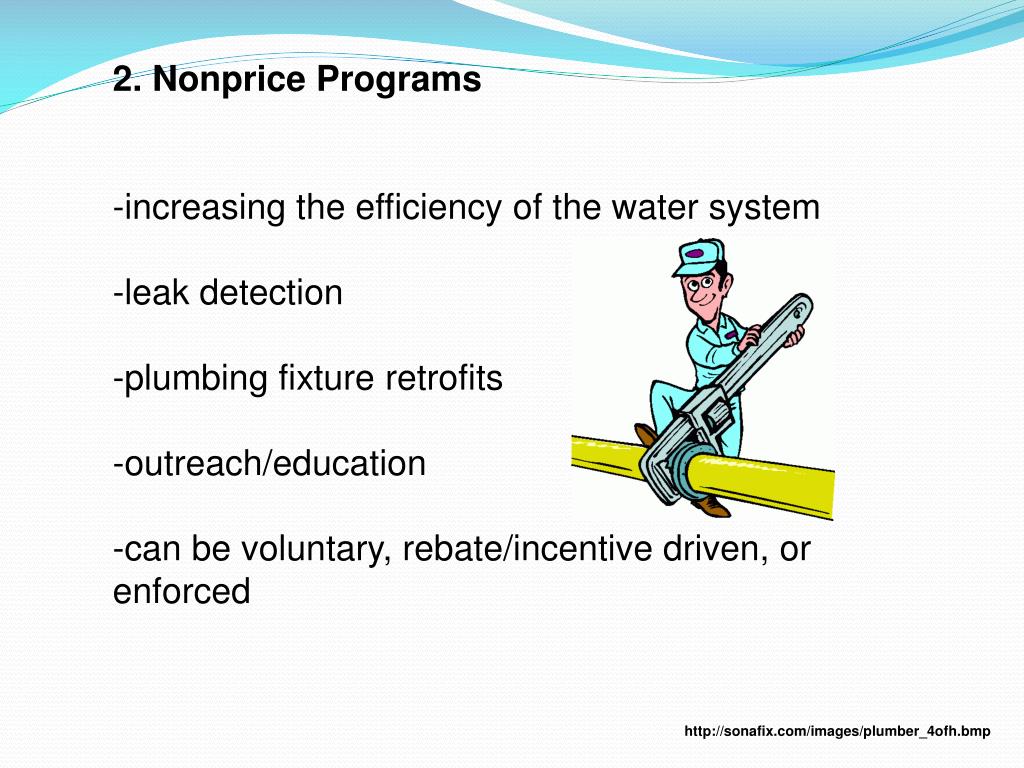

2. Nonprice Programs

-increasing the efficiency of the water system

-leak detection

-plumbing fixture retrofits

-outreach/education

-can be voluntary, rebate/incentive driven, or enforced

http://sonafix.com/images/plumber_4ofh.bmp


Slide5 l.jpg

TERMINOLOGY/TECHNOLOGY:

Xeriscaping, Water-Efficient Appliances,

Recycled Water

http://www.thisland.uiuc.edu/57ways/images/57_C_detail.JPG

http://farm1.static.flickr.com/13/20099340_ff679ae6b3.jpg


Slide6 l.jpg

1. Xeriscaping

method of landscaping that promotes water conservation

combination of 7 basic landscaping principles:

-planning & design

-limiting turf areas

-selecting and zoning plants appropriately

-soil improvement

-using mulches

-efficient irrigation

-appropriate maintenance

http://www.homesbynewvistas.com/images/features/xeriscape.jpg


Slide7 l.jpg

2. Water-Efficient Appliances

Indoor:

-low-flow toilet

-water-efficient washing machine

Outdoor:

-rain sensor (can be wireless) on irrigation system

-ET (EvapoTranspiration) controller

Industrial:

-high-efficiency urinal

-boiler-less steamer (for large-scale cooking)


Slide8 l.jpg

3. Recycled Water/Graywater

-water reuse in manufacturing processes

-treated wastewater for nonpotable water uses

-irrigation

-street washing

-industrial cooling

-washing municipal vehicles

-dust control at construction sites

http://farm2.static.flickr.com/1032/1400276159_c08d016547.jpg?v=0


Slide9 l.jpg

METHODS/TOOLS

http://www.vizamotors.com/images/toolbox.jpg


Slide10 l.jpg

http://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpghttp://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

1. Universal Metering

-for both customer and public water uses

-allows accurate tracking of water usage

-make sure meters are accurate


Slide11 l.jpg

2. Rate Structure (Pricing)http://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

non-promotional metered rates

-metered rates and non-promotional

block structure

-unit price for water increases as the volume consumed increases

-a base price is set for a minimum quantity of water


Slide12 l.jpg

3. Rebates, Vouchers, Retrofitshttp://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

-for water-efficient appliances

-for replacing traditional lawn landscaping with Xeriscaping (often by square feet)

-for rainwater harvesting equipment

-for installing sub-meters in multi-tenant buildings

-retrofit kits/programs(for free or at cost)

-leak repairs

-target plumbing fixtures

-targeted programs for different customers


Slide13 l.jpg

4. Landscape Efficiency at Municipal Levelhttp://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

-efficiency-oriented landscaping, Xeriscaping

-public parks, building grounds, golf courses

-sub-metering for irrigation

-cooperate with local nurseries to ensure the availability of water conserving plants

ex: Morning Glory (Ipomoea spp.)


Slide14 l.jpg

5. Recycled Water/Graywaterhttp://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

Recycled water pipes should be color-coded and clearly marked


Slide15 l.jpg

http://www.kptcarpenters.com/P9240005.JPGhttp://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

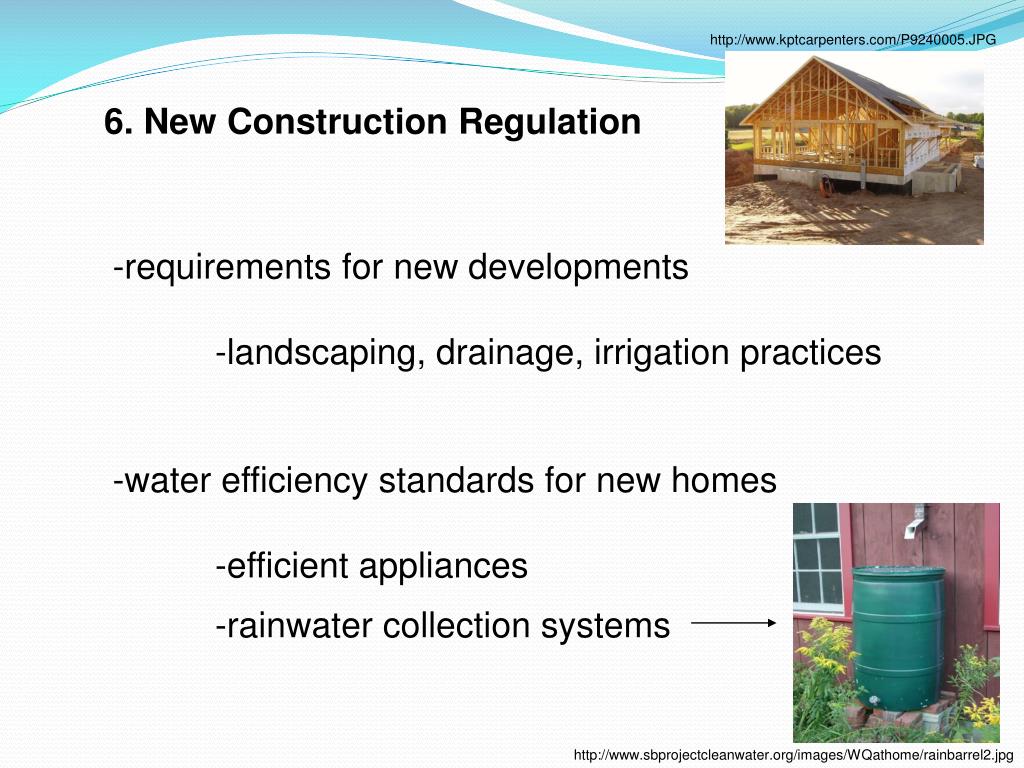

6. New Construction Regulation

-requirements for new developments

-landscaping, drainage, irrigation practices

-water efficiency standards for new homes

-efficient appliances

-rainwater collection systems

http://www.sbprojectcleanwater.org/images/WQathome/rainbarrel2.jpg


Slide16 l.jpg

7. Outreach/Educationhttp://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

-understandable water bills

-informational pamphlets

-school programs, online games/resources for kids

-workshops for plumbers, builders, landscape providers

-Xeriscaping/irrigation workshops/online courses

-water conservation tips for individuals on website

-hotline for individuals to report water waste (or online)

-outreach events (such as Earth Day)


Slide17 l.jpg

CASE STUDIEShttp://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

http://brownswcd.org/images/waterdrop.jpg


Slide18 l.jpg

San Antonio, TXhttp://www.savewatersavemoney.co.uk/control/image/large/save-water-water-meter-1.jpg

Methods Used: Rate Structure, Rebates (appliances, landscaping), Retrofits, Recycled Water, Outreach/Education

winner of the 2006 Municipal Water Conservation Achievement Awards Program

http://txdot.lib.utexas.edu/images/texas.gif


Slide19 l.jpg

http://www.legendsofamerica.com/photos-texas/San%20Antonio%20view,%20Carol%20M.Highsmith,%202005-500.jpghttp://www.legendsofamerica.com/photos-texas/San%20Antonio%20view,%20Carol%20M.Highsmith,%202005-500.jpg

Context

-population: 1,196,438 (2004)

-number of connections: 300,000 (2004)

-total water demand (1000 gallons): 53,021.3 million (2004)

-total per capita use (2004) (gpcd: gallons per capita per day): 121

-10 year goal for total per capita use (gpcd): 116 (dry year: 132) by 2016


Slide20 l.jpg

Rate Structurehttp://www.legendsofamerica.com/photos-texas/San%20Antonio%20view,%20Carol%20M.Highsmith,%202005-500.jpg

-tiered rates structure: block pricing (2005 values)

-$6.56 meter fee (all users)

-0 to 7,481 gallons: $0.08/100 gallons

-next 5,236 gallons: $0.13/100 gallons

-next 4,488 gallons: $0.20/100 gallons

-beyond 17,205 gallons: $.041/100 gallons


Slide21 l.jpg

Rebates, Incentives, Retrofitshttp://www.legendsofamerica.com/photos-texas/San%20Antonio%20view,%20Carol%20M.Highsmith,%202005-500.jpg

-water-efficient washing machine: $100

-tankless water heaters

-low-flow toilet: $75

-free low-flow toilet distribution event

-approved waterwise landscape

-rain sensor: 50% rebate

-leak repairs and retrofits to low-income homeowners free


Slide22 l.jpg

Reclaimed Waterhttp://www.legendsofamerica.com/photos-texas/San%20Antonio%20view,%20Carol%20M.Highsmith,%202005-500.jpg

-graywater used to water public golf courses

Outreach/Education

-educational program on Xeriscaping

-free analysis of ratepayers in-ground irrigation systems

-free information service: expert advice on lawn irrigation

-water bills include trends in the user’s monthly water use and the comparison of their use to the average (shown graphically)

-individuals can report instances of water waste online


Slide23 l.jpg

Outcomeshttp://www.legendsofamerica.com/photos-texas/San%20Antonio%20view,%20Carol%20M.Highsmith,%202005-500.jpg

spending an average of $1/person on conservation programs saved $4–$7/person (2005)

$4.4 million in conservation program expenditures in 2006  $308 per acre-foot saved


Slide24 l.jpg

http://geology.com/county-map/colorado-county-map.gifhttp://www.legendsofamerica.com/photos-texas/San%20Antonio%20view,%20Carol%20M.Highsmith,%202005-500.jpg

Denver, CO

Methods Used: Rebates (appliances, landscaping, industrial), Recycled Water, New Construction Regulations

conservation goal set in 2006:

reduce water use to 165 gallons per person per day by 2016

the conservation plan is called Tap+Smart

http://www.denverwater.org/search/searchframe.html


Slide25 l.jpg

http://mocoloco.com/archives/dyson_washing_machine_jan_04.jpghttp://mocoloco.com/archives/dyson_washing_machine_jan_04.jpg

Residential Rebate Programs

-high efficiency clothes washers: $150

-high efficiency toilets: $125

-ET (EvapoTranspiration) controllers: 25% of purchase price

-rain sensors: $25

-wireless rain sensors: $50

http://www.rainbird.com/images/products/turf/controllers/rsd_1_bg.jpg


Slide26 l.jpg

Recycled Water Systemhttp://mocoloco.com/archives/dyson_washing_machine_jan_04.jpg

-used for irrigation, industrial use, for lakes in parks and golf courses

-water recycling plant will receive 45 mg of water per day from the wastewater treatment plant

-cost (when completed): $154 million

-rates: service charge: $3.82 monthly or $6.07 bimonthly


Slide27 l.jpg

New Construction Regulation: Soil Amendmenthttp://mocoloco.com/archives/dyson_washing_machine_jan_04.jpg

-amending soil with compost

-compost increases amount of water soil can hold & length of time it can hold the water

-inspection ($80 fee) required when water tap is installed


Slide28 l.jpg

http://www.designspongeonline.com/wp-content/uploads/raleigh.jpghttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

Raleigh, NC

Methods Used: Retrofits, Recycled Water

http://geology.com/state-map/maps/north-carolina-county-map.gif


Slide29 l.jpg

Retrofitshttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

the city of Raleigh has encouraged all residents and businesses to install low flow water devices

Recycled Rainwater

-installed rain barrels at various city government locations to capture runoff from building roofs

-runoff is used to irrigate landscape areas

-selling rain barrels to citizens and encouraging their use


Slide30 l.jpg

Cary, NChttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

Methods Used: Recycled Water, Outreach/Education

http://www.townofcary.org/depts/pwdept/water/waterconservation/overview.htm


Slide31 l.jpg

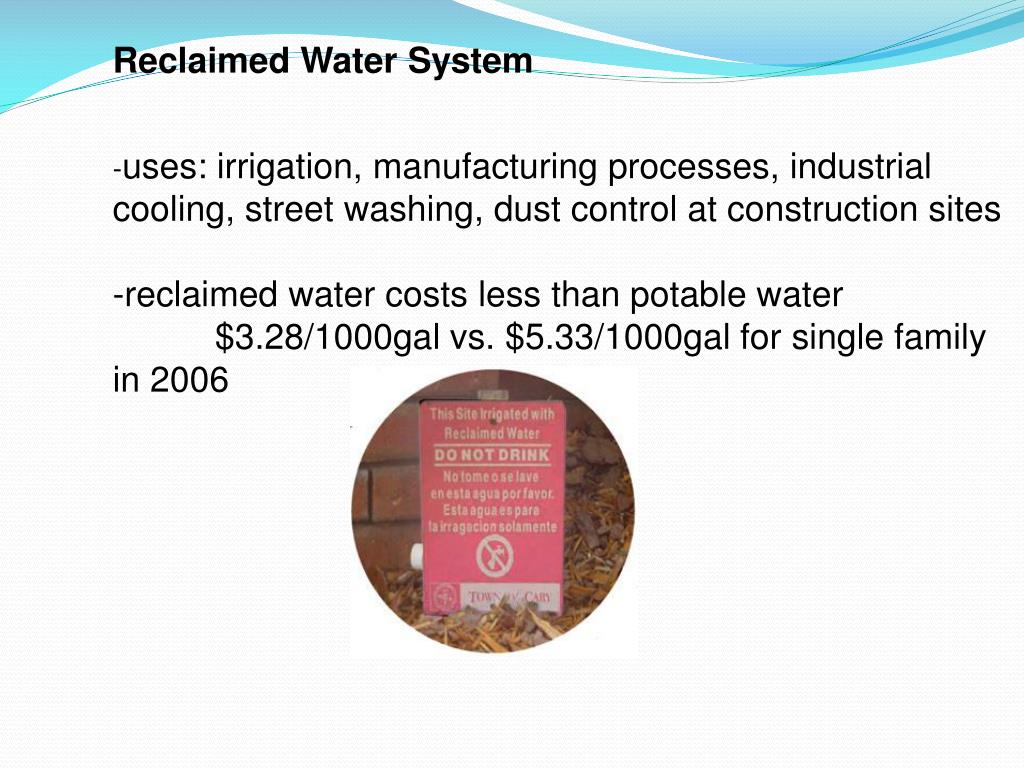

Reclaimed Water Systemhttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

-uses: irrigation, manufacturing processes, industrial cooling, street washing, dust control at construction sites

-reclaimed water costs less than potable water

$3.28/1000gal vs. $5.33/1000gal for single family in 2006


Slide32 l.jpg

Water Wise Hotlinehttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

Residents can call to:

-discuss their water consumption

-schedule an assessment of their home to

identify leaks

-dye tablets to test for toilet leaks


Slide33 l.jpg

Albuquerque and Bernalillo County, NMhttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

Method Used: New Construction Regulations

http://geology.com/state-map/maps/new-mexico-county-map.gif


Slide34 l.jpg

Water Efficiency Standards for New Homeshttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

-rainwater collection system (rainwater captured from at least 85% of roof area)

-low-flow toilets

-would increase price of new home by $500 (estimate by the utility)

http://www.scrd.ca/files/Image/Water/toilet.jpg


Slide35 l.jpg

Boerne-Samuel V. Champion High School Boerne, TXhttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

Method Used: Recycled Water

http://www.boerne-isd.net/uploaded/champion/champion_high.jpg


Slide36 l.jpg

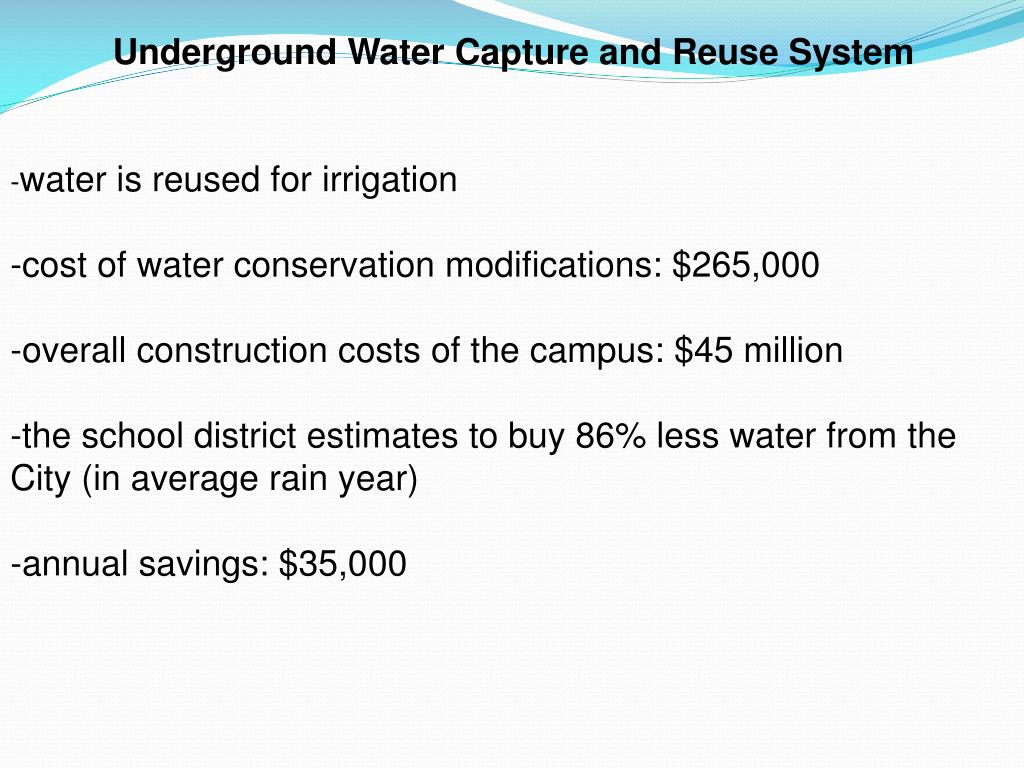

Underground Water Capture and Reuse Systemhttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

-water is reused for irrigation

-cost of water conservation modifications: $265,000

-overall construction costs of the campus: $45 million

-the school district estimates to buy 86% less water from the City (in average rain year)

-annual savings: $35,000


Slide37 l.jpg

Metropolitan Water District of Southern CAhttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

Methods Used: Rebates (appliances, landscaping), Outreach/Education

http://img134.imageshack.us/img134/4075/meth20newseal1ci.gif


Slide38 l.jpg

Rebates for Home Buildershttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

California Friendly Model Home Program

Rebates:

-dual-flush toilets (2 different flush “size” settings) or 1-gallon toilets: $100 each (up to 3 units)

-high-efficiency clothes washer: $400

-smart sprinkler controller: $200

-landscaping that meets water efficient qualifications: $0.80/square feet (up to 2,000 square feet)


Slide39 l.jpg

http://www.lbcwd.org/uploads/images/regular/397.jpghttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

Education/Outreach Campaign

-campaign ads in English and Spanish

-Orange County water hero

-kit for kids to become water superheroes

-includes shower timer

-online irrigation & landscaping courses


Slide40 l.jpg

Central Basin Municipal Water District http://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

(Southern CA)

Method Used: Outreach/Education

http://www.centralbasin.org/educationPrograms.html


Slide41 l.jpg

-online water games/quizzes/facts/educationhttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

for different grade levels

http://www.centralbasin.org/events.html

-outreach:

-public speakers

-yearly Earth Day outreach events


Slide42 l.jpg

EPA WATERSENSE PROGRAMhttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

http://www.doh.wa.gov/ehp/dw/Programs/WSlogo.jpg


Slide43 l.jpg

Becoming a Partner in EPA’s WaterSense Programhttp://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

-local governments can participate

-assistance with technology

-partnerships (utilities, businesses…)

-strengthen outreach message with the backing of a national program

-use the WaterSense logo

-educational materials

-awards

http://www.miamidade.gov/conservation/images/watersense_logo_home.gif


Thank you l.jpg
Thank you!http://www.designspongeonline.com/wp-content/uploads/raleigh.jpg

Joanne Throwe

Associate Director

Environmental Finance Center

Tel: 301/405-5036

[email protected]

www.efc.umd.edu


ad
