Rule-Based/Expert Systems

Catie Welsh

CSE 435 – IDSS

October 13, 2006


Outline
Outline

  • Defining Expert Systems

  • Describing uses and components of Expert Systems

  • Showing an example of an Expert System

  • Describing the underlying programming used to build an expert system.


Definition
Definition

  • Expert systems are:

    • Knowledge based systems

    • Part of the Artificial Intelligence field

    • Computer programs that contain some subject-specific knowledge of one or more human experts

    • Made up of a set of rules that analyze user supplied information about a specific class of problems.

    • Systems that utilize reasoning capabilities and draw conclusions.


Terms associated with expert systems
Terms Associated with Expert Systems

  • Knowledge Engineering – building an expert system

  • Knowledge Engineers – the people who build the system

  • Knowledge Representation – the symbols used to represent the knowledge

  • Factual Knowledge – knowledge of a particular task domain that is widely shared

  • Heuristic Knowledge – more judgmental knowledge of performance in a task domain.


Uses of expert systems

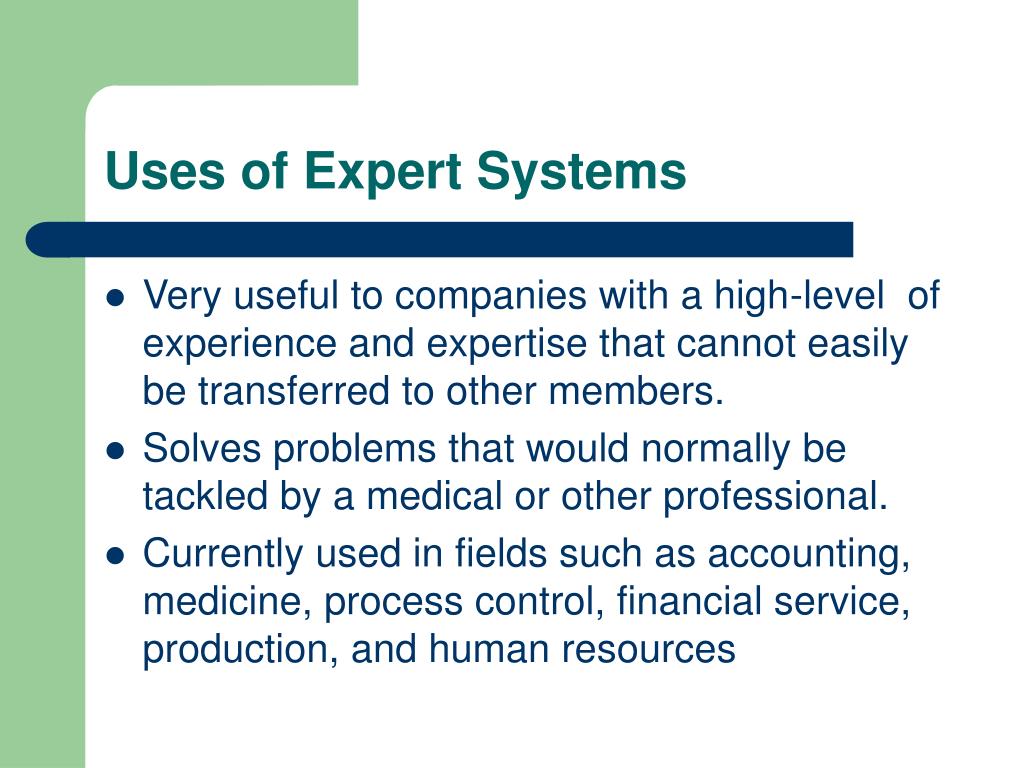

Uses of Expert Systems

  • Very useful to companies with a high-level of experience and expertise that cannot easily be transferred to other members.

  • Solves problems that would normally be tackled by a medical or other professional.

  • Currently used in fields such as accounting, medicine, process control, financial service, production, and human resources


Prominent expert systems
Prominent Expert Systems

  • MYCIN – used to diagnose infectious blood diseases and recommend antibiotics.

  • DENDRAL – embedded a chemist’s knowledge of mass spectrometry rules to use in analysis.

  • CADUCEUS – used to analyze blood-borne infectious bacteria

  • CLIPS and Prolog programming languages are both used in expert systems

    • The Age of Empire game uses CLIPS to control its AI


Building an expert system
Building an Expert System

  • Can be built from scratch – using lots of if-then-else statements.

  • There are many products being sold to make programming these systems easier.

    • A few that I’m aware of:

      • Exsys – www.exsys.com – provides an easy to use user interface to develop traditional applications or web-based solutions.

      • Barisoft – www.barisoft.com – developed by a PSU professor and finely tuned by his students

      • CLIPS - provides a complete environment for the construction of rules and/or object based expert systems

      • Jess – the Rule Engine, built on top of CLIPS, for the Java Platform


Components of an expert system

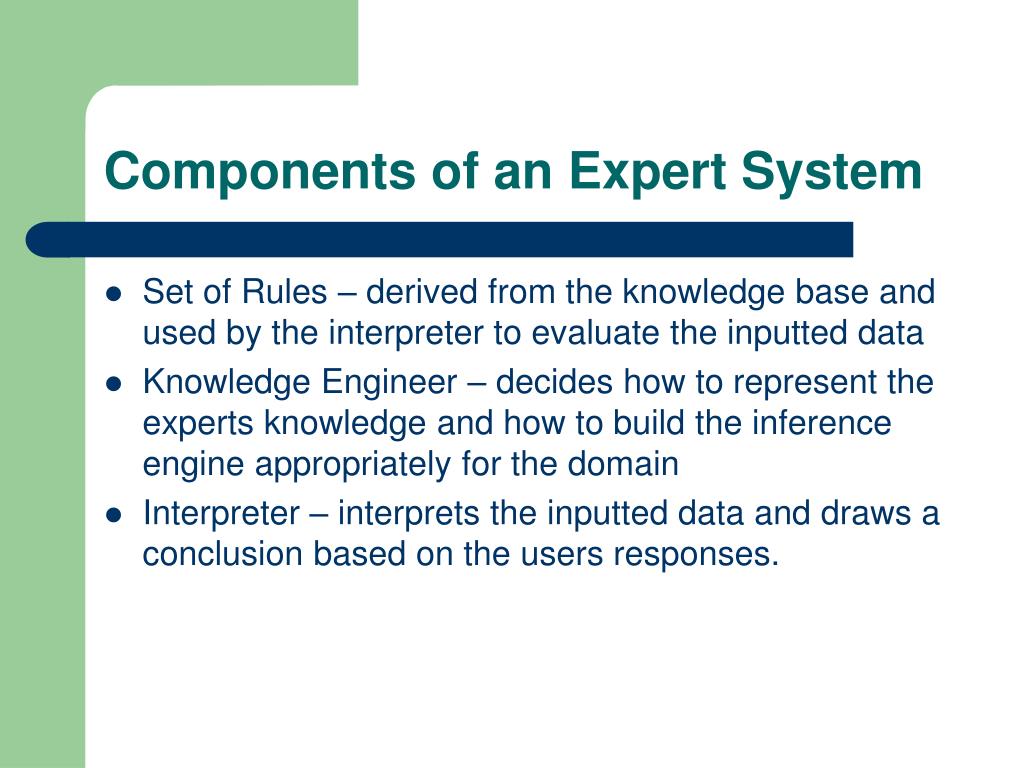

Components of an Expert System

  • Set of Rules – derived from the knowledge base and used by the interpreter to evaluate the inputted data

  • Knowledge Engineer – decides how to represent the experts knowledge and how to build the inference engine appropriately for the domain

  • Interpreter – interprets the inputted data and draws a conclusion based on the users responses.


Problem solving models

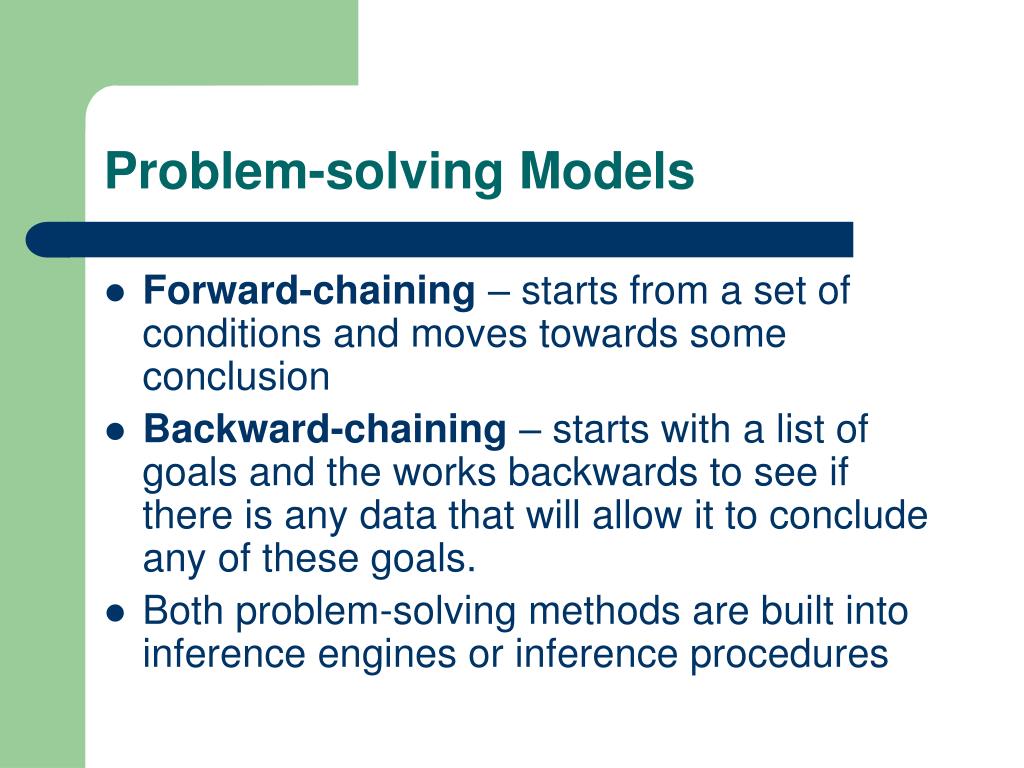

Problem-solving Models

  • Forward-chaining – starts from a set of conditions and moves towards some conclusion

  • Backward-chaining – starts with a list of goals and the works backwards to see if there is any data that will allow it to conclude any of these goals.

  • Both problem-solving methods are built into inference engines or inference procedures


Knowledge objects
Knowledge Objects

  • Classes – questions the user is asked

  • Parameters – place holder for a character string which can be variable and used to decide if/when a question is asked

  • Procedures – definitions of calls to external procedures

  • Rule Nodes – inferencing is done by a tree structure (decision trees!) and the nodes are called rule nodes.


Rule base as a forest of trees

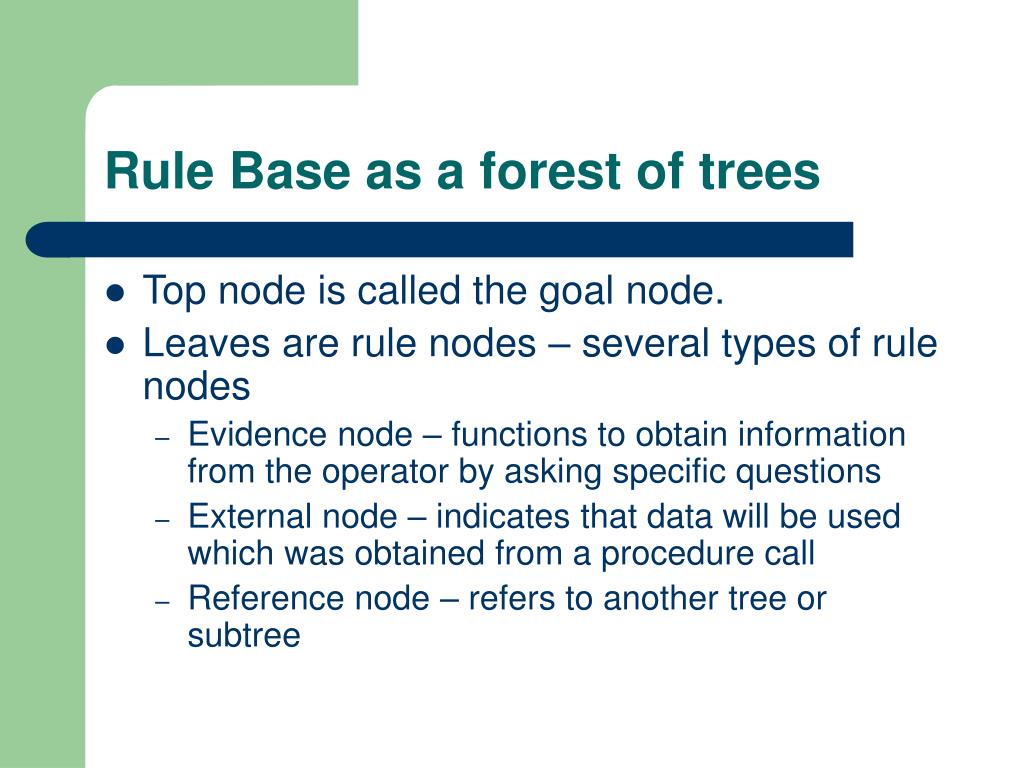

Rule Base as a forest of trees

  • Top node is called the goal node.

  • Leaves are rule nodes – several types of rule nodes

    • Evidence node – functions to obtain information from the operator by asking specific questions

    • External node – indicates that data will be used which was obtained from a procedure call

    • Reference node – refers to another tree or subtree


Advantages of expert systems
Advantages of Expert Systems

  • Provide consistent answers for repetitive decisions, processes and tasks.

  • Hold and maintain significant levels of information.

  • Reduce employee training costs

  • Centralize the decision making process.

  • Create efficiencies and reduce the time needed to solve problems.


Advantages cont d

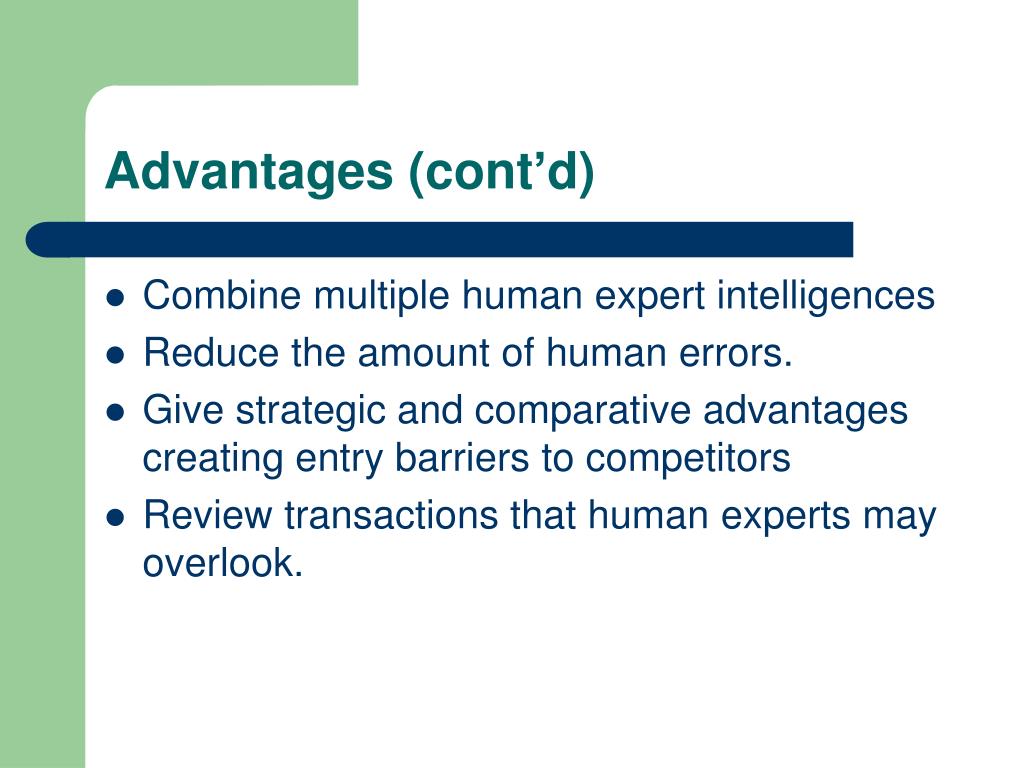

Advantages (cont’d)

  • Combine multiple human expert intelligences

  • Reduce the amount of human errors.

  • Give strategic and comparative advantages creating entry barriers to competitors

  • Review transactions that human experts may overlook.


Disadvantages of expert systems
Disadvantages of Expert Systems

  • Lack human common sense needed in some decision making.

  • Will not be able to give the creative responses that human experts can give in unusual circumstances.

  • Domain experts cannot always clearly explain their logic and reasoning.

  • Challenges of automating complex processes.

  • Lack of flexibility and ability to adapt to changing environments.

  • Not being able to recognize when no answer is available.


Example expert system

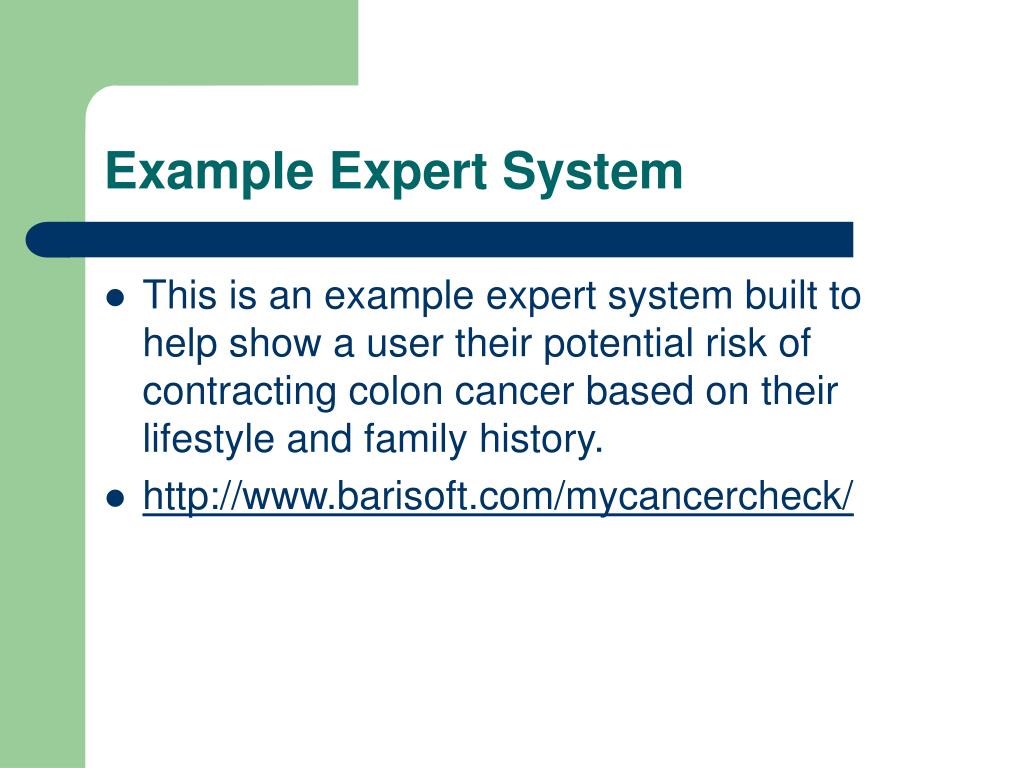

Example Expert System

  • This is an example expert system built to help show a user their potential risk of contracting colon cancer based on their lifestyle and family history.

  • http://www.barisoft.com/mycancercheck/


Example system
Example System

  • OBJECT NUMBER 21

  • Name: [Age_Related]

  • Prompt: How OLD were you when you were FIRST diagnosed with any of the other related cancer?

  • Max. selections: 100

  • Legal Values:

  • -0

  • -----------------

  • OBJECT NUMBER 22

  • Name: {orc_age_rpt}

  • Prompt: Please enter a value for the ORC_AGE_RPT.

  • Max. selections: open

  • Legal Values:

  • -OPEN STRING

  • -----------------

  • OBJECT NUMBER 23

  • Name: Two_Related_Cancers

  • Prompt: Have you ever been diagnosed with any TWO or more of the following cancers? Colon, Gastric, Small Bowel, Hepatobiliary, Pancreatic, Endometrial, Ovarian, Renal pelvis, or Ureter.

  • Max. selections: 1

  • Legal Values:

  • -Yes

  • -No

  • -----------------

  • OBJECT NUMBER 24

  • Name: {Non_Related_Cancers}

  • Prompt: Please enter any additional CANCERS for which YOU have been diagnosed. Example: Breast, Lymphoma. If no other cancers, then type None.

  • Max. selections: open

  • Legal Values:

  • -OPEN STRING


Example system cont d

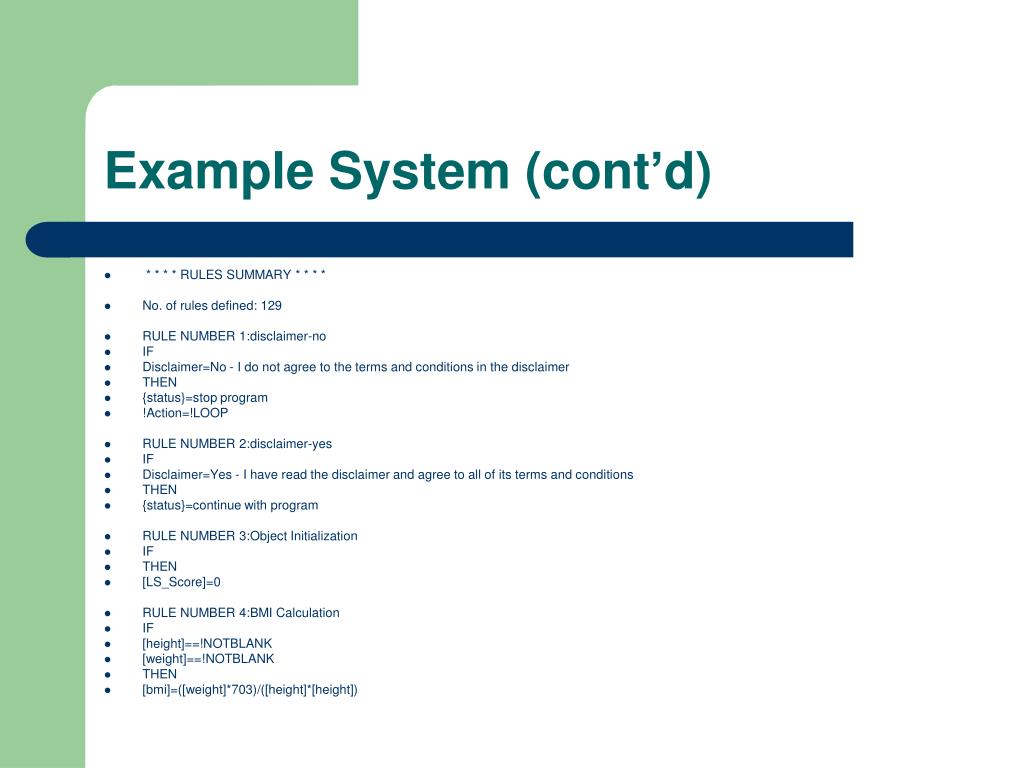

Example System (cont’d)

  • * * * * RULES SUMMARY * * * *

  • No. of rules defined: 129

  • RULE NUMBER 1:disclaimer-no

  • IF

  • Disclaimer=No - I do not agree to the terms and conditions in the disclaimer

  • THEN

  • {status}=stop program

  • !Action=!LOOP

  • RULE NUMBER 2:disclaimer-yes

  • IF

  • Disclaimer=Yes - I have read the disclaimer and agree to all of its terms and conditions

  • THEN

  • {status}=continue with program

  • RULE NUMBER 3:Object Initialization

  • IF

  • THEN

  • [LS_Score]=0

  • RULE NUMBER 4:BMI Calculation

  • IF

  • [height]==!NOTBLANK

  • [weight]==!NOTBLANK

  • THEN

  • [bmi]=([weight]*703)/([height]*[height])


More rules for the example system

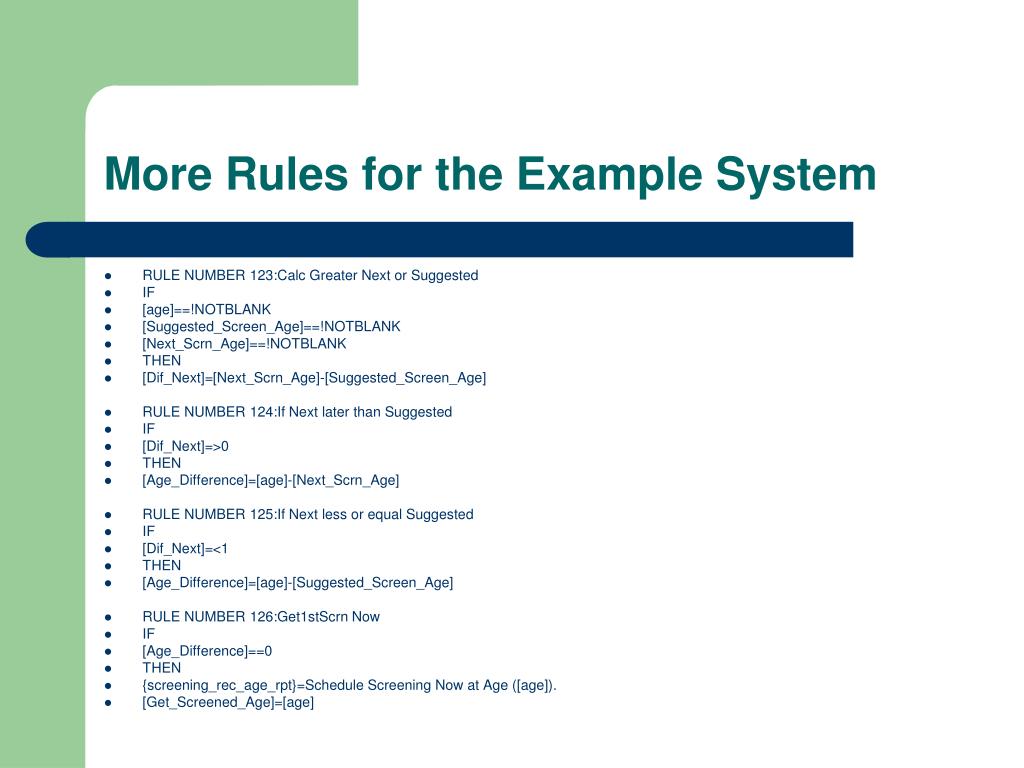

More Rules for the Example System

  • RULE NUMBER 123:Calc Greater Next or Suggested

  • IF

  • [age]==!NOTBLANK

  • [Suggested_Screen_Age]==!NOTBLANK

  • [Next_Scrn_Age]==!NOTBLANK

  • THEN

  • [Dif_Next]=[Next_Scrn_Age]-[Suggested_Screen_Age]

  • RULE NUMBER 124:If Next later than Suggested

  • IF

  • [Dif_Next]=>0

  • THEN

  • [Age_Difference]=[age]-[Next_Scrn_Age]

  • RULE NUMBER 125:If Next less or equal Suggested

  • IF

  • [Dif_Next]=<1

  • THEN

  • [Age_Difference]=[age]-[Suggested_Screen_Age]

  • RULE NUMBER 126:Get1stScrn Now

  • IF

  • [Age_Difference]==0

  • THEN

  • {screening_rec_age_rpt}=Schedule Screening Now at Age ([age]).

  • [Get_Screened_Age]=[age]


Conclusions
Conclusions

  • Very interesting field of AI.

  • Expert Systems are extremely useful in the right domain.

  • They are inflexible and require a lot of collaboration between a knowledge engineer and a domain expert.

  • When implemented correctly, expert systems remove human error from the equation.


References

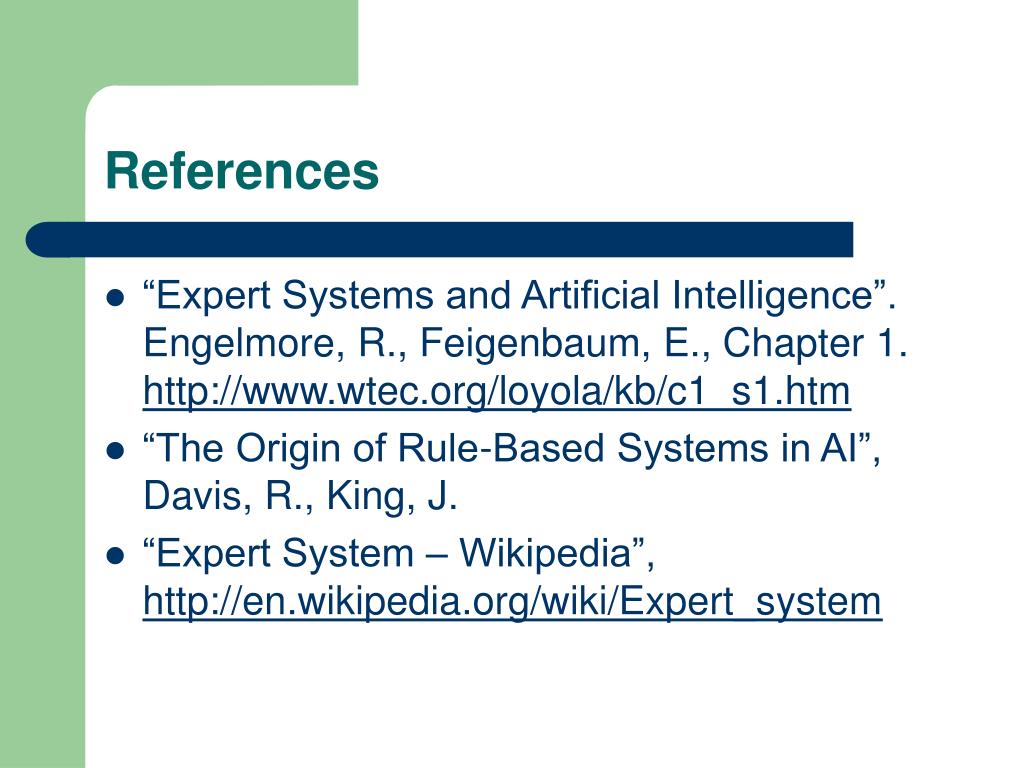

References
