Remote Set Contents

  • Q4 RF or Q5 RF Student Remotes

  • 1 Q5 RF Instructor Remote

  • 1 RF Host

  • Charger

  • Multi-Charger (if applicable)

  • Screwdriver, Screws, Batteries (if applicable)

  • Software

  • Quick Reference Guide

  • Full User Guide on CD

Qwizdom, Inc.™ Copyright 2007


Slide3 l.jpg

Q4 RF or Q5 RF Remotes

Qwizdom, Inc.™ Copyright 2007


Slide4 l.jpg

Q5 RF Instructor Remote

Qwizdom, Inc.™ Copyright 2007


Slide5 l.jpg

RF Host with USB Cable

Qwizdom, Inc.™ Copyright 2007


Slide6 l.jpg

Accessories

The screwdriver is used to secure the screw in the back of the Q4 RF remote.

Screws are used to secure the Q4 RF remote battery cover.

Qwizdom, Inc.™ Copyright 2007


Slide7 l.jpg

Accessories

Single charger is for the Q5 RF Instructor remote.

Multi-charger comes with Q5 RF remotes.

“AA” batteries are for Q4 RF remotes.

Qwizdom, Inc.™ Copyright 2007


Slide8 l.jpg

Qwizdom Interact Software

Software depends on what is ordered.

Qwizdom Interact

Qwizdom Actionpoint

Qwizdom, Inc.™ Copyright 2007


Slide9 l.jpg

Hardware Setup

Plug the USB Cable into the RF Host.

Then plug the other end of the USB Cable into an open USB Port on your computer.

Qwizdom, Inc.™ Copyright 2007


Slide10 l.jpg

Hardware Setup

When the RF Host is plugged in, you should receive a ‘New Hardware Found’ prompt in the bottom right of the window.

Qwizdom, Inc.™ Copyright 2007


Slide11 l.jpg

Installing the USB Drivers

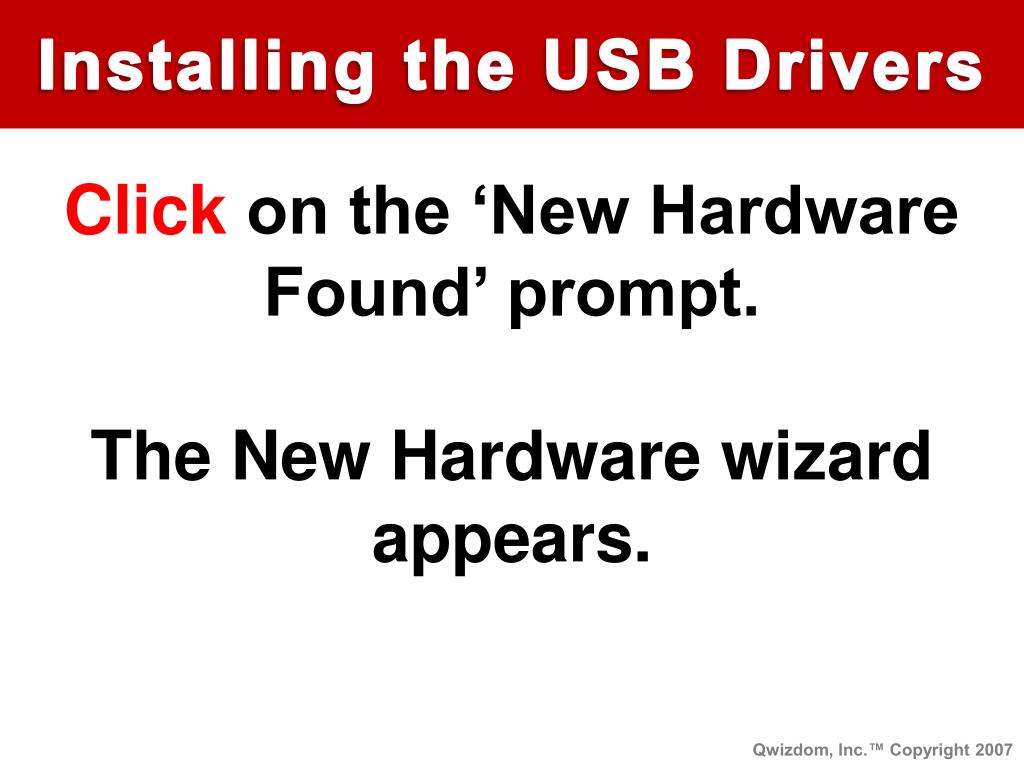

Click on the ‘New Hardware Found’ prompt.

The New Hardware wizard appears.

Qwizdom, Inc.™ Copyright 2007


Slide12 l.jpg

Installing the USB Drivers

The USB Drivers for the RF Host needs to be installed.

The USB Drivers are located on the Qwizdom software CD.

Qwizdom, Inc.™ Copyright 2007


Slide13 l.jpg

Installing the USB Drivers

Remove the software from the remote set pouch.

Place the CD into the CD-ROM drive.

Qwizdom, Inc.™ Copyright 2007


Slide14 l.jpg

Installing the USB Drivers

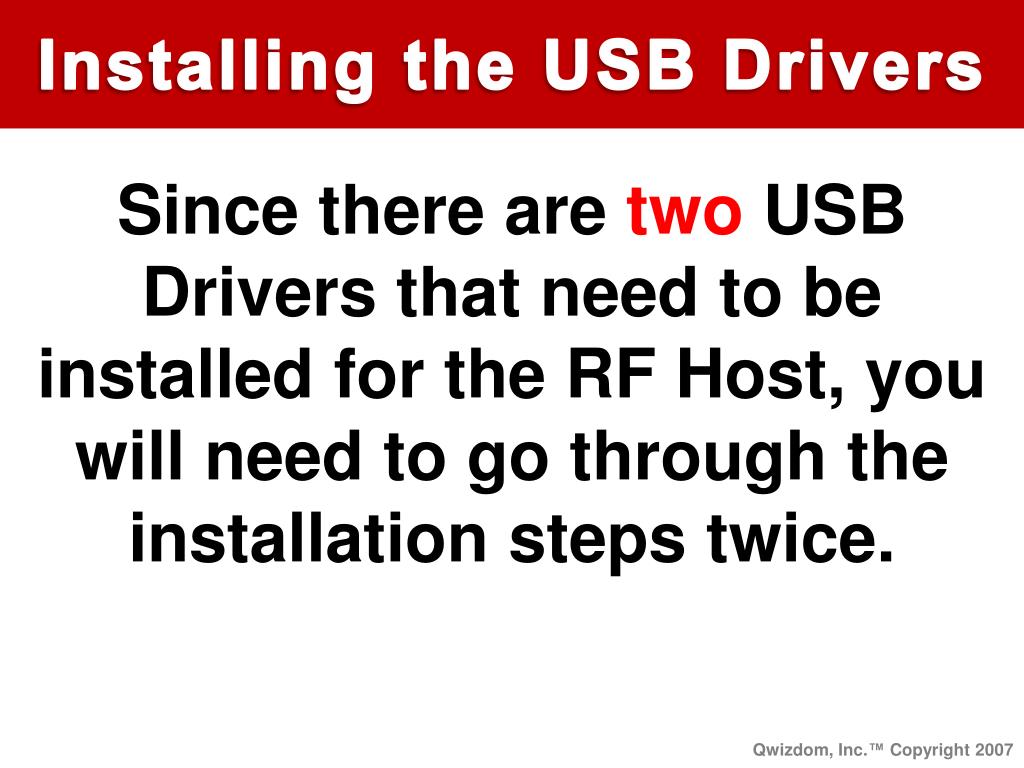

Since there are two USB Drivers that need to be installed for the RF Host, you will need to go through the installation steps twice.

Qwizdom, Inc.™ Copyright 2007


Slide15 l.jpg

Installing the USB Drivers

Click on ‘No, not this time’ and click on Next.

Qwizdom, Inc.™ Copyright 2007


Slide16 l.jpg

Installing the USB Drivers

Click on ‘Install from a list or specific location (Advanced)’ and click on Next.

Qwizdom, Inc.™ Copyright 2007


Slide17 l.jpg

Installing the USB Drivers

Check ‘Include this location in search’ and click on Browse.

Qwizdom, Inc.™ Copyright 2007


Slide18 l.jpg

Installing the USB Drivers

Select the USB Drivers folder located on the Qwizdom Interact CD.

Then click on OK.

Qwizdom, Inc.™ Copyright 2007


Slide19 l.jpg

Installing the USB Drivers

Click on Next.

Qwizdom, Inc.™ Copyright 2007


Slide20 l.jpg

Installing the USB Drivers

The USB drivers will install.

Qwizdom, Inc.™ Copyright 2007


Slide21 l.jpg

Installing the USB Drivers

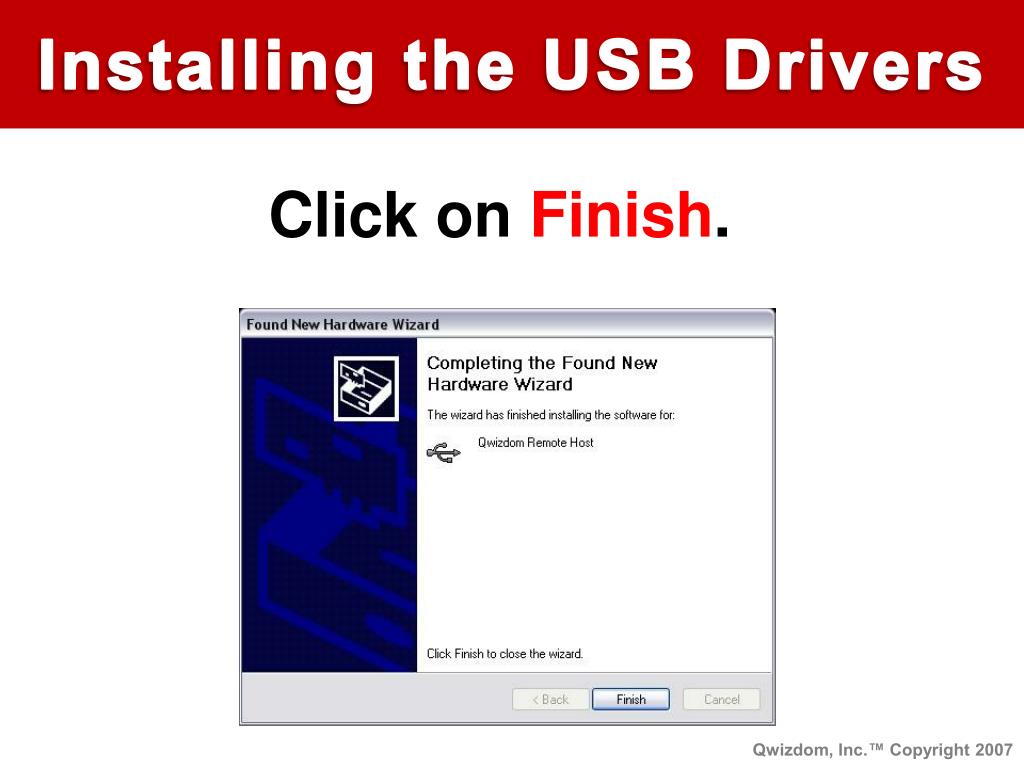

Click on Finish.

Qwizdom, Inc.™ Copyright 2007


Slide22 l.jpg

Installing the USB Drivers

The first USB Driver has been installed.

Repeat the steps to install the second USB Driver.

Qwizdom, Inc.™ Copyright 2007


Slide23 l.jpg

Thank you for choosing Qwizdom!

Cleveland Office 1-877-794-9366

Seattle Office 1-800-347-3050

Tech Support: [email protected]

Qwizdom, Inc.™ Copyright 2007
