Safer Roads

Millennium EditionSummary of Changes

Part 2D - Guide Signs - Conventional Roads


Change in terms l.jpg

Change In Terms

1988 MUTCD2000 MUTCD

  • “Sign”

  • “M” Designation Continues

  • “Marker”

Section 2D

Chapter 2D

Yellow Text Denotes a Standard


Guide sign brightness l.jpg

Guide Sign Brightness

1988 MUTCD2000 MUTCD

  • Not In MUTCD

  • Retroreflection and/or illumination Requirements

Section 2D-3

Section 2D.3

Yellow Text Denotes a Standard


Location of priority route signs l.jpg

Location of Priority Route Signs

1988 MUTCD2000 MUTCD

  • Not In MUTCD

  • Priority Route Signs located on top left of sign panel

Section 2D-9

Section 2D.9

Yellow Text Denotes a Standard


Off interstate business route sign l.jpg

Off-Interstate Business Route Sign

1988 MUTCD2000 MUTCD

  • Not In MUTCD

  • Allows Use of White Panel with Green Guide Sign

Section 2D-11

Section 2D.11

Yellow Text Denotes a Standard


Cardinal direction signs l.jpg

Cardinal Direction Signs

1988 MUTCD2000 MUTCD

  • First letter shall be 10 percent larger

  • Compliance date December 31, 1994

Section 2D-15

Section 2D.15

Yellow Text Denotes a Standard


Destination and direction signs l.jpg

Destination and Direction Signs

1988 MUTCD2000 MUTCD

  • Not In MUTCD

  • Allows Route Sign and Cardinal Direction on Destination Panel

Section 2D-34

Section 2D.33

Yellow Text Denotes a Standard


Destination signs l.jpg

Destination Signs

1988 MUTCD2000 MUTCD

  • Shall Use 2 Panels for 4 Destinations

  • Should Use 2 Panels for 4 Destinations

Section 2D-35

Section 2D.34

Yellow Text Denotes a Standard


Location of distance signs l.jpg

Location of Distance Signs

1988 MUTCD2000 MUTCD

  • Specific distance location is prescribed

  • Guidance for location is recommended

Section 2D-38

Section 2D.37

Yellow Text Denotes a Standard


Street name signs l.jpg

Street Name Signs

1988 MUTCD2000 MUTCD

  • Not in MUTCD

  • May be installed on overhead mast arms.

Section 2D-39

Section 2D.38

Yellow Text Denotes a Standard


Street name signs11 l.jpg

Safer Roads

Street Name Signs

1988 MUTCD2000 MUTCD

  • Not in MUTCD

  • Option to install 2 different street names on one sign panel with arrows.

Section 2D-39

Section 2D.38

Yellow Text Denotes a Standard


General service signs l.jpg

General Service Signs

1988 MUTCD2000 MUTCD

  • Option to Dial 511 for traffic conditions was not in the MUTCD

  • Option to sign for:

  • Alternative Fuels

  • Emergencies

  • Traffic Conditions

Section 2D.44

Yellow Text Denotes a Standard


General services signs l.jpg

General Services Signs

1988 MUTCD2000 MUTCD

  • Truck Parking sign included in Revision 5

  • Truck Parking Signs

Section 2D.44

Yellow Text Denotes a Standard

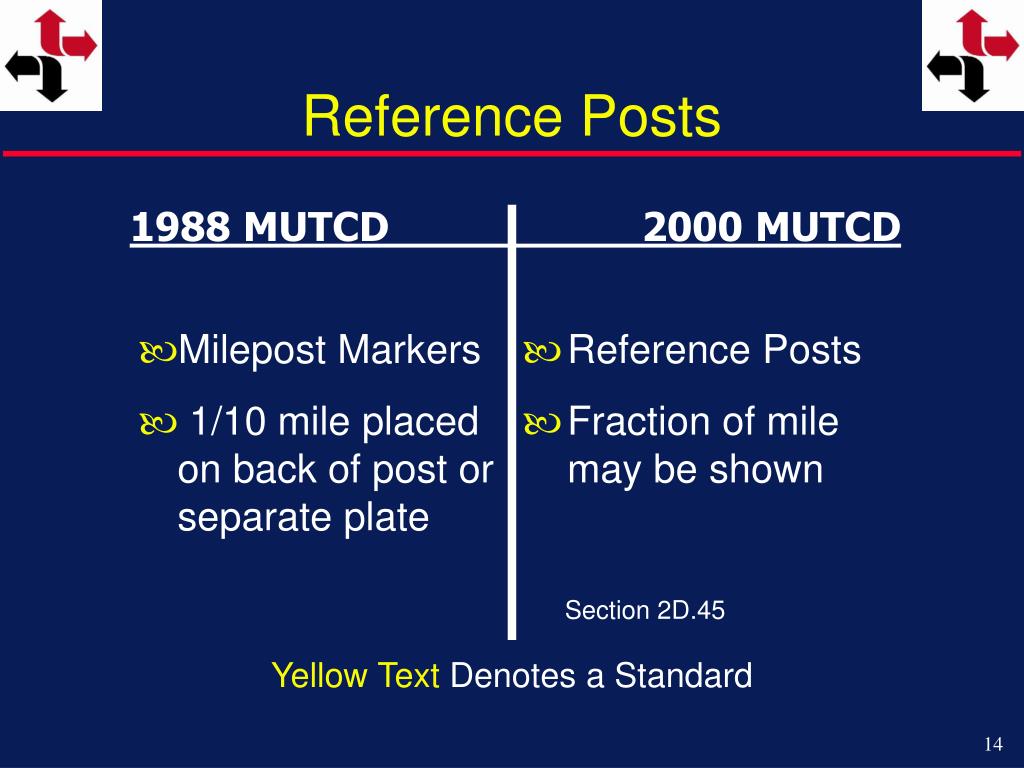

Reference posts l.jpg

Reference Posts

1988 MUTCD2000 MUTCD

  • Milepost Markers

  • 1/10 mile placed on back of post or separate plate

  • Reference Posts

  • Fraction of mile may be shown

Section 2D.45

Yellow Text Denotes a Standard


General information signs l.jpg

General Information Signs

1988 MUTCD2000 MUTCD

  • Recycling Collection Center Sign (I-11)

Section 2D.47

Yellow Text Denotes a Standard


General information signs16 l.jpg

Adopt Me !

General Information Signs

1988 MUTCD2000 MUTCD

  • In Revision 5

  • Adopt-a-Highway Signs

Section 2D.47

Yellow Text Denotes a Standard


General information signs17 l.jpg

General Information Signs

1988 MUTCD2000 MUTCD

  • In Revision 5

  • Non-Carrier Airports

Section 2D.47

Yellow Text Denotes a Standard
