OXIDATIONS OF ALCOHOLS PowerPoint PPT Presentation


  • 177 Views
  • Updated On :
  • Presentation posted in: General

OXIDATIONS OF ALCOHOLS. OXIDATION OF AN ALCOHOL. ( LOSS OF 2H + and 2e - ). a- carbon. - 2H. a. OXIDATION. C. O. C. O. REDUCTION. + 2H. H. H. LOSS OF TWO HYDROGENS. a- hydrogen. one an a -H. The alcohol must. have a - hydrogens. Oxidations. no reaction.

Download Presentation

OXIDATIONS OF ALCOHOLS

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Slide1 l.jpg

OXIDATIONS OF ALCOHOLS


Slide2 l.jpg

OXIDATION OF AN ALCOHOL

( LOSS OF 2H+ and 2e- )

a-carbon

- 2H

a

OXIDATION

C

O

C

O

REDUCTION

+ 2H

H

H

LOSS OF TWO

HYDROGENS

a-hydrogen

one an a-H


Slide3 l.jpg

The alcohol must

have a-hydrogens.

Oxidations

no reaction

Remember: A dehydrogenation (loss of hydrogen) is also a form of oxidation!


Slide4 l.jpg

MANTRA

  • Primary alcohols oxidize to give

  • Carboxylic acids(via aldehyde)*

  • Seconday alcohols oxidize to give

  • Ketones

  • Tertiary alcohols do not oxidize

  • no oxidation

  • Aldehydes oxidize easily to give

    • Carboxylic acids

*With special reagents, the oxidation of a primary alcohol

can be stopped at the aldehyde.


Slide5 l.jpg

PRIMARY ALCOHOLS


Slide6 l.jpg

Oxidation of Primary Alcohols

with KMnO4

REQUIRES

HEAT

twoa-hydrogens

+ MnO2

precipitate

C=C Double bonds are also oxidized by this reagent.


Slide7 l.jpg

Oxidation of Primary Alcohols

with K2Cr2O7

CHROMIC ACID

TEST


Slide8 l.jpg

SECONDARY ALCOHOLS


Slide9 l.jpg

Oxidation of Secondary Alcohols

CHROMIC ACID

TEST

Jones Oxidation


Slide10 l.jpg

JONES REAGENT


Slide11 l.jpg

CHROMIC ACID

EQUILIBRIA

Chromic acid

Dichromic acid

ALL OF THESE ARE CHROMIC ACID SPECIES

CrO3

H2CrO4

NaCr2O7

oxidizing

agents

H2SO4

H2SO4

H2SO4


Slide12 l.jpg

Primary alcohol

has two a-H

MECHANISM

H2O

H2SO4

Alcohols react with

chromic acid to form

chromate esters.

:

+

..

..

..

:

..

..

Chromate ester


Slide13 l.jpg

MECHANISM

( continued )

..

aldehyde

:

..

..

..

..

:

..

..

The two lost

electrons

end up here.

..

:

:

Loss of two

electrons

+

Loss of

a-hydrogen

Oxidation

continues

FIRST OXIDATION

(next slide)


Slide14 l.jpg

MECHANISM

( continued )

Requires

water and acid

hydrate

(an alcohol !)

Oxidation continues because

the aldehyde forms a hydrate.

The hydrate is an alcohol (diol)

that has an a-hydrogen.

Oxidation

continues


Slide15 l.jpg

MECHANISM

( continued )

:

..

Chromate

ester

:

+

..

..

..

:

..

..

:

..

Loss of a-hydrogen,

loss of 2 electrons.

hydrate

:

Carboxylic

acid

..

..

:

..

..

SECOND OXIDATION

+


Slide16 l.jpg

HOW CAN WE

STOP OXIDATION OF THE ALDEHYDE ?

Oxidation of the aldehyde requires the hydrate to form.

Formation of the hydrate requires acid and water.

What if we do the reaction in

basic medium with no water ?


Slide17 l.jpg

SARRETT AND PCC REAGENTS


Slide18 l.jpg

Oxidation with

Chromic Oxide and Pyridine

aldehydes do not

oxidize further

Sarett Oxidation


Slide19 l.jpg

Oxidation with

Pyridinium Chlorochromate

aldehydes do not

oxidize further

except in DMF

which enhances

reactivity

“PCC” Oxidation


Slide20 l.jpg

MEERWEIN-PONNDORF-VERLEY

REDUCTION


Slide21 l.jpg

MEERWEIN-PONNDORF-VERLEY REDUCTION

aluminum

isopropoxide

Al(OiPr)3

+

+

isopropyl alcohol

acetone

EQUILIBRIUM

  • Use an excess of isopropyl alcohol to reduce a ketone.

  • Use an excess of acetone to oxidize an alcohol.


Slide22 l.jpg

HYDRIDE

DONOR

The alcohol complexes with the

aluminum isopropoxide and acts

as a hydride donor to the ketone.


Slide23 l.jpg

TOLLEN’S TEST


Slide24 l.jpg

The Tollens Test

metallic

silver

aldehyde

Ketones do

not react.

silver mirror

Remember that aldehydes

are easily oxidized.


Slide25 l.jpg

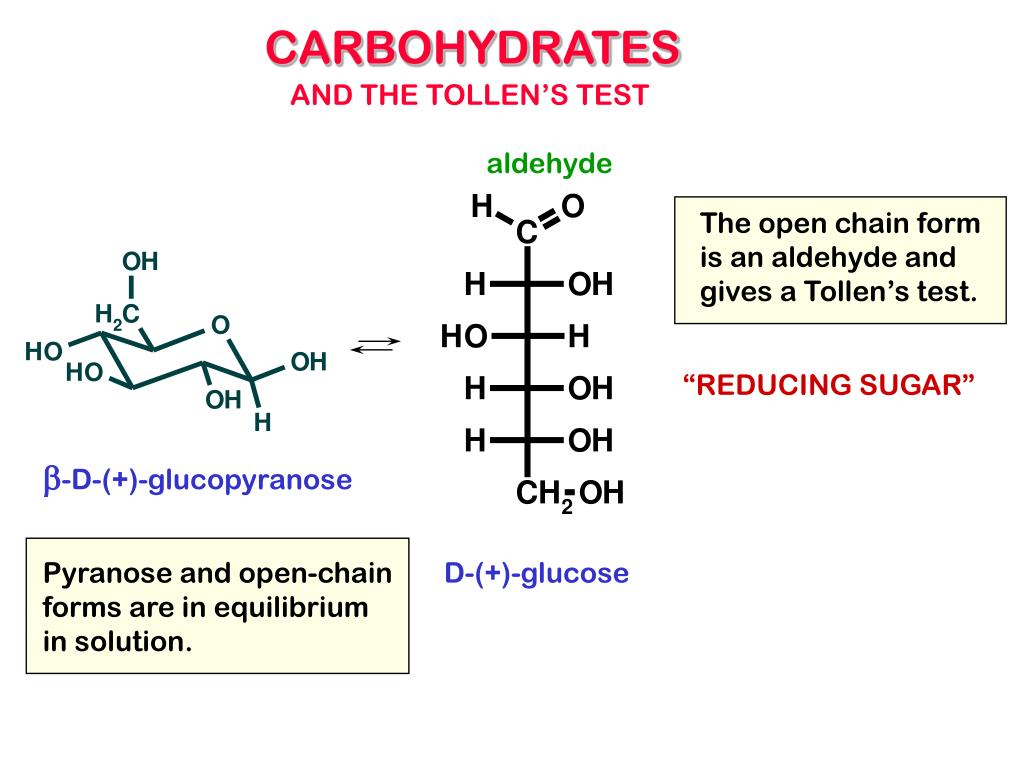

CARBOHYDRATES

AND THE TOLLEN’S TEST

aldehyde

The open chain form

is an aldehyde and

gives a Tollen’s test.

“REDUCING SUGAR”

b-D-(+)-glucopyranose

Pyranose and open-chain

forms are in equilibrium

in solution.

D-(+)-glucose


Slide26 l.jpg

CARBOHYDRATES

AND THE TOLLEN’S TEST

ketone

TAUTOMERIZATION

aldehyde

*

D-(-)-fructose

“enediol”

* both diastereomers

“REDUCING SUGAR”

a-D-(-)-fructofuranose

Ketoses also give the test because they tautomerize! in solution.


Slide27 l.jpg

CARBOHYDRATES

AND THE TOLLEN’S TEST

hemiacetals open in solution

= REDUCING SUGAR

aldehyde

ketoses

tautomerize

to reducing

sugars

X

acetals do not open in solution unless hydrolyzed in acid

= NONREDUCING SUGAR


Slide28 l.jpg

CARBOHYDRATES

AND THE TOLLEN’S TEST

Any polysaccharide which has a hemiacetal ring will

give a positive Tollen’s test = reducing sugar.

(+)-Sucrose

non-reducing

Neither sugar is in a

hemiacetal link.

Maltose

reducing sugar

Hemiacetal link at a.


Slide29 l.jpg

SYNTHESIS PROBLEMS


Slide30 l.jpg

A Simple Synthesis Problem

Make from benzyl alcohol

complete synthesis on board


Slide31 l.jpg

A Synthesis Problem

?

complete synthesis on board


Slide32 l.jpg

Yet Another Conversion

?

complete synthesis on board


Slide33 l.jpg

SYNTHESIS OF TRIPHENYLMETHANOL

  • via benzoyl chloride

  • via benzaldehyde

  • via benzyl alcohol

  • via benzophenone


Slide34 l.jpg

CONVERSIONS


Slide35 l.jpg

Another Synthesis Problem

?

complete synthesis on board


Slide36 l.jpg

C

D

A

B

PHARMACEUTICALS

Mexican Yams

“the pill”

must be

injected

better absorbed through

the stomach and intestines

than progesterone

STEROID

progesterone


Slide37 l.jpg

Mexican Yams

CrO3

pyridine

H+

(-H2O)

acetal

protecting group

Na

NH3(liq)

Na

H3O+

norethisterone
