Presentation Transcript


Lincoln avenue corridor urban design plan design guidelines l.jpg

Lincoln AvenueCorridor Urban Design Plan& Design Guidelines

“Tuesdays at APA”

August 1, 2006

Mahender Vasandani

Director, Planning & Urban Design

Land Vision, Inc.


A typical commercial strip l.jpg

A Typical Commercial Strip

1


A typical old approach l.jpg

A Typical “Old” Approach

2


The corridor l.jpg

The Corridor

Touhy Avenue

I-294

Lincoln Avenue Corridor

Devon Avenue

3


The corridor5 l.jpg

The Corridor

A Commercial Strip/Thoroughfare

4


The issues l.jpg

The Issues

  • Outmoded Development Form

  • Can Not Exploit Full Potential

  • No Gathering Places

  • Lack of Pedestrian Access

  • Lack of Positive Identity

  • No Design Cohesiveness

5


The goals l.jpg

The Goals

  • Allow New Development Form

  • Create Hubs of Activities/Mixed Uses

  • Create Gathering Places

  • Allow Convenient Pedestrian Access

  • Create In-fill Housing

  • Create Cohesive Image

  • Add Value to Properties

6

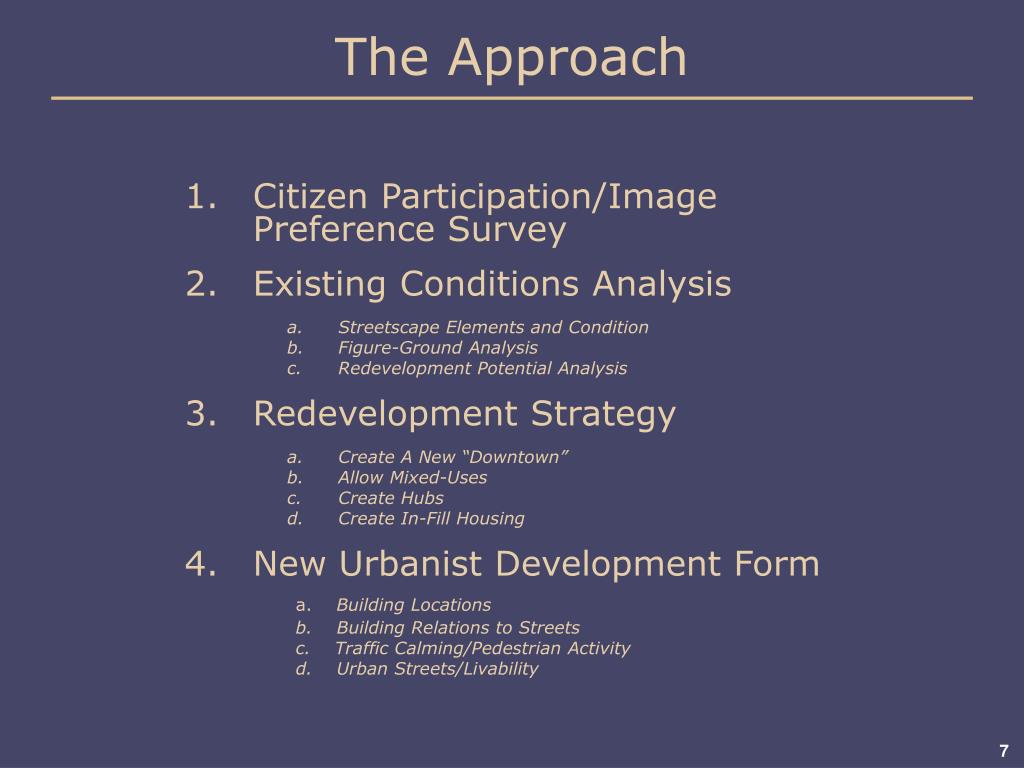

The approach l.jpg

The Approach

  • Citizen Participation/Image Preference Survey

  • Existing Conditions Analysis

    • Streetscape Elements and Condition

    • Figure-Ground Analysis

    • Redevelopment Potential Analysis

  • Redevelopment Strategy

    • Create A New “Downtown”

    • Allow Mixed-Uses

    • Create Hubs

    • Create In-Fill Housing

  • New Urbanist Development Form

    a. Building Locations

    b. Building Relations to Streets

    c. Traffic Calming/Pedestrian Activity

    d. Urban Streets/Livability

  • 7


    The approach9 l.jpg

    The Approach

    5. Corridor Urban Design Plan

    6. Urban Design Guidelines

    • Public Domain

    • Private Domain

  • Adopt Form-based Code

  • A New “Downtown” Plan

  • 8


    Citizen participation ips l.jpg

    Citizen Participation/IPS

    A MUST!

    9


    Existing conditions analysis l.jpg

    Existing Conditions Analysis

    Figure/Ground Analysis(Northern Half)

    10


    Redevelopment strategy l.jpg

    1.New Downtown Hub: Retail, Office, Residential & Hotel

    Touhy Avenue

    2.Focal-point Monument

    3. Focal-point Monument in Traffic Oval

    Lincoln Avenue

    4.Focal-point Monument

    New Mixed-Use Hub:

    Retail & Residential

    Existing Village Hall

    Pratt Avenue

    5. Mixed-Use Hub: Retail & Residential

    6. Residential Infill

    Crawford Avenue

    North

    Devon Avenue

    7. New Retail Hub

    Redevelopment Strategy

    11


    New urbanist development form l.jpg

    New Urbanist Development Form

    12

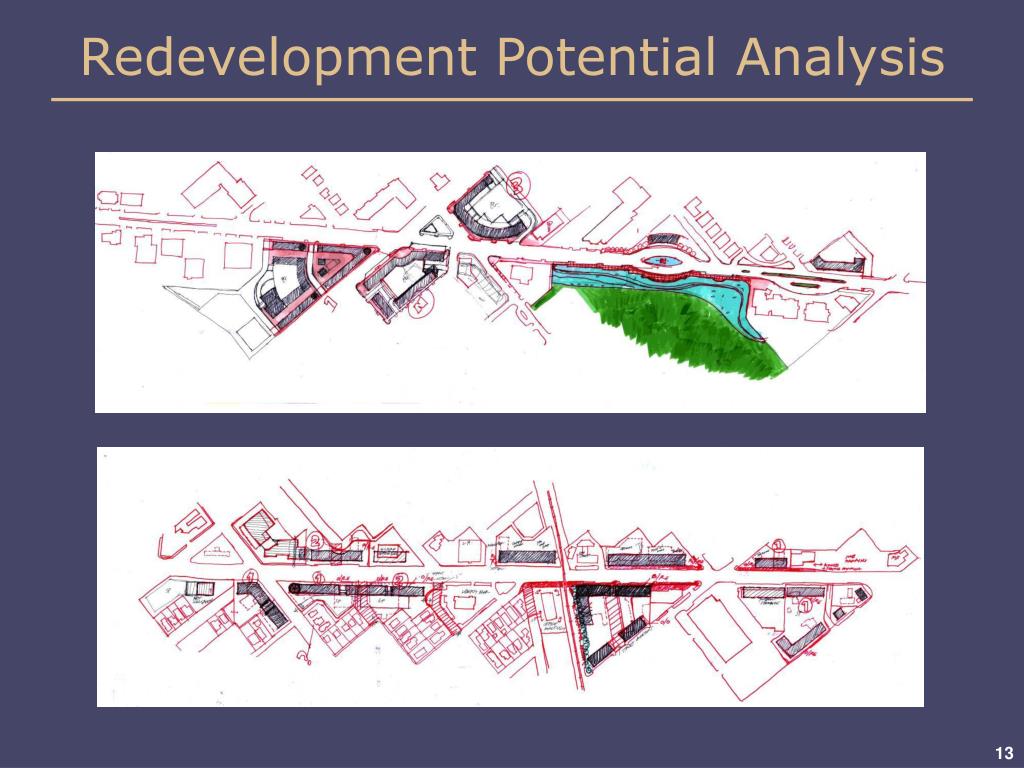

    Redevelopment potential analysis l.jpg

    Redevelopment Potential Analysis

    13


    Redevelopment potential analysis15 l.jpg

    Redevelopment Potential Analysis

    14


    Corridor urban design plan l.jpg

    Corridor Urban Design Plan

    Northern Half

    15


    Corridor urban design plan17 l.jpg

    Corridor Urban Design Plan

    Southern Half

    16


    Urban design guidelines l.jpg

    Urban Design Guidelines

    Public Domain Guidelines: NearProperties Not to Be Redeveloped

    17


    Urban design guidelines19 l.jpg

    C

    Building Setback

    Line

    A

    Building Setback

    Line

    R.O.W. Line

    A

    R.O.W. Line

    B

    Maximum 3 Floors/ 38 Feet

    B

    B

    Sidewalk

    Line

    Sidewalk

    Line

    Urban Design Guidelines

    Private Domain Guidelines: For Properties to Be Redeveloped

    Maximum Building Height in Corridor: 3 Storeys

    Max. Height in “Downtown”: 5 Storeys

    “A”: Max. Building Setback: 5 feet

    “B”: Min. Distance to Sidewalk Edge: 15 feet

    “C” Min. Setback Above 3 Floors: 10 feet

    18


    Urban design guidelines20 l.jpg

    Urban Design Guidelines

    Private Domain Guidelines: For Properties to Be Redeveloped

    Required Building Line/Streetscape

    19


    Urban design guidelines21 l.jpg

    Urban Design Guidelines

    Private Domain Guidelines: For Properties to Be Redeveloped

    Landscaping vs. “Dead” Walls

    Pocket Parks

    Well-articulated Facades

    20


    Downtown plan l.jpg

    Downtown Plan

    3

    2

    1

    4

    21

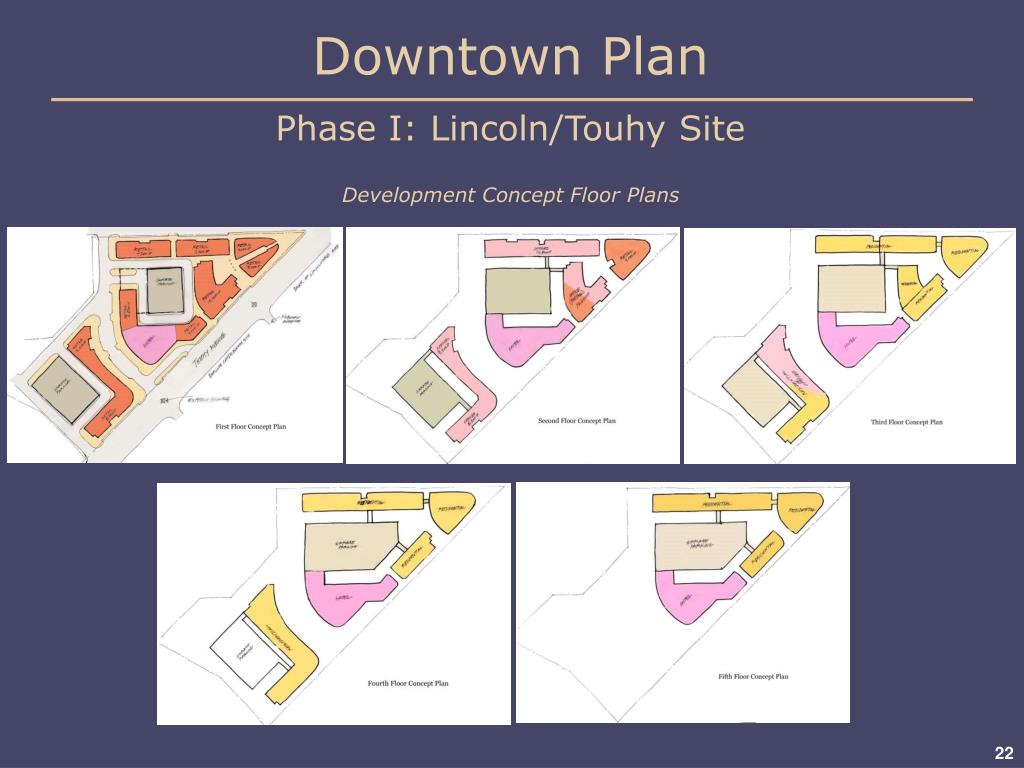

    Downtown plan phase i lincoln touhy site l.jpg

    Downtown PlanPhase I: Lincoln/Touhy Site

    Development Concept Floor Plans

    22


    Downtown plan phase i lincoln touhy site24 l.jpg

    Downtown PlanPhase I: Lincoln/Touhy Site

    Massing Study (View from Lincoln Avenue)

    23


    Slide25 l.jpg

    Downtown PlanPhase I: Lincoln/Touhy Site

    Massing Study (View from Touhy Avenue)

    24


    Downtown plan phase i lincoln touhy site26 l.jpg

    Downtown PlanPhase I: Lincoln/Touhy Site

    Development Program Analysis

    25


    Slide27 l.jpg

    Downtown PlanPhase I: Lincoln/Touhy Site

    Concept Architecture/Urban Form

    (View from Touhy Avenue)

    26

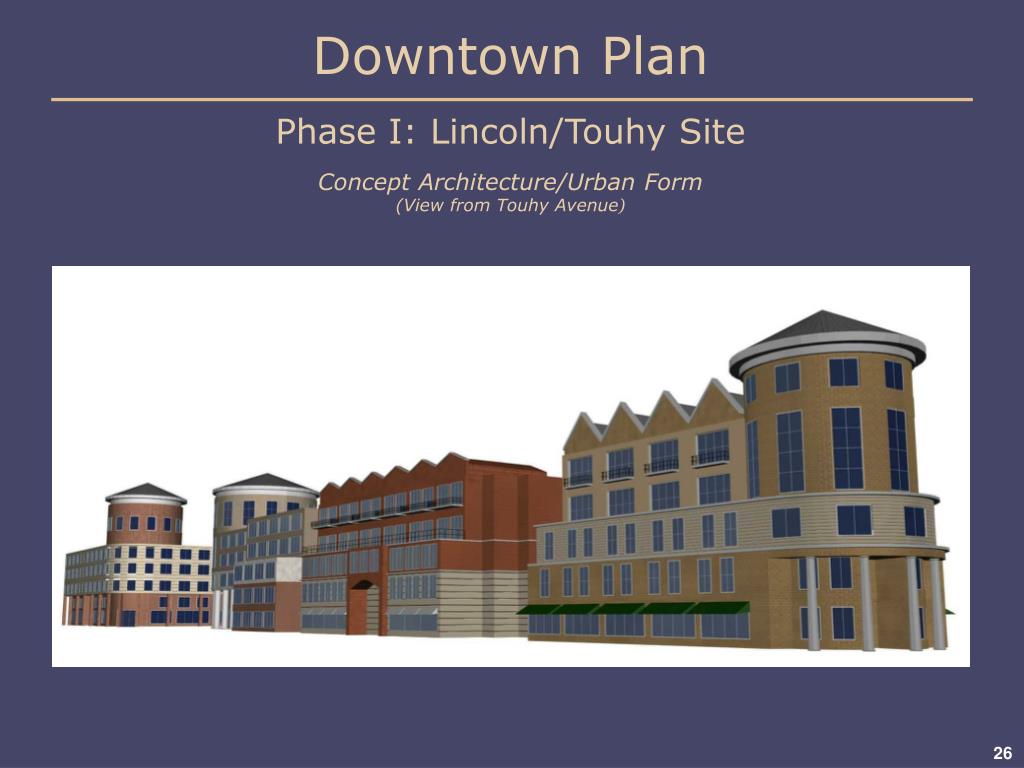

    Slide28 l.jpg

    Downtown PlanPhase I: Lincoln/Touhy Site

    Concept Architecture/Urban Form

    (View from corner of Lincoln Avenue and Touhy Avenue)

    27


    Study conclusion l.jpg

    Study Conclusion

    • Land Vision Provided Detailed Design for Lincoln Avenue Corridor Plan

    • LATF Approved the Plan and Design Guidelines

    • Village Adopted the Corridor Plan and Updated Its Comprehensive Plan

    • Village Is Working on a Form-based Code

    28


    Lessons learned l.jpg

    Lessons Learned

    • Public and Leadership Support for NU Is Critical

    • May Take Some Work to Gain Such Support

    • After the Initial Support, Need to Provide Creative Solutions…to Sustain Support

    • New Urbanism Will Provide Creative Solutions

    • With the Right Design Solutions:

      • Quality Projects

      • Economically Sustainable

      • Traffic Calming

      • Quality of Life

      • Successful Transformation of a Commercial Strip

      • to a “Livable Urban Street”

    29
