Presentation Transcript


Flammable and combustible liquids l.jpg

Welcome!

Flammable and Combustible Liquids

by Environmental, Health and Safety Services


Overview l.jpg

Lacquer thinner

Gasoline

Overview

Toluene

Isopropyl alcohol

  • Definitions

  • Classes of Liquids

  • Precautions

  • Storage Requirements

  • Preventive Measures

Diethyl ether

Acetone

MEK

Methyl formate

Ethyl ether

Kerosene


Flammable liquids l.jpg

Flammable Liquids

  • Flammable liquids can cause a fire or explosion, and like many other substances, they can also cause serious health effects from overexposure.

3

Note: On the NFPA diamond label, a fire hazard rating of 3 or 4 denotes a flammable liquid.


Flammable liquids4 l.jpg

Flammable Liquids

  • A flammable liquid is any liquid having a flashpoint below 100°F.

    • Exception: Any mixture having components with flashpoints of 100°F or higher, the total of which make up 99% or more of the total volume of the mixture.

Note: The flash point is the lowest temperature at which a liquid gives off enough vapor to form a flammable mixture with air.


Flammable liquids5 l.jpg

The vapors of flammable liquids often present the most serious hazard.

The vapors can easily ignite or explode.

Flammable liquid vapors are heavier than air and may settle in low spots, or move a significant distance from the liquid itself.

Flammable Liquids


Explosive limits l.jpg

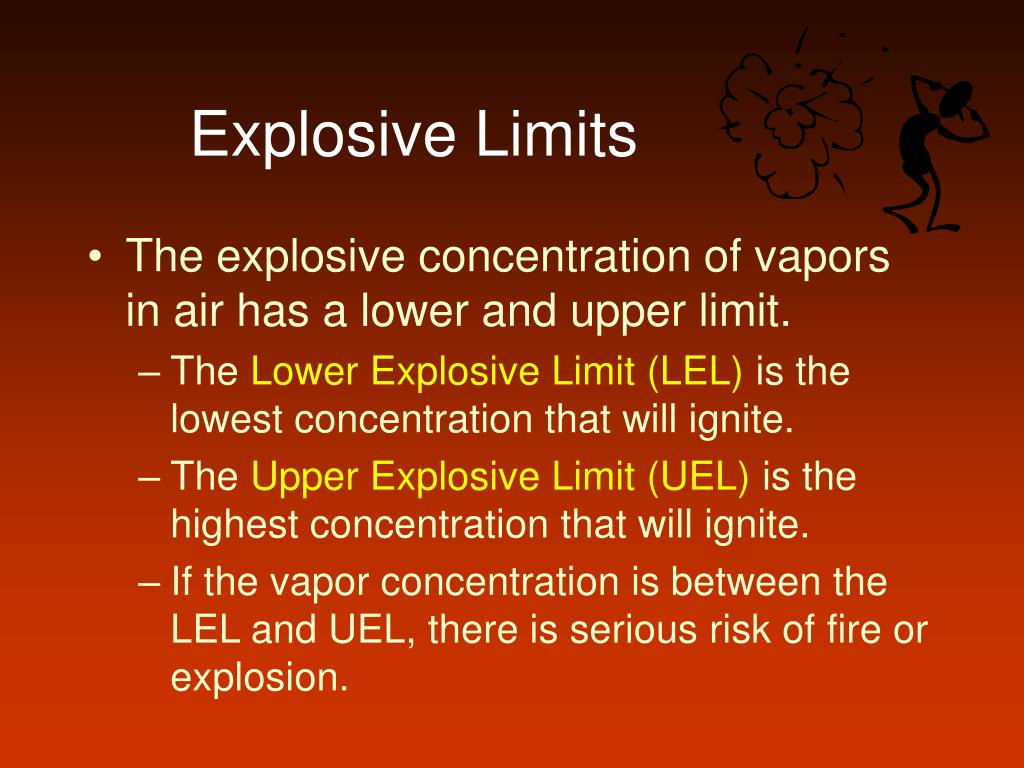

Explosive Limits

  • The explosive concentration of vapors in air has a lower and upper limit.

    • The Lower Explosive Limit (LEL) is the lowest concentration that will ignite.

    • The Upper Explosive Limit (UEL) is the highest concentration that will ignite.

    • If the vapor concentration is between the LEL and UEL, there is serious risk of fire or explosion.


Slide7 l.jpg

Explosive Limits

Above the Upper Explosive Limit, the mixture is too rich to burn

UPPER EXPLOSIVE LIMIT

Explosive Range

LOWER EXPLOSIVE LIMIT

Below the Lower Explosive Limit, the mixture is too lean to burn


Classification l.jpg

Classification

  • Flammable and combustible liquids are classified according to their flashpoints.

This is important to know because the quantity of flammable/combustible liquids that can be stored in any one location is determined by the class of the liquid.


Flammable liquids9 l.jpg

FlammableLiquids


Combustible liquids l.jpg

Combustible Liquids

  • A combustible liquid is any liquid having a flashpoint at or above 100°F.

Note: Check your Material Safety Data Sheet (MSDS) sheet for the characteristics or classification of a particular liquid.


Combustible liquids11 l.jpg

CombustibleLiquids


Area exempt amounts l.jpg

Area Exempt Amounts

  • There are certain amounts of flammable and combustible liquids stored in each control area that are considered exempt.

    • If these amounts are exceeded, then the area or building may have to be reclassified as a Hazardous Use Group under the building code.


Excessive storage is a serious violation of the fire code l.jpg

Excessive storage is a serious violation of the fire code!

Contact the EHSS Fire Safety Engineer at 231-9198 for assistance, if necessary.


Storage areas l.jpg

Storage Areas

  • Flammables should be stored in an approved cabinet in a cool, well ventilated area to avoid pressure buildup and vaporization.


Storage areas15 l.jpg

Storage Areas

  • There should be at least one fire extinguisher in the area.

    • Large storage areas should have a fire protection system installed and must be approved for this use.


Storage cabinets l.jpg

Use flammable liquid storage cabinets where greater quantities of liquids are needed.

Storage Cabinets

Contrary to popular belief, these cabinets are not designed to contain a fire, but to prevent an outside fire from reaching the contents for a period of 10 minutes – enough time to evacuate the area.


Flammable liquid exempt amounts in gallons l.jpg

Flammable Liquid Exempt Amounts (in gallons)


Combustible liquid exempt amounts in gallons l.jpg

Combustible Liquid Exempt Amounts (in gallons)


Slide19 l.jpg

Limitations on Storage

The maximum storage of flammables and combustibles in any one area under the Virginia Fire Prevention Code is 60 gallons of flammables and 120 gallons of combustibles.

These quantities must be in an approved storage area, i.e. a flammables cabinet or other acceptable means.


There are also limitations on quantities stored in individual containers l.jpg

There are also limitations on quantities stored in individual containers.


Storage containers l.jpg

Containers should be tightly sealed when not in use.

Approved safety cans are recommended for smaller quantities.

The spring-loaded safety cap prevents spillage, prevents vapors from escaping, acts as a pressure vent if engulfed in fire, prevents explosions and rocketing of the can!

Storage Containers


Flammable liquid limitations in gallons l.jpg

Flammable Liquid Limitations(in gallons)


Combustible liquid limitations in gallons l.jpg

Combustible Liquid Limitations(in gallons)


Precautions l.jpg

Precautions

  • The unsafe use, storage, dispensing, or disposal of flammable materials can be a prime source of fires and explosions.

    • Read labels of all spray cans to identify those with flammable gas-propellants.

Ex. Butane and Propane


Precautions25 l.jpg

Precautions

  • Some flammable liquids have a tendency to accumulate a static electric charge, which can release a spark that ignites the liquid.

    • Always bond metal dispensing and receiving containers together before pouring.

gasoline

benzene

xylene

toluene


Precautions26 l.jpg

Precautions

  • To bond containers, each container is wired together and one container is connected to a good ground point to allow any charge to drain away safely.

    • Because there is no easy way to bond plastic containers, their use should be limited to smaller sizes (no more than 4L).


Precautions27 l.jpg

Precautions

  • Overexposure to flammable liquids may present health hazards.

  • Consult the Material Safety Data Sheet (MSDS) on the material you will be using to identify health hazards and protective measures to be taken.


Precautions28 l.jpg

Precautions

  • Effects of overexposure to flammable liquids includes:

    • Inhalation: Irritation to respiratory passages, nausea, headaches, muscle weakness, drowsiness, loss of coordination, disorientation, confusion, unconsciousness, and death.


Precautions29 l.jpg

Precautions

  • Skin Contact: irritated, dry, cracked skin, rashes, dermatitis.

  • Eye Contact: burning, irritation, eye damage.

  • Ingestion: irritated digestive tract, poisoning, death.


Preventive measures l.jpg

Preventive Measures

  • Quantities of flammable and combustible liquids located outside of storage cabinets should be restricted to one day’s supply, or to what can be used during a single shift.

    • If possible, substitute nonflammable, non-hazardous materials for flammable liquids.


Preventive measures31 l.jpg

Preventive Measures

  • To prevent the accumulation of vapors inside of storage areas, a continuous mechanical ventilation system must be in place.


Preventive measures32 l.jpg

Preventive Measures

  • All nonessential ignition sources must be eliminated where flammable liquids are used or stored.

    • Common ignition sources include:

      • Open flames from cutting and welding

      • Furnaces, matches, heaters, smoking materials

      • Static electricity, friction sparks

      • Motors, switches, circuit breakers


Preventive measures33 l.jpg

Preventive Measures

  • Materials that contribute to a flammable liquid fire should not be stored with flammable liquids. For example,

    • Oxidizers

    • Organic peroxides


Preventive measures34 l.jpg

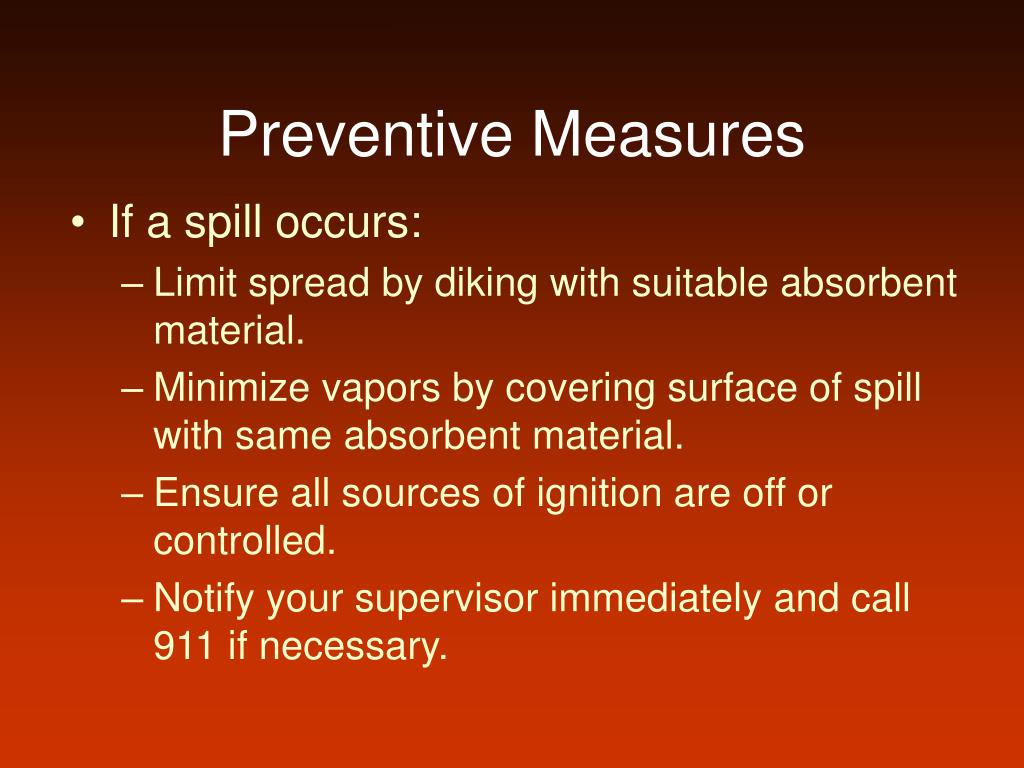

Preventive Measures

  • If a spill occurs:

    • Limit spread by diking with suitable absorbent material.

    • Minimize vapors by covering surface of spill with same absorbent material.

    • Ensure all sources of ignition are off or controlled.

    • Notify your supervisor immediately and call 911 if necessary.


Preventive measures35 l.jpg

Preventive Measures

  • If a spill occurs:

    • Begin cleanup right away.

      • Sweep saturated absorbent material into a dustpan.

      • Place material into a metal container with a tight fitting lid.

      • Place any saturated rags or cloths into the same container.

      • Contact EHSS at 231-2982 for pickup and proper disposal.


Preventive measures36 l.jpg

Preventive Measures

  • Always check the labels of containers (or the MSDS) for recommended personal protective equipment to be worn.

    • Lab coats

    • Splash aprons

    • Eyewear

    • Gloves

    • Overboots


Summary l.jpg

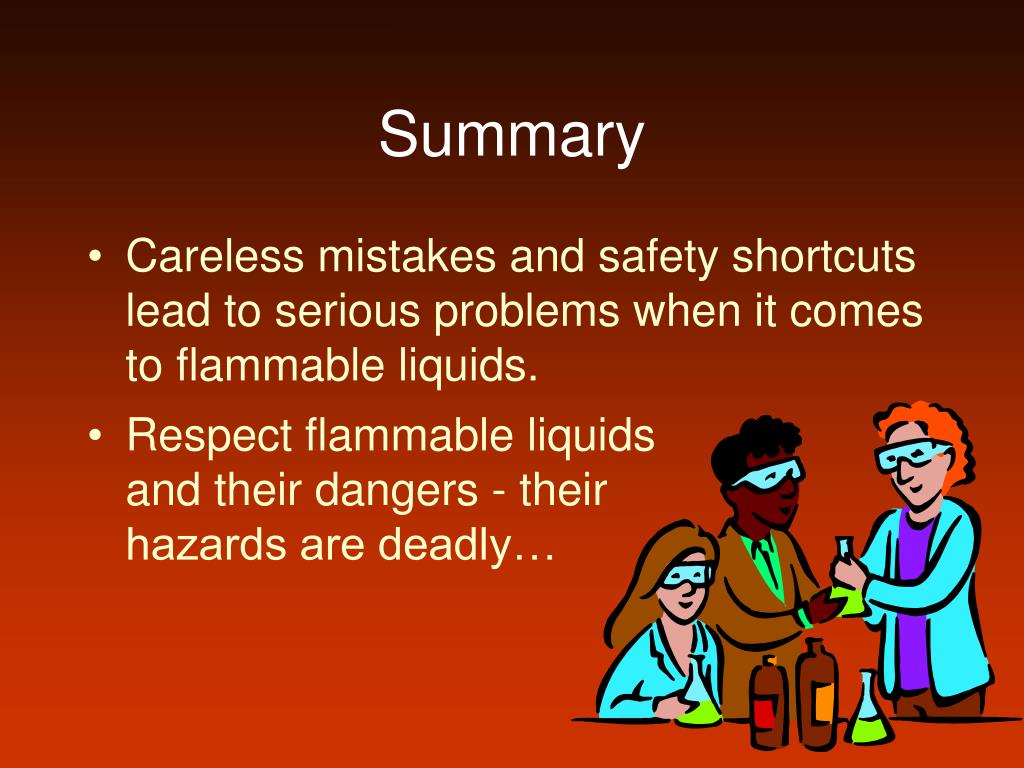

Careless mistakes and safety shortcuts lead to serious problems when it comes to flammable liquids.

Respect flammable liquids and their dangers - their hazards are deadly…

Summary


Contact information l.jpg

Contact Information

  • Environmental, Health and Safety Services

    • www.ehss.vt.edu

    • 231-5985

  • Fire Safety

    • [email protected]

    • 231-9198

Thank you!
