Clarity™ RX Series

October 2008


Rx series overview l.jpg
RX Series Overview

The Clarity™ RX Series is a feature-rich, rear-projection control room display.

  • XGA native resolution (1024 x 768)

  • DLP® technology

  • Available in two screen sizes: 50” & 67” diagonal

  • Features Planar’s exclusive SiFi technology for auto-color & brightness control

  • Industry-leading seamless, zero mullion screens

  • Choice of open or integrated processing electronics

  • Single and Dual Lamp Options


Rx key benefits l.jpg
RX Key Benefits

  • Automatic color balance with built-in color sensor and algorithms (SiFi option)

  • Zero mullion screen design provides a rigid, flat surface with nearly invisible seams

  • Motorized alignment (engine alignment via remote and menus)

  • Optional Dual Lamp with lamp changer

  • Front access, zero rear clearance required (vertical cooling paths)

  • Modular design for easier component replacement (optical engine, ballast, power supply, input module)

  • Positive Pressure design

  • Remote control with OSD Menus

  • High-bright LED’s for visual diagnostics and troubleshooting


Open electronics l.jpg
Open Electronics

RX Open System: Electronics architecture similar to multi-sync monitor and is compatible with a wide variety of sources and resolutions.

  • Uses our latest graphics chipset

    • Improved Scaler Sharpness

    • Same OSD look and feel

    • Each display size utilizes the same Electronics Module, with different firmware

  • Standard Inputs:

    • Two Analog D-Sub 15 pin Input and Loop Through

    • DVI-D Input and Loop Through

  • Optional Video Input Module (VIM)

    • Component Input (3 RCA connectors)

    • Composite (1 RCA connector)

    • S-video

    • SDI Input (1 BNC connector)

    • SDI Output (1 BNC connector)

  • Big Picture internal processing

  • SiFi auto-color balance can be scheduled through WallNet device


Sifi auto color brightness control and auto switching lamp l.jpg
SiFi:Auto-Color & Brightness Control and Auto switching lamp

The RX Series utilizes Planar’s unique approach to measuring brightness & color and automatically adjusting an array of displays.

  • Automatic color and brightness control

    • True color sensor monitors color and brightness at output of projection lens

    • SiFi controller measures and calculates optimal color and brightness settings for entire wall for internal color space converter

    • Can be initiated manually on a scheduled basis, or event driven (dual lamp change)

  • Auto Lamp Switcher

    • Motorized switcher switches to secondary lamp system if primary lamp fails

    • Optional ACB after a lamp failure

    • Can be scheduled to maximize efficiency of lamp performance


Lamp options l.jpg
Lamp Options

The RX Series gives you the flexibility of lamp options to match the needs of your application.

  • Single

  • Dual Lamp Changer

    There are two lamp system configurations:

    • Optimal Life (100W)=10,000 hours

    • Optimal Brightness(120W) = 6,000 hours

    • Can be set through the on-screen menu or control software


Two screen options l.jpg

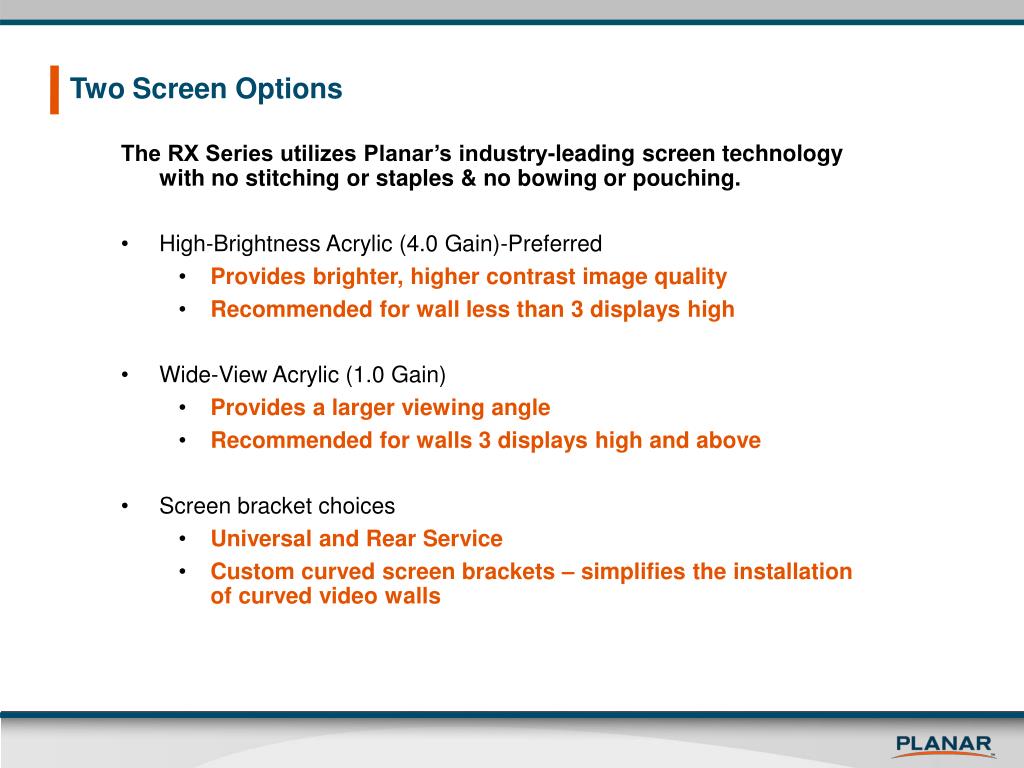

Two Screen Options

The RX Series utilizes Planar’s industry-leading screen technology with no stitching or staples & no bowing or pouching.

  • High-Brightness Acrylic (4.0 Gain)-Preferred

    • Provides brighter, higher contrast image quality

    • Recommended for wall less than 3 displays high

  • Wide-View Acrylic (1.0 Gain)

    • Provides a larger viewing angle

    • Recommended for walls 3 displays high and above

  • Screen bracket choices

    • Universal and Rear Service

    • Custom curved screen brackets – simplifies the installation of curved video walls



Rx optical specs comparison l.jpg
RX Optical Specs Comparison

  • Specified without SLR (White boost)

  • Typical Nits (cd/m2) measurements


3d models l.jpg
3D Models

Screen

Electronics Module

Screen Brace

Intake Air


C50rx competitive comparison l.jpg
c50RX Competitive Comparison

* Typical w/o White Boost ( ~33% increase with White Boost)

** With White boost


C67rx competitive comparison l.jpg
c67RX Competitive Comparison

* Typical w/o White Boost ( ~33% increase with White Boost)

** With White boost
