Presentation Transcript

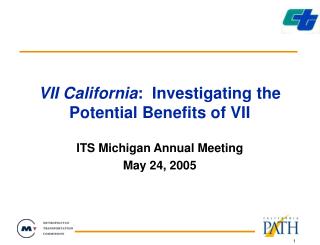

Vii california investigating the potential benefits of vii l.jpg

VII California: Investigating the Potential Benefits of VII

ITS Michigan Annual Meeting

May 24, 2005


Convergence of three efforts l.jpg
Convergence of Three Efforts

  • Expedited VII Project

  • VII California Program, for the ITS World Congress and beyond

  • Cooperative Intersection Collision Avoidance Systems (CICAS), California Style

    These efforts are slated to become the VII California Testbed



Expedited vii project a precursor to vii california l.jpg
Expedited VII Project: A Precursor to VII California

Two roadside units (RSUs) on Interstate 80

  • A combined Caltrans (Headquarters and District 4), PATH and DaimlerChrysler effort

  • Co-located with standard traffic data collection cabinets between Ashby and University Exits

    • Fits within standard model 334C cabinets, with model 170 controller

    • Cabinets part of Berkeley Highway Lab

      Initial, Simple Application Demonstrated

  • RSU broadcasts location of Ashby and University exits

  • If car detects an infrastructure-based query

    • Based on calculated distances, audio within car announces “exit ahead”

    • Countdown display in car every 50 meters until exit is passed


Current hardware installation l.jpg
Current Hardware Installation

  • PC104 computer running QNX6 real-time Operating System

  • Denso Wireless Access in Vehicular Environment (WAVE) Radio Module (WRM)

  • Currently no outside communication outside except WRM (no backhaul)



Vii california goals l.jpg
VII California Goals

  • For the long term

    • Better manage the safety and productivity of the surface transportation system;

    • Benefit from the synergy of public sector, auto industry, and other private sector innovations; and

    • Build upon California’s already considerable existing infrastructure investments.

  • For the mid term

    • Provide a test-bed to investigate the technical feasibility and institutional value of VII.

    • Inform future decisions for the National VII Program;

    • Inform future decisions for California and Bay Area System Management Programs; and

    • Assess real world implementations of VII infrastructure, architecture and operations.


Vii california goals cont d l.jpg
VII California Goals CONT’D

  • For the World Congress

    • Demonstrate the capabilities of the emerging VII California test-bed: give notice that Caltrans, MTC and partners are committed to VII and will objectively investigate its potential;

    • Gain experience in VII and use case development and testing; and

    • Establish and give focus to the VII California public-private partnership.


Potential use cases longer term l.jpg
Potential Use Cases (Longer Term)

  • Vehicles as Traffic Probes

    • Vehicle Probes Provide Weather Data

  • In-Vehicle Signing

    • Travel Time Data to Vehicles

    • Incident Information to Vehicles

    • Work Zone Warning

  • Intersection Collision Warning

  • Intelligent Ramp Metering

  • Curve Overspeed Warning


Potential use cases world congress l.jpg
Potential Use Cases (World Congress)

  • Vehicles as Traffic Probes

    “511 for VII”

  • In-Vehicle Signing

    • Travel Time Data to Vehicles

    • Incident Information to Vehicles

  • Private OEM Application

    Other Potential Use Cases in Discussion


Systems engineering design process l.jpg
Systems Engineering Design Process

Concept

of Operations

Operations &

Maintenance

Assessment

High Level

Requirements

System

Verification

Detailed

Requirements

High Level

Design

Subsystem

Verification

Detailed

Design

Integration &

Test

Implementation

Time


World congress demo architecture l.jpg
World Congress Demo Architecture

GPS

VEHICLES

GPS

Antenna

RSU’s

DSRC

DSRC

DSRC

ROAD

Antenna

antenna

SIDE

Driver

-

DSRC

On

board

-

Vehicle

Driver

radio

equipment

Interface

RSU radio

Port/router

PC

Controller

VII network

OEM/ISP

formatting

management

applications

data as

applications

XML

Local

safety

processor

MTC and

CENTERS

other public

sector users


Where is vii california l.jpg

VII California / CICAS Test-bed

Where is VII California?

Bay Area IMS Map

  • Of 40 RSU, 20 will be on SR82: El Camino Real

  • Candidates for at least three CICAS Intersections

40 California VII RSU Locations (101, 280, SR 82)



Path rfs test intersection l.jpg

Traffic Controller Cabinet

Embedded Loop Detectors

60 Meters of

3M Microloops

Signal Poles

Radar

Poles

PATH RFS Test Intersection


Vehicle intersection wireless testing current status l.jpg
Vehicle-Intersection Wireless Testing – Current Status

  • Wireless infrastructure used to communicate between vehicles and intersection (DSRC)

  • DSRC test radios installed in vehicles and at intersection

  • Messages exchanged with approaching vehicle


Vii california l.jpg
VII California

Questions?

Contact Information:

[email protected]

916-217-3946
