Presentation Transcript

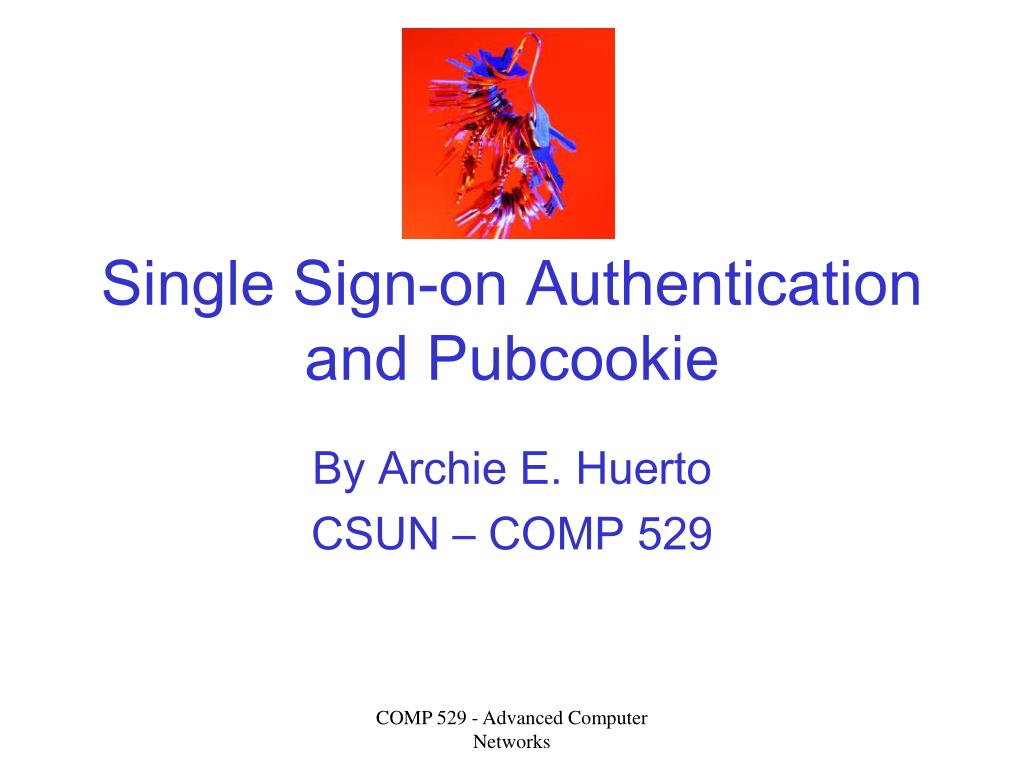

Single sign on authentication and pubcookie l.jpg

Single Sign-on Authentication and Pubcookie

By Archie E. Huerto

CSUN – COMP 529

COMP 529 - Advanced Computer Networks


Roadmap l.jpg

Roadmap

  • Taxonomy of SSO Systems

  • Using SSO on Trusted Platforms

  • Structured Assertion Markup Language

  • Pubcookie

COMP 529 - Advanced Computer Networks


Password explosion l.jpg

Password Explosion

  • Multiple passwords to access different systems weakens security

    • Users will tend to pick easy to remember and therefore easy to guess passwords

    • They may write down passwords in obvious places

COMP 529 - Advanced Computer Networks


What is single sign on l.jpg

What is Single Sign-on?

  • Lets users authenticate themselves once and access different applications without re-authentication

  • Increases the usability of the network

  • Centralizes the management of relevant system parameters

  • Two main type of SSO Systems: Pseudo-SSO and True-SSO

COMP 529 - Advanced Computer Networks

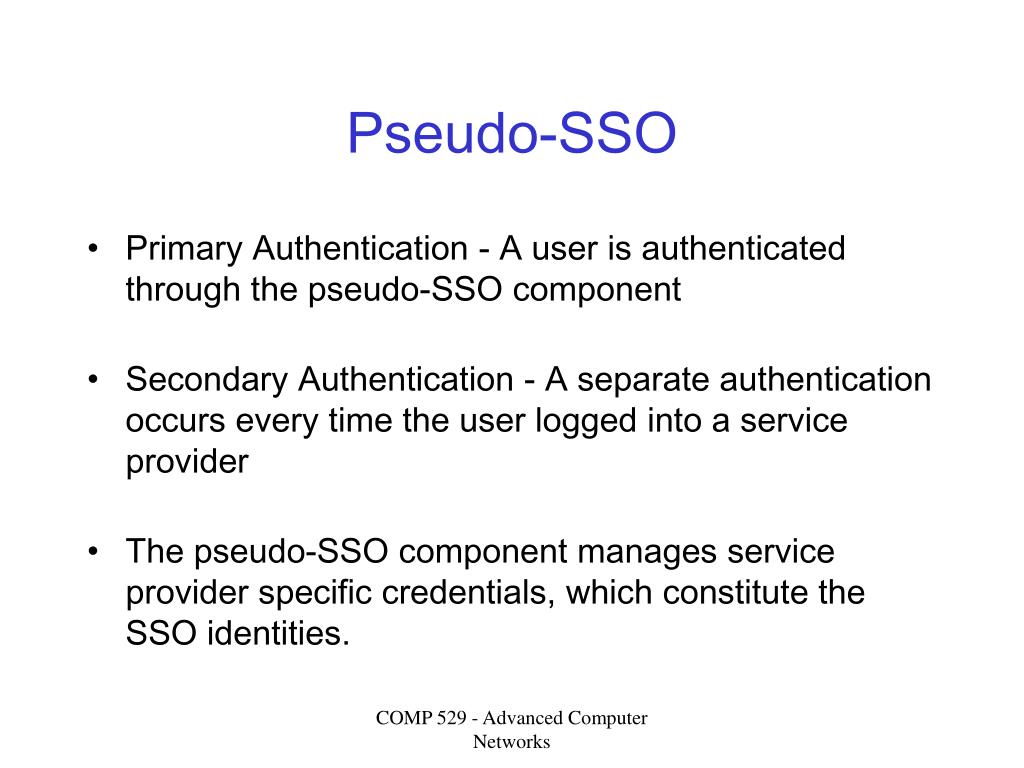

Pseudo sso l.jpg

Pseudo-SSO

  • Primary Authentication - A user is authenticated through the pseudo-SSO component

  • Secondary Authentication - A separate authentication occurs every time the user logged into a service provider

  • The pseudo-SSO component manages service provider specific credentials, which constitute the SSO identities.

COMP 529 - Advanced Computer Networks


Pseudo sso6 l.jpg

Pseudo-SSO

COMP 529 - Advanced Computer Networks


True sso l.jpg

True SSO

  • A user is authenticated through an Authentication Service Provider (ASP)

  • The ASP needs to have an established relationship with all SPs to which SSO is to be established

  • The authentication process that involves the user occurs between the user and ASP

  • Service providers are notified via authentication assertions which contains the user’s SSO identity and the authentication status with the ASP

COMP 529 - Advanced Computer Networks


True sso8 l.jpg

True SSO

COMP 529 - Advanced Computer Networks


Generic sso system l.jpg

Generic SSO System

COMP 529 - Advanced Computer Networks


Categories of sso systems l.jpg

Categories of SSO Systems

  • SSO architectures can be further categorized based on the location of the ASP/pseudo-SSO component

  • It can be local to the user platform or offered as a service by an external entity (SSO proxy)

  • Four Main Categories of SSO Systems

    • Local Pseudo-SSO

    • Proxy-Based Pseudo-SSO

    • Local True SSO

    • Proxy-Based True SSO

COMP 529 - Advanced Computer Networks


Examples of true sso l.jpg

Examples of True SSO

Kerberos

  • A network authentication protocol designed to provide strong authentication for client/server applications by using secret-key cryptography

  • A Kerberos server is comprised of an authentication server and a ticket granting server which acts as the ASP

  • Every user and SP shares a long-term secret key with the ASP

COMP 529 - Advanced Computer Networks


Examples of true sso12 l.jpg

Examples of True SSO

Granting Kerberos Tickets

  • Client  ASP: c

  • ASP  Client: {Ks1}Kc, {Tgt}Ks1

  • Client  ASP: {Ac}Ks1, {Tgt}Ks1, SPID

  • ASP  Client: {Ks2}Ks1, {Tsg}Ks

  • Client  SP: {Ac}Ks2, {Tsg}Ks

COMP 529 - Advanced Computer Networks


Examples of true sso13 l.jpg

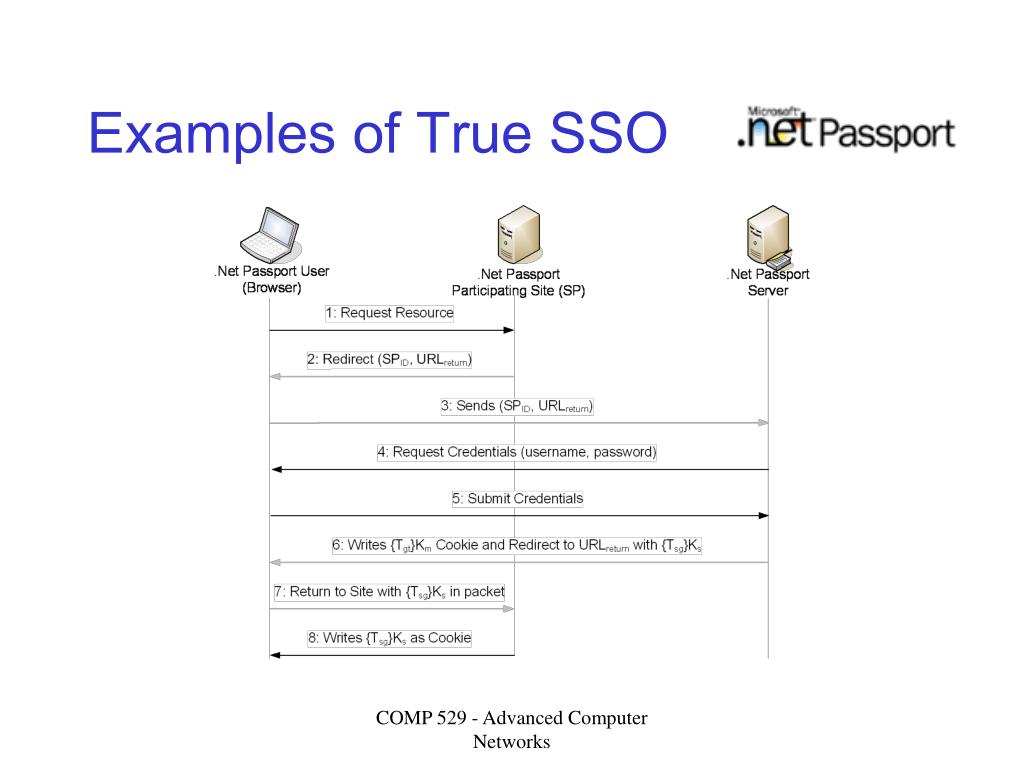

Examples of True SSO

Microsoft .Net Passport

  • A web-based SSO service offered by Microsoft since 1999 and is one of the widely deployed services of its kind.

  • Passport accounts can store address, date of birth, and credit card details

  • A unique 64-bit numeric identifier called “Passport User ID” (PUID) is assigned to user during account creation

  • Users can register at the Passport home page (www.passport.com), Windows XP registration wizard, or any participating sites

COMP 529 - Advanced Computer Networks


Examples of true sso14 l.jpg

Examples of True SSO

COMP 529 - Advanced Computer Networks


Examples of true sso15 l.jpg

Examples of True SSO

The Liberty Alliance

  • A set of open specifications for web-based SSO developed by a consortium of over 140 companies

  • Based on “trust circles” formed by trusted ASPs and relying SPs

  • Uses the Security Assertions Markup Language (SAML)

COMP 529 - Advanced Computer Networks


Roadmap16 l.jpg

Roadmap

  • Taxonomy of SSO Systems

  • Using SSO on Trusted Platforms

  • Structured Assertion Markup Language

  • Pubcookie

COMP 529 - Advanced Computer Networks


Trusted platforms l.jpg

Trusted Platforms

  • The Trusted Computing Group (TCG) is a not-for-profit industry-standard organization with the the following goal:

    “Through the collaboration of platform, software, and technology vendors develop a specification that delivers an enhanced HW and OS based trusted computing platform that enhances customer’s domains.”

  • TCG was formed in Spring 2003 and has adopted the specifications developed by the Trusted Computing Platform Alliance (TCPA)

COMP 529 - Advanced Computer Networks


What is tcg technology l.jpg

What is TCG Technology

  • Trusted Platform (TP) – a computing platform that conforms to the TCG specifications

  • Trusted Platform Module (TPM) – a crypto co-processor with special functionality that every TP has

  • TPM is attached to the platform and cannot be removed

  • Information stored in the TPM is resistant to any direct software attack, as the information can only be accessed through well-defined commands known as “TPM capabilities”

COMP 529 - Advanced Computer Networks


Tpm identity l.jpg

TPM Identity

Endorsement Key

  • A unique RSA key pair that every TPM has imprinted in it

  • The private key (EKpr) never leaves the TPM

  • The public key (EKpu) can only be retrieved from the TPM under certain conditions

  • The EK is used to decrypt information sent to a TPM from a Privacy Certification Authority (CA)

COMP 529 - Advanced Computer Networks


Attestation l.jpg

Attestation

  • The process of vouching for the accuracy of information

  • Attestation Identity Key (AIK)

    • A special purpose asymmetric signature key created by the TPM from its EK and used for signature generation and verification

    • Every TP can have more than one AIK

    • The private portion of the AIK is non-migratable and protected by the TPM

    • The public portion of the AIK is part of the AIK Credential, issued by a Privacy CA

    • Allows a user to signify to third parties that he/she is using a genuine TP without revealing its identity

COMP 529 - Advanced Computer Networks


Aik certification process l.jpg

AIK Certification Process

  • TP  Privacy CA: AIKpu, EKpuThe trusted platform creates an new AIK, sends the public key of a new AIK and its public EK to a certifying authority

  • Privacy CA  TP: {AIK Credential(AIKpu)}EKpubThe certifying authority after receiving it creates a certificate for the public portion of the AIK, encrypts it with the public endorsement key, and send it back to the TP

  • TP  Privacy CA: AIK Credential(AIKpu)The TP then decrypt the new AIK credential and proves to the certifying authority that it was able to do so because it has the private EK

COMP 529 - Advanced Computer Networks


Integrity measurement metrics l.jpg

Integrity Measurement (Metrics)

  • The process of obtaining metrics of platform characteristics that affect the integrity (trustworthiness) of a platform

  • Platform Configuration Registers (PCRs) – a shielded location where the metrics and its digests are stored

  • Measured Values – a representation of embedded data or program code

  • Measurement Digest – SHA-1 cryptographic hash of measurement values

  • PCR[n]  SHA-1(PCR[n] + measured values)

COMP 529 - Advanced Computer Networks


Integrity challenge response l.jpg

Integrity Challenge/Response

  • Integrity Challenged – issued by third party to assess the software state of a TP, includes a nonce to protect for replay

  • Integrity Response

    • Current PCR values

    • Digital signature over the PCR values and the nonce using one of the AIK

    • AIK Credential for the AIK used to produce the signature

COMP 529 - Advanced Computer Networks


Using trusted platforms for sso l.jpg

Using Trusted Platforms for SSO

  • User authentication can be delegated to the user’s TP and carried out by an Authentication Service (AS) within that TP

  • AIK Credentials are unique because they carry a unique serial number assigned by the issuing Privacy CA (e.g [Privacy CA, Serial Number])

  • SPs can use AIK Credentials as SSO Identities for users

COMP 529 - Advanced Computer Networks


Sso entities l.jpg

SSO Entities

User System

  • SSO Identities needs to be generated and activated for each user of a given TP

  • For TPs with multiple users, the AS should allow TPM owners to create a set of distinct SSO Identities for each user of the platform

  • AS will be tightly integrated into the TP’s operating system or part of the OS login mechanism

  • SPs can asses the integrity of the AS in the user’s system since it is measured in the TPM’s PCR

COMP 529 - Advanced Computer Networks


Sso entities26 l.jpg

SSO Entities

Service Providers

  • Need to verify the AS using an Integrity Challenge/Response session which also provides user identification

  • Must have a well-known, human-readable unique identifier (e.g. URI) for users to authenticate SPs before releasing Integrity Response

COMP 529 - Advanced Computer Networks


Trust relationship l.jpg

Trust Relationship

  • End users needs to trust the Privacy CA chosen to certify their AIK Credentials that corresponds to SSO Identities

  • SP needs to trust the Privacy CA chosen by the user to certify the AIK Credentials of their SSO Identities

  • SP needs to trust the AS installed on the user TP and any software executed before the AS

  • Trusting the Privacy CA means trusting TP and TPM manufacturers vouched for by the Privacy CA

COMP 529 - Advanced Computer Networks

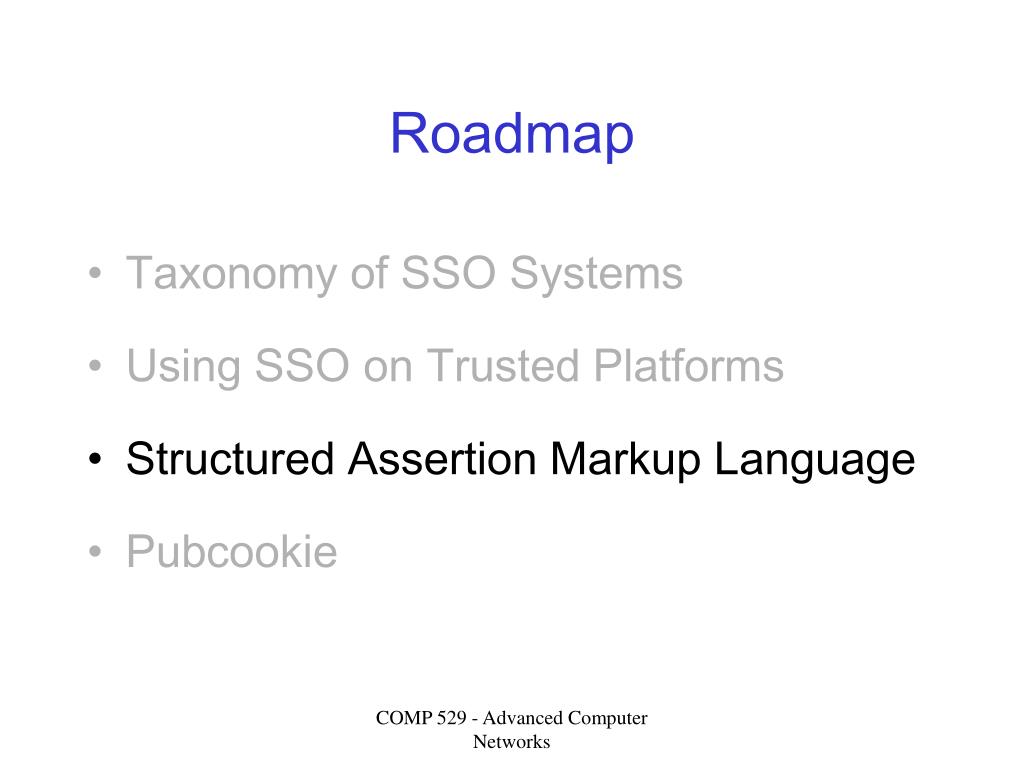

Roadmap28 l.jpg

Roadmap

  • Taxonomy of SSO Systems

  • Using SSO on Trusted Platforms

  • Structured Assertion Markup Language

  • Pubcookie

COMP 529 - Advanced Computer Networks


What is saml l.jpg

What is SAML?

  • The Security Assertion Markup Language is an XML-based framework fro communicating user-authentication, entitlement, and attribute information

  • It is developed by the Security Services Technical Committee (SSTC) of the Organization for the Advancement of Structured Information Standards (OASIS)

  • SAML V1.0 became OASIS standard in November 2002, SAML V1.1 followed in September 2003, and SAML V2.0 in March 2005

COMP 529 - Advanced Computer Networks


Saml parties l.jpg

SAML Parties

  • Identity Provider (IdP) – The system that asserts information about a subject, also known as SAML authorities and Asserting Parties

  • Service Provider (SP) – The system that relies on the information supplied to it by the IdP, also known as Relying Parties, local access policy defines whether the subject may access local resources

COMP 529 - Advanced Computer Networks

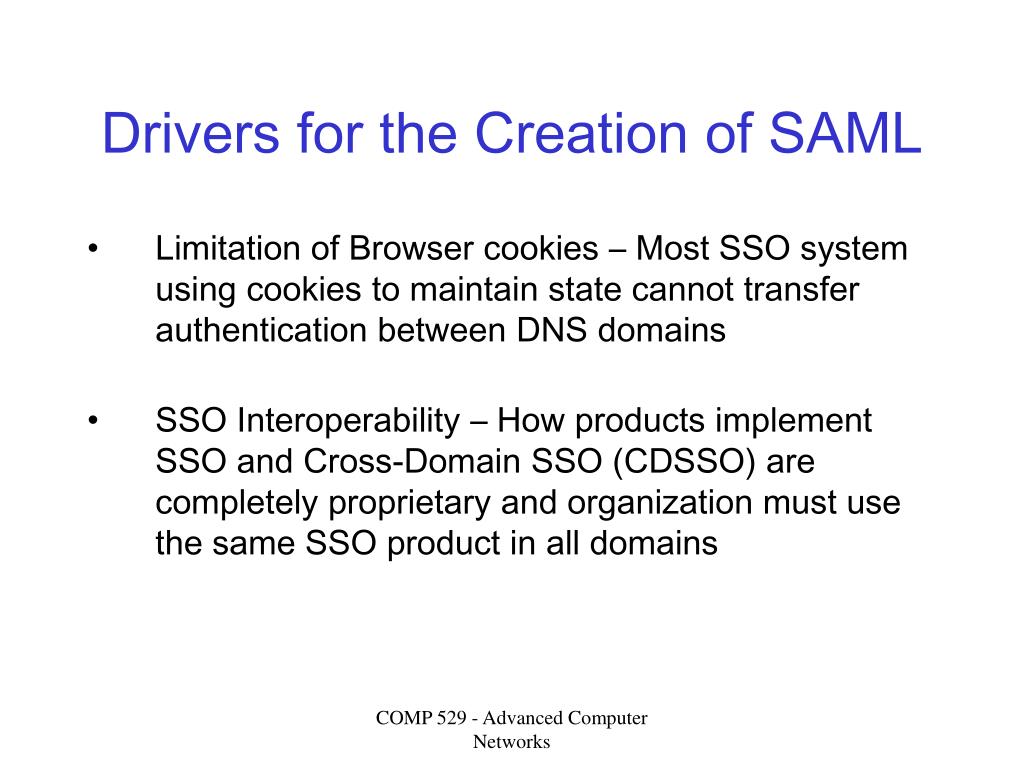

Drivers for the creation of saml l.jpg

Drivers for the Creation of SAML

  • Limitation of Browser cookies – Most SSO system using cookies to maintain state cannot transfer authentication between DNS domains

  • SSO Interoperability – How products implement SSO and Cross-Domain SSO (CDSSO) are completely proprietary and organization must use the same SSO product in all domains

COMP 529 - Advanced Computer Networks


Drivers for the creation of saml32 l.jpg

Drivers for the Creation of SAML

  • Web Services – Security within Web Services is still being defined. The SAML provides the means by which authentication and authorization assertions can be exchanged between communicating parties.

  • Federation – The need to simplify identity management across organizational boundaries, allowing users to consolidate many local identities into a single Federated Identity.

COMP 529 - Advanced Computer Networks


Saml components l.jpg

SAML Components

  • Assertions – defined by an XML schema, it carries statements about a Principal as asserted by an Asserting Party. It could be requested or “pushed” out to the SP.

  • Protocols – defined by an XML schema, it specifies how and which assertions are requested.

  • Bindings – defines the lower-level communications or messaging protocols (HTTP or SOAP) that the SAML protocols can be transported over.

  • Profile – contains the Assertions, Protocol, and Bindings to support a defined use case

COMP 529 - Advanced Computer Networks


Saml components34 l.jpg

SAML Components

Profiles

(Supports a defined use case)

Binding

(Defines how SAML protocols map onto standard

messaging or communication protocols)

Protocol

(Request/Response pairs for obtaining Assertions and Federation Management)

Assertions

(Authentication, Attribute and Authorization Information)

COMP 529 - Advanced Computer Networks


Saml assertions l.jpg

SAML Assertions

SAML defines three kinds of statements that can be

carried within an assertions:

  • Authentication statements – issued by the party that successfully authenticated the user. It specifies who issued the assertion, the authenticated subject, validity period, and other related authentication information.

  • Attribute statements – contain specific details about the user (e.g. “Gold” status)

  • Authorization decision statements – identifies what the user is entitled to do (e.g. what item he is permitted to buy)

COMP 529 - Advanced Computer Networks


Saml protocols l.jpg

SAML Protocols

SAML defines a number of request/response protocols

encoded in an XML schema as a set of

request/response pair:

  • Assertion Query and Request Protocol – defines a set of queries to obtain SAML assertions.

  • Authentication Request Protocol – defines an <AuthRequest> message (from SP) that causes a <Response> message to be returned (by IdP).

  • Artifact Protocol – provides a way to obtain previously created assertions by a reference (i.e. artifact)

COMP 529 - Advanced Computer Networks


Saml protocols37 l.jpg

SAML Protocols

  • Name Identifier Management Protocol – provides a way to change the value or format of the name of the Principal. Can be issued by either the IdP or SP. Can be used to terminate an association of a name between an IdP and SP.

  • Single Logout Protocol – provides a way for near-simultaneous logout of all sessions associated to a Principal, can be initiated by the Principal or a session timeout.

  • Name Identifier Mapping Protocol – provides a way to enable “account linking” or Federation.

COMP 529 - Advanced Computer Networks


Overview of soap l.jpg

Overview of SOAP

SOAP (Simple Object Access Protocol) is a protocol that specifies an enveloping mechanism for sending data via XML. It specifies three major XML elements:

  • <Envelope> – required root document element

  • <Header> – an optional element that may define some attribute about a message

  • <Body> – contains the data intended for the final message recipient.

COMP 529 - Advanced Computer Networks


Soap message l.jpg

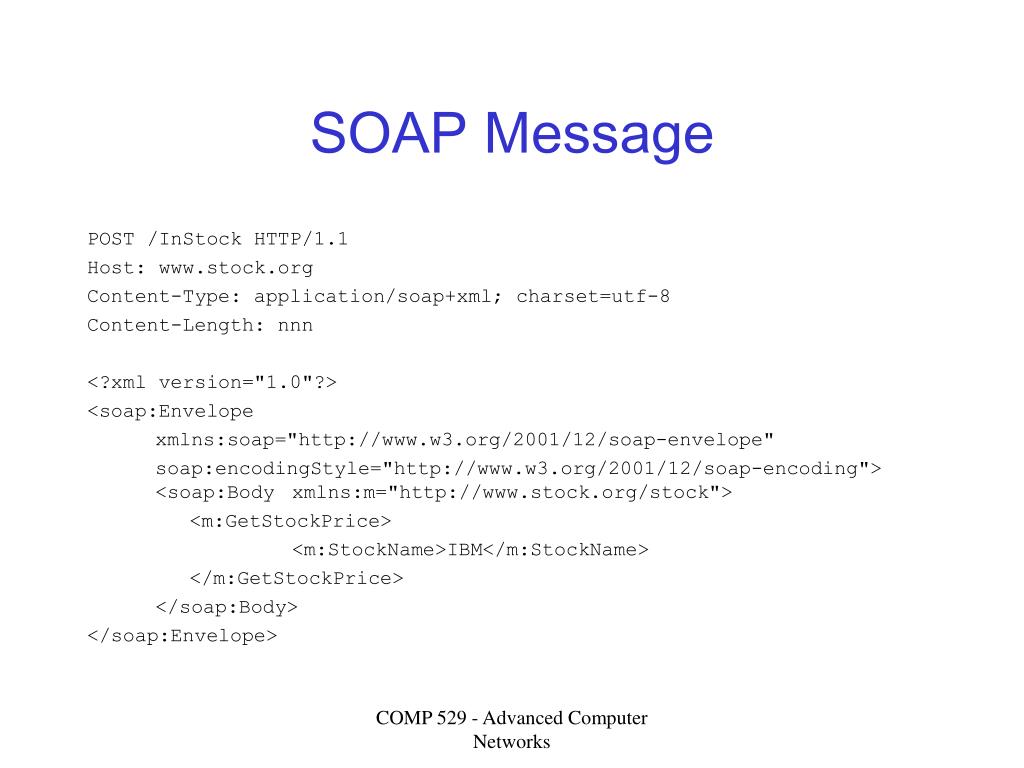

SOAP Message

POST /InStock HTTP/1.1

Host: www.stock.org

Content-Type: application/soap+xml; charset=utf-8

Content-Length: nnn

<?xml version="1.0"?>

<soap:Envelope

xmlns:soap="http://www.w3.org/2001/12/soap-envelope"

soap:encodingStyle="http://www.w3.org/2001/12/soap-encoding"> <soap:Body xmlns:m="http://www.stock.org/stock">

<m:GetStockPrice>

<m:StockName>IBM</m:StockName>

</m:GetStockPrice>

</soap:Body>

</soap:Envelope>

COMP 529 - Advanced Computer Networks


Saml assertions structure l.jpg

SAML Assertions Structure

SOAP Body

SAML Response

Response Header

SAML Assertion

Authentication

Statement

Other

Statements

COMP 529 - Advanced Computer Networks


Saml assertion l.jpg

SAML Assertion

<?xml version="1.0" encoding="UTF-8"?>

<saml:Assertion xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion" Version="2.0"

IssueInstant="2005-01-31T12:00:00Z">

<saml:Issuer>www.acompany.com</saml:Issuer>

<saml:Subject>

<saml:NameID Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress">

j.doe@company.com

</saml:NameID>

</saml:Subject>

<saml:Conditions NotBefore="2005-01-31T12:00:00Z"

NotOnOrAfter="2005-01-31T12:00:00Z">

</saml:Conditions>

<saml:AuthnStatement

AuthnInstant="2005-01-31T12:00:00Z" SessionIndex="67775277772">

<saml:AuthnContext>

<saml:AuthnContextClassRef>

urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport

</saml:AuthnContextClassRef>

</saml:AuthnContext>

</saml:AuthnStatement>

</saml:Assertion>

COMP 529 - Advanced Computer Networks


Soap over http binding l.jpg

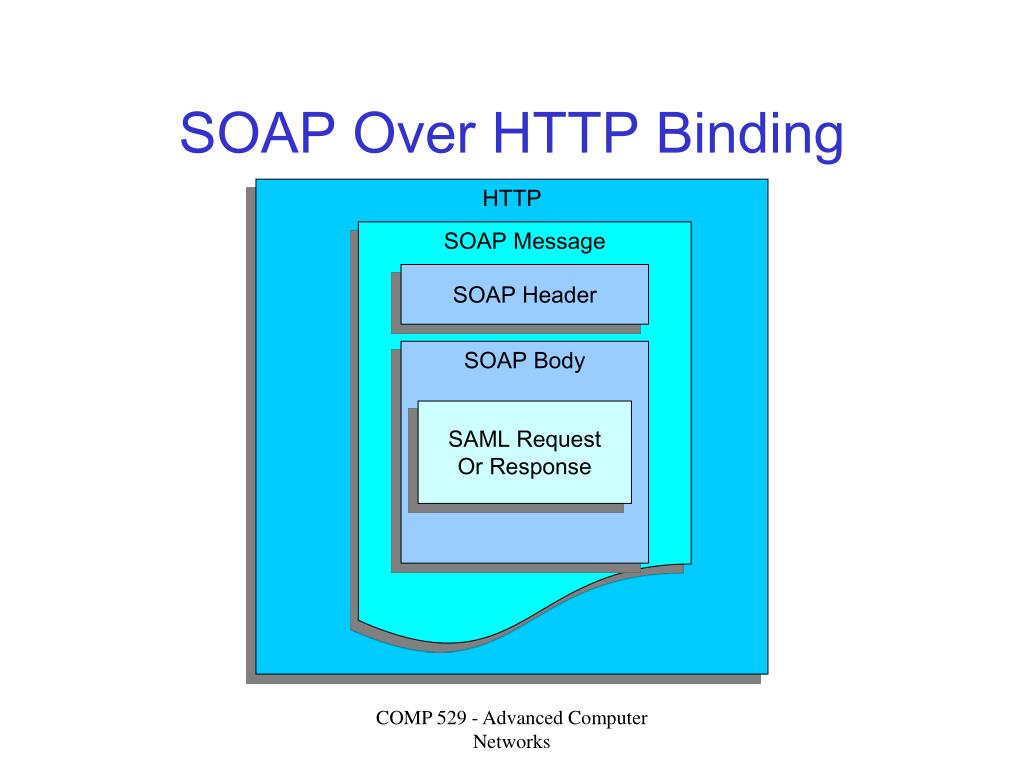

SOAP Over HTTP Binding

HTTP

SOAP Message

SOAP Header

SOAP Body

SAML Request

Or Response

COMP 529 - Advanced Computer Networks


Saml authnrequest l.jpg

SAML AuthnRequest

<env:Envelope

xmlns:env=”http://www.w3.org/2003/05/soap/envelope/”>

<env:Body>

<samlp:AuthnRequest

xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"

ForceAuthn="true"

AssertionConsumerServiceURL="http://www.example.com/"

AttributeConsumingServiceIndex="0" ProviderName="string"

ID="abe567de6" Version="2.0"

IssueInstant="2005-01-31T12:00:00Z"

Destination="http://www.example.com/"

Consent="http://www.example.com/" >

<saml:Subject

xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"

<saml:NameID

Format="urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress">

j.doe@company.com

</saml:NameID>

</saml:Subject>

</samlp:AuthnRequest>

</env:Body>

</env:Envelope>

COMP 529 - Advanced Computer Networks


Saml response within soap message l.jpg

SAML Response within SOAP Message

<env:Envelope xmlns:env="http://schemas.xmlsoap.org/soap/envelope/">

<env:Body>

<samlp:Response xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

ID="abe567de6"

InResponseTo="example-ncname" Version="2.0"

IssueInstant="2005-01-31T12:00:00Z“

Destination="http://www.example.com/"

Consent="http://www.example.com/">

<samlp:Status>

<samlp:StatusCode Value="samlp:Success"/>

<samlp:StatusMessage>Success</samlp:StatusMessage>

<samlp:StatusDetail/>

</samlp:Status>

…… SAML ASSERTION AND STATEMENTS

</samlp:Response>

</env:Body>

</env:Envelope>

COMP 529 - Advanced Computer Networks


Generic sp site first scenario l.jpg

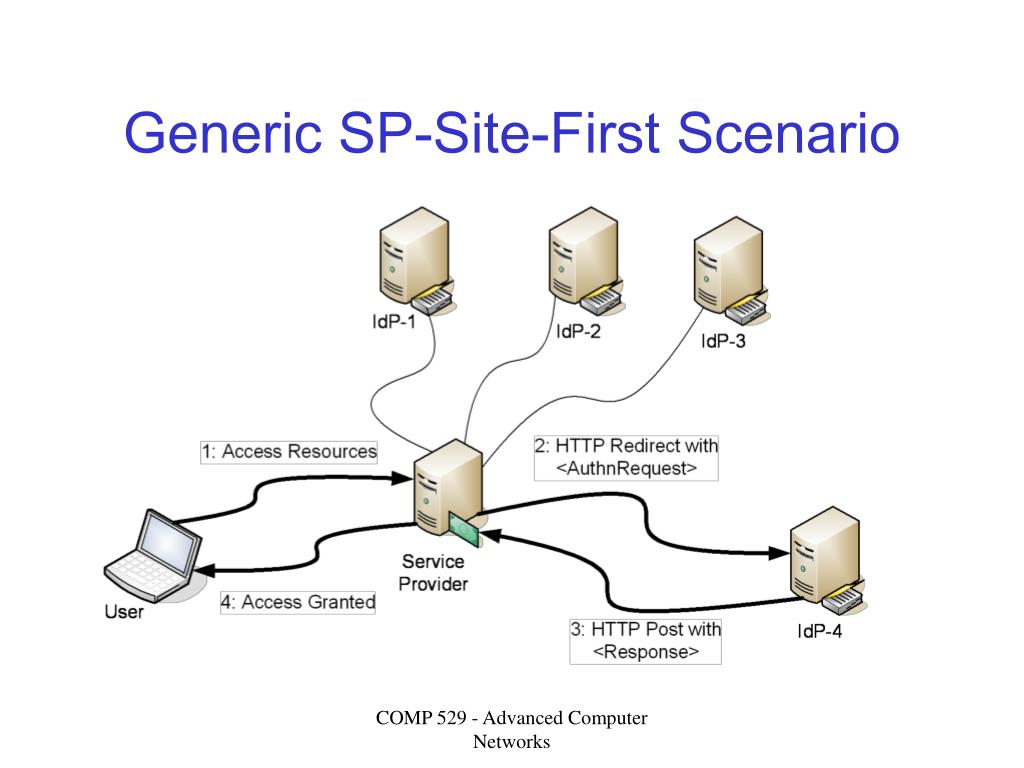

Generic SP-Site-First Scenario

COMP 529 - Advanced Computer Networks


Generic idp site first scenario l.jpg

Generic IdP-Site-First Scenario

COMP 529 - Advanced Computer Networks


Generic sso portal scenario l.jpg

Generic SSO Portal Scenario

  • The unauthenticated user accesses the unprotected portal.

  • User selects IdP-1 and SP-1 from portal. Portal redirects user to SP-1 with Idp-1 as URL parameter.

  • SP-1 gets the IdP ID from the URL and generates a SAML <AuthnRequest> to IdP-1 via HTTP redirect.

  • After a successful authentication, IdP-1 returns a SAML <Response> to SP-1.

  • User is granted access to resources in SP-1. After a while, user again returns to the portal but this time to access SP-2.

  • Portal determines user had authenticated with IdP-1 and redirects user to SP-2 with IdP-1 as URL parameter.

  • SP-2 gets the IdP ID from the URL and generates a SAML <AuthnRequest> to IdP-1 via HTTP redirect.

  • IdP-1 determines that the user is already authenticated and immediately returns a SAML <Response> to SP-2.

  • User is granted access to resources in SP-2.

COMP 529 - Advanced Computer Networks


Security in saml l.jpg

Security in SAML

  • The relying party and the asserting party must have a pre-existing trust relationship, typically involving PKI

  • For message integrity and confidentiality it is recommended to use HTTP over SSL 3.0 or TLS 1.0

  • When an SP requests an assertion from an IdP then a bilateral-authentication is required using SSL or TLS and client-server authentication is recommended

  • When pushing an assertions and request to an SP then it is mandated that the response message be digitally signed using the XML digital signature standard

COMP 529 - Advanced Computer Networks


Roadmap49 l.jpg

Roadmap

  • Taxonomy of SSO Systems

  • Using SSO on Trusted Platforms

  • Structured Assertion Markup Language

  • Pubcookie

COMP 529 - Advanced Computer Networks


What is pubcookie l.jpg

What is Pubcookie?

  • Open-source package for intra-institutional SSO web authentication

  • Reuses existing authentication services such as Kerberos, Microsoft’s Lightweight Directory Access Protocol (LDAP), or Sun’s Network Information Service (NIS)

  • Supports Apache and Microsoft IIS

  • Originally developed at the University of Washington in 1998

  • Made available to others in 2001 to make better web-based SSO systems

  • Became an open-source project in late 2001

COMP 529 - Advanced Computer Networks


Pubcookie model l.jpg

Pubcookie Model

Components for SSO Functionality:

  • User Agent - Web Browser

  • Pubcookie Login Server

    • Central authorization service, interacts directly with users

    • Verifies usernames and password with back-end authentication services

    • Issues cookies to users to provide SSO functionality

    • Issues cookies to application servers to provide authentication

COMP 529 - Advanced Computer Networks


Pubcookie model52 l.jpg

Pubcookie Model

Components for SSO Functionality continued…

  • Pubcookie Application Server

    • Authentication enforcer, redirects un-authenticated users to the login server

    • Verifies authentication information returned from the login server

    • Issues cookies to users to maintain authenticated application sessions

    • Provides user authentication information to applications

COMP 529 - Advanced Computer Networks


Pubcookie model53 l.jpg

Pubcookie Model

Components for SSO Functionality continued…

  • Authentication Service

    • External component that verifies user authentication information sent to it from the login server

    • Kerberos

    • Lightweight Directory Access Protocol (LDAP) – a protocol based on X.500 used to access information stored in an information directory (a.k.a. LDAP directory)

    • Network Information Services (NIS) - a network naming and administration system for smaller networks developed by Sun Microsystems

COMP 529 - Advanced Computer Networks


Initial sign on process l.jpg

Initial Sign-on Process

COMP 529 - Advanced Computer Networks


Key management l.jpg

Key Management

  • Uses shared symmetric keys to encrypt messages sent between application servers and the login server

  • Keys are generated and maintained by the “keyserver” application running on the login server

  • Keys are negotiated and distributed using the “keyclient” utility during the setup phase of each application server

  • Keys can be revoked at the login server, but automated expiration and renewal process are not yet provided

COMP 529 - Advanced Computer Networks


Questions l.jpg

Questions?

COMP 529 - Advanced Computer Networks


  • Login
