Presentation Transcript
Slide1 l.jpg

A/E/C CADD STANDARD MODEL FILENAMING CONVENTIONPages 12-17 Chapter 2 Drawing File Organization of the 3.0 Standarddtd Sep 06

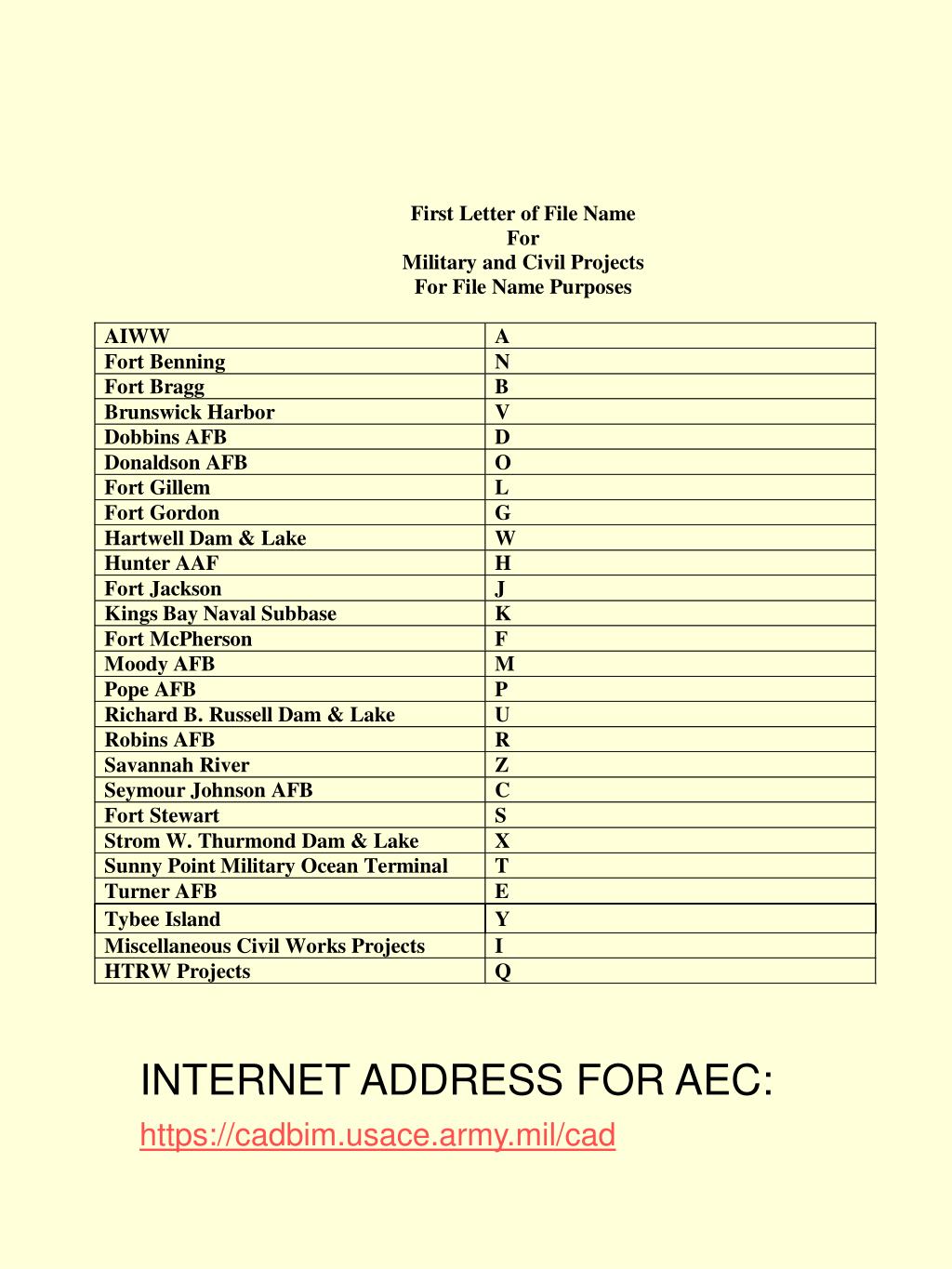

Slide2 l.jpg

INTERNET ADDRESS FOR AEC:

https://cadbim.usace.army.mil/cad


A e c cadd standard model file naming convention l.jpg
A/E/C CADD STANDARD MODEL FILE NAMING CONVENTION

In the A/E/C CADD Standard model file naming convention, the first three characters of the file name are the Project Code (The standard depicts a 20 character project code, but we are using only 3 characters). Project codes are developed by EN-EP at the inception of the project and are unique to each building and site. Files not in the A/E/C CADD naming convention will not be archived for the project.

B6A A- FP XXXX.DGN

User Defined

Model File Type

Discipline Designator

Project Code


Discipline designator fourth character l.jpg
DISCIPLINE DESIGNATORFOURTH CHARACTER

A/E/C Discipline Designators-Page 13-Chapter 2 Drawing File Organization


Model file type fifth and sixth characters l.jpg
MODEL FILE TYPEFIFTH AND SIXTH CHARACTERS

A/E/C Model File Types-Pages 13-17 Chapter 2 Drawing File Organization

SEE NEXT 6 SHEETS


User defined seventh thru tenth characters l.jpg
USER DEFINEDSEVENTH THRU TENTH CHARACTERS

SECTIONS SHOULD HAVE COMMON

DEFINITIONS FOR THIS AREA


Slide13 l.jpg

A/E/C CADD STANDARDSHEET FILENAMING CONVENTIONPages 17-22 Chapter 2 Drawing File Organization of the 3.0 Standard


A e c cadd standard sheet file naming convention l.jpg
A/E/C CADD STANDARD SHEET FILE NAMING CONVENTION

In the A/E/C CADD Standard sheet file naming convention, the first three characters of the file name are the Project Code (The standard depicts a 20 character project code, but we are using only 3 characters).

Project codes are developed by EN-EP at

the inception of the project and are unique

to each building and site. Files not in

the A/E/C Standard naming convention will not be archived for the project.

B6A AD 1 02 XXX.DGN

User Defined

Sheet Sequence Number

Sheet Type Designator

Discipline Designator w/level 2

Designator

Project Code


Discipline designator w level 2 designator fourth and fifth characters l.jpg
DISCIPLINE DESIGNATORW/LEVEL 2 DESIGNATOR FOURTH AND FIFTH CHARACTERS

A/E/C Discipline Designators w/level 2 Designators-Page 19-22 Chapter 2 Drawing File Organization

See next 7 sheets

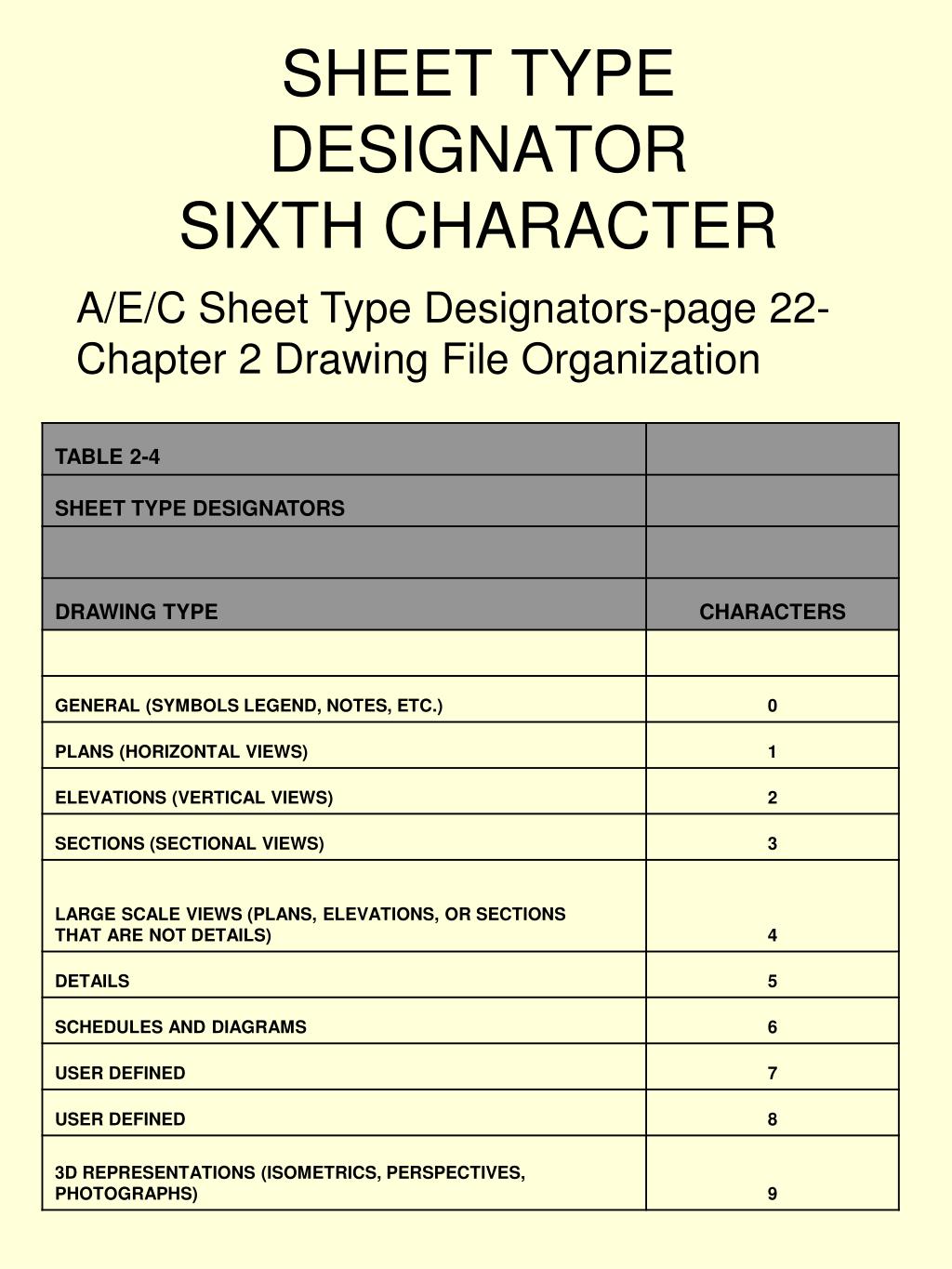

Sheet type designator sixth character l.jpg
SHEET TYPE DESIGNATORSIXTH CHARACTER

A/E/C Sheet Type Designators-page 22- Chapter 2 Drawing File Organization


Sheet sequence number seventh and eighth characters l.jpg
SHEET SEQUENCE NUMBERSEVENTH AND EIGHTH CHARACTERS

01 THRU 99


User defined ninth eleventh characters l.jpg
USER DEFINEDNINTH - ELEVENTHCHARACTERS

SECTIONS SHOULD HAVE COMMON

DEFINITIONS FOR THIS AREA
