Presentation Transcript


Slide1 l.jpg

CS-447– Computer Architecture Lecture 7Instruction Set Architecturepart II: addressing modes

www.qatar.cmu.edu/~nabughaz/15447-f09/


Last time l.jpg

Last Time

  • Memory structures

    • Address vs. data bus; use of decoder

  • We looked at basic ISA design

    • Mostly through examples

  • Fixed or variable width instructions

    • Prefer fixed

  • Instruction must encode:

    • Opcode

      • What instructions should we support?

    • Operands

      • How many? Registers or memory?

    • addressing modes (today)


The stored program concept l.jpg

The Stored Program Concept

All instructions are represented by bits.

All data are represented by bits.

Implication: We can’t tell data apart from instructions

Both instructions and data are stored in memory.

Programs can operate on other programs.

3


Isa design principles l.jpg

ISA Design Principles

“The natural number of operands for an operation like addition is three…requiring every instruction to have exactly three operands, no more and no less, conforms to the philosophy of keeping the hardware simple”

Principle 1: Simplicity favors regularity.

Simpler implementation

Higher performance at lower cost

RISC philosophy

4

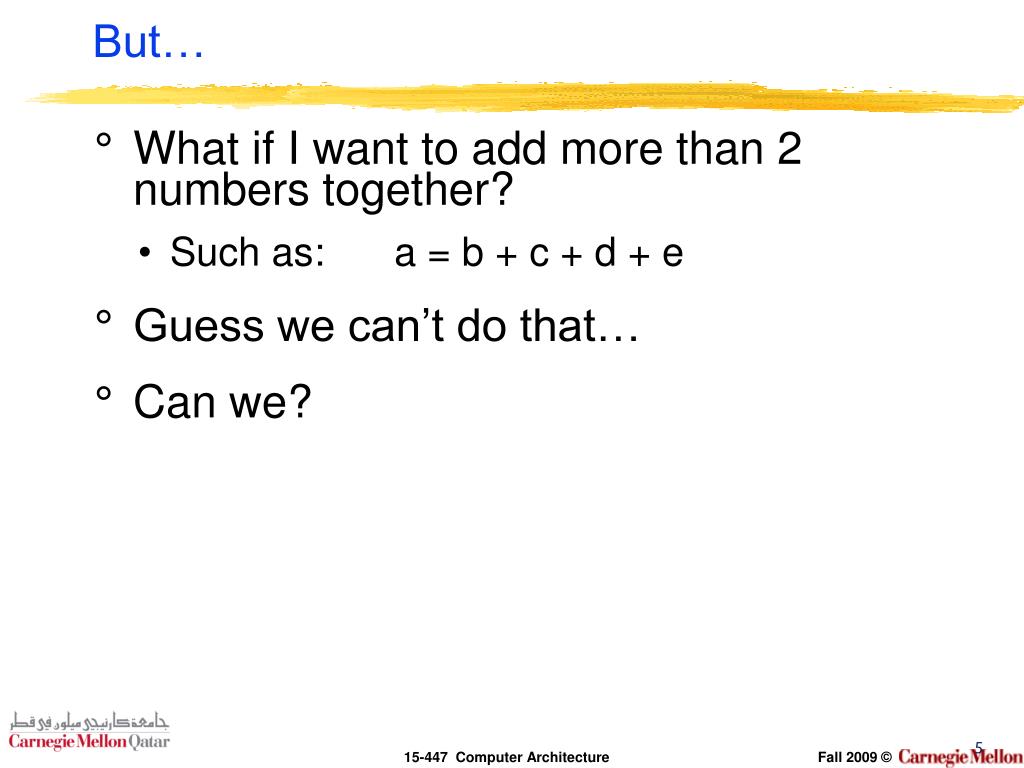

Slide5 l.jpg

But…

What if I want to add more than 2 numbers together?

Such as:a = b + c + d + e

Guess we can’t do that…

Can we?

5


But can t we make a 5 operand add l.jpg

But… can’t we make a 5 operand ADD?

We could, but it would violate our simplicity principles.

Parsing isn’t fun in software, it isn’t any more fun in hardware.

if(opcode == OP_ARITHMETIC)

{

cin >> dest >> src1 >> src2;

}

Is nice, simple, clean, code. We don’t have to solve for any special cases if all arithmetic operations take 3 operands (and the first is the destination)

6


Operands l.jpg

Operands

The operands to our instructions must be registers (we’ll talk about explicit values later).

We are provided a 32 x 32-bit register file

Used as the working set for the processor

Small, fast, indexed from [0,31]

Defines “word” as 32-bits.

This is small! Not a lot to work with? Why?

Design Principle 2: Smaller is faster

7


Registers vs memory l.jpg

Registers vs Memory

Since 1975, all machines use general purpose registers

Why?

Faster than memory

Easier for a compiler to use

Temporary variable storage reduces memory pressure. Less loads and stores.

Registers are easier to address than memory.

Compilers have a lot of work to use registers effectively!

8


How do we access memory l.jpg

How do we access memory?

Consider:

g = h + a[8];

g is in r1, h is in r2, a is in r3 (base address)

First, remember that memory is byte-addressed. What is our offset to the array “a”?

Now, we need to load that data.

lw r4, 32(r3)# load word at r3 + 32 into r4

Then we can add as normal:

add r1, r2, r4

9


New addressing mode l.jpg

New Addressing mode!

Notice that Load (store as well but not shown) looks different. Scary?

lw r4, 32(r3)# load word at $s3 + 32 into $t0

add r1, r2, r4

Base address + offset determines the memory location.

We just introduced a new addressing mode

What addressing modes should we include in our ISA?

What factors should determine that?

10


Common cases l.jpg

Common Cases

Small constants are quite common.

Zero, in particular, is very common

Because of this, some ISA’s such as MIPS define register $zero as always having the value of “zero”.

This has other uses as well.

MIPS doesn’t have “mov”, we replicate the behavior

add $r2, $r1, $zero

11


Allocation of bits l.jpg

Allocation of Bits

  • Number of addressing modes

  • Number of operands

  • Register versus memory

  • Number of registers

  • Address range

  • Address granularity


Addressing modes l.jpg

Addressing Modes

  • Immediate

  • Direct

  • Indirect

  • Register

  • Register Indirect

  • Displacement (Indexed)

  • Stack


Immediate operands l.jpg

Immediate Operands

An immediate operand is a value rather than a register.

addi r3, r3, 4 # r3 += 4

This constant has to fit within the space remaining (after opcode, and two registers) within the instruction.

Lucky for us, most constants are small! This is the common case, and leads us to…

Design Principle 3: Make the common case fast.

Avoid loading immediates from memory.

14


Immediate addressing l.jpg

Immediate Addressing

  • Operand is part of instruction

  • The address field points to the operand

  • e.g. ADD 525

    • Add 525 to contents of accumulator

    • 525 is the operand

  • No memory reference to fetch data

  • Fast

  • Limited range


Immediate addressing diagram l.jpg

Immediate Addressing Diagram

Instruction

OpCode

Operand

Example: ADD 525 ; AC = AC + 525

In an Accumulator-Based machine, we would like to add 525 to the accumulator, the result will be stored in the accumulator itself.


Direct addressing l.jpg

Direct Addressing

  • Address field contains address of operand

  • Effective address (EA) = address field A

  • e.g. ADD A

    • Look in memory at address A for operand

    • Add contents of (A) to accumulator


Direct addressing cont d l.jpg

Direct Addressing (cont’d)

  • Single memory reference to access data

  • No additional calculations to work out effective address

  • Limited address space


Direct addressing diagram l.jpg

Direct Addressing Diagram

Instruction

Memory

OpCode

Operand

Operand

Example: ADD (Addr2) ; AC = AC + (2); (2) = 255


Indirect addressing 1 l.jpg

Indirect Addressing (1)

  • Memory cell pointed to by address field contains the address of (pointer to) the operand

  • EA = (A)

    • Look in A, find address (A) and look there for operand

  • e.g. ADD (A)

    • Add contents of cell pointed to by contents of A to accumulator


Indirect addressing 2 l.jpg

Indirect Addressing (2)

  • Large address space

  • 2n where n = address word length

  • May be nested, multilevel, cascaded

    • e.g. EA = ((A))

      • Draw the diagram yourself

  • Multiple memory accesses to find operand

  • Hence slower


Indirect addressing diagram l.jpg

Indirect Addressing Diagram

Instruction

Memory

OpCode

Operand

Pointer to Operand

ADD ((1)); AC = AC + ((1))

((1)) = (3) = 255 = operand

Operand

Memory


Register addressing 1 l.jpg

Register Addressing (1)

  • Operand is held in register named in address field

  • EA = R

  • Limited number of registers

  • Very small address field needed

    • Shorter instructions

    • Faster instruction fetch


Register addressing 2 l.jpg

Register Addressing (2)

  • No memory access

  • Very fast execution

  • Very limited address space

  • Multiple registers helps performance

    • Requires good assembly programming or compiler writing

    • C programming:

      • register int a;


Register addressing diagram l.jpg

Register Addressing Diagram

Registers

Instruction

OpCode

Operand

Operand

ADD R3 ; AC = AC + R3; AC = AC + 255


Register indirect addressing l.jpg

Register Indirect Addressing

  • Similar to indirect addressing

  • EA = (R)

  • Operand is in memory cell pointed to by contents of register R

  • Large address space (2n)

  • One fewer memory access than indirect addressing


Register indirect addressing diagram l.jpg

Register Indirect Addressing Diagram

Instruction

Memory

OpCode

Operand

Registers

Operand

Pointer to Operand

Example:ADD (R3) ; AC = AC + (R3) = AC + (1); AC = AC + 255


Displacement addressing l.jpg

Displacement Addressing

  • EA = A + (R)

  • Address field hold two values

    • A = base value

    • R = register that holds displacement

    • or vice versa


Displacement addressing diagram l.jpg

Displacement Addressing Diagram

Instruction

Memory

OpCode

Register R

Address A

Operand

Registers

Pointer to Operand

+

ADD (R2, BaseAddress) ; AC = AC + ; (R2+BaseAddress) ; AC = AC + (1) = AC + 255


Pc relative addressing l.jpg

PC-Relative Addressing

  • A version of displacement addressing

  • R = Program counter, PC

  • EA = A + (PC)

  • i.e. get operand from A cells from current location pointed to by PC


More on branches l.jpg

More on Branches

Most branch targets are near the branch.

They use an immediate value which acts as an offset based on the instruction immediately following the branch (PC+4).

If the target is too far away, the assembler will rewrite the code.

31


Base register addressing l.jpg

Base-Register Addressing

  • A holds displacement

  • R holds pointer to base address

  • R may be explicit or implicit


Indexed addressing l.jpg

Indexed Addressing

  • A = base

  • R = displacement

  • EA = A + R

  • Good for accessing arrays

    • EA = A + R

    • R++


Combinations l.jpg

Combinations

  • Postindex

  • EA = (A) + (R)

  • Preindex

  • EA = (A+(R))

  • (Draw the diagrams)


Stack addressing l.jpg

Stack Addressing

  • Operand is (implicitly) on top of stack

  • e.g.

    • ADDPop top two items from stackand add


Example mips addressing modes l.jpg

Example: MIPS Addressing Modes

36


Memory organization l.jpg

Memory Organization

Design Question:

Our registers are 32-bits. Byte-addressing points to an 8-bit chunk of data.

How should we organize data?

Since our working size is 32-bits, we should word-align our data. Why?

0 1 2 3

Aligned

Not

Aligned

37


Endian l.jpg

Endian

Big Endian: Most significant byte is at the address of the word.

IBM 360/370, Motorola 68K, MIPS, Sparc, HP PA

Little Endian: Least significant byte is at the address of the word

Intel 80x86, Dec Vax, Dec Alpha

little endian byte 0

3 2 1 0

0 1 2 3

big endian byte 0

38


An example isa ia32 l.jpg

An Example ISA – IA32


Moving data ia32 l.jpg

%eax

%edx

%ecx

%ebx

%esi

%edi

%esp

%ebp

Moving Data: IA32

  • Moving Data

    movlSource,Dest:

    • Move 4-byte (“long”) word

    • Lots of these in typical code

  • Operand Types

    • Immediate: Constant integer data

      • Like C constant, but prefixed with ‘$’

      • E.g., $0x400, $-533

      • Encoded with 1, 2, or 4 bytes

    • Register: One of 8 integer registers

      • But %esp and %ebp reserved for special use

      • Others have special uses for particular instructions

    • Memory: 4 consecutive bytes of memory

      • Various “address modes”


Movl operand combinations l.jpg

movl $0x4,%eax

temp = 0x4;

movl $-147,(%eax)

*p = -147;

movl %eax,%edx

temp2 = temp1;

movl %eax,(%edx)

*p = temp;

movl (%eax),%edx

temp = *p;

movl Operand Combinations

  • Cannot do memory-memory transfer with a single instruction

Source

Dest

Src,Dest

C Analog

Reg

Imm

Mem

Reg

movl

Reg

Mem

Mem

Reg


Simple addressing modes l.jpg

Simple Addressing Modes

  • Normal(R)Mem[Reg[R]]

    • Register R specifies memory addressmovl (%ecx),%eax

  • DisplacementD(R)Mem[Reg[R]+D]

    • Register R specifies start of memory region

    • Constant displacement D specifies offsetmovl 8(%ebp),%edx


Indexed addressing modes l.jpg

Indexed Addressing Modes

  • Most General Form

  • D(Rb,Ri,S)Mem[Reg[Rb]+S*Reg[Ri]+ D]

    • D: Constant “displacement” 1, 2, or 4 bytes

    • Rb: Base register: Any of 8 integer registers

    • Ri:Index register: Any, except for %esp

      • Unlikely you’d use %ebp, either

    • S: Scale: 1, 2, 4, or 8

  • Special Cases

  • (Rb,Ri)Mem[Reg[Rb]+Reg[Ri]]

  • D(Rb,Ri)Mem[Reg[Rb]+Reg[Ri]+D]

  • (Rb,Ri,S)Mem[Reg[Rb]+S*Reg[Ri]]


Address computation examples l.jpg

Address Computation Examples

%edx

0xf000

%ecx

0x100


Some arithmetic operations l.jpg

Some Arithmetic Operations

FormatComputation

  • Two Operand Instructions

    addl Src,DestDest = Dest + Src

    subl Src,DestDest = Dest - Src

    imullSrc,DestDest = Dest * Src

    sall Src,DestDest = Dest << SrcAlso called shll

    sarl Src,DestDest = Dest >> SrcArithmetic

    shrl Src,DestDest = Dest >> SrcLogical

    xorl Src,DestDest = Dest ^ Src

    andl Src,DestDest = Dest & Src

    orl Src,DestDest = Dest | Src


Some arithmetic operations46 l.jpg

Some Arithmetic Operations

FormatComputation

  • One Operand Instructions

    inclDestDest = Dest + 1

    declDestDest = Dest - 1

    neglDestDest = - Dest

    notlDestDest = ~ Dest


Typical operation mixes relatively stable since 1960 l.jpg

Typical Operation Mixes – relatively stable since 1960.

Load (from memory)

Store (to memory)

memory-to-memory move

register-to-register move

input (from I/O device)

output (to I/O device)

push, pop (to/from stack)

Integer or FP

Add, Subtract, Multiply, Divide

shift left/right, rotate left/right

not, and, or, set, clear

unconditional, conditional

call, return

trap, return

test & set (atomic r-m-w)

search, translate

parallel subword ops (4 16bit add)

Data Manipulation

Arithmetic

Shift

Logical

Control – Jump/Branch

Subroutine Linkage

Interrupt

Synchronization

String

Graphics (MMX)

49


Another example isa y86 l.jpg

OF

ZF

SF

Another Example ISA, Y86

Program registers

Condition codes

  • Program Registers

    • Same 8 as with IA32. Each 32 bits

  • Condition Codes

    • Single-bit flags set by arithmetic or logical instructions

      • OF: OverflowZF: ZeroSF:Negative

  • Program Counter

    • Indicates address of instruction

  • Memory

    • Byte-addressable storage array

    • Words stored in little-endian byte order

Memory

%eax

%esi

%ecx

%edi

PC

%edx

%esp

%ebx

%ebp


Y86 instructions l.jpg

Y86 Instructions

  • Format

    • 1--6 bytes of information read from memory

      • Can determine instruction length from first byte

      • Not as many instruction types, and simpler encoding than with IA32

    • Each accesses and modifies some part(s) of the program state


Encoding registers l.jpg

%eax

0

%esi

6

%ecx

1

%edi

7

%edx

2

%esp

4

%ebx

3

%ebp

5

Encoding Registers

  • Each register has 4-bit ID

    • Same encoding as in IA32

  • Register ID 8 indicates “no register”

    • Will use this in our hardware design in multiple places


Instruction example l.jpg

Generic Form

Encoded Representation

addl rA, rB

6

0

rA

rB

Instruction Example

  • Addition Instruction

    • Add value in register rA to that in register rB

      • Store result in register rB

      • Note that Y86 only allows addition to be applied to register data

    • Set condition codes based on result

    • e.g., addl %eax,%esiEncoding: 60 06

    • Two-byte encoding

      • First indicates instruction type

      • Second gives source and destination registers


Arithmetic and logical operations l.jpg

Instruction Code

Function Code

addl rA, rB

xorl rA, rB

andl rA, rB

subl rA, rB

6

6

6

6

2

3

1

0

rA

rA

rA

rA

rB

rB

rB

rB

Arithmetic and Logical Operations

  • Refer to generically as “OPl”

  • Encodings differ only by “function code”

    • Low-order 4 bytes in first instruction word

  • Set condition codes as side effect

Add

Subtract (rA from rB)

And

Exclusive-Or


Move operations l.jpg

rA

8

rA

rB

rB

rB

rrmovl rA, rB

4

3

2

5

0

0

0

0

rA

rB

irmovl V, rB

mrmovl D(rB), rA

rmmovl rA, D(rB)

V

D

D

Move Operations

  • Like the IA32 movl instruction

  • Simpler format for memory addresses

  • Give different names to keep them distinct

Register --> Register

Immediate --> Register

Register --> Memory

Memory --> Register


Jump instructions l.jpg

Jump When Equal

Jump When Not Equal

Jump Unconditionally

Jump When Greater

Jump When Greater or Equal

Jump When Less or Equal

Jump When Less

jge Dest

jl Dest

je Dest

jmp Dest

jg Dest

jne Dest

jle Dest

Dest

Dest

Dest

Dest

Dest

Dest

Dest

7

7

7

7

7

7

7

0

4

3

2

1

5

6

Jump Instructions

  • Refer to generically as “jXX”

  • Encodings differ only by “function code”

  • Based on values of condition codes

  • Same as IA32 counterparts

  • Encode full destination address

    • Unlike PC-relative addressing seen in IA32


Stack operations l.jpg

pushl rA

popl rA

a

rA

b

rA

0

8

0

8

Stack Operations

  • Decrement %esp by 4

  • Store word from rA to memory at %esp

  • Like IA32

  • Read word from memory at %esp

  • Save in rA

  • Increment %esp by 4

  • Like IA32


Subroutine call and return l.jpg

call Dest

Dest

ret

8

9

0

0

Subroutine Call and Return

  • Push address of next instruction onto stack

  • Start executing instructions at Dest

  • Like IA32

  • Pop value from stack

  • Use as address for next instruction

  • Like IA32


Miscellaneous instructions l.jpg

nop

halt

0

1

0

0

Miscellaneous Instructions

  • Don’t do anything

  • Stop executing instructions

  • IA32 has comparable instruction, but can’t execute it in user mode

  • We will use it to stop the simulator


  • Login
