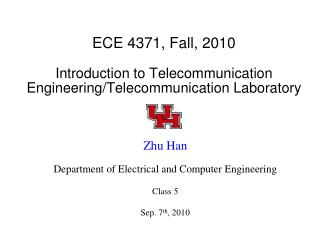

ECE 4371, Fall, 2010Introduction to Telecommunication Engineering/Telecommunication Laboratory

Zhu Han

Department of Electrical and Computer Engineering

Class 5

Sep. 7th, 2010


Overview l.jpg

Overview

  • Financial Aid Opportunity: 3 REU

  • Some materials are not according to book

  • PLL

  • AM broadcasting.

  • TV, analog. (digital will be studied later)

  • Midterm 1, 10/5: analog only


Review l.jpg

Review


Type of waves l.jpg

Type of waves


Radio frequency bands l.jpg

Radio Frequency Bands


Satellite communications l.jpg

Satellite Communications

  • Large communication area. Any two places within the coverage of radio transmission by satellite can communicate with each other.

  • Seldom effected by land disaster ( high reliability)

  • Circuit can be started upon establishing earth station (prompt circuit starting)

  • Can be received at many places simultaneously, and realize broadcast, multi-access communication economically( feature of multi-access)

  • Very flexible circuit installment , can disperse over-centralized traffic at any time.

  • One channel can be used in different directions or areas (multi-access connecting).


Rain attenuation l.jpg

Rain Attenuation


Carrier recover error l.jpg

Carrier Recover Error

  • DSB: e(t)=2m(t)cos(wct)cos((wc+ w)t+)

    e(t)=m(t) cos((w)t+)

    • Phase error: if fixed, attenuation. If not, shortwave radio

    • Frequency error: catastrophic beating effect

  • SSB, only frequency changes, f<30Hz.

    • Donald Duck Effect

  • Crystal oscillator, atoms oscillator, GPS, …

  • Pilot: a signal, usually a single frequency, transmitted over a communications system for supervisory, control, equalization, continuity, synchronization, or reference purposes.


Phase locked loop l.jpg

Phase-Locked Loop

  • Can be a whole course. The most important part of receiver.

  • Definition: a closed-loop feedback control system that generates and outputs a signal in relation to the frequency and phase of an input ("reference") signal

  • A phase-locked loop circuit responds both to the frequency and phase of the input signals, automatically raising or lowering the frequency of a controlled oscillator until it is matched to the reference in both frequency and phase.


Voltage controlled oscillator vco l.jpg

Voltage Controlled Oscillator (VCO)

  • W(t)=wc+ce0(t), where wc is the free-running frequency

  • Example


Ideal model l.jpg

Ideal Model

  • Model

    • Si=Acos(wct+1(t)), Sv=Avcos(wct+c(t))

    • Sp=0.5AAv[sin(2wct+1+c)+sin(1-c)]

    • So=0.5AAvsin(1-c)=AAv(1-c)

  • Capture Range and Lock Range

LPF

VCO


Carrier acquisition in dsb sc l.jpg

Carrier Acquisition in DSB-SC

  • Signal Squaring method

  • Costas Loop

  • SSB-SC not working


Costas receiver l.jpg

Costas receiver


Pll applications l.jpg

PLL Applications

  • Clock recovery: no pilot

  • Deskewing: circuit design

  • Clock generation: Direct Digital Synthesis

  • Spread spectrum:

  • Jitter Noise Reduction

  • Clock distribution


Block diagram of fdm system l.jpg

Block diagram of FDM system.


Illustrating the modulation steps in an fdm system l.jpg

Illustrating the modulation steps in an FDM system

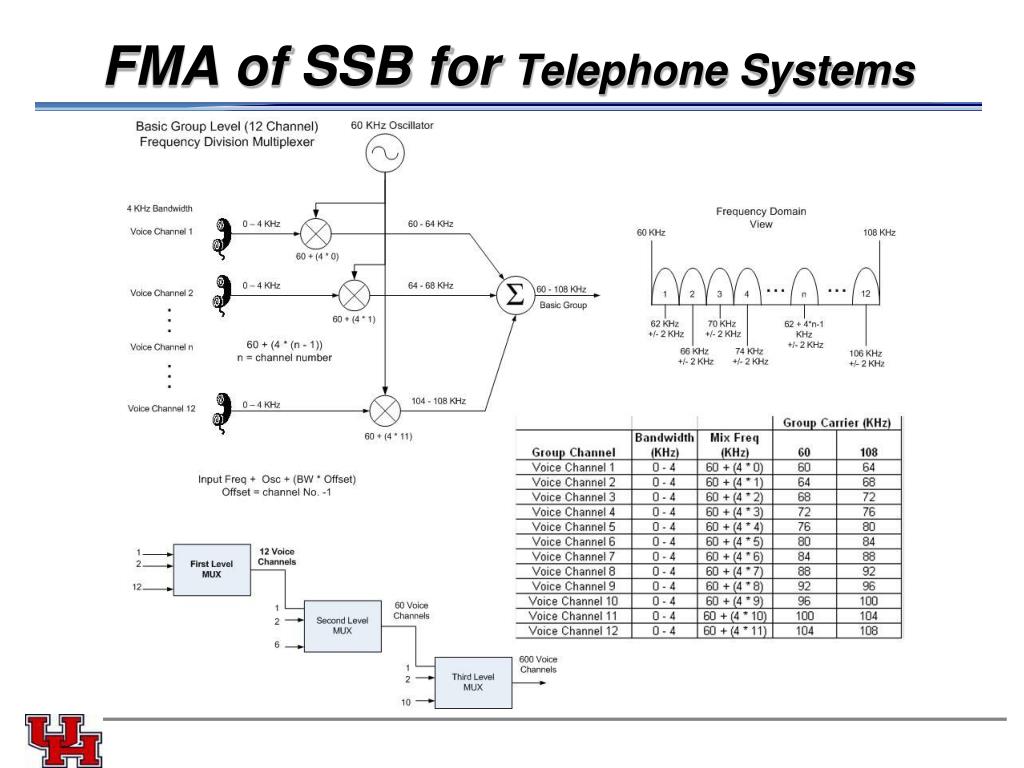

Fma of ssb for telephone systems l.jpg

FMA of SSB for Telephone Systems


Fma of ssb for telephone systems18 l.jpg

FMA of SSB for Telephone Systems


Fma of ssb for telephone systems19 l.jpg

FMA of SSB for Telephone Systems


Am broadcasting l.jpg

AM Broadcasting

  • History

  • Frequency

    • Long wave: 153-270kHz

    • Medium wave: 520-1,710kHz, AM radio

    • Short wave: 2,300-26,100kHz, long distance, SSB, VOA

  • Limitation

    • Susceptibility to atmospheric interference

    • Lower-fidelity sound, news and talk radio

    • Better at night, ionosphere.


Superheterodyne vs homodyne l.jpg

Superheterodyne vs. homodyne

  • Move all frequencies of different channels to one medium freq.

    • In AM receivers, that frequency is 455 kHz,

    • for FM receivers, it is usually 10.7 MHz.

    • Filter Design Concern

    • Accommodate more radio stations

    • Edwin Howard Armstrong


Television l.jpg

Television

Digital Display (CRT)

Analog Display (TV)

Eliminate flicker effects


Deflection signal and synchronization l.jpg

Deflection Signal and Synchronization

Deflection signal and synchronization signal

525525 30=8.27M


Solar power and human eye l.jpg

Solar Power and Human Eye


Rgb liq l.jpg

RGB, LIQ

mL=0.3mr+0.59mg+0.11mb

mI=0.6mr+0.28mg-0.32mb

mQ=0.21mr-0.52mg+0.31mb


Bandwidth l.jpg

Bandwidth

VSB and QAM


Comb filtering l.jpg

Comb Filtering


Ntsc pal and secam l.jpg

NTSC, PAL, and SECAM

  • National Television System Committee

    • Low complexity, higher vertical color resolution

    • 525 line/60Hz(30frames per second)

  • Phase Alternative Line: PAL

    • The phase of the color components is reversed from line to line

    • Robust to Multipath, phase distortion

    • 625line/50Hz(25 frames per second), slightly larger bandwidth

  • SECAM

    • Requires the receiver to memorize the content of each line

  • Mono when used for different standards


Tv standards in the world l.jpg

TV standards in the world


Why is it changing for digital tv l.jpg

Why is it Changing for Digital TV?

  • No snow, no static, no ghosts

  • Higher resolution images, and Sound

  • Additional channels

  • Frees up Bandwidth for Other Important Needs

  • More Options

    • Improved captions (but not without pain)

    • Interactive TV

    • TV to your Cell Phone or PDA? (Iphone, Asia)

Digital is Better


Resolution l.jpg

Resolution

Clearer and More Detailed

ATSC

ATSC


Digital tv l.jpg

Digital TV

Displays as Pixels

  • Signal is just a bunch of bits

  • Define color and intensity of each point on the screen

  • Bit stream is heavily compressed

  • Captions are also digital

And That’s the News, Tonight

1010011000101101110100110001011011


Connector overview l.jpg

Connector Overview

  • Coaxial Cable

  • Composite

  • S-Video

  • Component

  • HDMI

Common Connectors

From Cable, Satellite or Antenna to set top box or TV

Yellow is video + Red and White for Audio

Carries Video with improved Quality

Red, Blue, Green (RGB) is Video, + Red and White for Audio

Digital quality and does captions

Newest, Best all digital Video and audio,

but doesn’t do encoded captions


Summary l.jpg

Summary

  • Feb 17, 2009: Analog Broadcasts Stop

  • Digital TVs Should be Fine

    • High Definition Video and Audio

    • Some Requirements to Get Captions

      • Learn where captions will be decoded

      • Learn how to control

      • Use the right connectors

    • More Options for Captions

      • Color

      • Font size and style

      • Opacity

  • Analog TVs Will Still Work With Digital/Analog Converter

    • Cable and Satellite Subscribers (May have to trade in STB)

    • Cable and Satellite Subscribers may still want a D/A Converter for emergencies

    • Must Buy Converter Box To View Over The Air Signal on Analog TV

      • Wait until you know what you need

      • Don’t wait until the coupons are gone

      • Only have 90 days after you receive coupon

  • Expect Problems and Learning Curve on Captions

Be Prepared

Check out the features and convenience of

TVs, STBs, converters, cables etc.

Some can be very inconvenient.


  • Login
