Presentation Transcript
Intel server platforms l.jpg

Intel® Server Platforms


Driving industry leading products l.jpg
Driving Industry-Leading Products

Products/Technology

Building the enterprise business

8 years experience in servers

Extensive market analysis

Meeting the Market Need

  • Breadth of product lines

  • Significant Investment

  • >15 Itanium and Xeon processors

  • in development

  • Performance Leadership

  • Innovative Technologies &

  • Initiatives

Complete Solutions

Manufacturing/ Validation

Reliability

Process technology leadership

Manufacturing flexibility

10,000 hr validation per cpu

Xeon and Itanium processors

Extensive Tools

1000’s of hardware vendors

Microsoft, Unix, Linux

Broadest application range


Building the enterprise business l.jpg

Meeting the Market Need

Building the Enterprise Business

  • 88% of all servers shipped in Q3’02 were Intel-based Source: International Data Corporation Research Group, Q4’02 Server & Workstation Tracker Data

  • In 2003, Intel®-based server revenue forecasted to exceed RISC-based server revenue for the first time Source, Gartner Dataquest, Server Market Predictions 2003, Nov. 1, 2002

  • Expanding the business

    • Itanium processor family

      • Scale-up to 64p+, new features (dual core)

      • Lower-cost/power via new products

    • Xeon processor family

      • MP solutions uniquely suited to database, ERP, SCM workloads

      • MP for increased headroom, manageability, scale, performance

      • New Chipsets

      • Accelerating the DP product line in ’03

Revenue ($Billion)


Volume servers performance workstations l.jpg
Volume Servers & Performance Workstations

2002

1H’03

Q3’03

Q4’03

  • Larger cache, faster memory & increased system bus improve DP platform scalability

  • Hyper-threading technology for increased performance

    • Excellent performance on multi-threaded applications and multi-tasking environments

  • Accelerated 1MB to Xeon processor in Q3 ‘03

Silicon Process

Intel® Xeon™ Processor

(512K Cache)

Intel® Xeon™ Processor

(512K Cache)

Intel® Xeon™ Processor

(1 MB Cache)

Nocona

(1 MB Cache, Increased Frequency)

0.13 µm

90 nm

400 MHz Platforms

533 MHz Platforms

Manufacturing and design agility enable roadmap acceleration

All dates are provided for planning purposes only and are subject to change without notice.


Intel xeon processor mp enterprise roadmap l.jpg
Intel® Xeon™ Processor MP Enterprise Roadmap

2002

2004

2003

  • Increasing performance for enterprise workloads

    • High-end RAS capabilities to maximize system up-time

    • Seamless upgrade path for higher performance while preserving investment

    • Very large caches provide significant boost to transaction workloads

  • NEW

    • Gallatin with 4MB of iL3 cache

    • Potomac - 2004 product, 90nm process

Intel® Xeon™ Processor MP

(Foster MP)

(1.60 GHz, 1MB L3 Cache)

Intel® Xeon™ Processor MP

(Gallatin)

(2 GHz, 2MB L3 Cache)

Intel® Xeon™ Processor MP

(Gallatin)

(>2 GHz, 2MB L3 Cache)

Intel® Xeon™ Processor MP

(Gallatin)

(>2 GHz, 4MB L3 Cache)

Potomac

Existing Platforms

NewPlatforms

Silicon Process

0.18 µm

0.13 µm

Driving increased value in MP product line

90 nm

All dates are provided for planning purposes only and are subject to change without notice.


Itanium processor family roadmap l.jpg
Itanium® Processor Family Roadmap

2002

2003

2004

2005

Itanium® 2Processor

(1.0 GHz, 3MB L3)

Itanium 2Processor

(Madison)

(1.5GHz, 6MB L3)

Itanium 2Processor

(Madison 9M)

(>1.5GHz, 9MB L3)

Montecito

(Dual Core, Larger caches)

MP / DP Capable

LV Itanium 2Processor

(Deerfield)

(1.0GHz, 1.5M L3, 62W)

LV Itanium 2Processor

(Deerfield Refresh)

(>1.0GHz, >1.5MB L3)

DP-only

Process

Technology

0.18 µm

0.13 µm

90 nm

  • Expanded roadmap

    • Pulled in dual-core technology and added lower-power processor line

  • Roadmap maintains world class performance

    • Itanium 2 processor STILL leading in industry benchmarks

      • 43% higher on SAP* and 55% higher on TPC-C** than highest RISC result

      • Itanium 2 processor 6MB (Madison) adds 30-50% performance boost

      • AND… Itanium 2 processor named Microprocessor Report Analyst’s Choice for Best Server Processor of 2002

* source: www.sap.com\benchmark - based on SD 2-tier 4P results. Comparing HP RX5670 supporting 600 SD users to HP AlphaServer ES45 supporting 420 SD Users

** source: www.tpc.org - based on 4P results. Comparing HP RX5670 with Oracle 10i on HP-UX 11.I, v1.6 with 87741 tpm-C to HP AlphaServer ES45 with AlphaChip 21264 1250MHz running Sybase Adaptive Server Enterprise v12.5 on Tru64 Unix v5.1B with 56375tpm-C

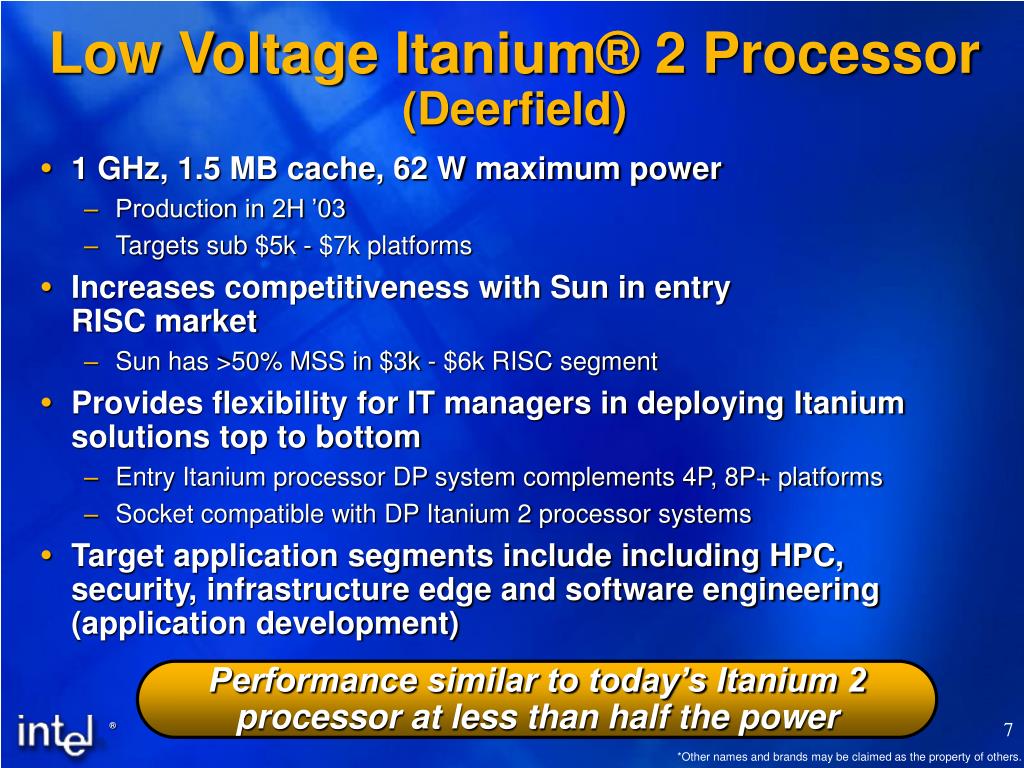

Low voltage itanium 2 processor deerfield l.jpg
Low Voltage Itanium® 2 Processor (Deerfield)

  • 1 GHz, 1.5 MB cache, 62 W maximum power

    • Production in 2H ’03

    • Targets sub $5k - $7k platforms

  • Increases competitiveness with Sun in entry RISC market

    • Sun has >50% MSS in $3k - $6k RISC segment

  • Provides flexibility for IT managers in deploying Itanium solutions top to bottom

    • Entry Itanium processor DP system complements 4P, 8P+ platforms

    • Socket compatible with DP Itanium 2 processor systems

  • Target application segments include including HPC, security, infrastructure edge and software engineering (application development)

Performance similar to today’s Itanium 2 processor at less than half the power


Advancing the platform l.jpg
Advancing the Platform

  • Leadership Enterprise chipset roadmap

    • “Canterwood” for uni-processor workstations mid-year

    • “Lindenhurst” for 2-way Nocona servers in 2004

    • “Twin Castle” for 4-way Potomac servers in 2004

    • Intel® E8870 thru Montecito

  • PCI Express technology: All chipsets in 2004

    • Advantages: Lower cost, Higher performance and RAS

  • Next generation DDR-2 memory support in 2004

    • Increased performance and capacity, lower power

  • Communications products based on PCI Express

    • GbE Dual Northway/Cranbrook; Storage: Dobson, PCI-X bridge


Functional l.jpg

Full-Chip

Simulation

Bench

Design

Verification

Tester

Design

Verification

Test Chips

& Leverage

System

Level

Simulation

Compatibility

Validation

Analog

Validation (I/O & Speed Path)

Pre-Silicon

Buffer

Simulation

Pre-Silicon

Interface

Simulation

System

Validation

Silicon Validation

8 Years Of Server Validation Expertise And Proven Infrastructure / Capability

Functional

8 sites worldwide

>2500 employees

$300M/yr

250,000 tests

15+ OS, 1000s apps

Electrical

Minimum 10k+ test hours per product prior to PTQ … testing continues after launch

Intel Processors & Platforms Validated For Robust Functionality

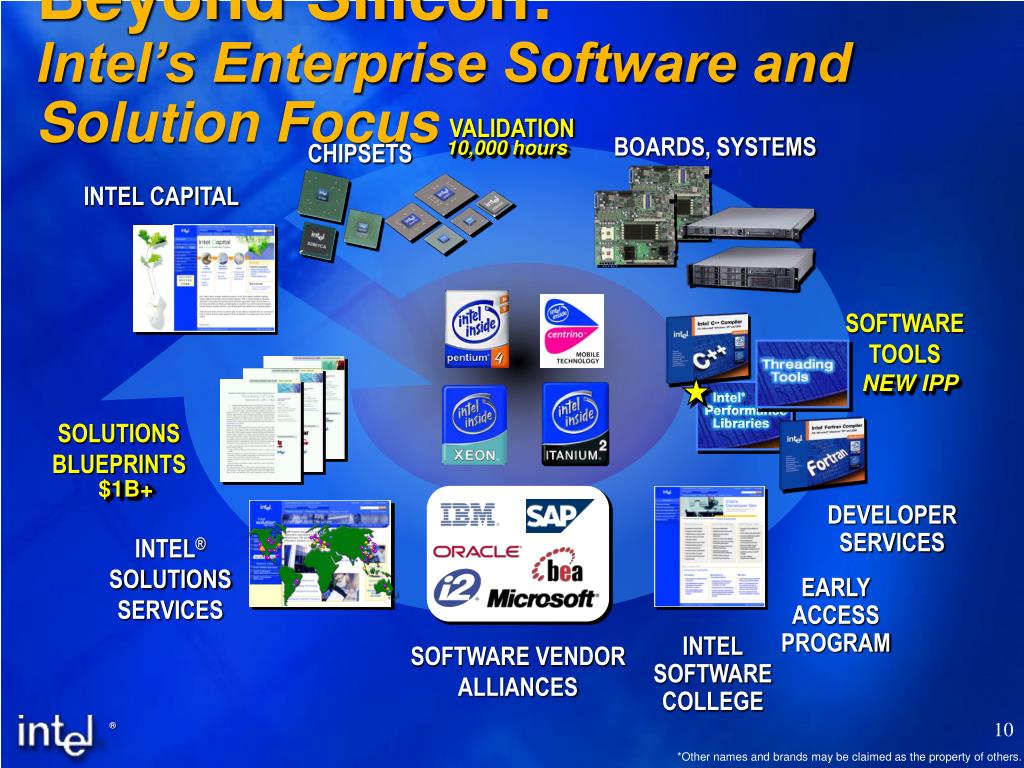

Beyond silicon intel s enterprise software and solution focus l.jpg
Beyond Silicon:Intel’s Enterprise Software and Solution Focus

VALIDATION

BOARDS, SYSTEMS

10,000 hours

CHIPSETS

INTEL CAPITAL

SOFTWARE

TOOLS

NEW IPP

SOLUTIONSBLUEPRINTS

$1B+

DEVELOPERSERVICES

INTEL®SOLUTIONSSERVICES

EARLY

ACCESS

PROGRAM

INTEL

SOFTWARE

COLLEGE

SOFTWARE VENDOR

ALLIANCES


Itanium 2 platform breadth expanding l.jpg
Itanium® 2 Platform Breadth Expanding

2002

2003

40+ systems

2P,

4P

20+ systems

≥10 systems

≥8P

5 systems

Broadening Itanium® 2-based platforms with increase in 2-way up to 128-way platforms in 2003

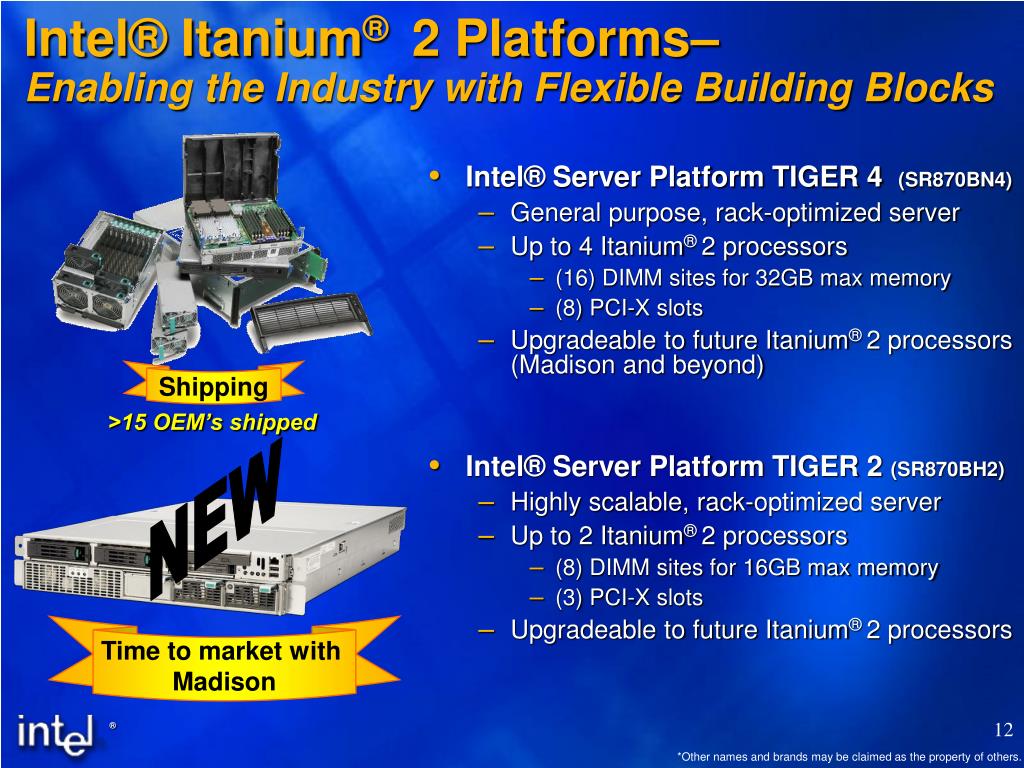

Intel itanium 2 platforms enabling the industry with flexible building blocks l.jpg
Intel® Itanium® 2 Platforms– Enabling the Industry with Flexible Building Blocks

  • Intel® Server Platform TIGER 4 (SR870BN4)

    • General purpose, rack-optimized server

    • Up to 4 Itanium® 2 processors

      • (16) DIMM sites for 32GB max memory

      • (8) PCI-X slots

    • Upgradeable to future Itanium® 2 processors (Madison and beyond)

  • Intel® Server Platform TIGER 2 (SR870BH2)

    • Highly scalable, rack-optimized server

    • Up to 2 Itanium® 2 processors

      • (8) DIMM sites for 16GB max memory

      • (3) PCI-X slots

    • Upgradeable to future Itanium® 2 processors

Shipping

>15 OEM’s shipped

NEW

Time to market with

Madison


Slide13 l.jpg

Building a Robust Software Ecosystem

Over 300 applications and tools now in production

Supported by several major operating systems

2002-3

2001-2

hp NonStop Kernel™*

hp OpenVMS™*

+100 additional apps

+150 additional tools

+more apps in 2003

High Performance & Technical Computing

Software Development Environment

Enterprise Applications

*For future release


Summary l.jpg
Summary

  • Intel® Itanium® Processor momentum

    • Expanding into lower-power and lower-cost products - Deerfield

    • Exceeding expectations– more software & systems

  • Intel Xeon™ processor family

    • Xeon processor MP demonstrates outstanding platform performance and headroom

    • Accelerating MP and DP processors in 2003

  • Intel® Architecture advancing the platform with enterprise chipsets

    • Incorporating PCI Express technology in 2004

    • Extending IA-32 chipsets into 4-way servers
