Presentation Transcript

Patterns in the sky l.jpg
Patterns in the Sky

The Constellation Orion

Slide3 l.jpg

  • Constellations: Recognizable patterns in the sky are called Constellations.

  • There are 88 Constellations. 12 are based on the Zodiac.

    • Orion, Leo, Aries, Taurus, etc.

  • Asterisms: Recognizable patterns of stars that are not one of the constellations are called Asterisms:

    • Big Dipper, Little Dipper, Summer Triangle

Slide6 l.jpg

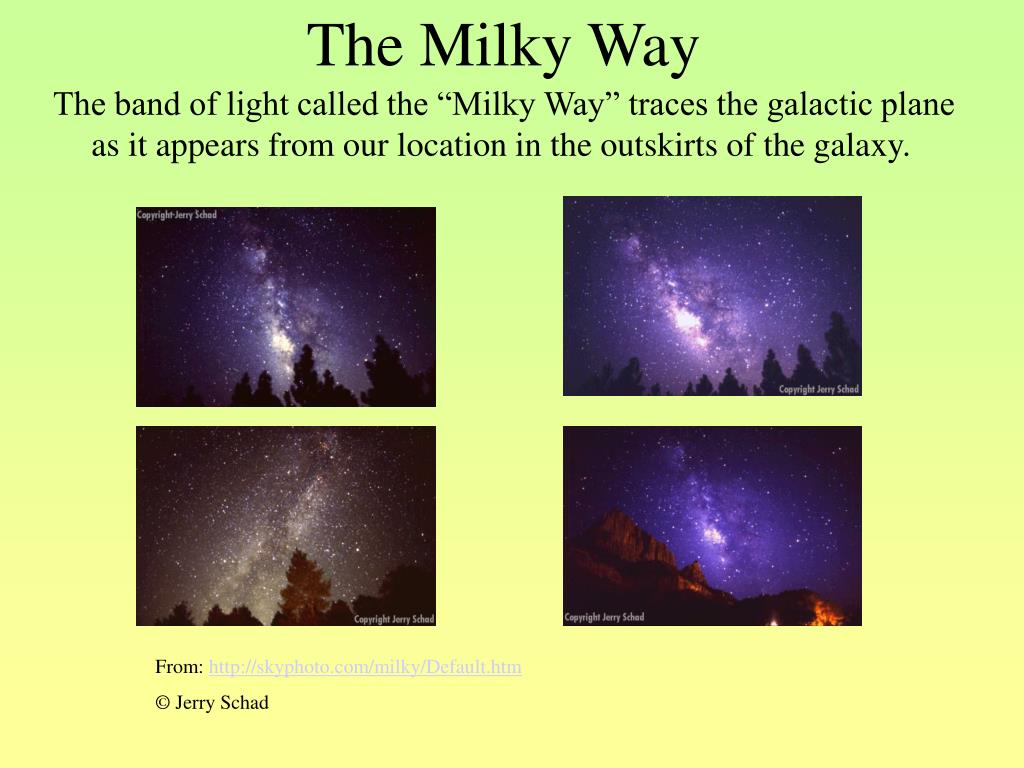

The milky way l.jpg

The band of light called the “Milky Way” traces the galactic plane as it appears from our location in the outskirts of the galaxy.

The Milky Way


© Jerry Schad

The circling sky l.jpg
The Circling Sky galactic plane as it appears from our location in the outskirts of the galaxy.

  • Earth rotates from west to east.

  • The celestial sphere appears to rotate east to west.

Apparent path of a particular star

Slide10 l.jpg

The Dome of the Sky: galactic plane as it appears from our location in the outskirts of the galaxy. Definitions in your local sky

Angular sizes l.jpg
Angular Sizes galactic plane as it appears from our location in the outskirts of the galaxy.

  • We can measure angles in the sky

  • The angular size of an object like the Sun or the Moon is the angle it appears to span in your field of view.

  • The angular distance between a pair of objects is the angle that appears to separate them.

Slide12 l.jpg

To Polaris galactic plane as it appears from our location in the outskirts of the galaxy.

Angular size of moon ~ ½ o

Angular distance between the “pointer stars” ~ 5o

Slide13 l.jpg

  • Latitude : Measures positions north or south of the equator. (Note: This is an angle)

    • 0o = the equator.

    • 90o N= the north pole.

    • 90o S = the south pole.

  • Longitude : Measures positions east or west of the Prime Meridian. (This is an angle)

  • The Prime meridian is an imaginary line that passes through Greenwhich, England.

Slide14 l.jpg

Latitude and (Note: This is an angle)Longitude

Slide15 l.jpg

  • In the Northern Hemisphere, stars near the North Celestial Pole are always above the horizon. Therefore, these stars are called Circumpolar Stars

  • In the Northern Hemisphere, stars near the south celestial pole remain below the horizon and so are never seen by a northern observer.

  • In the Southern Hemisphere, stars near the north celestial pole are never visible to the southern observer.

Slide17 l.jpg

Counter-Clockwise Rotation southern skies.

Clockwise Rotation

Northern Hemisphere

Southern Hemisphere

The Altitude of the celestial pole (Polaris) = your latitude

Altitude and latitude l.jpg
Altitude and Latitude southern skies.

  • For Nacogdoches, Texas:

    • Latitude: 31o 45’ 35.3” = 31.7598o

    • Longitude: -94o 39’ 40.5” = -94.6613o

  • Question: What is the Altitude of Polaris for Nacogdoches?

  • Answer: 31o 45’ 35.3” – the same as our Latitude!

Seasonal changes in the sky l.jpg
Seasonal Changes in the Sky southern skies.

  • The night-time constellations change with the seasons.

  • This is due to the Earth’s orbit around the Sun.

The sun s path through the daytime sky changes with seasons l.jpg
The Sun’s Path Through The Daytime Sky Changes With Seasons

  • The sun traces out a characteristic figure 8 pattern over the course of a year at the same time of the day. This “Figure 8” is called an analemma.

  • Composite photograph

  • Images taken always at same time of day. (8:30 am. EST)

  • Pictures taken at 10 day intervals over an entire year.







Path of sunrise for a particular date.

Dennis di Cicco

Slide22 l.jpg

Seasons- Geocentric View Seasons

The apparent path of the Sun on the celestial sphere, showing how the seasons arise.

Figure from Astronomy Today, 3rd ed., Chaisson & McMillan, Prentice-Hall, ©1999

Right ascension and declination l.jpg
Right Ascension and Declination Seasons

  • Right Ascension (RA): Analogous to longitude, but on the celestial sphere.

    • It is the east-west angle between the vernal equinox and a location on the celestial sphere.

  • Declination (dec): Analogous to latitude, but on the celestial sphere.

    • It is the north-south angle between the celestial equator and a location on the celestial sphere.

Slide24 l.jpg

Units of R.A. Seasons

360o = 24h

 15o/h

The moon our constant companion l.jpg
The Moon, Our Constant Companion Seasons

  • As the Moon moves through the sky, both its appearance and the time at which it rises and sets change with the cycle of Lunar Phases.

Lunar phases demonstration l.jpg
Lunar Phases Demonstration Seasons

The Moon

The Earth

Lunar phases l.jpg
Lunar Phases Seasons

Note: Look at top view to understand rise and set times.

Slide28 l.jpg

Eclipses l.jpg
Eclipses Seasons

  • In order for an Eclipse to occur:

  • The nodes of the Moon’s orbit must be nearly aligned with the Earth and the Sun.

  • The phase of the Moon must be either new or full.

Slide30 l.jpg

The Ecliptic Plane is represented by the surface of the pond.

Lunar Eclipse

Solar Eclipse

Solar Eclipse

Lunar Eclipse

Nodes occur at points where the orbit crosses the surface of the pond

Geometry of a lunar eclipse l.jpg
Geometry of a Lunar Eclipse pond.

(Sunlight is partially blocked)

(Sunlight is fully blocked)

Slide34 l.jpg

Multiple Exposure Photograph of Progression of a Solar Eclipse

Totality- lasts only a few minutes.

The Solar Corona becomes visible.

How often do eclipses occur l.jpg
How often do Eclipses Occur? of a Solar Eclipse

  • There are two periods each year when the nodes of the Moon’s orbit are nearly aligned with the Sun.

  • These are called Eclipse Seasons.

  • The combined effect of the changing dates of eclipse seasons and the 29.5 day lunar cycle, makes eclipses recur about every 18 years.

  • This 18 year cycle is called the Saros Cycle.

Slide36 l.jpg

Solar Eclipses from 2001 to 2022 of a Solar Eclipse

Colors represent successive Saros Cycles.

The ancient mystery of the planets retrograde motion l.jpg
The Ancient Mystery of the Planets of a Solar EclipseRetrograde Motion

  • Apparent Retrograde Motion

  • A period during which a planet appears to move westward relative to the stars is called a period of Apparent Retrograde Motion.

  • Prograde (Direct) Motion

  • The usual eastward movement of the planet is called Prograde or Direct Motion.

Retrograde motion for jupiter l.jpg
Retrograde Motion for Jupiter of a Solar Eclipse

Retrograde Motion

Prograde or Direct Motion



What causes retrograde motion l.jpg
What Causes Retrograde Motion? of a Solar Eclipse

  • It is a result of Stellar Parallax.

    • Parallax is the apparent shift of the position of a nearby object with respect to a more distant background object.

    • Do pen/pencil against background wall demo.

  • That is, an apparent shift of the planet’s position relative to the background stars.

Slide41 l.jpg

Stellar parallax l.jpg
Stellar Parallax principle of parallax.

More distant stars are used as the background for measuring parallax.

End of section l.jpg

End of Section principle of parallax.
