a guide to hardware 4e

A+ Guide to Hardware, 4e

Chapter 11

Notebooks, Tablet PCs, and PDAs

objectives
Objectives
  • Learn how to select, support, and add peripheral devices to notebooks
  • Learn how to replace and upgrade internal notebook components
  • Learn how to troubleshoot notebooks
  • Learn about technologies relating to tablet PCs
  • Learn about personal digital assistants (PDAs)

A+ Guide to Hardware, 4e

supporting notebooks
Supporting Notebooks
  • Notebook (laptop): a portable computer
  • Comparing notebooks to full-sized computers
    • Same internal technology, but built as a single system
    • Notebooks are smaller and portable
    • Notebooks use less power
  • Topics to cover:
    • Selecting and purchasing a notebook
    • Special considerations for servicing notebooks
    • Caring for notebooks
    • Connecting peripheral equipment to notebooks

A+ Guide to Hardware, 4e

tips for buying a notebook
Tips for Buying a Notebook
  • Consider a notebook if portability is important
    • Desktops are faster, cheaper, and easier to upgrade
  • Do not buy extra features unless they are needed
    • Extra features are costly and add to notebook weight
  • Purchase an extended warranty
  • Select a well regarded brand
  • Some guidelines for notebook components:
    • Choose an active matrix LCD panel (over dual scan)
    • Buy as much memory as you plan to use later
    • The best type of battery to buy is a lithium battery

A+ Guide to Hardware, 4e

special considerations when servicing notebooks
Special Considerations When Servicing Notebooks
  • Warranty concerns
    • Be careful not to void the warranty
    • Information needed before contacting technical support
      • Notebook model and serial number
      • Name, phone number, and address of the purchaser
  • Service manuals and other sources of information
    • Enable you to safely disassemble a notebook
    • Where to find the necessary documentation
      • Physical manual provided by the manufacturer
      • On the Internet; e.g., the manufacturer’s Web site

A+ Guide to Hardware, 4e

special considerations when servicing notebooks continued
Special Considerations When Servicing Notebooks (continued)
  • Diagnostic tools provided by manufacturers
    • Used to pinpoint a problem component
    • Sources: setup CD or manufacturer’s Web site
    • Example: PC-Doctor
  • The OEM operating system build
    • Notebooks are sold with the OS preinstalled
    • OEM: original equipment manufacturer
    • OS build: customized operating system build
    • Diagnostic software is customized to the notebook

A+ Guide to Hardware, 4e

special considerations when servicing notebooks continued7
Special Considerations When Servicing Notebooks (continued)
  • Windows notebook features
    • Channel aggregation: allows two modem connections
    • Power management features
    • Support for PC cards
    • Windows 9x/Me Briefcase
    • Windows 2000/XP Offline Files and Folders
    • Folder redirection under Windows 2000/XP
    • Hardware profiles under Windows 2000/XP
  • Sources for backup OS: recovery CD or partition

A+ Guide to Hardware, 4e

slide8

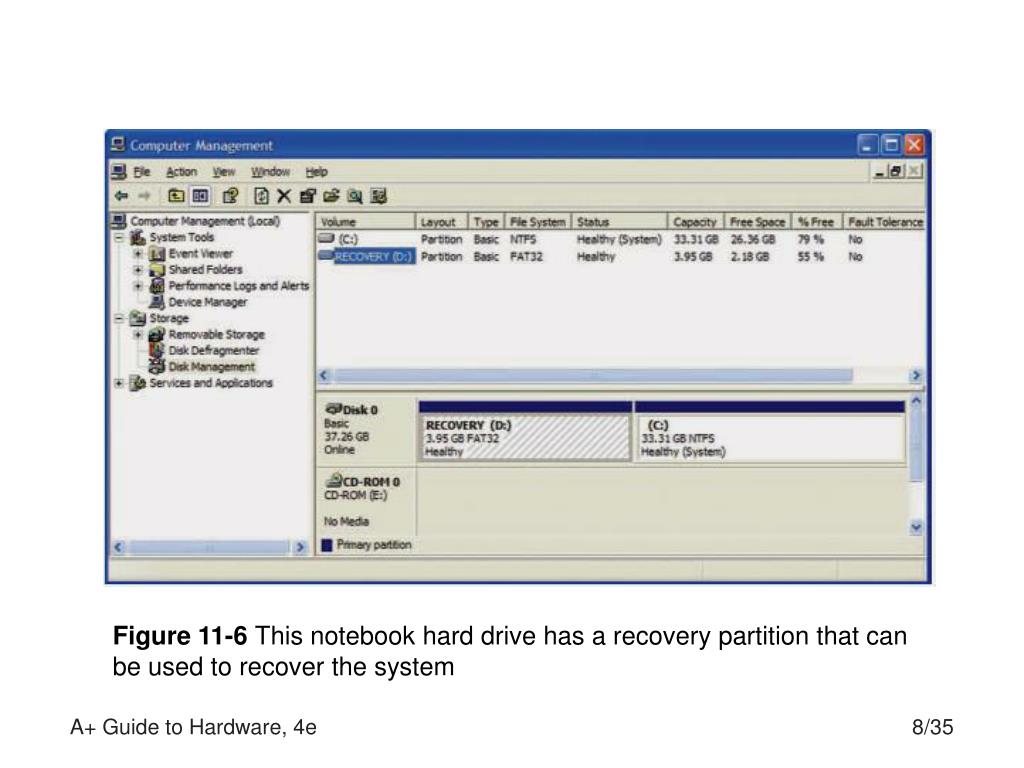

Figure 11-6 This notebook hard drive has a recovery partition that can be used to recover the system

A+ Guide to Hardware, 4e

caring for notebooks

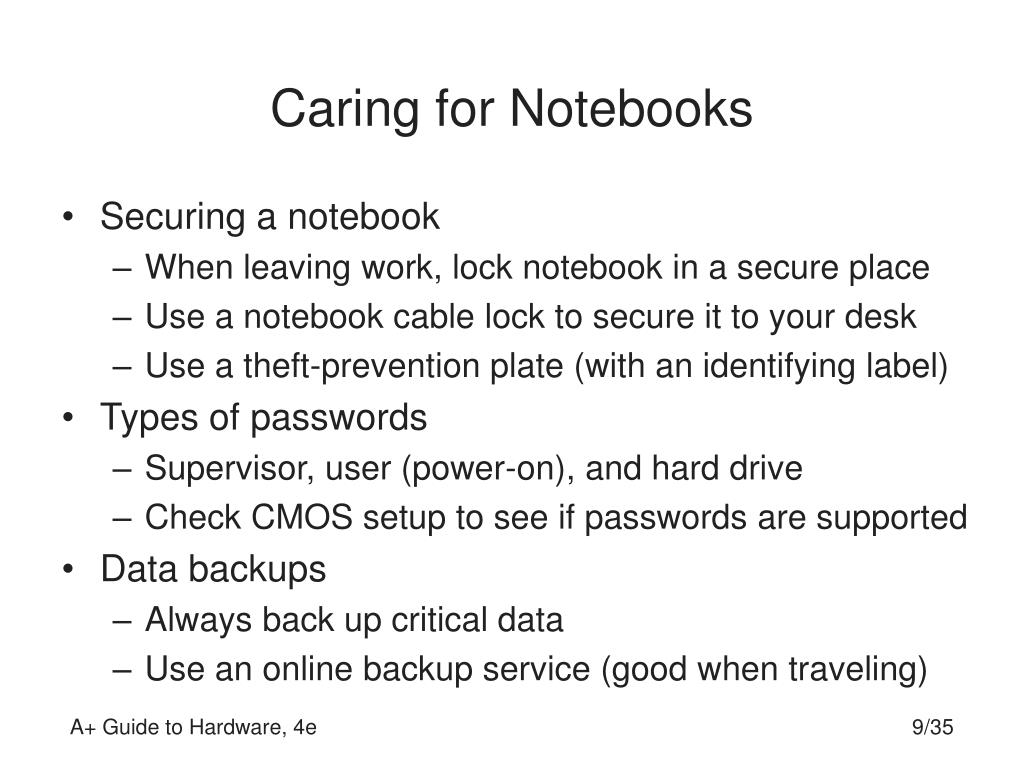

Caring for Notebooks
  • Securing a notebook
    • When leaving work, lock notebook in a secure place
    • Use a notebook cable lock to secure it to your desk
    • Use a theft-prevention plate (with an identifying label)
  • Types of passwords
    • Supervisor, user (power-on), and hard drive
    • Check CMOS setup to see if passwords are supported
  • Data backups
    • Always back up critical data
    • Use an online backup service (good when traveling)

A+ Guide to Hardware, 4e

caring for notebooks continued

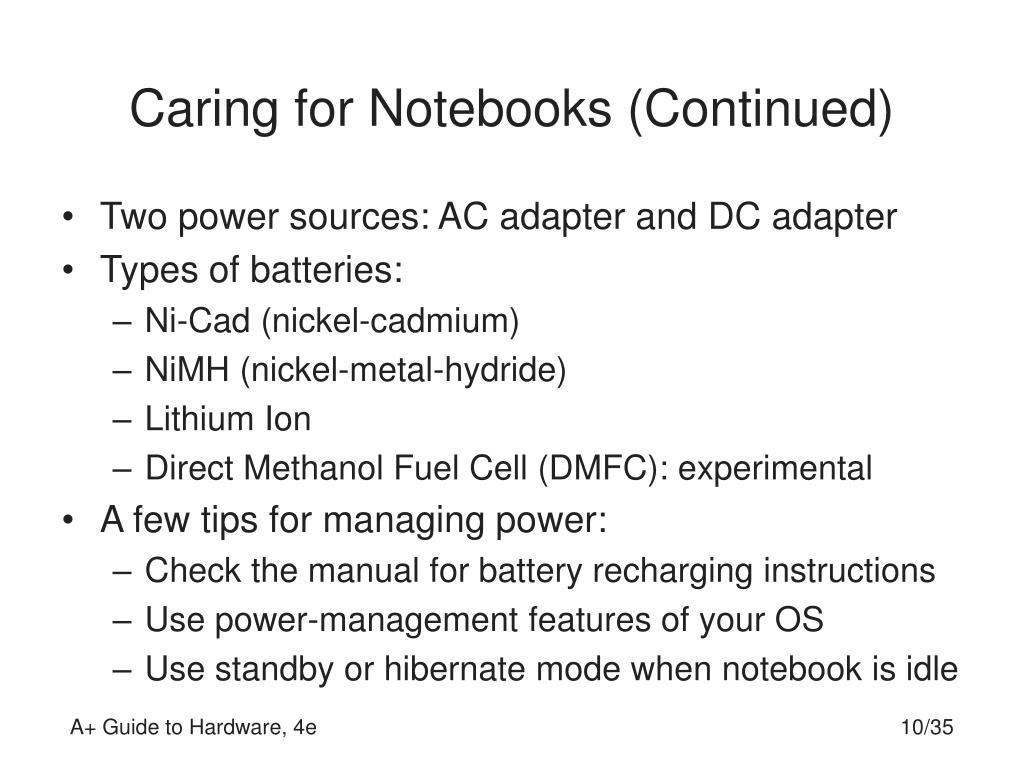

Caring for Notebooks (Continued)
  • Two power sources: AC adapter and DC adapter
  • Types of batteries:
    • Ni-Cad (nickel-cadmium)
    • NiMH (nickel-metal-hydride)
    • Lithium Ion
    • Direct Methanol Fuel Cell (DMFC): experimental
  • A few tips for managing power:
    • Check the manual for battery recharging instructions
    • Use power-management features of your OS
    • Use standby or hibernate mode when notebook is idle

A+ Guide to Hardware, 4e

caring for notebooks continued11
Caring for Notebooks (Continued)
  • Power Options Properties dialog box
    • Used to modify multiple power management schemes
    • Example: cause notebook to hibernate after set time
  • The battery meter can be added to the taskbar
  • Port replicator: interface to AC outlet and peripherals
  • Docking station: port replicator + secondary storage
  • Hardware profiles
    • Enable you to store various hardware configurations
    • Example: set up one profile to use a docking station

A+ Guide to Hardware, 4e

slide12

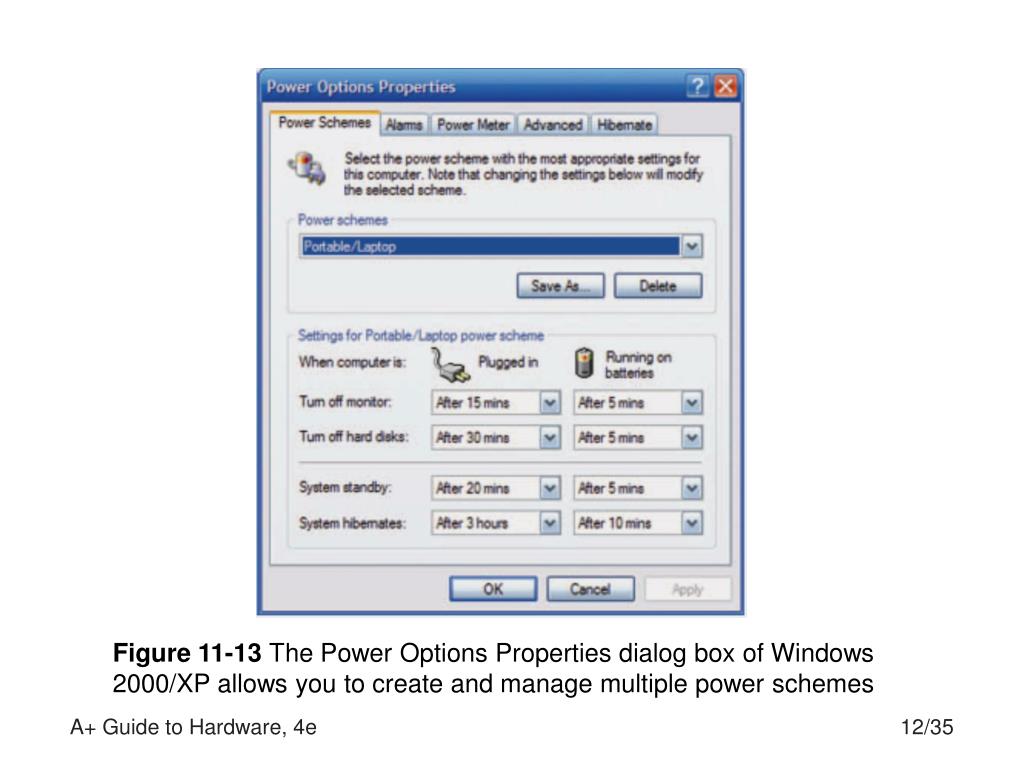

Figure 11-13 The Power Options Properties dialog box of Windows 2000/XP allows you to create and manage multiple power schemes

A+ Guide to Hardware, 4e

slide14

Figure 11-22 Many peripheral devices are added to a notebook using a PC Card slot; here, a modem PC Card is inserted in a PC Card slot

A+ Guide to Hardware, 4e

connecting peripheral devices to notebooks continued
Connecting Peripheral Devices to Notebooks (continued)
  • PCMCIA (Personal Computer Memory Card International Association)
    • Develops standards for PC card slots
  • PCMCIA standards related to size: Type I to Type III
  • PC cards may also provide proprietary ports/adapters
  • PC card slot technologies: 16-bit ISA and 32-bit PCI
  • Two new PCMCIA standards:
    • CardBus: increases bus width to 32 bits
    • ExpressCard: matches PCI Express and USB 2.0

A+ Guide to Hardware, 4e

connecting peripheral devices to notebooks continued17
Connecting Peripheral Devices to Notebooks (continued)
  • WiFi review:
    • Two connection modes: ad hoc and via access point
    • Change wireless settings in Network Connections
    • To make a connection, turn on wireless switch
    • You can choose from a list of wireless networks
  • Bluetooth review:
    • Used for short-range wireless; e.g., optical mouse
  • Some special considerations for Bluetooth:
    • Read documentation for configuration guidelines
    • If device does not function, reinstall the device driver

A+ Guide to Hardware, 4e

replacing and upgrading internal parts
Replacing and Upgrading Internal Parts
  • Three common maintenance tasks:
    • Upgrading memory
    • Exchanging a hard drive
    • Replacing a broken component; e.g., the LCD panel

A+ Guide to Hardware, 4e

upgrading memory

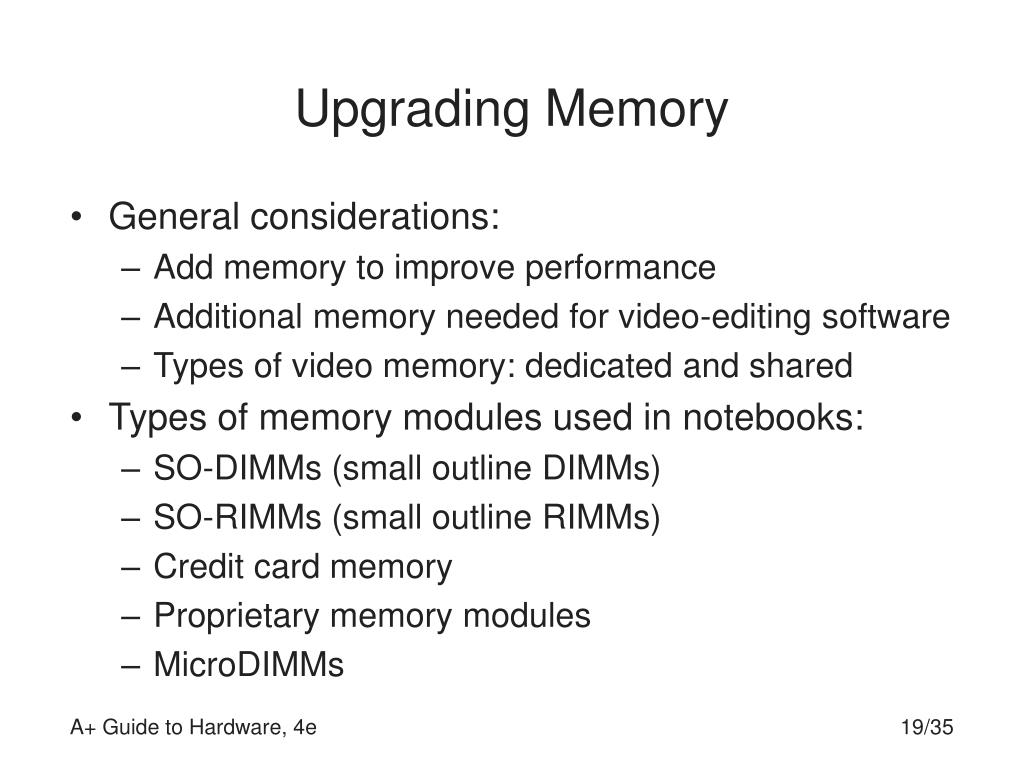

Upgrading Memory
  • General considerations:
    • Add memory to improve performance
    • Additional memory needed for video-editing software
    • Types of video memory: dedicated and shared
  • Types of memory modules used in notebooks:
    • SO-DIMMs (small outline DIMMs)
    • SO-RIMMs (small outline RIMMs)
    • Credit card memory
    • Proprietary memory modules
    • MicroDIMMs

A+ Guide to Hardware, 4e

upgrading memory continued

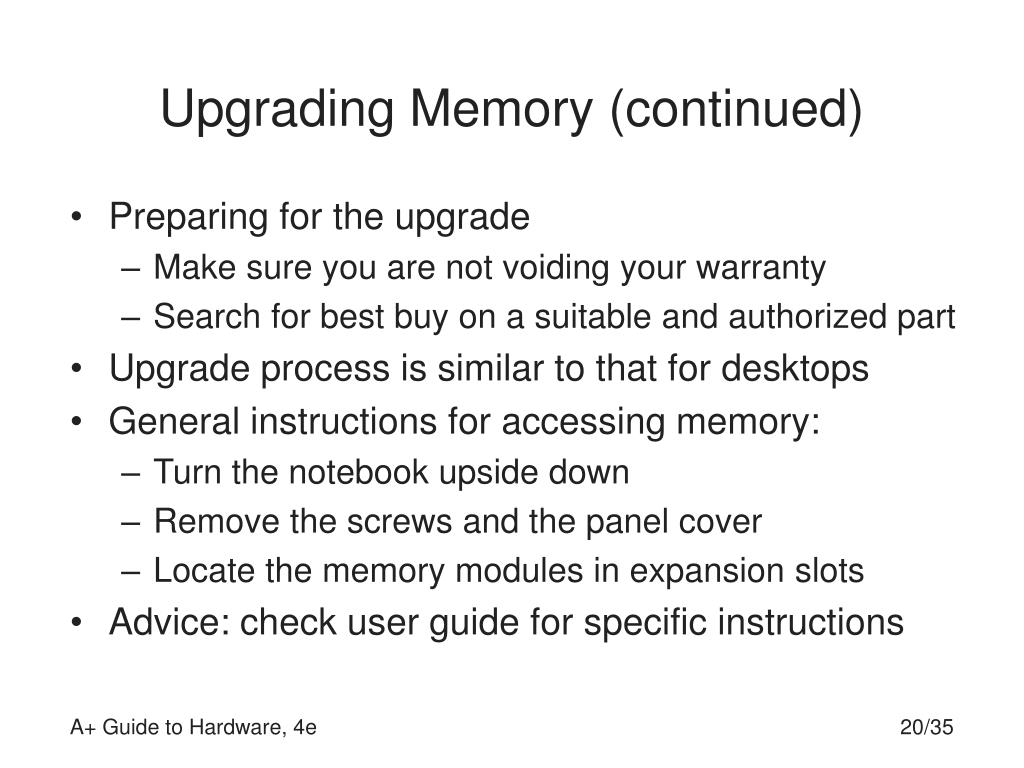

Upgrading Memory (continued)
  • Preparing for the upgrade
    • Make sure you are not voiding your warranty
    • Search for best buy on a suitable and authorized part
  • Upgrade process is similar to that for desktops
  • General instructions for accessing memory:
    • Turn the notebook upside down
    • Remove the screws and the panel cover
    • Locate the memory modules in expansion slots
  • Advice: check user guide for specific instructions

A+ Guide to Hardware, 4e

replacing a hard drive
Replacing a Hard Drive
  • General guidelines
    • Check with OEM for drive sizes and connector types
    • Be aware or voiding manufacturer’s warranty
    • A notebook drive is 2.5 inches wide
  • Other issues:
    • If old drive crashed, obtain recovery and driver CDs
    • When moving data, you may need USB-IDE converter
  • General instructions for replacing the hard drive
    • Open the case, pull old drive out of bay, and replace
    • Boot the system from a recovery CD (if drive is new)

A+ Guide to Hardware, 4e

slide22

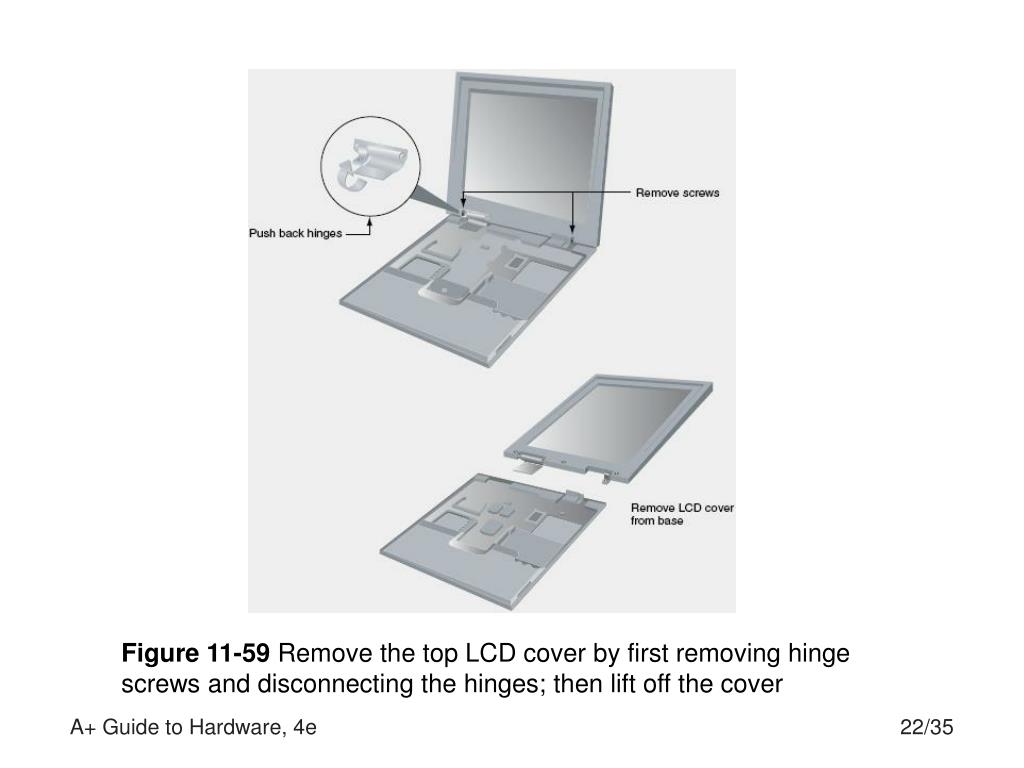

Figure 11-59 Remove the top LCD cover by first removing hinge screws and disconnecting the hinges; then lift off the cover

A+ Guide to Hardware, 4e

replacing a mini pci card
Replacing a Mini PCI Card
  • Mini PCIspecifications
    • Define the form factor for notebook expansion cards
    • Three types: Type I, II, and III (differ by connectors)
  • Steps for removing a Mini PCI wireless network card
    • Remove the hinged cover and the keyboard
    • Disconnect the cable to the wireless antenna
    • Pull outward on the securing tabs
    • After the card pops, lift it out of the cavity
  • Replacing the Mini PCI wireless network card
    • Insert card, reconnect antenna, add keyboard and cover

A+ Guide to Hardware, 4e

other field replaceable units
Other Field Replaceable Units
  • A number of field replaceable units (FRUs)
    • The motherboard and CPU
    • The keyboard
    • The PC Card socket assembly
    • The optical drive (CD or DVD drive)
    • The floppy drive
    • A sound card
    • A pointing device
    • AC adapter, the battery pack and the DC controller
  • OEM must approve or make replacement parts

A+ Guide to Hardware, 4e

troubleshooting notebooks

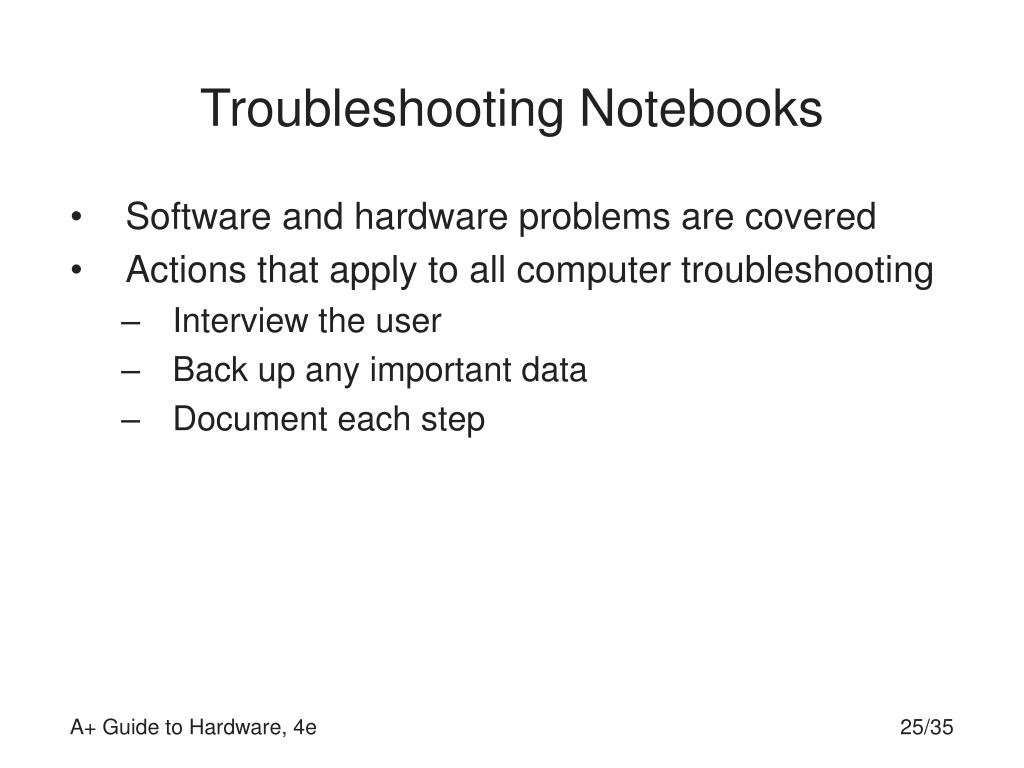

Troubleshooting Notebooks
  • Software and hardware problems are covered
  • Actions that apply to all computer troubleshooting
    • Interview the user
    • Back up any important data
    • Document each step

A+ Guide to Hardware, 4e

problems with video
Problems with Video
  • Causes:
    • Display settings
    • The power system
    • A faulty LCD panel or inverter board
  • Table 11-4 shows troubleshooting tips
  • Advice for replacing the LCD panel or inverter board
    • Purchase the same LCD assembly originally installed

A+ Guide to Hardware, 4e

a notebook gets wet
A Notebook Gets Wet
  • Steps to take when a notebook gets wet:
    • Turn off the electricity at the circuit breaker
    • Turn off the computer and disconnect the AC adapter
    • Turn off any attached devices
    • Ground yourself by touching a metal unpainted part
    • Remove any PC Cards or removable drives
    • Remove the battery pack, memory, and hard drive
    • Open the notebook and elevate it on two books
    • Allow notebook to dry for 24 hours

A+ Guide to Hardware, 4e

slide28

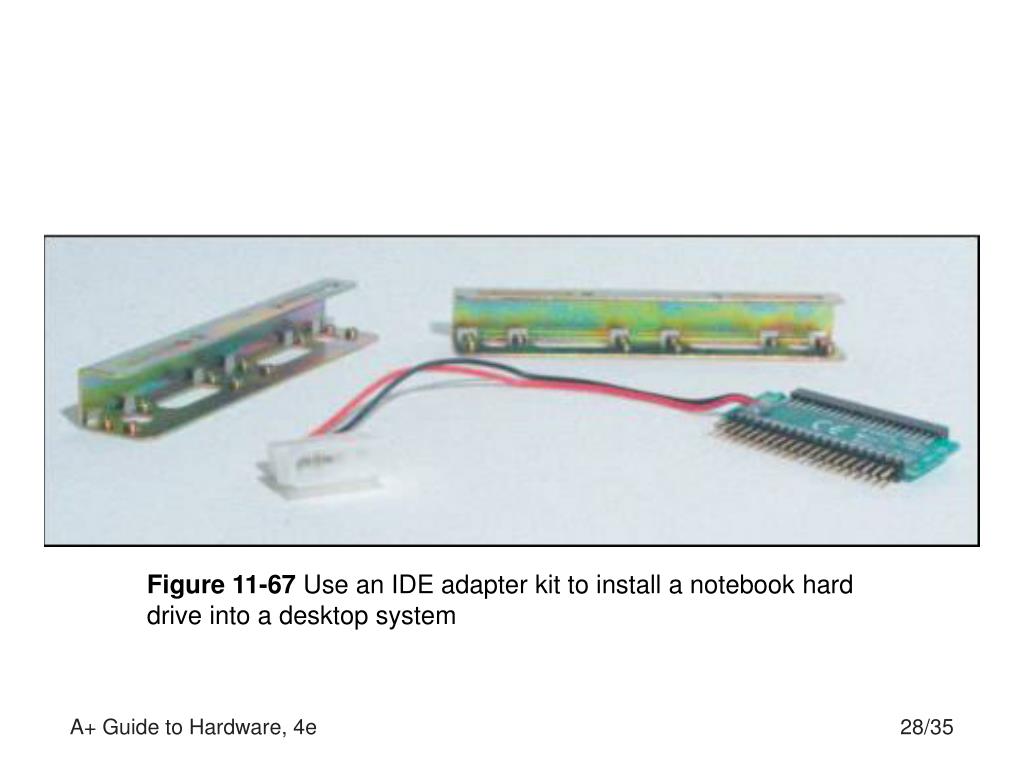

Figure 11-67 Use an IDE adapter kit to install a notebook hard drive into a desktop system

A+ Guide to Hardware, 4e

more errors and what to do about them
More Errors and What to do About Them
  • Other sources for notebook troubleshooting tips:
    • Table 11-5
    • Troubleshooting tips for desktop computers
    • Web site of the notebook manufacturer
    • The notebook service manual
    • Other Internet sites (using general search)

A+ Guide to Hardware, 4e

surveying tablet pcs

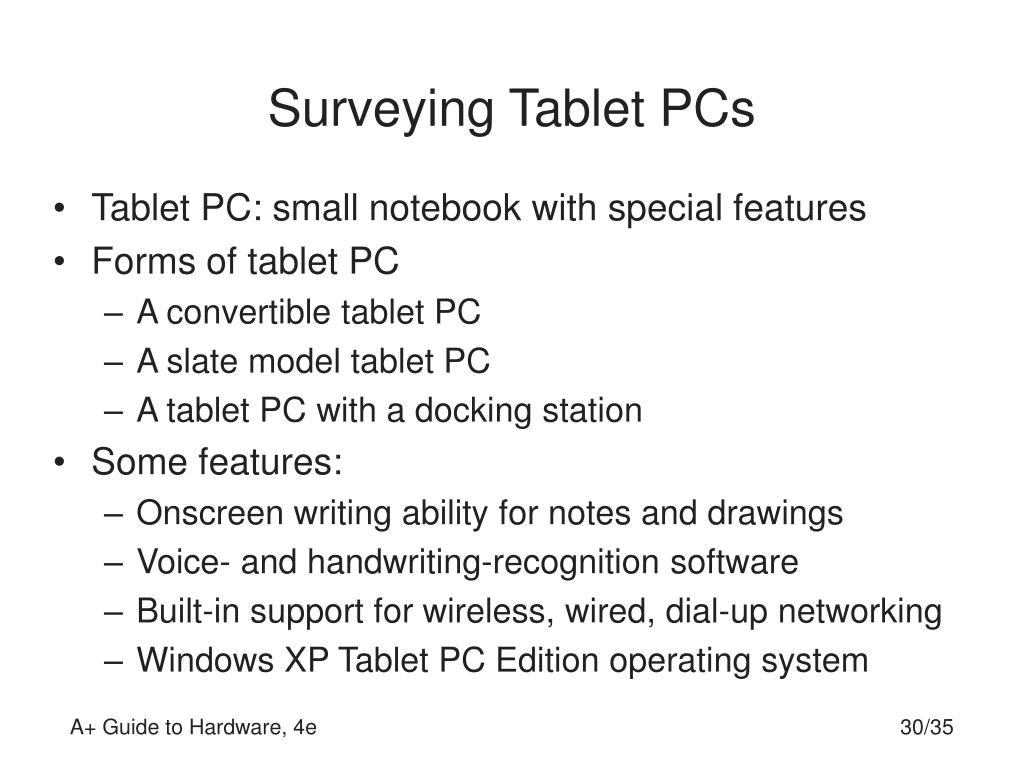

Surveying Tablet PCs
  • Tablet PC: small notebook with special features
  • Forms of tablet PC
    • A convertible tablet PC
    • A slate model tablet PC
    • A tablet PC with a docking station
  • Some features:
    • Onscreen writing ability for notes and drawings
    • Voice- and handwriting-recognition software
    • Built-in support for wireless, wired, dial-up networking
    • Windows XP Tablet PC Edition operating system

A+ Guide to Hardware, 4e

surveying pdas
Surveying PDAs
  • PDAs (personal digital assistants)
    • Sometimes called personal PCs or handheld PCs
    • Used for smaller tasks, such as scheduling
    • Examples: Palm Pilot, Pocket PC, or BlackBerry
  • PDAs connect to desktop using Bluetooth or USB
  • A few features: GPS receiver, fold-out keyboard
  • A few questions to ask before purchase?
    • How easy is the PDA to use?
    • What operating system does the PDA use?
    • What is the price of the PDA?

A+ Guide to Hardware, 4e

battery life on a pda
Battery Life on a PDA
  • Battery life on a PDA varies by model
  • Some PDAs use rechargeable batteries
  • Data is lost if battery completely discharges
  • Good habit: set PDA in its cradle when not in use

A+ Guide to Hardware, 4e

applications on a pda
Applications on a PDA
  • Some tasks performed:
    • Store addresses and phone numbers
    • Manage a calendar
    • Run word-processing software
    • Send and receive e-mail
    • Access Web sites
    • Provide telecommunication
  • Applications may be preinstalled or downloaded
  • Web content read by PDA is limited

A+ Guide to Hardware, 4e

connecting a pda to a pc
Connecting a PDA to a PC
  • Use cradle with cable or Bluetooth wireless
  • Synchronization: process by which PDA and PC talk
  • Setting up communication:
    • Install synchronization software
    • Connect the PDA
    • PDA and PC will immediately synchronize
  • A few troubleshooting tips:
    • Ensure USB or serial cable is plugged in at both ends
    • Ensure USB or serial port is enabled in CMOS setup
    • Uninstall and reinstall the PDA software on the PC

A+ Guide to Hardware, 4e

pda manufacturers and operating systems
PDA Manufacturers and Operating Systems
  • List of operating systems used on PDAs:
    • Windows Mobile
    • BlackBerry
    • Palm OS
    • Symbian OS
  • Some manufacturers:
    • Casio
    • Compaq
    • Hewlett-Packard
    • Palm (was PalmOne)

A+ Guide to Hardware, 4e

ad
