Presentation Transcript

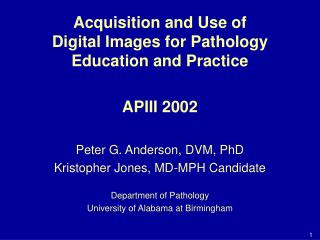

Slide1 l.jpg

Acquisition and Use of Digital Images for Pathology Education and Practice

APIII 2002

Peter G. Anderson, DVM, PhD

Kristopher Jones, MD-MPH Candidate

Department of Pathology

University of Alabama at Birmingham


Co conspirators l.jpg
Co-conspirators Education and Practice

University of Alabama at Birmingham

Department of Pathology

  • Sate Hamza, M.D.

  • J. Alan Long, M.D.

  • Kristina T. C. Panizzi, M.A.E.

    Pathology Education Instructional Resource

    http://peir.net


Purpose l.jpg
Purpose Education and Practice

  • Focus on the basics of using digital images in pathology education and practice

    • Acquisition

    • Processing and Editing

    • Storage

    • Management

    • Delivery

  • Focus on Web-based delivery of images through Perl-centered imaging solutions


Scope l.jpg
Scope Education and Practice

  • Other resources at APIII 2002

    • Boot Camp

    • Breakout Sessions

      • Dr. Harrison & Dr. Berman’s “Programming for Pathology Informatics: Why Should I Learn to Program?”

      • Ms. Yagi & Dr. Gilbertson’s “Practical Telepathology: Applications and Implementation Issues”

      • Dr. Berman’s “Programming for Pathology Informatics: Perl Programming Tutorial - Tools for Pathology Informatics”

    • E-Posters/Scientific Sessions

    • Exhibitors

  • Online resources—http://peir.net/apiii


Focus l.jpg
Focus Education and Practice

  • What we do/know best (or so we think)

    • Acquisition of large numbers of still digital images

      • Using film scanners, flatbed scanners, digital capture from analog sources, conversion of existing digital materials, and de novo digital acquisition

    • Automated processing/editing of images

    • Storage/management of image collections

    • Web-based delivery of image collections

  • Secondary issues

    • Efficient solutions (automation, where possible)

    • Low-cost solutions

    • Non-proprietary solutions

    • Perl-based solutions


Why me why now l.jpg
Why me? Why now? Education and Practice

  • Images “R” Us

    • Pathology is image-intensive and imaging is rapidly becoming (or “has become” to many) a digital discipline

      • This is our fourth year at APIII and we have seen the transformation first-hand

  • In a well-implemented digital imaging system, efficiency is maximized

  • Costs are falling

    • Considering all the costs, “going digital” can be cheaper

  • Allows rapid repurposing of resources, which can help raise the dead from the…


The image graveyard l.jpg
The Education and PracticeImage Graveyard

  • Most pathologists have thousands of slides usually lying dormant and collecting dust

  • “But I have the latest 6-megapixel FireWire-enabled digital camera!”

    • Doesn’t matter what you use if you don’t know how to use it

    • You just create a digital image graveyard (with fresh additions being added daily)

    • Image acquisition is actually the easiest, most straightforward part of the process of “going digital”


Acquisition l.jpg
Acquisition Education and Practice

  • Issues (“I thought you said this was easy!”)

    • Subject matter and media

      • Gross vs. microscopic

      • de novo capture vs. film vs. print vs. glass slide etc.

    • Output requirements

      • Monitor vs. print vs. film recorder

    • File size limitations

      • Method of delivery—file media vs. network

      • Storage considerations

      • Volume

    • Hardware/software capabilities, limitations, costs


Acquisition9 l.jpg
Acquisition Education and Practice

  • Making it easy: GIGO(Garbage In, Garbage Out)

    • Most issues of acquisition can be solved by asking “What’s the most demanding need I will ever have of this image?” and then acquiring the image in a way that meets that need

    • As said previously, acquisition is the easy part

      • Capturing/scanning a digital image takes seconds

      • Processing, editing, converting, categorizing, organizing, and archiving is where the real time expenditure occurs

      • All that time is wasted, however, if the size/quality of the original capture doesn’t meet your final needs


Acquisition10 l.jpg
Acquisition Education and Practice

  • So, the real issue is resolution

    • All the other issues are secondary to the real concern of “how big an image do I need?”

    • Once you know that crucial piece of information, the specifications for hardware, software, storage needs, costs, etc. become obvious

      • If you NEED a 750 Mb digital image file then you NEED something that will capture an image of that size and hardware/media on which to store it and your other 750 Mb scans


Acquisition11 l.jpg
Acquisition Education and Practice

http://www.imaging-resource.com/TIPS/PRINT1/PRINT1A.HTM

  • How big an image do I need?

    • Print demands are usually the largest, so that’s a logical measure to use

    • 300 ppi (~dpi) is sufficient for most print applications


Print resolution l.jpg
Print Resolution Education and Practice

  • Formula for determining necessary resolution for print:

    (Print width (in.) x 300 ppi) x (Print height (in.) x 300 ppi)

    • If you need to print out an 8”x12” image, then you need to acquire the image at 2400x3600 pixels

    • If the original media is a 1”x1.5” 35mm slide, then you need a scanner capable of producing 2400 ppi (2400/1; 3600/1.5) to produce a final image of sufficient quality

    • This image file would be approximately 25Mb in size in uncompressed (lossless) TIFF format


Acquisition13 l.jpg
Acquisition Education and Practice

  • Meet your largest need

    • While you may not need a 25Mb version for most applications, if you envision you may need it at some point it may be worth your while to acquire it the first time

    • By the time you crop, color correct, sharpen, rubber stamp, and level your image you’ll be glad you don’t have to do it again


Acquisition14 l.jpg
Acquisition Education and Practice

  • Do I really need a 25Mb file?

    • Probably not

    • We have found that for most of our needs, being able to print out a 3.33”x5” image is sufficient

      • Pathology Reports

      • Journal publication

    • Using our formula, we need a 1000x1500 pixel image

      • Our scanner must provide 1000 ppi capability

      • The resulting file is ~4.5 Mb in size

      • At native size (1”x1.5”) we can print out the image to a film recorder at the original resolution of 1000 ppi

    • An image of this size meets the needs of almost any electronic delivery medium

      • Except for virtual microscopy (case example of PEIR Digital Library)


Acquisition15 l.jpg
Acquisition Education and Practice

  • What kind of hardware do I need to capture images of this size?

    • Analog Video Camera with Capture Card

    • Digital Camera

    • Film Camera and Scanner

      • Film

      • Flatbed

      • Drum


Acquisition16 l.jpg
Acquisition Education and Practice

  • Analog Cameras with Capture Card

    • Digital image generated by analog to digital converting capture card installed on computer

    • Advantages

      • Capture cards are cheap if you already have the analog camera

      • Good for video (real-time)

    • Disadvantages

      • Low resolution VGA quality (640x480 only, but interpolation possible)

      • Low quality of analog video signal


Acquisition17 l.jpg
Acquisition Education and Practice

  • Digital Cameras

    • Analog voltages are converted at camera to produce digital output

    • Rapidly evolving technology with new models, new features, and lower prices being offered every day

    • Various grades depending on technology, number of pixels, size of pixels, connection interface, and real-time capabilities

    • Even the consumer-grade cameras, however, can sufficiently meet most needs


Acquisition18 l.jpg
Acquisition Education and Practice

  • Digital Cameras

    • For our purposes today, in answering the question “what am I going to do with this image?”, the matter comes down to megapixels

    • How many megapixels do I need?

      • High-end prosumer cameras support 5-6 megapixels, do you really need to splurge on one (though prices are dropping fast)?

      • Perhaps, if you need to print an 8”x10” image at 240 dpi (1920x2560)

      • However, a much less pricey 3 megapixel camera will easily print a 5”x7” image at 300 dpi


Acquisition19 l.jpg
Acquisition Education and Practice

  • Film scanners

    • Technology

      • Transmits light through the image rather than reflecting it off the image as do flatbed scanners

    • Advantages

      • Capture existing film resources

      • Allows you to continue to use existing film cameras, mounts, etc.

      • Batch capabilities

      • Digital correction software

      • Multi-format—negatives, Kodachromes, glass slides, APS

    • Disadvantages

      • Can be expensive investment if scanner is uni-format

      • Fewer interface options, but this is changing


Acquisition20 l.jpg
Acquisition Education and Practice

  • Film Scanners

    • Nikon Super CoolScan series

      • IV ED (2900 DPI, USB, ICE/ROC/GEM)

      • 4000 ED (4000 DPI, Firewire, ICE/ROC/GEM)

      • 8000 ED (4000 DPI, Firewire, ICE/ROC/GEM)

    • Minolta Dimage Series

      • Scan Dual II (2820 DPI, USB)

      • Scan Elite II (2820 DPI, USB/Firewire, ICE/ROC/GEM)

      • Scan Multi Pro (4800 DPI, USB/SCSI/Firewire, ICE/ROC/GEM)

    • Canon CanoScan Series

      • FS2720OU (2720 DPI, USB, FARE)

      • FS4000US (4000 DPI, USB/SCSI, FARE)


Acquisition21 l.jpg
Acquisition Education and Practice

No

ICE

w/

ICE


Acquisition22 l.jpg
Acquisition Education and Practice

  • Flatbed scanners

    • Technology

      • Scanning technology varies greatly among these scanners

    • Advantages

      • Low-cost (high-end prosumer ~$1500)

      • Multipurpose (transparency/film adapters)

      • Multiple interfaces

    • Disadvantages

      • Lower native resolution (most @ 600ppi)

        • However, newer (higher-end) models scan at 2400ppi (prints an 8x12 at 300 dpi)


Acquisition23 l.jpg
Acquisition Education and Practice

  • Flatbed Scanners

    Epson Expression Microtek ArtixScan 2500f

    2400 PHOTO Scanner

Canon DF2400UF CanoScan Scanner


Acquisition24 l.jpg
Acquisition Education and Practice

  • Drum Scanners

    • High-end professional prepress digitizers

    • Can handle any size media (35mm to poster-size)

    • Scan from 4,000 to 10,000 dpi

    • Very expensive (>$10,000) and not necessary for most scientific work


Processing editing l.jpg
Processing/Editing Education and Practice

  • Software

    • At time of capture

      • Scanner interface

        • Can significantly add time to the capture process

    • Post-capture processing

      • Manual

      • Batch

    • Ethics of digital image manipulation

      • Still somewhat a gray area


Processing editing26 l.jpg
Processing/Editing Education and Practice

  • Software

    • Photoshop products

      • Photoshop

      • Photoshop LE

      • Photoshop Elements

    • PaintShop Pro

    • Corel PhotoPaint

    • ACDSee


Processing editing27 l.jpg
Processing/Editing Education and Practice

  • Batching images

    • Allows the user to automate image editing process

    • Functionality of PhotoShop batching is nice but may not be worth the cost—especially if paying retail

    • Other batch programs exist to allow the same functionality

      • Paint Shop Pro has batching features

      • BatchImage products (http://batchimage.com)

      • Recommend Eyebatch from Atalasoft ($39.95) (http://www.atalasoft.com)


Processing editing28 l.jpg
Processing/Editing Education and Practice


Storage l.jpg
Storage Education and Practice

  • Focus on file storage rather than on temporary storage specific to capture device

    • Technology is rapidly changing at the device level

      • CompactFlash, Microdrives, Portable Devices

      • Fact is that for most pathology applications, the capture device is fixed and thus less dependence on these temporary devices

    • Relatively static in terms of permanent/archival storage over the last several years

      • Hard drives and CD-R/CD-RW (falling prices) are the standards

      • DVD technologies are still emerging, but are rapidly replacing CDs


Storage30 l.jpg
Storage Education and Practice

  • Detached

    • Removable storage options

      • CD-R/CD-RW

      • DVD

      • Removable Hard Drive

      • Other (like Iomega Peerless)

  • Online

    • Fixed solutions

      • Hard drive


Storage31 l.jpg
Storage Education and Practice

  • CD-R/CD-RW

    • Standard archival technology in current use

    • If you plan on capturing more than a few images, you need to invest in this technology

    • Advantages

      • Cheap hardware—under $100 for the latest, fastest drives (48x) (last year was $200 @ 24x)

      • Cheap media—<$.50 per 700Mb CD-R disk ($.75/Gb)

        • Each holds about 28 25Mb images or 158 4.4Mb images

      • Multiple back-ups easily made

      • Portable to almost any computer

      • Sturdy and not prone to failure


Storage32 l.jpg
Storage Education and Practice

  • What about DVD technology?

    • The promise

      • Media at CD-R prices (eventually) with 6 times the storage capacity

        • 700Mb CD-R vs. 4.7 Gb per DVD-R

        • Currently, <$5 per DVD blank (~$1/Gb vs ~$.75/Gb for CD-R)

    • Drawback: No standard has yet emerged

      • Like VHS vs. Betamax, competing technologies (DVD-RAM, DVD-R, DVD-RW, DVD+RW) have not standardized

    • Drawback: Software has still not matured

    • Drawback: Speeds are climbing fast (standard is 1x burner, 2x available, 4x due soon)

      • 1x burns in about one hour


Storage33 l.jpg
Storage Education and Practice

  • Hard drives--fixed

    • 60Gb drives (ATA100/7200rpm) are available around $100 ($1.75/Gb)

      • Hold 1500 25Mb images or ~9,000 4.4Mb images

      • If you don’t need the full-size image online, you can more efficiently store a smaller-sized copy online and keep the original archived to CD-ROM

      • We store images online as 792x528x24b uncompressed TIFFs at a file size of ~1.2Mb

        • At this size, we can store over 30,000 images per 40Gb HDD


Storage34 l.jpg
Storage Education and Practice

  • Hard Drives as Removable Storage

    • We’ve found this to be a great compromise

    • Kits are available beginning at ~$15

      • Fixed portion that fits into a full drive bay

      • Removable tray that contains hard drive

      • Metal vs. plastic

      • With and w/o fans


Storage35 l.jpg
Storage Education and Practice

  • Our storage workflow

    • Scan images at “capture” workstation onto a removable hard drive

    • Hard drive relocated to “burner” workstation where CD-ROM or DVD-R archive is made of the original scans

    • Hard drive relocated to “imaging” workstation where images are batch-processed

    • Depending on quality/needs, images can be archived again to CD-ROM at this point or manually processed and then archived


Storage36 l.jpg
Storage Education and Practice

  • Storage workflow continued

    • Once images are in final state and archived to CD-ROM or DVD-R, the “full-size” (1500x1000) images are batch-resized on the original removable hard drive, thus overwriting the original files

    • These resized (792x528) images are then transferred to our online storage drives for network/Web usage

    • If at any point along the way the process is interrupted, the removable hard drive can be set aside without tying up online storage resources


Storage37 l.jpg
Storage Education and Practice

  • File format considerations

    • Compression or not?

    • ***Paper?


Local management l.jpg
Local Management Education and Practice

  • Issues

    • Acquisition method

    • Cost (TCO)

      • Purchase vs. license

    • Proprietary* storage vs. open standard formats

      • Don’t get stuck with your images in their format

    • Metadata

    • Search capabilities

    • Scalability


Local management39 l.jpg
Local Management Education and Practice

  • Too many software solutions to cover here

  • Our personal favorite is ACDSee

    • Low-cost ($99 for the most feature-rich version)

    • Searchable database (flatfile for easy access)

    • Built-in image editing and batching

    • Output HTML

    • PDA version (including editing!)

  • Many more listed/reviewed at http://peir.net/apiii


Network management scalable solutions l.jpg
Network Management/ Education and PracticeScalable Solutions

  • Canto Cumulus

    • Local management ($99), workgroup, and full-scale server solutions

    • Add-ons available for personal edition to publish live to the Web or to create CD-ROM distributables

  • Extensis Portfolio

    • Local management ($199) up to full-scale server solution ($2500) (SQL/Oracle)

    • Create distributable CDs (with embedded user interface)

    • Personal edition includes a web server plug-in for Mac and Windows that allows you to dynamically publish the contents of your images on the Web


Packaged solutions l.jpg
Packaged Solutions Education and Practice

  • Vendors in the Exhibit Room


Web based delivery l.jpg
Web-based Delivery Education and Practice

  • Focus on software solutions specific to Web-based (can be intranet, also) delivery of image collections

    • Solutions based upon resources available, IT strategy, experience, initiative, desired outcome, etc.

      • Infinite combination of these variables complicated by an infinite possibility of solutions

    • Our experience has been that the only satisfactory solution is internally developed

      • I’m the developer and I’m still never satisfied

      • That’s where Perl comes in

    • Probably not going to solve your problem today even if I had all day just to show off solutions

      • Hopefully can spark some ideas

      • Always consider your IT guys—or you may reconsider


Web based delivery43 l.jpg
Web-based delivery Education and Practice

  • WWW-Photo Sharing Services

    • Most simplistic, low-cost solution

    • Either free or for a small-fee, these services allow you to upload images on a remote Web-site

      • Depending on the service, images can be organized, annotated, and even edited online

      • Some services allow you to secure images behind passwords that you can control and distribute

      • Some of the services are tied to software that you can download and install on your local computer; you set everything up locally and then submit the result to the Web site with the push of a button

        • For example, ACDSee SendPix Service


Web based delivery44 l.jpg
Web-based delivery Education and Practice

  • Advantages

    • Low-cost and low learning curve with high-tech result

    • Most sites have built-in security measures to protect your images

  • Disadvantages

    • Loss of control

    • No guarantee service will continue to be there

      • Time lost for online configuration

  • Case-study

    • Telepathology: Sate Hamza, MD


Web based delivery45 l.jpg
Web-based delivery Education and Practice

  • Static-content solutions

    • Software installed locally that allows you to combine images and text in a Graphical User Interface and then produces a static HTML output that can be loaded onto a Web server

      • Too numerous to mention; often combined with local image management software packages

    • Advantages:

      • Full-control of output

      • Great for small, static solutions

    • Disadvantages

      • May require manual intervention

      • Usually no remote access for authoring

      • Not the best solution for multiple authors


Web based delivery46 l.jpg
Web-based delivery Education and Practice

  • Dynamic (database-driven) solutions

    • High-end solutions

      • Scalable solutions mentioned earlier

      • Packaged solutions mentioned earlier

      • Enterprise solutions

    • Advantages

      • Robust

      • Continued support and development (as long as company stays afloat)

    • Disadvantages

      • Cost (including continued licensing costs)

      • Loss of control

      • Loss of configurability

      • May get stuck with proprietary solution


Web based delivery47 l.jpg
Web-based delivery Education and Practice

  • Dynamic (database-driven) solutions

    • Home-grown solutions

      • In-house development of product for a specific purpose

      • Walk around and look at the E-posters/look at scientific session abstracts and talk to the people designing and developing these projects

    • Advantages

      • Low-cost (programmers work for pizza)

      • Solution is specific to need and usually reconfigurable

      • Sense of pride

    • Disadvantages

      • High-cost (support, failed attempts, labor costs)

      • May be limited by abilities of staff (who may move on)

      • Sense of despair

      • May open the floodgates of user requests for which you may not be prepared


Web based delivery48 l.jpg
Web-based delivery Education and Practice

  • Dynamic (database-driven) solutions

    • Open source, non-proprietary solutions from small developers

      • Independent software houses develop low-cost solutions that are highly configurable by your in-house staff (if necessary)

    • Advantages

      • Low-cost ($0 to hundreds of dollars)

      • Support (may not even be necessary if open source)

      • Configurable (either pay for customization or do it in-house)

      • Usually scalable

      • Non-proprietary

      • Little loss if abandoned later (data on back-end in ASCII or standard database format)

      • Installation services/remote hosting usually cheaply available

      • Cross-platform (often by being browser-based solution)


Web based delivery49 l.jpg
Web-based delivery Education and Practice

  • Dynamic (database-driven) solutions

    • Disadvantages

      • May require technical knowledge at your end (like knowledge of servers/Perl/HTML/database syntax)

      • May not have same level of support as with larger company (but you may be surprised!)

      • Your needs may outgrow the scalability of the solution

      • You may need to purchase/support/integrate several pieces of software to fully implement your solution


Perl centered web based delivery l.jpg
Perl-centered Web-based delivery Education and Practice

  • What do I need/need to know?

    • Network

      • Local Area Network (LAN) for internal solutions

      • Internet connection for WWW solutions

    • Web server

      • Not a piece of equipment (though it may be), but a piece of software that runs on a piece of equipment

        • Any PC can be turned into a Web server in a matter of minutes

      • Popular server software includes:

        • Apache (both *nix and Windows versions)

          • Free multi-platform solution, but no direct support

          • Most popular Web server software

        • IIS (Windows only)

          • Free with WindowsNT/2000

          • Familiar interface for the *nix uninitiated


Perl centered web based delivery51 l.jpg
Perl-centered Web-based delivery Education and Practice

  • What do I need/need to know?

    • Perl or PHP

      • Scripting languages with an “interpreter” installed on the Web server to execute the commands

      • Free and cross-platform

      • Very similar in syntax and functionality

        • PHP is newer, easier to learn than Perl, and most scripts are open source

        • Perl is more well established (lots of code available) and more powerful but many scripts must be purchased (but are still mostly modifiable)

      • Some Web-based image delivery solutions require free add-ons to Perl or PHP to add functionality


Perl centered web based delivery52 l.jpg
Perl-centered Web-based delivery Education and Practice

  • What do I need/need to know?

    • Database back-end (maybe/maybe not)

      • Depending on whether the delivery program you use requires it OR the size of your dataset requires it, you may be able to avoid the need for a database backend

        • Many programs only operate with flat file backends, which are character-delimited text files—e.g., an Excel-created comma-delimited spreadsheet

        • The data is ASCII text and easy to read/backup/manipulate directly

      • Database backends provide increased speed, reliability, and security

        • MySQL is the most popular and most widely supported

          • FREE, cross platform, open source relational database management system

          • Special (free) tools are needed for managing the database and editing/manipulating data


Perl centered web based delivery53 l.jpg
Perl-centered Web-based delivery Education and Practice

  • Thus far:

    • Assuming you have a network (which means you have computers), you need

      • Free Web server software

      • Free script interpreter (Perl, PHP, or both)

      • +/- Free Perl/PHP-compatible database backend like MySQL

    • Did you say “free”? Can the good luck continue?

      • Maybe, maybe not

      • Now you actually need a program to put all these tools to work—many are indeed free

      • Most, however, are minimal in price (<$500 w/ most $100-$200—ask about educational discounts, as well)

        • C’mon, you looked so excited just a few lines up—we’re only talking about a month’s worth of lattes at Starbucks


Perl centered web based delivery54 l.jpg
Perl-centered Web-based delivery Education and Practice

  • What next?

    • Consider needs

      • Size

        • Do you need a scalable solution or do you want to start big?

      • Speed

        • Related to size in some sense

      • Backend

        • Related to size, speed, and program support (you might have to do it even if size and speed needs don’t dictate it)

      • Security

        • Built-in user management vs. server-based security (or both)

      • Interface: search, browse, or both

        • Programs usually do one or the other better

      • Administration

        • Multi-user or single user

      • Upload capability

        • Via Web interface or file system access

      • Batch capability

        • Of text and/or images

      • Miscellaneous

        • Image server capability: on-the-fly watermarking, resizing, multi-format image support


Perl centered web based delivery55 l.jpg
Perl-centered Web-based delivery Education and Practice

  • What next?

    • Find the best program for you (or one you can make the best)

      • Word of mouth

      • Online script repositories/review sites

        • http://www.cgi-resources.com

        • http://hotscripts.com

      • Comparisons offered on product sites/from product representatives


Perl centered web based delivery56 l.jpg
Perl-centered Web-based delivery Education and Practice

  • What follows is our word-of-mouth run-down of what we think are the best of the best solutions

    • Show some sample implementations (ours where possible)

    • Discuss some power tools to add extra functionality

      • Image server technology

      • Virtual microscopy tools

      • Thesaurus add-on


Perl centered web based delivery57 l.jpg
Perl-centered Web-based delivery Education and Practice

  • Products from Gossamer Threads (http://gossamer-threads.com/)

    • DBMan

      • Perl-based database program (not

        image-specific, but implementable)

      • Primarily a search interface, but browse features can be implemented

      • Older flat file version ($100) and newer SQL version ($350)—scalable

        • We use it for our digital library of >40,000 images—started with flatfile and scaled up around the 15,000 image mark

        • Still use flatfile for GRIPE Digital Library of images/questions

      • Built-in user management for security (and/or use server-based security)

      • Easy set-up (but they will do a remote installation for a fee)

      • Built-in single or multi-image Web upload or link directly to images

      • Example: http://peir.net/pdl


Perl centered web based delivery58 l.jpg
Perl-centered Web-based delivery Education and Practice

  • Products from Gossamer Threads (http://gossamer-threads.com/)

    • Links

      • Perl-based database program (same as DBMan, just a different interface)

      • Primarily a browse interface with search features

      • Older flat file version (free for nonprofits/$100) and newer SQL version ($450)—scalable

        • We are currently creating a database of cases containing images for use in small-group based learning (students construct cases via a template and select images from our database to enhance the cases)

      • Built-in user management for security (and/or use server-based security)

      • Easy set-up (but they will do a remote installation for a fee)

      • Built-in single or multi-image Web upload or link directly to images

      • Dynamic or static delivery of content

      • Example: http://uabmerit.net


Perl centered web based delivery59 l.jpg
Perl-centered Web-based delivery Education and Practice

  • ImageFolio (http://imagefolio.com)

    • Perl-based image (and other files) management system

    • Primarily a browse interface with search features

    • Currently only available as flat file (but MySQL version in development)

    • Pro version (recommended) is $209 with $49 add ons (Batch processor, Shopping Cart, Upload module)

    • Built-in slideshow feature and shopping cart features e-mail option or mass download option for entire cart

    • Easy Web-based management with built-in admin security (but not user-side security—must use server-based security)

    • Create new pages by creating folders through Windows Explorer (on Windows systems) and then dropping images into the folder

    • We currently use for our autopsy database and for educational content

    • Easy set-up (but they will install it for a fee or host it remotely)

    • Example: http://imagefolio.com


Php centered web based delivery l.jpg
PHP-centered Web-based delivery Education and Practice

  • PhotoPost (http://photopost.com)

    • PHP-based image management system

    • Primarily a browse interface with search features

    • Two MySQL versions (no flat file version)—GMS ($79) for basic one-user creation of galleries and Pro ($119) for multi-user “community-style” galleries with optional user-specific, password-protected galleries

    • Both versions offer image server support (more later) with on-the-fly resizing of images and dynamic watermarking

    • Easy Web-based management with built-in admin security and user self-registration

    • Built-in batch processing capabilities

    • Image commenting and rating system

    • Missing features: no shopping cart feature and no ability for a gallery creator to force images to be sorted in a certain fashion

    • Easy set-up (but they will install it for a fee)

    • Example: http://photopost.com


Perl centered web based delivery61 l.jpg
Perl-centered Web-based delivery Education and Practice

  • Special imaging tools (on-the-fly image resizing and watermarking)

    • ImageMagick

    • GD Graphics Library

    • Netpbm Graphics Utilities


Perl centered web based delivery62 l.jpg
Perl-centered Web-based delivery Education and Practice

  • Image Servers

    • ACDSystems’ ImageShark

    • LeadTools Image Server

    • iSeeMedia’s Zoom Image Server

    • TrueSpectra Image Server


Perl centered web based delivery63 l.jpg
Perl-centered Web-based delivery Education and Practice

  • Pan/Zoom Software for Virtual Microscopy Emulation (not real-time)

    • ACDSystems’ ImageShark

    • Xippix ImagePump

    • iSeeMedia’s Zoom Image Server

    • Zoomify

    • TrueSpectra Image Server


Resources l.jpg
Resources Education and Practice

  • http://peir.net/apiii

    • PowerPoint Presentation

    • Links directory to online resources for digital imaging

    • Case Study: PEIR Digital Library


ad
