Presentation Transcript

Ocean basins l.jpg
Ocean Basins attempt at marine exploration

  • Bathymetry of ocean floors

  • Deep ocean basins

  • Continental margins


Key concepts l.jpg
Key Concepts attempt at marine exploration

  • Seafloor features result from a combination of:

    • Plate tectonic activity

    • Erosion and deposition processes

  • Deep sea floor is the ocean basin

  • Ocean-continent transition zone is called the continental margin

    • Sedimentation important process shaping architecture


Ocean basins introduction l.jpg
Ocean Basins: Introduction attempt at marine exploration

  • 71% of Earth’s surface is covered by oceans.

  • Little has been known about the deep sea until very recently

  • Methods of study:

    • Echo sounding and seismic profiling

    • Submarine diving

    • Dredging, coring, and drilling

    • Satellite measurements


Bathymetry l.jpg
Bathymetry attempt at marine exploration

  • Echo Sounding

  • Multi-beam mapping

  • Satellite Altimetry


Echo sounder and swath bathymetry l.jpg

Echo Sounder and swath bathymetry attempt at marine exploration


Multibeam bathymetry l.jpg
Multibeam Bathymetry attempt at marine exploration

  • Ultra-high resolution, but labor-intensive


Slide8 l.jpg

Bathymetry is topography attempt at marine exploration


Satellite altimetry l.jpg
Satellite Altimetry attempt at marine exploration

  • Principle: sea surface mirrors underlying topography because of gravitational effect

  • Lower resolution than multi-beam, but covers entire ocean


Topex poseidon bathymetry l.jpg

Deep Sea Trenches attempt at marine exploration

Mid-Ocean Ridges

Continental Margins

TOPEX-POSEIDON bathymetry

Seamounts

Abyssal Plains


Direct access to sea floor l.jpg

Direct Access to Sea Floor attempt at marine exploration

Alvin submersible


Deep ocean drilling l.jpg
Deep Ocean Drilling attempt at marine exploration

JOIDES Resolution


Slide13 l.jpg

Continental margin Deep ocean basin attempt at marine exploration


Deep ocean basins l.jpg
Deep-ocean Basins attempt at marine exploration

  • More than 1/2 of Earth’s surface

  • All blanketed by sediment except youngest rocks at ridges

  • 2 main components:

    • Oceanic ridges

    • Abyssal plains


The oceanic crust l.jpg
The Oceanic Crust attempt at marine exploration

  • Rocks of the ocean floor differ from continents

  • Form by seafloor spreading

  • Mid-ocean ridges:

    • Largest topographic features on Earth

    • Divergent plate boundaries

    • Elevated due to heat

    • Rift valleys

    • East Pacific Rise

    • Mid-Atlantic Ridge


Ocean basins and abyssal plains l.jpg
Ocean Basins and Abyssal Plains attempt at marine exploration


Structure of oceanic crust l.jpg
Structure of Oceanic Crust attempt at marine exploration


Ocean crust composition l.jpg
Ocean Crust composition attempt at marine exploration

  • Balsaltic volcanism and gabbro intrusion

  • Pillow lavas

  • Hydrothermal vents (black smokers)


Slide19 l.jpg


Ocean basins and abyssal plains20 l.jpg
Ocean Basins and Abyssal Plains attempt at marine exploration

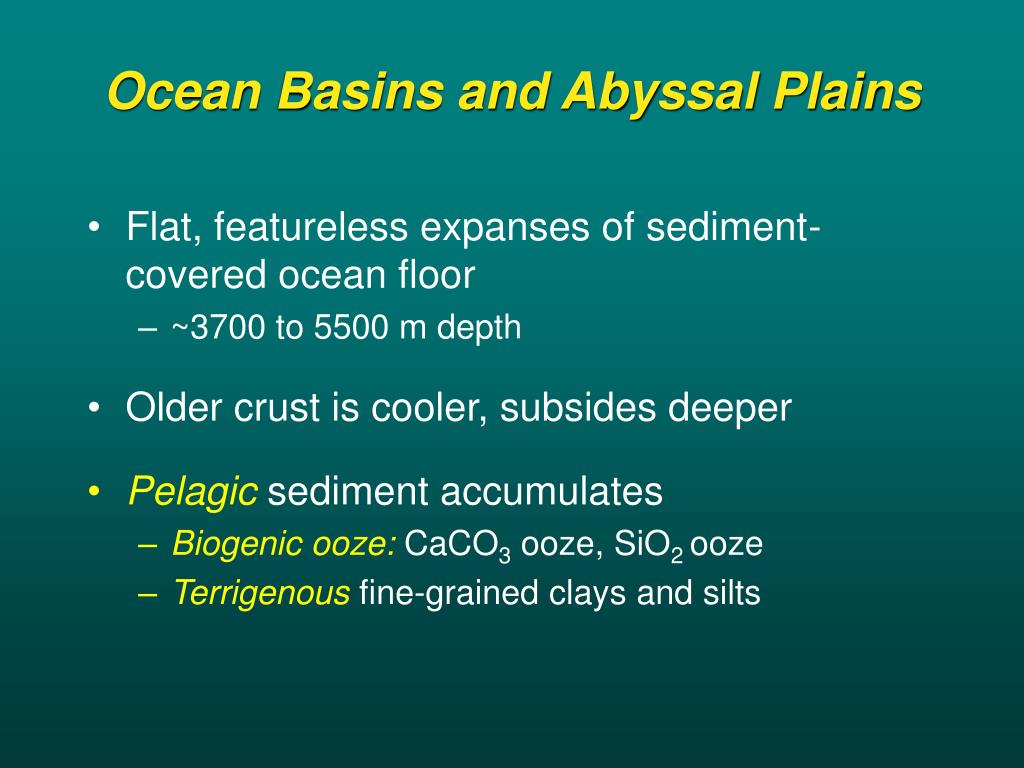

Ocean basins and abyssal plains21 l.jpg
Ocean Basins and Abyssal Plains attempt at marine exploration

  • Flat, featureless expanses of sediment-covered ocean floor

    • ~3700 to 5500 m depth

  • Older crust is cooler, subsides deeper

  • Pelagic sediment accumulates

    • Biogenic ooze: CaCO3 ooze, SiO2 ooze

    • Terrigenous fine-grained clays and silts


Biogenic ooze l.jpg
Biogenic Ooze attempt at marine exploration

  • Calcareous or siliceous:

    • Radiolarians (SiO2)

    • Foraminifera (CaCO3)

    • Diatoms (SiO2)

  • Form cherts and chalks when lithified


Deep ocean trenches l.jpg
Deep-ocean Trenches attempt at marine exploration

  • Long, relatively narrow features

  • Deepest parts of ocean: up to 11,000 m deep!

  • Most are located in the Pacific Ocean

  • Convergent plate boundaries:

    • Sites where moving lithospheric plates plunge into the mantle --> subduction zones

  • Associated with island arc volcanoes


Continental margins l.jpg
Continental Margins attempt at marine exploration

  • Passive vs. Active Margins

  • Continental Shelf

  • Continental Slope

  • Continental Rise


Slide25 l.jpg

  • Passive margins attempt at marine exploration do not coincide with plate boundaries

  • Active margins do coincide with plate boundaries (convergent or transform)

    • Atlantic has mostly passive

    • Pacific has mostly active


Distribution of continental shelves and slopes l.jpg
Distribution of Continental Shelves and Slopes attempt at marine exploration


Slide27 l.jpg


Turbidity currents l.jpg
Turbidity Currents attempt at marine exploration


Continental rise l.jpg
Continental Rise attempt at marine exploration

  • Apron of accumulated sediment at base of continental slope

    • Only on passive margins

    • 100 to 1000 km wide

    • Gradual slope (1/8 that of cont. slope)


Active continental margins l.jpg
Active Continental Margins attempt at marine exploration

  • Continental slope descends abruptly into a deep-ocean trench -- subduction zone

  • Located primarily around the Pacific Ocean

  • Accumulations of deformed sediment and scraps of ocean crust form accretionary wedges


Active continental margins32 l.jpg
Active Continental Margins attempt at marine exploration
