Water Purifier

Water Purifier is a modular-designed pure water system with a production rate of 15L/h. Built-in 12 liter tank with tap water inlet can produce a single stage RO <br>water, deionized water and ultrapure water for wide range of applications. The RO module with DOWu2019s membrane ensure long life and high desalinization range. <br>It features a space saving structure and a microprocessor controlled LCD display and intuitive menu navigation ensure exceptionally easy operation.<br>

Kimber4
Download Presentation

Water Purifier

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

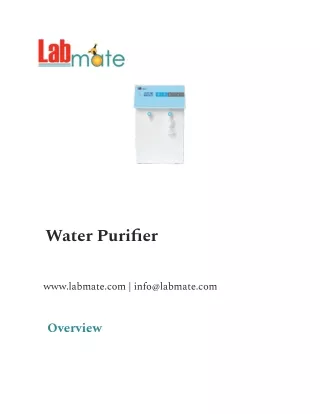

  1. Water Purifier www.labmate.com | info@labmate.com Overview

  2. Water Purifier is a modular-designed pure water system with a production rate of 15L/h. Built-in 12 liter tank with tap water inlet can produce a single stage RO water, deionized water and ultrapure water for wide range of applications. The RO module with DOW’s membrane desalinization range. It features a space saving structure and a microprocessor controlled LCD display and intuitive menu navigation ensure exceptionally easy operation. ensure long life and high Specifications : Output (25°C) 15 L/H

  3. Flow Rate Up to 2 L/min (with pressure tank) Pure Water Outlet 2; reverse osmosis and deionized water Deionized Water 16 - 18.2 MΩ.cm Resistivity Ion Rejection Rate 97% - 99% (new RO membrane) Organic Rejection > 99%, when MW>200 Dalton

  4. Particles And > 99% Bacteria Rejection Rate Feed Water Tap water Requirement Temperature 5 – 45°C Pressure 1.0 – 4.0 Kgf/cm2 Power 72 W Electrical AC 100-240V, 50/60Hz Requirement

  5. Dimension (L×W×H) 340×500×560 mm Weight 18 Kg Features : - Compact and efficient production unit - 185 | 254 nm UV lamp restrains bacteria increase and reduce TOC - Optimized lab space - Maximum flexibility - Cutting-edge sensors and monitoring - Protection of stored pure water - Consistently high water quality for dependable and repeatable results - Auto self-flushing of RO membrane function, extend RO’s membrane life

  6. - System time setting, timing standby and timing shutdown function - 3-door and easy-to-replace cartridge design - Optimized pre-treatment, effectively protect RO membrane - Auto run data storing function with built-in SD card, and data can be exported via USB - Multiple alarm function: no feed water, full water, water quality’s standard exceeding, and cartridge life expiring Applications : It is widely used in HPLC, DNA sequencing, TOC testing, Ion Chromatography in the fields

  7. of general laboratories, molecular biology, life science and analytical applications etc. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
