Platelet-Agitator-Incubator

The Platelet Agitator Incubator ensures optimal storage conditions for platelets, with gentle agitation to prevent clotting. Its compact design accommodates standard platelet <br>bags, maintaining a consistent temperature range for preservation and ensuring reliability in blood bank applications.

Kimber4
Download Presentation

Platelet-Agitator-Incubator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

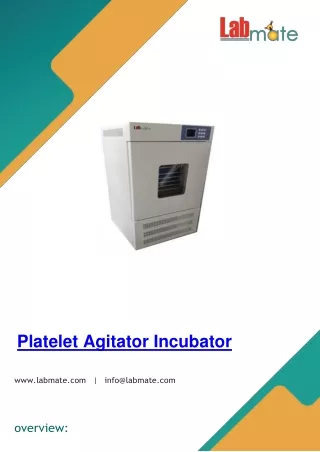

  1. Platelet Agitator Incubator www.labmate.com | info@labmate.com overview:

  2. The Platelet Agitator Incubator ensures optimal storage conditions for platelets, with gentle agitation to prevent clotting. Its compact design accommodates standard platelet bags, maintaining a consistent temperature range for preservation and ensuring reliability in blood bank applications. Specifications : Storage Capacity 5 - 10 Blood Bags Storage Area 300 x 300 x 230 mm No. of Layers 5 Layers Temperature Range 22 °C Agitation Speed 60 Cycles / minute Temperature Accuracy ± 2 °C Power Supply AC 220 V ± 10 % ; 50 Hz Dimension 540 x 605 x 960 mm Weight 25 Kg Features : -Flatbed type agitator ensures undamaged platelet units -Single pane glass window for easy observation -Advanced WATCHDOG technology make ascertain technical difficulties -Highly accurate MAXIM & DALLAS temperature sensor -Redundant temperature monitoring technology

  3. -UPS system ensuring consistent monitoring up to 72 hours -User-friendly LCD display operation panel -Customizable Oscillation Amplitude (50 mm) Labmate Scientific Email: info@labmate.com | Website: www.labmate.com

  4. Specifications : Storage Capacity 5 - 10 Blood Bags Storage Area 300 x 300 x 230 mm No. of Layers 5 Layers Temperature Range 22 °C Agitation Speed 60 Cycles / minute Temperature Accuracy ± 2 °C Power Supply AC 220 V ± 10 % ; 50 Hz Dimension 540 x 605 x 960 mm Weight 25 Kg Features : -Flatbed type agitator ensures undamaged platelet units -Single pane glass window for easy observation -Advanced WATCHDOG technology make ascertain technical difficulties -Highly accurate MAXIM & DALLAS temperature sensor -Redundant temperature monitoring technology -UPS system ensuring consistent monitoring up to 72 hours -User-friendly LCD display operation panel -Customizable Oscillation Amplitude (50 mm)

  5. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
