Liquid Nitrogen Container

The Liquid Nitrogen Container is an essential piece of equipment for applications demanding precise and ultra-low temperature storage. Crafted from robust materials <br>to ensure durability and reliability, this cryogenic storage vessel is designed to safely contain and store liquid nitrogen at temperatures as low as -196 degrees <br>Celsius (-321 degrees Fahrenheit).

Kimber4
Download Presentation

Liquid Nitrogen Container

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

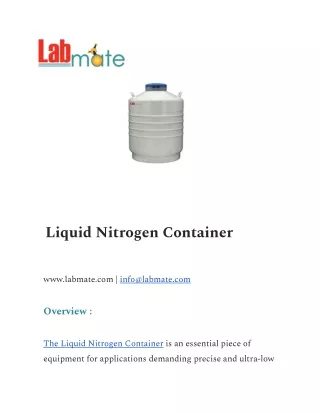

  1. Liquid Nitrogen Container www.labmate.com | info@labmate.com Overview : The Liquid Nitrogen Container is an essential piece of equipment for applications demanding precise and ultra-low

  2. temperature storage. Cra?ed from robust materials to ensure durability and reliability, this cryogenic storage vessel is designed to safely contain and store liquid nitrogen at temperatures as low as -196 degrees Celsius (-321 degrees Fahrenheit). Specifications : Capacity 31.5 L Empty Weight 13.1 Kg Neck Diameter 50 mm Outer Diameter 446 mm

  3. Height 675 mm Static Evaporation Loss 0.16 L/d Static Hold Time 191 Days Canister Outer Diameter 38 mm Canister Height 120 mm Numbers of Canisters 6 Straw Holding Capacity (Single level) 0.5 mL 792 each

  4. Straw Holding Capacity (Single level) 0.25 mL 1788 each Straw Holding Capacity (Double level) 0.5 mL 1284 each Straw Holding Capacity (Double level) 0.25 2832 mL each Optional Locking Cover Yes Features : - Material: Aluminum Alloy - Multi-layer thermal isolation design - Optional locking cover to protect stored biological samples - Optional roller base to move the container easily - Protective jacket to prevent collision

  5. - Two-year vacuum warranty Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
