Horizontal-Shaking-Incubator-LMSI-B201

The Horizontal Shaking Incubator offers advanced temperature stability and adjustable shaking speeds for homogeneous sample mixing. Its spacious chamber and intuitive controls <br>make it ideal for diverse laboratory protocols, ensuring reliable performance and efficient workflows.<br>

Kimber4
Download Presentation

Horizontal-Shaking-Incubator-LMSI-B201

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

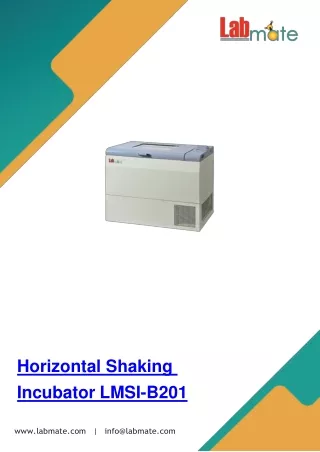

  1. Horizontal Shaking Incubator LMSI-B201 www.labmate.com | info@labmate.com

  2. Overview The Horizontal Shaking Incubator combines precise temperature control with gentle horizontal shaking, facilitating thorough sample mixing. With its compact footprint and user-friendly interface, it's perfect for various lab applications, ensuring reliable results with ease of use. Specifications : Control P.I.D. (Environmental Scanning Microprocessor) Display LCD (simultaneous display of working & set parameters)) Convection Mode High Speed Circulation Oscillation Mode Orbital Drive Single-shaft balance device Working environment Temperature: 25°C.Humidity20%-90% Temp. Range 5°C~60°C Temp. Accuracy ±0.1°C Temp. Uniformity ±1°C Speed Range(rpm) 30-300 RPM Speed Accuracy ±1 RPM Oscillation Amplitude Φ25 mm

  3. Heater Power 800W Timing Range 0-999.59hr/Continuous Tray Size(mm) 920 x 500 mm Tray Number 1 pieces Net Weight 159 kg Chamber Size 970x550x460 mm Overall Dimensions 1250x740x980 mm Power 960 W Power Supply AC 200-240V/50-60HZ. Optional: AC110V/60Hz Chamber Material Polished stainless steel Construction Steel with Powder Coating Features : -PID environmental scanning microprocessor controlled system -Horizontal opening door with single pane observation window -LCD display (with backlight) of set and working parameters -Single-shaft drive technology -Durable and no noise -Pneumatic spring support for stable lid opening -Audio Visual alarming system: High/low limit over temperature, high/low limit over speed alarm, stop-running protection for door opening, electric current leakage and over load protection -Motor over-heat protection -Programmed power cut-off abnormal temperature -Repeat, increment (step) and 8-segment curve programming setting

  4. -120W AC inductive long-life brushless motor, maintenance free -Acceleration control circuit ensures soft start, smooth acceleration and safety of samples -Automatic stop of shaking when door is opened Standard Accessories : Model No Particular Quantity LMSI-B-SA01 Fluorescent lamp 1 LMSI-B-SA02 UV lamp 1 LMSI-B-SA03 Shaking tray 1 LMSI-B-SA04 Flask clamp 1 Optional Accessories : Model No Particular Quantity LMSI-B-OA01 Humidity testing/control system 1 LMSI-B-OA02 Gas inlet 1 LMSI-B-OA03 Illumination system (15000Lux) 1

  5. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
