Dual Block Thermal Cycler

<br>Dual Block Thermal Cycler utilizes 8 Peltier heating units to heat up the sample with 4 variations in temperature. It has preprogrammed 11 PCR protocols saved in <br>internal flash memory. The instrument work significantly faster using windows operations system and can monitor the operations via mobile connectivity. Movable <br>heating lid can accommodate 96u00d70.2 ml. It can with stand up to ramping rate of 5 u00b0C/s and temperature range of 0 to 100 u00b0C. Installed with capability of <br>analyzing maximum 100 cycles and can save 10000 PRC run data. The parameters update and file transfer updates through Wi-

Kimber4
Download Presentation

Dual Block Thermal Cycler

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

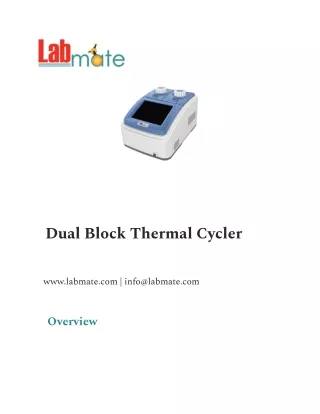

  1. Dual Block Thermal Cycler www.labmate.com | info@labmate.com Overview

  2. Dual Block Thermal Cycler utilizes 8 Peltier heating units to heat up the sample with 4 variations in temperature. protocols saved in internal flash memory. The instrument work significantly faster using windows operations system and can monitor the operations via mobile connectivity. Movable heating lid can accommodate 96×0.2 ml. It can with stand up to ramping rate of 5 °C/s and temperature range of 0 to 100 °C. Installed with capability of analyzing maximum 100 cycles and can save 10000 PRC run data. The parameters update and file transfer updates through Wi-Fi, USB, printer can be seen on 8-inches LCD display It has preprogrammed 11 PCR Specifications : Capacity 96×0.2 ml

  3. Temperature Range 0 to 100 °C Maximum. Heating 5 °C/s Rate Maximum. Cooling 4 °C/s Rate Uniformity ≤ ± 0.2 °C Accuracy ≤ ± 0.1 °C Display Resolution 0.1 °C Temperature Control Block\Tube Ramping Rate 0.1 to 5 °C Adjustable

  4. Gradient Uniformity NA Gradient Accuracy NA Gradient Temperature. NA Range Gradient Spread NA Hot Lid Temperature 30 to 110 °C Hot Lid Height Step less Adjustable Adjustable No. Of Programs 10000 +(USB FLASH) Maximum. No. Of Step 30

  5. Maximum. No. Of 100 Cycle Increment/Decrement 1 Sec to 600 Sec Time Increment/Decrement 0.1 to 10.0 °C Temperature Pause Function Yes Auto Data Protection Yes Holding 4 °C Print Yes LAN to computer Yes

  6. LCD 8 inch, 800 x 600 pels, 260,000 colors Interface USB2.0 , LAN Dimensions(L×W×H) 390×270×255 mm Weight 9 kg Power Consumption 600 W Power Supply 85 to 264 V AC , 47 to 63 Hz Features : - It has 8-inches LCD display which enables the user to change the commands

  7. - Uniform heating with 4 different temperature of the samples is achieved with 8 Peltier heating units with maximum 100 cycles - It is well built with anodizing technology with aluminum block treatment which makes the durable and corrosion resistant - Two different PCR programs can be assigned in 2 PCR blocks - Maximum. Heating Rate is 5 °C/s with temperature range of 0 to 100 °C - It has the capability to accommodate 96×0.2 ml or Double 48×0.2ml with moveable hot lid which can fit different sizes of tubes - It has the internal flash memory to store the 10000 files data for analysis - The connectivity between computer is via USB port and mini printer and can store the GLP data a?er every step to get reliable results - All the operations are controlled by a computer so?ware system which instrument

  8. PCR protocols and also has in built 11 standard protocols - It has power of operation recovery option which helps in continuing the same command a?er a recovering from power cut - The user can access to his individual experimental data by setting a password and data management system - To satisfy the customers need it is installed with special feature like the user can add sample while the process is going on to encounter different variations - The user will be sent notifications via email about the process to alert when operation ends Applications : Used detection, DNA methylation analysis, Genotyping and gene scanning, miRNA research etc. in Gene expression analysis, Pathogen

  9. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
