Benchtop Conductivity Meter

Benchtop Conductivity Meter measures electrical charge, TDS as well as temperature can be measured by this conductivity meter that range between 0.00 u03bcS/cm to <br>100 mS/cm of any solution. It has ability to quantify electrical conductivity of any aqueous solution and has the ability to measure the amount of totally <br>dissolved solids (TDS) in a solution, in units of parts per million (ppm) or milligrams per liter. The conductivity can be measures within the range of 0.0 to 99.9 u2103.

Kimber4
Download Presentation

Benchtop Conductivity Meter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

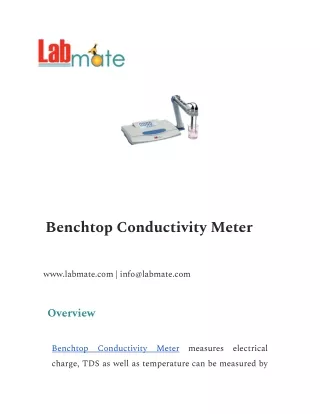

  1. Benchtop Conductivity Meter www.labmate.com | info@labmate.com Overview Benchtop charge, TDS as well as temperature can be measured by Conductivity Meter measures electrical

  2. this conductivity meter that range between 0.00 μS/cm to 100 mS/cm of any solution. It has ability to quantify electrical conductivity of any aqueous solution and has the ability to measure the amount of totally dissolved solids (TDS) in a solution, in units of parts per million (ppm) or milligrams per liter. The conductivity can be measures within the range of 0.0 to 99.9 ℃. Specifications : Conductivity Range 0.00 μS/cm to 100 mS/cm Conductivity Resolution 0.01 μS/cm Conductivity Accuracy ±0.01 FS TDS Range 0.000 mg/L to 1999 mg/L TDS Resolution 0.001 mg/L TDS Accuracy ±1.0% FS Temperature Range 0.0 to 99.9 ℃

  3. Temperature Resolution 0.1 ℃ Temperature Accuracy ±0.3 ℃ Power Supply 100 V to 240 V (50/60Hz) Dimension 290×210×95 mm Weight 1.5 kg Features : - Vast TDS range 0.000 mg/L to 1999 mg/L provides the precise outcome of dissolved particles Conductivity meter between the range 0.00 μS/cm to 100 mS/cm - LCD with backlight display is present for clear visibility of measurements - Cell constant is adjustable can be set at any time to start the measurement - Temperature compensation is adjusted manually and automatically for desired buffers

  4. - High resolution of conductivity 0.01 μS/cm and TDS resolution 0.001 mg/L is present to provide the measuring accuracy Standard Accessories : Conductivity Cell (k=1) Electrode Holder ATC probe Applications : The conductivity meter can be used in hydroponic and aquaculture settings to measure the concentration water whether it is accurate or not. In addition, it is used in agriculture to measure the salinity levels of surface water and soil samples and also measure the quality of water in a wastewater treatment facility.

  5. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
