Automatic Oil Dielectric Tester

Automatic Oil Dielectric Tester is designed to assess the dielectric strength of insulating oils. The oil tester is fully automated and utilizes industrial Single-<br>Chip Microcontroller (SCM) technology for precise control and seamless integration with its circuitry. With a capacity of 2.0 KVA, it can store up to 99 records <br>of oil samples for later review and printing and provides valuable information about the quality and condition of the oil.

Kimber4
Download Presentation

Automatic Oil Dielectric Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

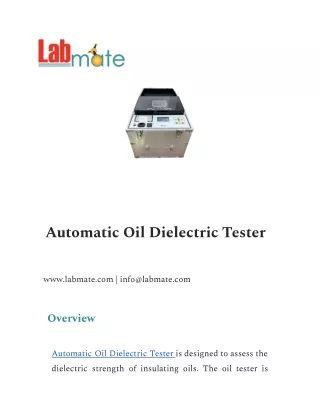

  1. Automatic Oil Dielectric Tester www.labmate.com | info@labmate.com Overview Automatic Oil Dielectric Tester is designed to assess the dielectric strength of insulating oils. The oil tester is

  2. fully automated and utilizes industrial Single-Chip Microcontroller (SCM) technology for precise control and seamless integration with its circuitry. With a capacity of 2.0 KVA, it can store up to 99 records of oil samples for later review and printing and provides valuable information about the quality and condition of the oil. Specifications : Capacity 2.0 kVA Speed of Voltage 2 k V/ s Increase Voltage Inspection 0.01 Accuracy

  3. Breakdown < 0.1 kV Sensitivity Waveform Distortion ≤ 1 % Breakdown Response ≤ 10 milliseconds Time Polar Distance 2.5 mm Operational Temperature: 0 ℃ to 40 ℃ Environment Humidity: Max. relative humidity 85% Storage Environment Temperature: - 20 ℃ to - 60 ℃ Humidity: Max. relative humidity 75%

  4. Power Supply AC 220 V ± 10 %, 50 Hz / 60 Hz Output Voltage 60 kV Dimension 380mm × 380mm × 380mm Weight 38 kg Features : - User-friendly operation with high levels of automation - Automated voltage boosting function - Efficient menu navigation and easy data input - Clock functionality persists even a?er power loss - Exceptional resistance to interference, ensuring precise and accurate testing - Compact and lightweight design for convenient outdoor use - So?ware upgradeability via the RS232 terminal

  5. - Ability to retain test data even in the event of a power outage - Incorporates robust anti-jamming technology, significantly enhancing the system's overall performance and capacity Applications : It is essential for quality control in the production of insulating condition equipment. They are used in industries such as power generation, transmission, and distribution, as well as in transformer manufacturing. oils assessment and for regular of maintenance high-voltage and electrical Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
