Automatic Gradient thermal cycler

<br>Automatic Gradient thermal cycler has a sophisticated operating computer controlled software to guide the protocols for PCR analysis for once and it can operate <br>the functions offline. The high-precision Peltier heating units provides maximum. heating rates within the range of 0 to 100 u00b0C. It is the suitable solutions <br>to fulfill different requirements like adding samples while process is going on to encounter several experimental requirements. We have optimized capacity <br>of 96 wells plate and half skirt 96 wells plate. It supported by user-friendly USB port or RS232 / RS485 port to connect w

Kimber4
Download Presentation

Automatic Gradient thermal cycler

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

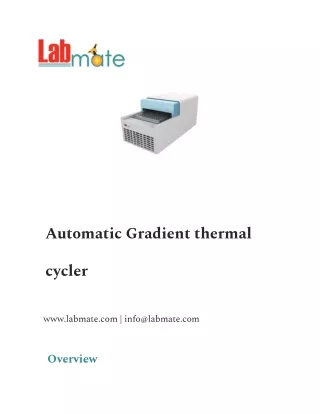

  1. Automatic Gradient thermal cycler www.labmate.com | info@labmate.com Overview

  2. Automatic sophisticated so?ware to guide the protocols for PCR analysis for once and it can operate the functions offline. The high-precision maximum. heating rates within the range of 0 to 100 °C. It is the suitable solutions to fulfill different requirements like adding samples while process is going requirements. We have optimized capacity of 96 wells plate and half skirt 96 wells plate. It supported by user-friendly USB port or RS232 / RS485 port to connect with computer and print data. Gradient operating thermal cycler has a computer controlled Peltier heating units provides on to encounter several experimental Specifications : Capacity 96×0.2 ml

  3. Tube 0.2 ml single tube, 8 tubes, 96-well full skirt plate, 96-well half skirt plate, 96-well no skirt plate Temperature 0 to 100 °C Range Maximum. 5 °C/s Heating Rate Maximum. 4 °C/s Cooling Rate Uniformity ≤± 0.3 °C Accuracy ≤± 0.2 °C

  4. Display 0.1 °C Resolution Temperature Block\Tube Control Ramping 0.1 to 5 °C Rate Adjustable Gradient 30 to 100 °C Temperature. Range Gradient 1 to 30 °C Spread

  5. Hot Lid 30 to 110 °C Temperature Hot Lid Electric hot cover Height Adjustable Maximum. 30 No. Of Step Maximum. 100 No. Of Cycle Increment/De 1 Second to 600 Second crement Time

  6. Increment/De 0.1 to 10.0 °C crement Temperature Pause Yes Function Auto Data Yes Protection Holding 4 °C Interface USB2.0, RS232/RS485 Dimensions( 305×155×170 mm L×W×H)

  7. Weight 14 kg Power 600 W Consumption Power Supply 100 to 240 V AC, 50 to 60 Hz Features : - Uniform heating of the samples is achieved with Peltier heating units with maximum 100 cycles - It is well built with anodizing technology with aluminum block treatment which makes the durable and corrosion resistant - Maximum. heating Rate is 5 °C/s with temperature range of 0 to 100 °C

  8. - It has the capability to accommodate 96 wells plate and half skirt 96 wells plate with self-adjusting lid and desktop pipetting station - The connectivity between computer is via USB port or RS232 / RS485 port - All the operations are controlled by a computer so?ware system which instrument PCR protocols - It has power of operation recovery option which helps in continuing the same command a?er a recovering from power cut - To satisfy the customers need it is installed with special feature like the user can add sample while the process is going on to encounter different variations Applications :

  9. Used detection, DNA methylation analysis, Genotyping and gene scanning, miRNA research in Gene expression analysis, Pathogen Labmate Scientific Email: info@labmate.com | Website: www.labmate.co
