Presentation Transcript
Three years of spam mutation l.jpg

Three years of spam mutation

John Graham-Cumming

Independent Consultant

France


Who am i l.jpg
Who am I?

  • Author of POPFile

    • Created in August 2002

    • Machine sorting of email spam, ham, you-name-it

    • Jolt Productivity Award in 2005

  • Founding speaker at MIT Spam Conference

    • 2003: “The Spammers’ Compendium”

    • 2004: “How to beat an adaptive spam filter”

    • 2005: “People and Spam”

  • Frequent speaker, writer, coder on anti-spam


Why spam l.jpg
Why spam?

  • Spam found me

  • Started investigating machine classification of email in 2000

    • All my email has been sorted automatically for the last 6 years

  • Spam presents a problem: it changes

    • Spammers are adversarial

    • They react (very fast: hours to days) to changes in spam filtering technology


Are spammers stupid l.jpg
Are spammers stupid?

  • I don’t think so

  • And I hope to convince you in this talk

  • Spammers innovate constantly

    • The products they sell

    • How they send the spam (fixed IPs, broken web forms, open proxies, zombie networks, …)

    • The content of their messages

  • This talk focuses on the content of spam messages


Once upon a time l.jpg
Once upon a time…

  • It was fairly easy to filter spam

    • It came from fixed IP addresses: use a blacklist

    • The From address was not forged: easy to filter

    • The spam contained keywords that could be blacklisted

      • penis, viagra, etc.

  • Simplistic filtering on From and content is now useless (has been for a few years)

  • Only complex algorithms can filter on spam content

    • Hashing, weighted heuristics, ‘Bayes’, …


In 2003 popfile worked great l.jpg
In 2003 POPFile worked great…

  • … except for spam

  • Because spammers were trying to avoid filters by all sorts of trickery

  • Some tricks you are familiar with…

    • VIAGRA has become [email protected]

    • PENIS has become PE.NIS

    • ENLARGER is written ENARELGR

  • Most others are hidden from the reader


The spammers compendium l.jpg
The Spammers’ Compendium

  • www.jgc.org/tsc

  • Informal collection of spammer tricks

    • All about content of spam, not how it’s sent

    • Been collecting since 2003

    • Now a total of 55 tricks

    • All have been seen in the wild

    • All have humorous(*) names

  • (*) OK, I thought they were funny :-)


Fun facts l.jpg
Fun facts

  • 80% of spam uses HTML

    • Colors, images, fonts…

    • … and tricks

  • 80% of spam uses at least one content trick

    • Invisible Ink, Camouflage, …

  • Spam and spam filters are in an arms race

  • Irony: Spammer tricks often make spam easier to filter



The spam zeitgeist 1 l.jpg

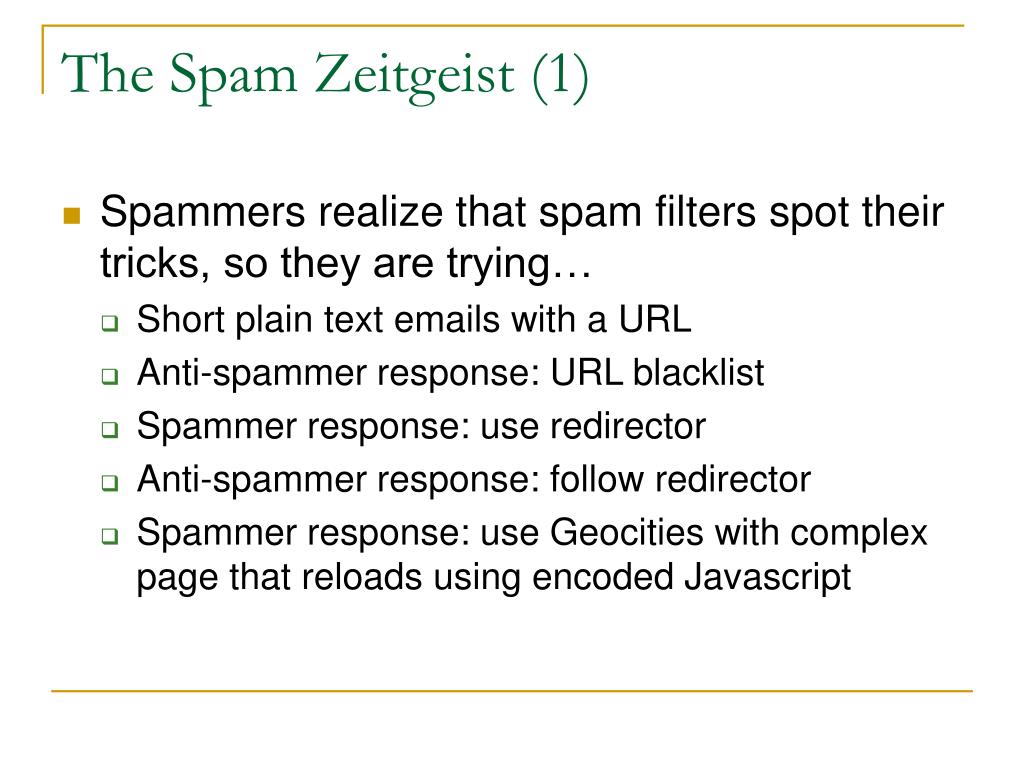

The Spam Zeitgeist (1)

  • Spammers realize that spam filters spot their tricks, so they are trying…

    • Short plain text emails with a URL

    • Anti-spammer response: URL blacklist

    • Spammer response: use redirector

    • Anti-spammer response: follow redirector

    • Spammer response: use Geocities with complex page that reloads using encoded Javascript


The spam zeitgeist 2 l.jpg
The Spam Zeitgeist (2)

  • Spammers realize that spam filters read their mail…

    • Spammer response: send an image instead of text

    • Anti-spammer response: checksum the images

    • Spammer response: make random modification of image and number of images

    • Anti-spammer response: perform OCR on images

    • Spammer response: add random noise to images


Example hypertextus interruptus l.jpg

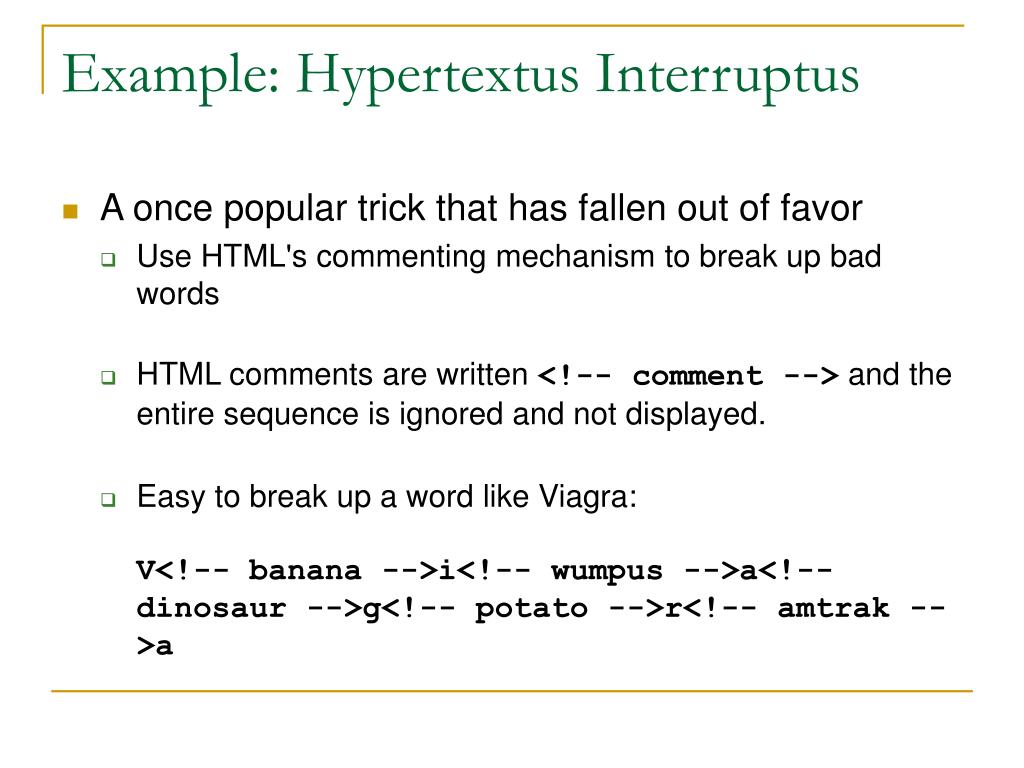

Example: Hypertextus Interruptus

  • A once popular trick that has fallen out of favor

    • Use HTML's commenting mechanism to break up bad words

    • HTML comments are written <!-- comment --> and the entire sequence is ignored and not displayed.

    • Easy to break up a word like Viagra:V<!-- banana -->i<!-- wumpus -->a<!-- dinosaur -->g<!-- potato -->r<!-- amtrak -->a


Example invisible ink 1 l.jpg
Example: Invisible Ink (1)

  • Hide lots of good words using white font on a white background

  • Before:Buy Viagra Now!Please see the attached spread sheet for our current sales forecast


Example invisible ink 114 l.jpg
Example: Invisible Ink (1)

  • Use HTML <font color=xyz> tag to make the good words disappear

  • After:Buy Viagra Now!Please see the attached spread sheet for our current sales forecast

<font color=white> … </font>


Example camouflage 1 l.jpg

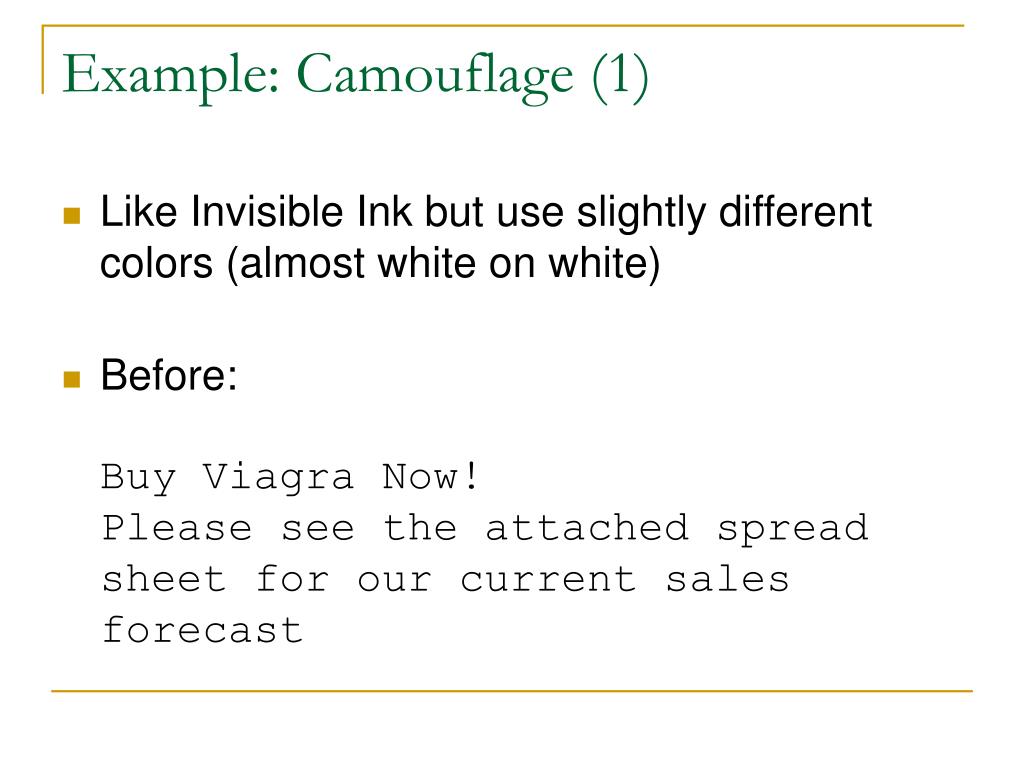

Example: Camouflage (1)

  • Like Invisible Ink but use slightly different colors (almost white on white)

  • Before:Buy Viagra Now!Please see the attached spread sheet for our current sales forecast


Example camouflage 2 l.jpg
Example: Camouflage (2)

  • Like Invisible Ink but use slightly different colors (almost white on white)

  • Add a colored background:Buy Viagra Now!Please see the attached spread sheet for our current sales forecast

<body bgcolor=#CC9900> … </body>


Example camouflage 3 l.jpg

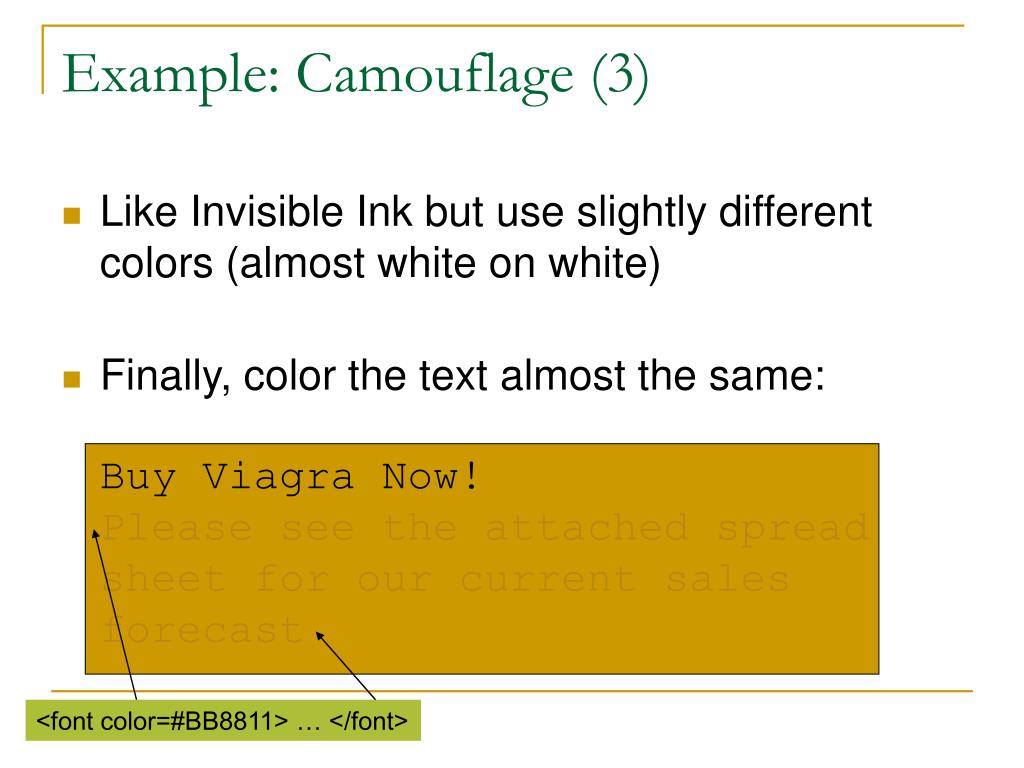

Example: Camouflage (3)

  • Like Invisible Ink but use slightly different colors (almost white on white)

  • Finally, color the text almost the same:Buy Viagra Now!Please see the attached spread sheet for our current sales forecast

<font color=#BB8811> … </font>


Example the matrix l.jpg
Example: The Matrix

  • Prevent spam filter from reading the text in a spam by writing it verticallyBuyGenericViagraCheap


Example the matrix19 l.jpg
Example: The Matrix

  • Prevent spam filter from reading the text in a spam by writing it verticallyB G V Cu e i hy n a e e g a r r p i a c


Example catch a wave 1 l.jpg
Example: Catch a Wave (1)

  • Split a sentence into two lines and then put them back together again

  • Start with:Increase your sexual desire


Example catch a wave 2 l.jpg
Example: Catch a Wave (2)

  • Split a sentence into two lines and then put them back together again

  • Make two linesInc se yo se al des rea ur xu ire

<tr align=bottom><td></td><td>rea</td> … <td>ire</td></tr>


Example catch a wave 3 l.jpg
Example: Catch a Wave (3)

  • Split a sentence into two lines and then put them back together again

  • Back together again:Increase your sexual desire

<tr align=bottom><td rowspan=2>Inc</td><td></td> … <td></td></tr>


Example the rake 1 l.jpg
Example: The Rake (1)

  • Break up a word with random letters, then move the letters out of the way

  • Start with:Viagra


Example the rake 2 l.jpg
Example: The Rake (2)

  • Break up a word with random letters, then move the letters out of the way

  • Sprinkle in some random letters:Vxifatgyrka


Example the rake 3 l.jpg
Example: The Rake (3)

  • Break up a word with random letters, then move the letters out of the way

  • Mark each letter to be moved out of the way:Vxifatgyrka

<span style=“float:right”>x</float>


Example the rake 4 l.jpg
Example: The Rake (4)

  • Break up a word with random letters, then move the letters out of the way

  • The end result:Viagra xftyk


Example whiter shade of pale 1 l.jpg
Example: Whiter shade of pale (1)

  • Concatenate words using random greyed out letters

  • Start with:Offshore pharmacy online now


Example whiter shade of pale 2 l.jpg
Example: Whiter shade of pale (2)

  • Concatenate words using random greyed out letters

  • Add random letters between words:OffshoreGpharmacyUonlineInow


Example whiter shade of pale 229 l.jpg
Example: Whiter shade of pale (2)

  • Concatenate words using random greyed out letters

  • Grey or white out the letters:OffshoreGpharmacyUonlineInow

<font color=lightgrey>G</font>


Image spam l.jpg

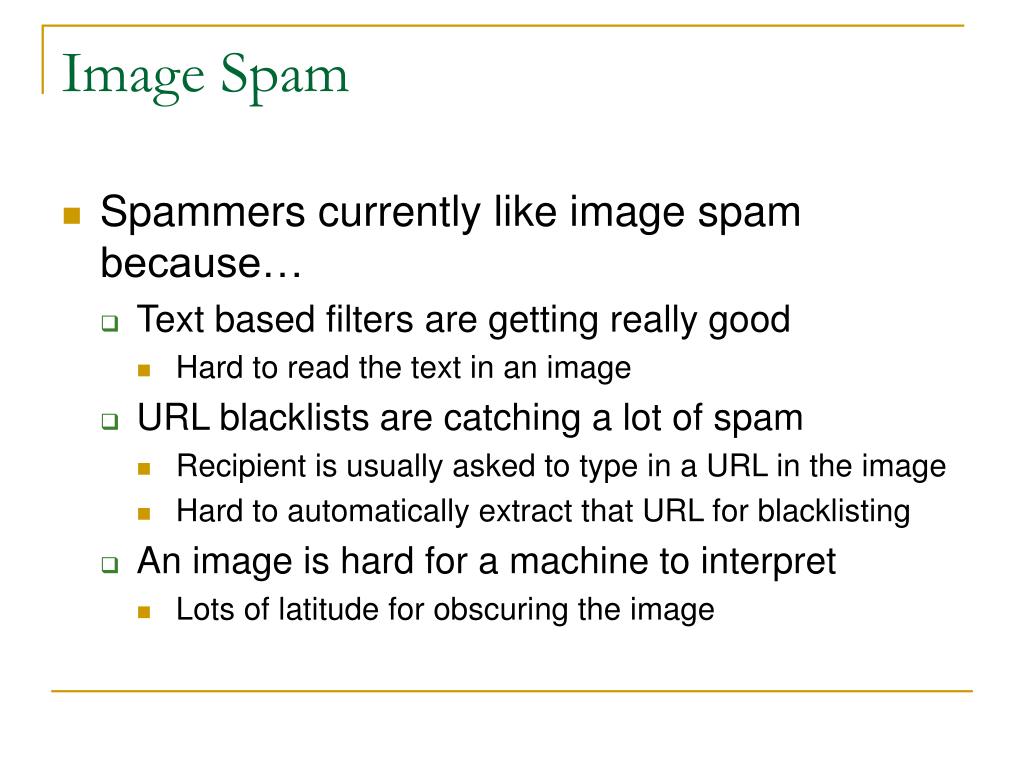

Image Spam

  • Spammers currently like image spam because…

    • Text based filters are getting really good

      • Hard to read the text in an image

    • URL blacklists are catching a lot of spam

      • Recipient is usually asked to type in a URL in the image

      • Hard to automatically extract that URL for blacklisting

    • An image is hard for a machine to interpret

      • Lots of latitude for obscuring the image






Will it end l.jpg
Will it end?

  • No

  • People buy from spam

    • Pew Internet Trust 2003 Survey: 7%

    • My 2004 Survey: 1%

    • But a 0.001% response rate is break even

  • End users are seeing less and less spam

    • Spam has moved from an end-user problem to a sysadmin problem


Resources l.jpg
Resources

  • www.jgc.org

    • All my writing on spam (and other topics)

    • Subscribe to my newsletter

    • The Spammers’ Compendium

    • Anti-spam Tool League Table

  • www.extravalent.com

    • My commercial web site (polymail)

    • Need an anti-spam OEM engine?

    • Now you know who to ask…


Fun stuff spamorham org l.jpg
Fun Stuff: SpamOrHam.org

  • Testing the hypothesis that people are better at spam filtering than machines

    • Bill Yerazunis: 99.84%

    • My 2004 Survey: 99.46%

  • Read randomly selected spam or Enron emails and click Spam, Ham or I’m not sure

  • www.spamorham.org

  • You could even win an ‘enlarger’!


Thank you l.jpg

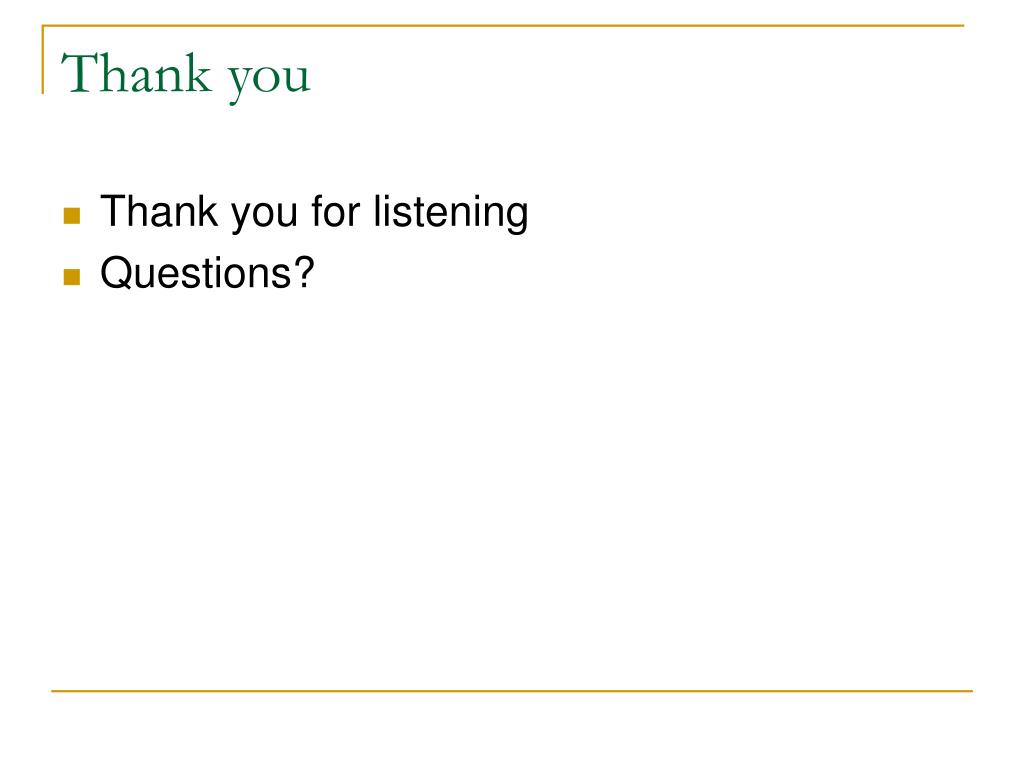

Thank you

  • Thank you for listening

  • Questions?
