Recognizing heartrhythm disturbances in PSG

Ann Ryckx


Arrhythmias l.jpg

Arrhythmias

Any change in the normal sequence of the electrical impulses from the sinus node (SA) to the ventricles can cause arrhythmia


Slide4 l.jpg

  • P-wave: contraction of the atria

  • QRS-complex: contraction of the ventricles

  • T-wave: recovery of the ventricles


Ecg in psg l.jpg

ECG in PSG

  • Mostly only 1 channel

  • Recognition of heartrhythm disturbances

  • Not a diagnostic tool for other heartpathologies s.a. signs of ischaemia


Tachy arrhythmia too fast 100 bpm brady arrhyhthmia too slow 60 bpm l.jpg

Tachy-arrhythmia (too fast: > 100 bpm)Brady-arrhyhthmia(too slow: < 60 bpm)


Atrial arrhythmia l.jpg

Atrial arrhythmia

An atrial arrhythmia is an arrhythmia caused by

  • a dysfunction of the sinus node or

  • the development of another atrial pacemaker within the heart tissue that takes over the rhythm of the sinus node


Sinus tachykardia l.jpg

Sinus Tachykardia

A condition in which the heart rate is faster than 100 beats per minute because the sinus node is sending out electrical impulses at a rate faster than usual


Supraventricular tachycardia paroxysmal atrial tachycardia l.jpg

Supraventricular tachycardia = paroxysmal atrial tachycardia


Af atrial fibrillation l.jpg

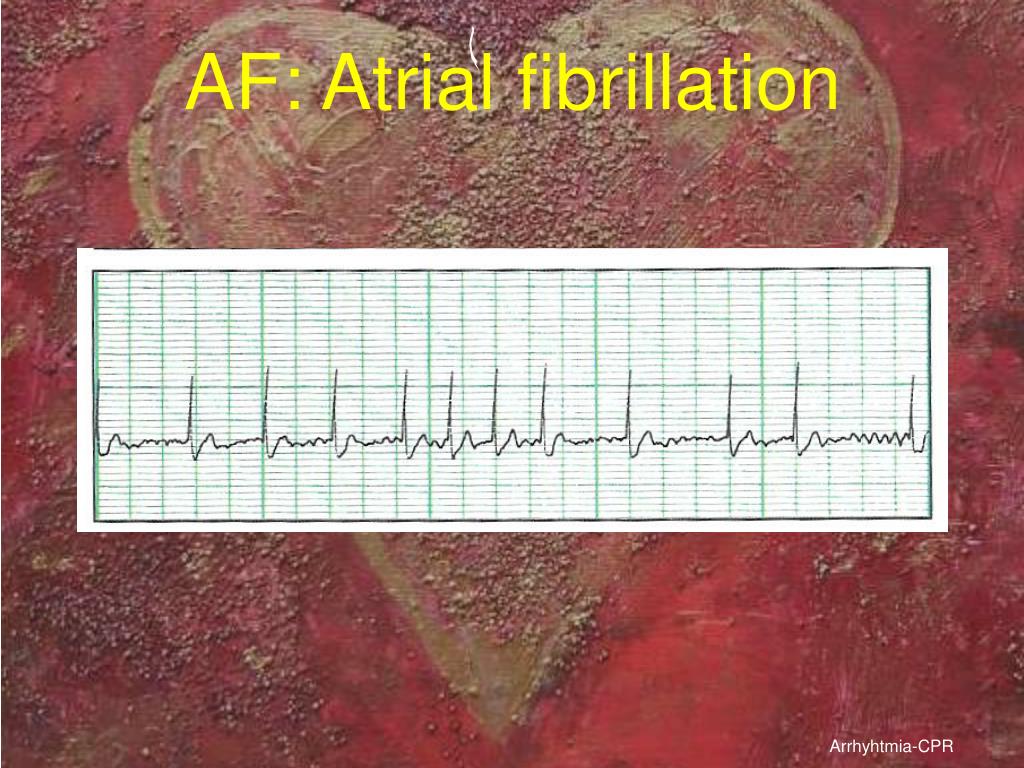

AF: Atrial fibrillation


Atrial flutter l.jpg

Atrial flutter

The electrical signals come from the atria at a fast but even rate.

When the signals from the atria are coming at a faster rate than the ventricles can respond to, the ECG pattern develops a "sawtooth" pattern, showing two or more flutter waves between each QRS complex.


Atrial extra systoly premature beat l.jpg

Atrial extra systoly = premature beat


Ventricular arrhythmia l.jpg

Ventricular arrhythmia

A ventricular arrhythmia is an arrhythmia caused by

  • a dysfunction of the sinus node

  • an interruption in the conduction pathways

  • the development of another pacemaker


Atrial ventricular block av block l.jpg

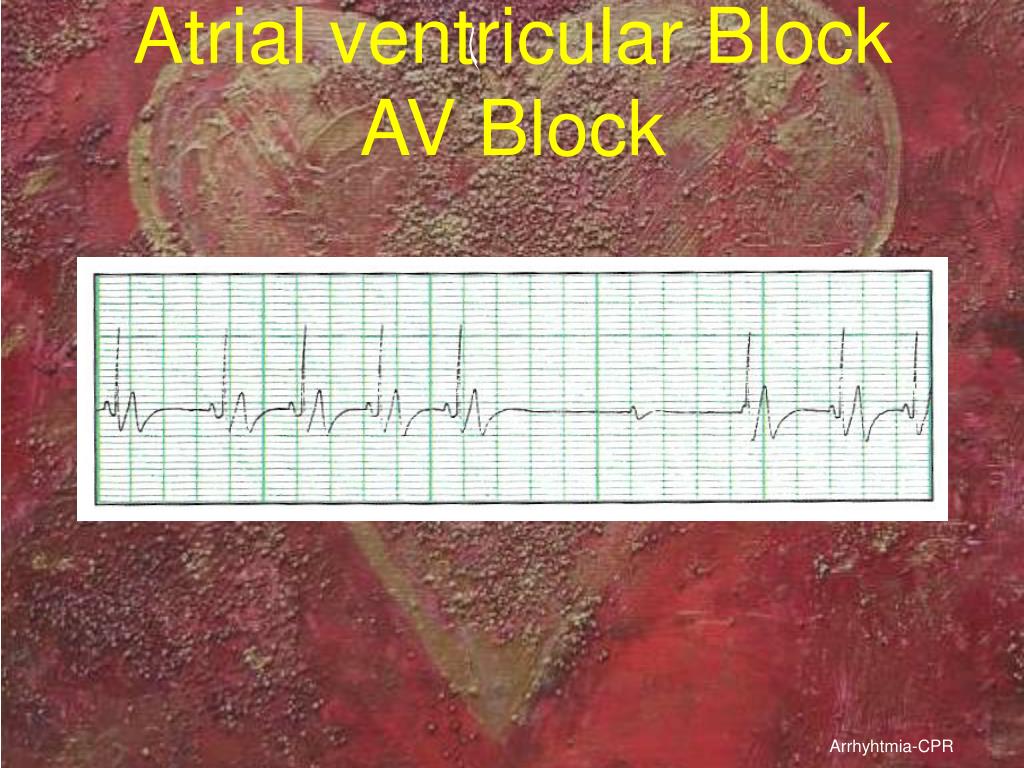

Atrial ventricular BlockAV Block


Atrial ventricular av block 1 st degree l.jpg

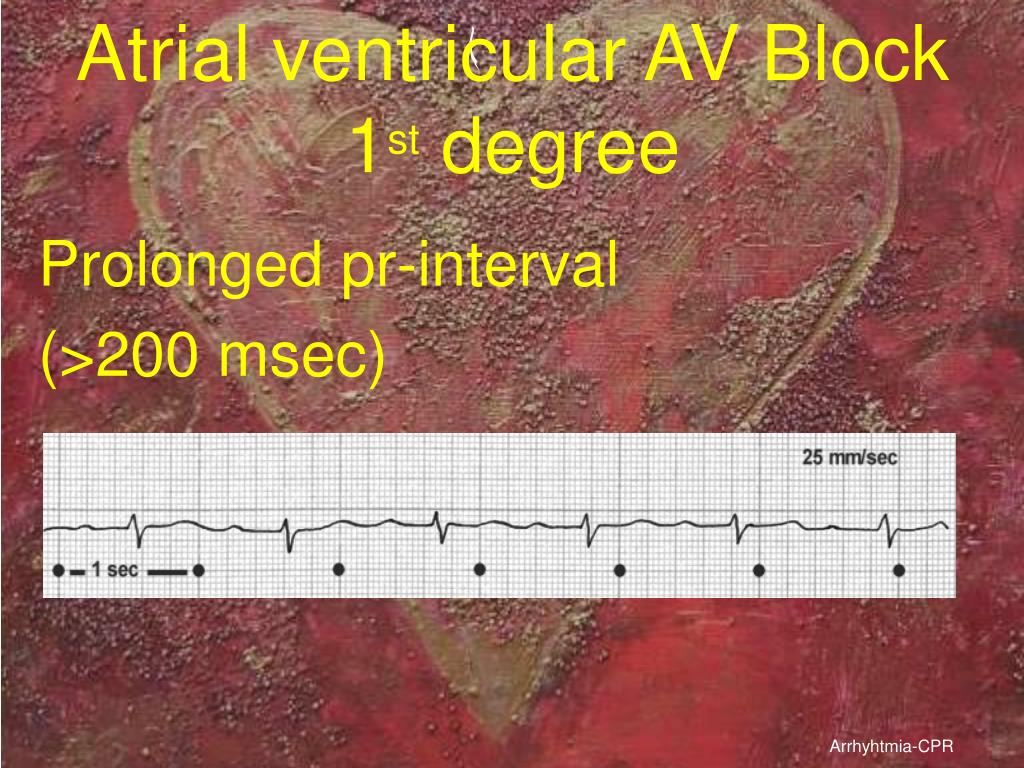

Prolonged pr-interval

(>200 msec)

Atrial ventricular AV Block 1st degree


Atrial ventricular av block 2 nd degree l.jpg

Atrial ventricular AV Block2nd degree

  • Wenckebach. Progressive prolongation PR interval until a p-wave is blocked

  • Mobitz Type II: pr-interval constant, evt. shorter after a p-wave block


Atrial ventricular av block 3 d degree l.jpg

Atrial ventricular AV Block3d degree

  • No atrial impulses reach the ventricles

  • Possibly lifethreatening if the subsidiary pacing in the ventricles is not sufficiant


Ventricular tachycardia l.jpg

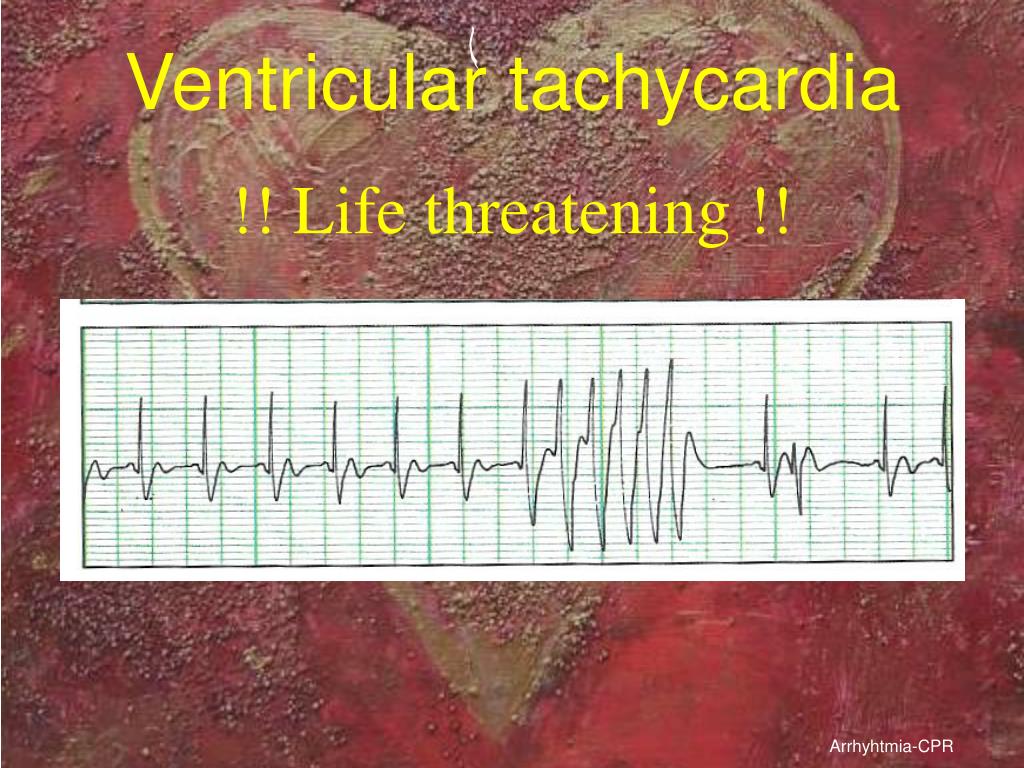

Ventricular tachycardia

!! Life threatening !!


Pv c p remature ventricular complexe l.jpg

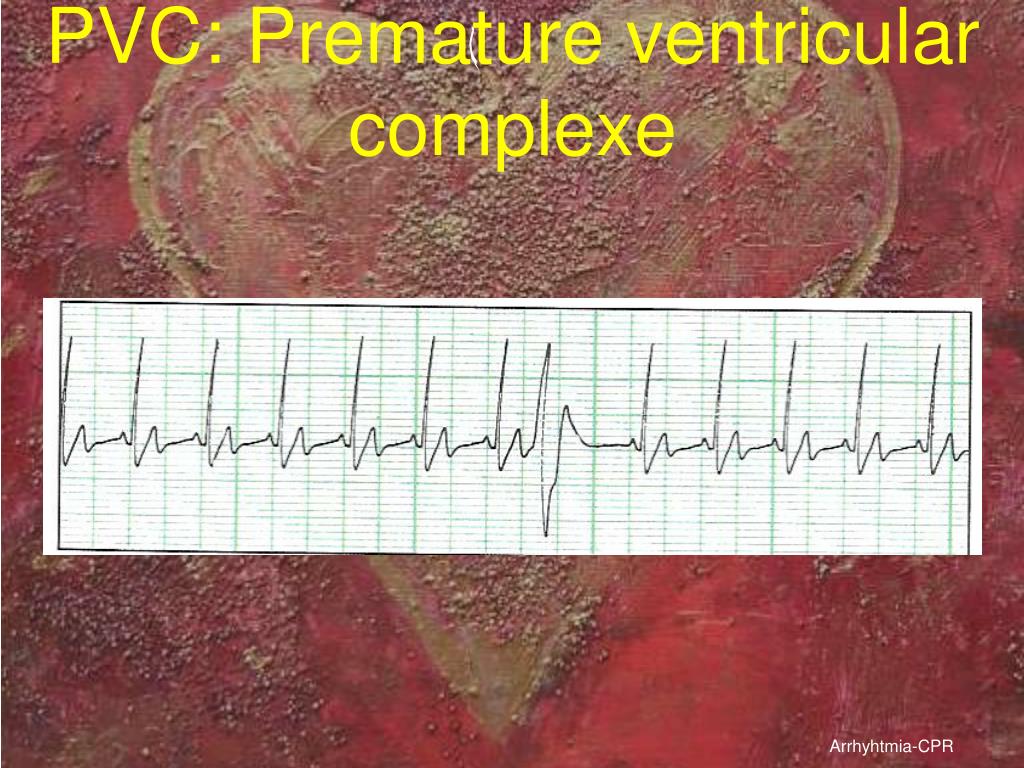

PVC:Premature ventricular complexe


Bigeminy l.jpg

Bigeminy


Trigeminy l.jpg

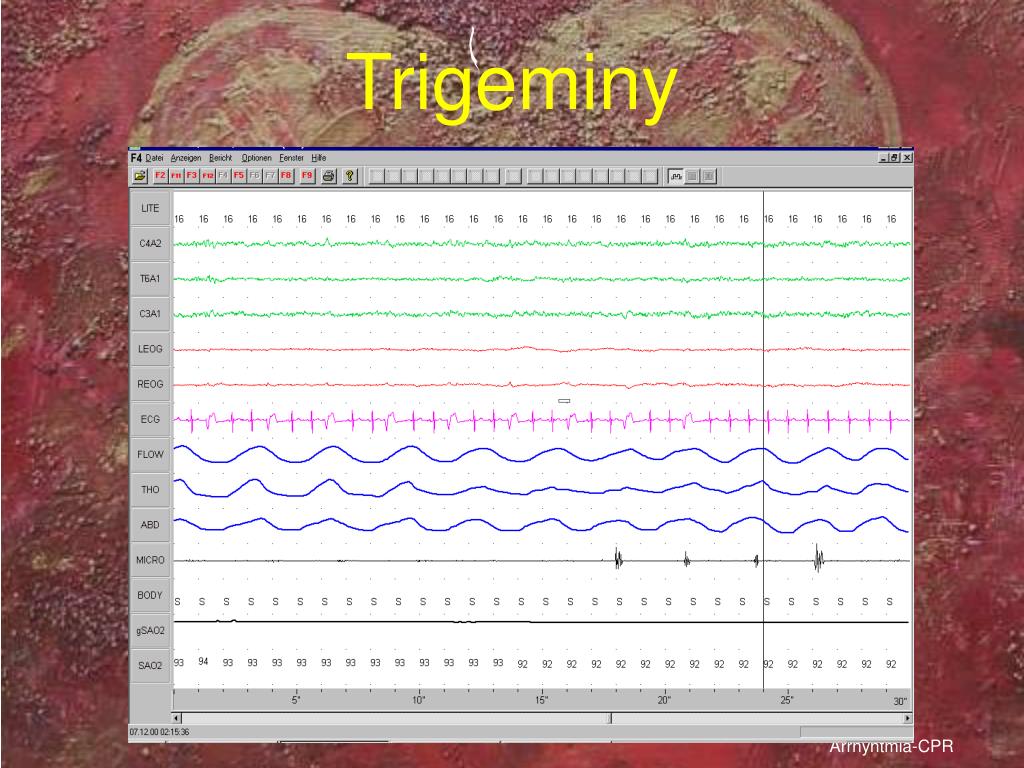

Trigeminy


Multifocal pvc l.jpg

Multifocal PVC


Ventricular tachycardia23 l.jpg

Ventricular tachycardia


Ventricular flutter l.jpg

Ventricular flutter

!! Emergency !!


Ventricular fibrillation l.jpg

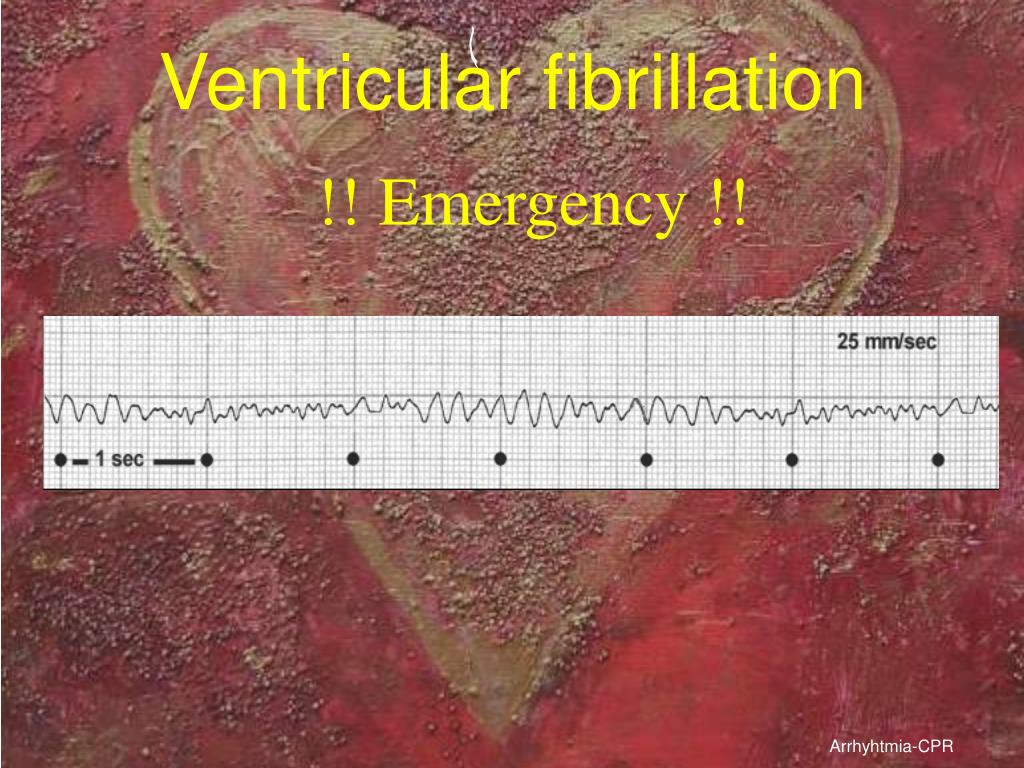

Ventricular fibrillation

!! Emergency !!


Asystoly l.jpg

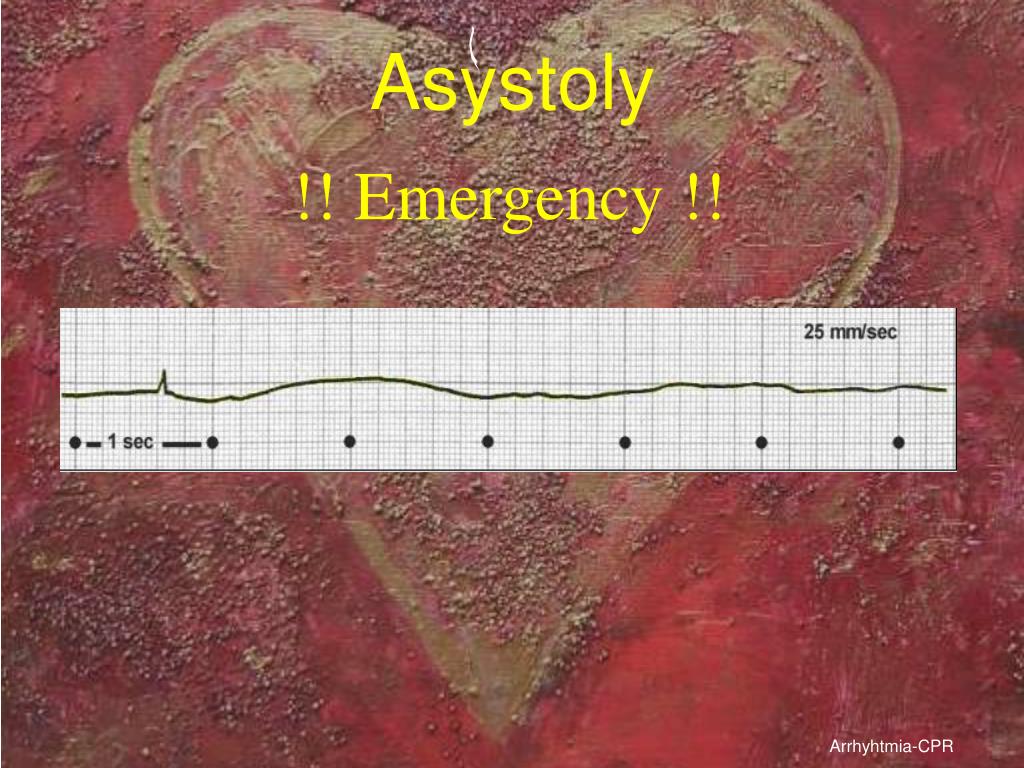

Asystoly

!! Emergency !!


Cpr cardio pulmonary resuscitation l.jpg

CPR Cardio Pulmonary Resuscitation

Newest guidelines


Step 1 check consciousness l.jpg

Step 1: check consciousness


Step 2 call for help l.jpg

Step 2: call for help


Abcd of basic life support l.jpg

ABCD of basic life support


Check and free the upper airway l.jpg

Check and free the upper airway


Hyperextension lift the chin l.jpg

Hyperextension, lift the chin


Close the nose hyperextension l.jpg

Close the nose, hyperextension


2 breaths deep and slow l.jpg

2 breaths, deep and slow


Check the circulation carotis l.jpg

Check the circulation: carotis


Automatic external defibrillation aed l.jpg

Automatic External Defibrillation (AED)


No circulation no aed available l.jpg

No circulation:No AED available

Basic Life Support

  • 15 compressions on the chest

  • 2 breaths

  • Same rhythm, even if 2 reanimators


Check for the lower ribs l.jpg

Check for the lower ribs


Lower third of the sternum l.jpg

Lower third of the sternum


Arms stretched 4 5 cm impression rhythm 100 min l.jpg

Arms stretched, 4-5 cm impression, rhythm 100/min.


15 compressions 2 breaths l.jpg

15 compressions / 2 breaths


No circulation aed available l.jpg

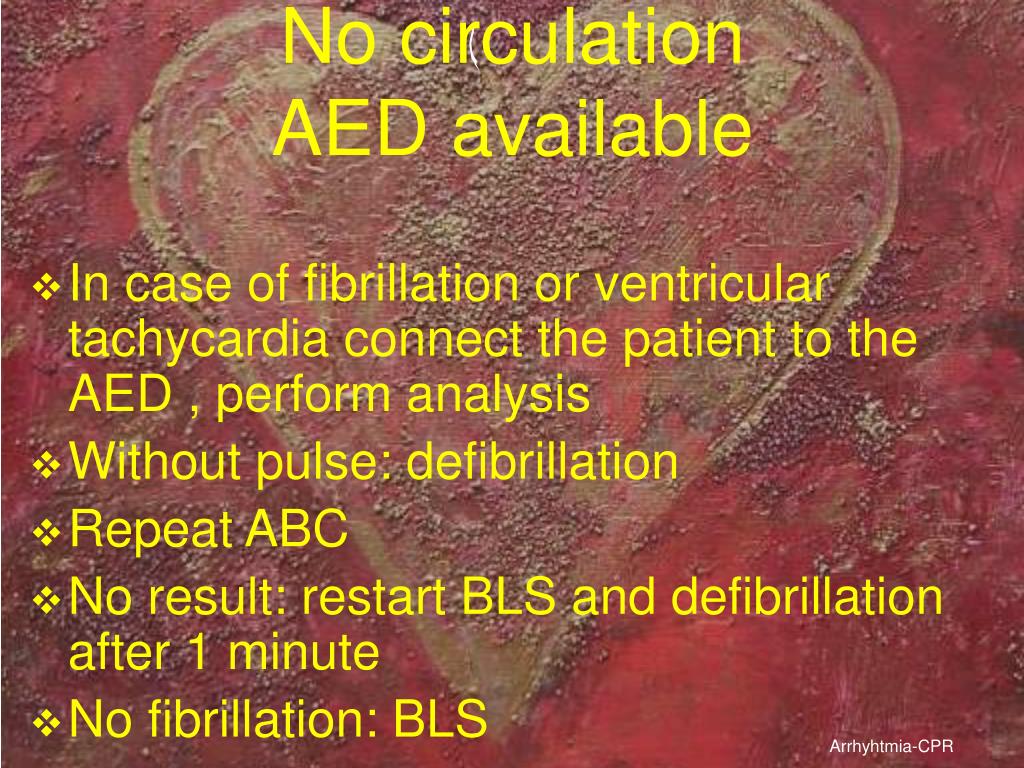

No circulationAED available

  • In case of fibrillation or ventricular tachycardia connect the patient to the AED , perform analysis

  • Without pulse: defibrillation

  • Repeat ABC

  • No result: restart BLS and defibrillation after 1 minute

  • No fibrillation: BLS


Automatic external defibrillation aed43 l.jpg

Automatic External Defibrillation (AED)


Automatic external defibrillation aed44 l.jpg

Automatic External Defibrillation (AED)


Safetyposition after reanimation l.jpg

Safetyposition after reanimation


Thanks l.jpg

THANKS !!
