Presentation Transcript
Canyons craters and drifting dunes terrestrial analogues on earth s moon mars l.jpg
Canyons, Craters and Drifting Dunes -- Terrestrial Analogues on Earth’s Moon & Mars

Kimberly J. Willis,

Patricia Wood Dickerson,

and Brett H. McRay

Office of Earth Sciences

NASA Johnson Space Center

Lockheed Martin

Space Operations

November 1999


Earth and moon l.jpg
Earth and Moon Analogues on Earth’s Moon & Mars

Before heading towards Jupiter the Galileo spacecraft took these last images of the Earth and Moon in 1992. Although this image is a composite of two images, the scale is realistic. Please note that lunar and terrestrial features shown in this sequence are analogues in morphology but not necessarily in size or in mode of formation.


Exploring the moon l.jpg
Exploring the Moon Analogues on Earth’s Moon & Mars

Apollo 15 astronauts Dave Scott (right) and Jim Irwin (left) received geology training along the rim of the Rio Grande Gorge. The landing site for Apollo 15 was Hadley Rille located along the rim of Mare Imbrium. The Rio Grande Gorge was considered the closest terrestrial analogue to Hadley since both were over 100 km wide, greater than 1 km in width and over 200 m deep. On the moon Jim Irwin is seen digging a trench to sample lunar regolith.


Canyon walls earth and moon l.jpg
Canyon Walls -- Earth and Moon Analogues on Earth’s Moon & Mars

Layered igneous bedrock is visible along the upper 60 m of Hadley Rille (left) which is believed to be a collapsed lava tube or channel about 3.3 billion years (b.y.) in age. Because of its similar dimensions and bedrock, the Rio Grande Gorge, New Mexico, was chosen as the training site for Apollo 15 astronauts. The steep-walled canyon (right) exposes a cross section of a volcano-covered plateau; the Servilleta basalt is nearly identical to basalts of the ocean floor (3.6 to 4.5 million years old).


Grabens on earth and moon l.jpg
Grabens on Earth and Moon Analogues on Earth’s Moon & Mars

Grabens, downdropped blocks between parallel faults, develop where planetary crust is stretched. The Dead Sea (NW view - left) lies in a fault valley that is forming as the Arabian tectonic plate pulls away from the African plate in response to Red Sea rifting. Most lunar grabens are found at edges of mare basins and were caused by extensional forces created when the basins filled with lava (~3 b.y. ago). Increasing weight in basins creates tension along the margins, followed by faulting and foundering of grabens.


Impacts mare earth and moon l.jpg
Impacts & Mare -- Earth and Moon Analogues on Earth’s Moon & Mars

The Sudbury structure is one of North America’s oldest and largest impacts. The original size of the structure has been estimated at 220 km and the age at 1.85 b.y. Regional tectonism has distorted the crater into an ellipse, the center of which is a 27 X 59 km basin that contains predominantly nickel ore. The origin of this ore body is disputed. The leading theory is that the ore body is the result of an impact that melted upper and lower crustal material. A similar theory of an impact creating volcanism was proposed for the Moon. In contrast, it is now believed that the filling of impact basins (3.8 to possibly as recently as 1.5 b.y.) came long after the basins themselves were formed (~3.85 b.y.). Mare Moscoviense is located on the lunar far side and is 221 km in diameter.


Complex craters earth and moon l.jpg
Complex Craters -- Earth and Moon Analogues on Earth’s Moon & Mars

Although the scale may vary, craters on different planetary bodies share similar characteristics. Manicouagan crater in Quebec, Canada, and Copernicus crater on the Moon are both complex craters. Terraced walls and a central peak are exhibited by the 93 km diameter Copernicus crater. Manicouagan (100 km diameter) is an eroded crater where a resistant melt sheet is surrounded by a 70 km frozen reservoir. The difference in erosion rates is readily apparent by the youthful looking, <1 b.y. old Copernicus crater as compared to a younger, 212 m.y. Manicouagan.


Simple craters earth and moon l.jpg
Simple Craters -- Earth and Moon Analogues on Earth’s Moon & Mars

This simple crater in Arizona has been called Arizona crater, Barringer crater, and Meteor crater. Both lunar and terrestrial simple craters share the same bowl shape. Meteor crater was formed 50,000 years ago by the impact of a 100,000-ton iron meteorite resulting, in the 1.2-km-diameter crater visible today. The simple lunar crater (right) is Isidorus D, is 15 km in diameter and is located in the lunar highlands.


Earth and mars l.jpg
Earth and Mars Analogues on Earth’s Moon & Mars

Mars is about half the size of Earth and lacks oceans, but on the Martian surface are features analogous to those on Earth: polar caps, volcanoes, canyons, impact craters, dunes, drainage channels, clouds, dust storms. Please note that features shown in this sequence are analogues in morphology but not necessarily in size or mode of formation.


Cratered terrain earth and mars l.jpg
Cratered Terrain -- Earth and Mars Analogues on Earth’s Moon & Mars

The heavily cratered terrain on Mars resembles the highlands of the Moon. The densely cratered southern hemisphere indicates an older age, possibly as old as 4 b.y. as compared to other regions, i.e., Valles Marineris, Olympus Mons, etc. The larger craters, >20 km in diameter are shallower, with flatter floors and more limited rim deposits than similar sized lunar craters. The Earth has a younger surface than Mars, thanks to plate tectonics. Terrestrial impact craters (left), such as Gosses Bluff (central Australia) are more eroded than are the Martian counterparts.


Crater details earth and mars l.jpg
Crater Details -- Earth and Mars Analogues on Earth’s Moon & Mars

Details of Gosses Bluff impact crater in the orange semi-desert of Australia and Arandes on Mars. Gosses Bluff crater is 22 km in diameter and about 142 m.y. old; the eroded remnant of the 5-km inner peak ring is visible (arrow). On the right is the 28-km-diameter Martian crater Arandes. A central peak can be seen at the center of the crater.

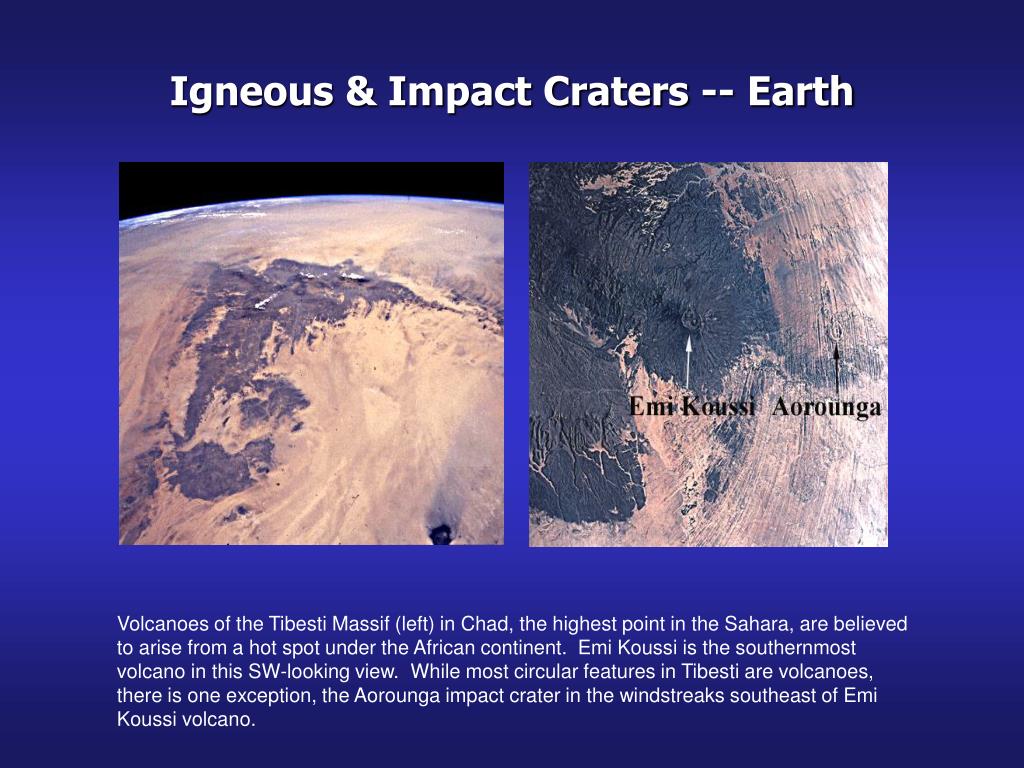

Igneous impact craters earth l.jpg
Igneous & Impact Craters -- Earth Analogues on Earth’s Moon & Mars

Volcanoes of the Tibesti Massif (left) in Chad, the highest point in the Sahara, are believed to arise from a hot spot under the African continent. Emi Koussi is the southernmost volcano in this SW-looking view. While most circular features in Tibesti are volcanoes, there is one exception, the Aorounga impact crater in the windstreaks southeast of Emi Koussi volcano.


Igneous impact craters detail l.jpg
Igneous & Impact Craters -- Detail Analogues on Earth’s Moon & Mars

Volcanoes on Mars tend to be larger than their terrestrial counterparts. Elysium Mons (left) is on the Elysium Bulge southwest of Olympus Mons. This shield volcano rises 9 km above the surrounding plains and the summit caldera is ~15 km in diameter. Emi Koussi is one of several volcanoes on the Tibesti Massif in Chad, Emi Koussi is a Holocene stratovolcano ~101 km wide and 2.3 km high. The summit caldera is 19 km wide.


Dendritic patterns earth and mars l.jpg
Dendritic Patterns -- Earth and Mars Analogues on Earth’s Moon & Mars

The Okavango River in Botswana, Africa empties into no sea or ocean, instead it flows into a broad shallow graben. The dark patches on the delta are swamps, the parallel linear features are stabilized sand dunes. The Martian valley network on the right is in the southern hemisphere within the cratered terrain. The Mars image is 200 km across.


Shifting sands earth and mars l.jpg
Shifting Sands -- Earth and Mars Analogues on Earth’s Moon & Mars

Sand dunes are common in some regions on Earth and Mars. In Saudi Arabia dunes form in the lowlands of the Saudi Arabian peninsula. One of the major dune fields is An Nafud in northern Saudi. Two major dune types predominate. Barchan dunes are crescent shaped and the tips of the crescent point downwind. Transverse dunes are linear and perpendicular to the wind direction. This kind of dune forms where winds are strong and sand is abundant. Dunes in the An Nafud field can reach heights of 90m. Barchan and transverse dunes are also visible in the Mars image.


Shifting sands detail l.jpg
Shifting Sands -- Detail Analogues on Earth’s Moon & Mars

Small barchan dunes (left image - horizontal linear features below and next to Sandwich Bay) occur in the northern section of the Namib Sand Sea. Terrestrial barchan dunes indicate a unidirectional wind source. The long features from the lower right to upper center are linear dunes. On the right is a Mars Global Surveyor image of barchan dunes located near the north polar cap (74.7°N, 61.4°W). The light color of the dunes is due to a covering of frost.


Vast canyons earth and mars l.jpg
Vast Canyons -- Earth and Mars Analogues on Earth’s Moon & Mars

The vast canyonlands of the Colorado Plateau and Mars share great valleys and similarly colored landscapes. As on Mars, the reds and pinks of this terrestrial region are caused by oxidation of tiny iron particles. Uplift in Utah ~10 million years ago caused the Colorado River to cut canyons deep into the plateau. The origin of Valles Marineris is thought to be related to the rise of the Tharsis Bulge to the west. This uplift stressed and fractured the Martian crust, creating the 7 to 10-km-deep valley. The Mars image on the right is approximately 475 km across.


Canyon details earth and mars l.jpg
Canyon Details -- Earth and Mars Analogues on Earth’s Moon & Mars

Earth’s closest analogue to Valles Marineris is the Grand Canyon. Even though Mars is about half the size of Earth, Valles Marineris is about 4 times deeper, 20 times wider, and 10 times longer than the Grand Canyon. At 4,000 km long, Valles Marineris would almost span the distance from the west coast to the east coast of the United States. The image on the right is 60 km across.


High dry valleys earth and mars l.jpg
High, Dry Valleys -- Earth and Mars Analogues on Earth’s Moon & Mars

Mount Everest stands out at the center of the left image. Glaciers flow from the high Tibetan Himalayas. At 8,850 m the summit of Everest is the highest point on Earth that is entirely above sea level. In the Nilosyrtis area (34N, 290W) the ridges and grooves in the valley are suggestive of glacial flow. The right image is approximately 35 km across.

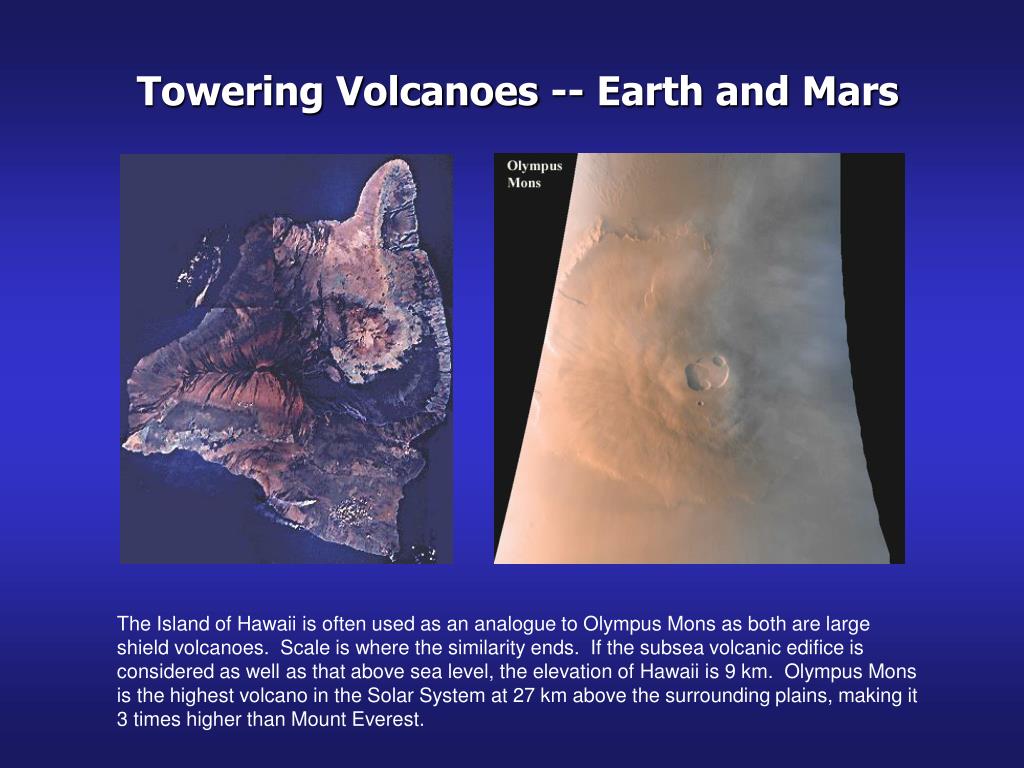

Towering volcanoes earth and mars l.jpg
Towering Volcanoes -- Earth and Mars Analogues on Earth’s Moon & Mars

The Island of Hawaii is often used as an analogue to Olympus Mons as both are large shield volcanoes. Scale is where the similarity ends. If the subsea volcanic edifice is considered as well as that above sea level, the elevation of Hawaii is 9 km. Olympus Mons is the highest volcano in the Solar System at 27 km above the surrounding plains, making it 3 times higher than Mount Everest.


Great volcanoes details l.jpg
Great Volcanoes -- Details Analogues on Earth’s Moon & Mars

Five volcanoes make up the Island of Hawaii, Mauna Loa, Mauna Kea, Kilauea, Kohala, and Hualalai. Although the appearance of the summit calderas for Mauna Loa and Olympus Mons are similar there is a great difference in scale. The caldera of Olympus Mons is 80 km while that of Mauna Loa is 5 km X 3.2 km in diameter.


Volcanic craters earth and mars l.jpg
Volcanic Craters -- Earth and Mars Analogues on Earth’s Moon & Mars

At 5,895 m, Mount Kilimanjaro is the highest point in Africa. Kilimanjaro is composed of three volcanoes, Kibo, Mawensi, and Shira. The highest peak is capped by a glacier. Ascreus Mons is one of three volcanoes in the Tharsis Bulge, situated between Olympus Mons (west) and Valles Marineris (east). Ascreus is a giant shield volcano that may have been capped by a glacier under earlier Martian climatic conditions.


Glaciers earth and mars l.jpg
Glaciers -- Earth and Mars Analogues on Earth’s Moon & Mars

At 20 km wide, Byrd Glacier is the largest glacier in the Transantarctic Mountains. It is also one of the fastest moving glaciers in Antarctica, advancing several hundred meters per year. The Mars image is of layered terrain in the north polar area. The polar caps on Mars are made up primarily of frozen CO2 and are much thinner than are polar caps on Earth. Small amounts of water ice are present in the Martian polar caps.


Slide24 l.jpg

Man must rise above the Earth -- Analogues on Earth’s Moon & Mars

to the top of the atmosphere and beyond --

only thus will he fully understand the world in which he lives.

Socrates, 500 B.C.


Slide25 l.jpg

Planetary Resource List Analogues on Earth’s Moon & Mars

Burgess, E. To the Red Planet. New York: Columbia University Press, 1978. 181 pp.

Carr, M. H., and Greely R., Volcanic Features of Hawaii: A Basis for Comparison with Mars, NASA SP-403, Washington D.C.: U.S. Government Printing Office, 1980. 211 pp.

Frankel, C. Volcanoes of the Solar System. Cambridge: Cambridge University Press, 1996. 232 pp.

Glass, B. P. Introduction to Planetary Geology. Cambridge: Cambridge University Press, 1982. 469 pp.

Goldsmith, D. The Ultimate Planets: Your Definitive Guide to the Solar System and Beyond. New York: Byron Preiss Multimedia Comapny, Inc., 1998. 196 pp.

Greeley, R. Planetary Landscapes. Boston: Allen & Unwin, Inc., 1987. 275 pp.

Hartman, W. K., et al., Out of the Cradle: Exploring the Frontiers Beyond Earth. New York: Workman Publishing, 1984. 190 pp.

Hartman, W. K. Moons and Planets, 2d ed. Belmont: Wadsworth, Inc., 1983. 509 pp.

Melosh, H. J. Impact Cratering: A Geologic Process. New York: Oxford University Press, 1989. 245 pp.

Spudis, P. D. The Once and Future Moon. Washington and London: Smithsonian Institution Press, 1996. 308 pp.

Strain, P., and Engle, F. Looking at Earth. Atlanta: Turner Publishing, Inc., 1992. 304 pp.

Wilford, N. W. Mars Beckons: The Mysteries, the Challenges, the Expectations of Our Next Great Adventure in Space. New York: Alfred a. Knopf, Inc., 1990. 244 pp.

Wilhelms, D. E. To a Rocky Moon: A Geologist’s History of Lunar Exploration. Tucson & London: University of Arizona Press, 1993. 477 pp.


Slide26 l.jpg

Canyons, Craters and Drifting Dunes - Analogues on Earth’s Moon & Mars

Terrestrial Analogues and Earth’s Moon and Mars

Kimberly Willis, Patricia Wood Dickerson and Brett McRay

NASA -- Johnson Space Center

OFFICE OF EARTH SCIENCES -- Kamlesh Lulla, Chief
