Presentation Transcript
Deploy grid testbed in israel universities l.jpg

Deploy Grid testbed in Israel universities

Lorne Levinson

David Front

Weizmann Institute

Deploy Grid in Israel Universities


The grid problem l.jpg
The Grid Problem

  • Seamless, flexible, secure, coordinatedresource sharing among dynamic collections of individuals, institutions, and resources

  • Enable virtual organizations (VO)s to share geographically distributed resources as they pursue common goals assuming the absence of:

    central location, central control, trust relationships.

Deploy Grid in Israel Universities



Datagrid job submission l.jpg

Input “sandbox”

DataSets info

UI

JDL

Output “sandbox”

grid-proxy-init

SE & CE info

Output “sandbox”

Expanded JDL

Job Submit Event

Job Query

Publish

Input “sandbox” + Broker Info

Job Status

Storage

Element (SE)

Globus RSL

Job Status

Job Status

DataGRID Job submission

Replica

Catalogue

Information

Service

Resource

Broker

(Match requests to resources)

Author.

&Authen.

Job Submission

Service (Condor G)

Compute

Element (CE)

Logging &

Book-keeping

Deploy Grid in Israel Universities


Slide5 l.jpg

Replica Catalogue (RC)

Translates logical FN to physical FN

Ask for a LFN

Write

Read

Return PFN

SE & CE info

Return name & protocol

Information

Service

Publish

Ask for LFN

Storage

Element

Writes a file

File replication

RC only tells where files are

In order to get them,

one may use Gridftp

Deploy Grid in Israel Universities



Slide7 l.jpg

Reptor

Optor

Giggle

GDMP

RepMeC

Data Management future : Reptor: The Next Generation Replica Manager

Replica Manager

Client

Optimization

Transaction

Consistency

File Transfer

Postprocessing

Preprocessing

Replica Location

Subscription

Replica Metadata

Deploy Grid in Israel Universities


The grid is not yet l.jpg

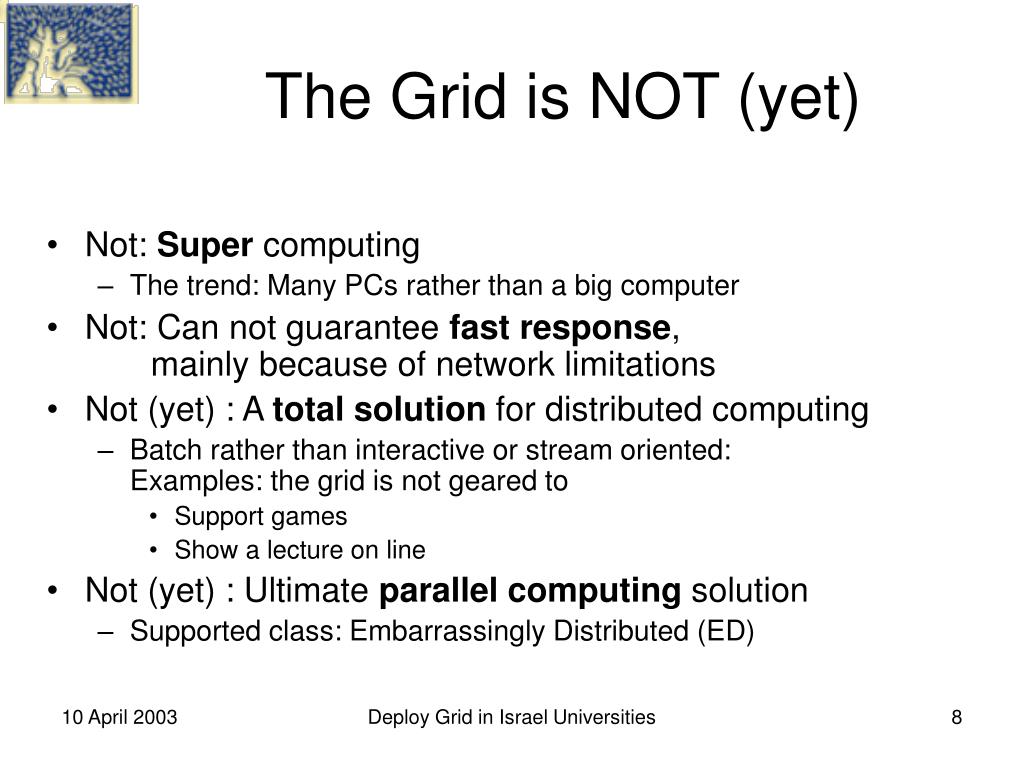

The Grid is NOT (yet)

  • Not: Super computing

    • The trend: Many PCs rather than a big computer

  • Not: Can not guarantee fastresponse, mainly because of network limitations

  • Not (yet) : A total solution for distributed computing

    • Batch rather than interactive or stream oriented:Examples: the grid is not geared to

      • Support games

      • Show a lecture on line

  • Not (yet) : Ultimate parallel computing solution

    • Supported class: Embarrassingly Distributed (ED)

Deploy Grid in Israel Universities


Classes of parallel computing l.jpg

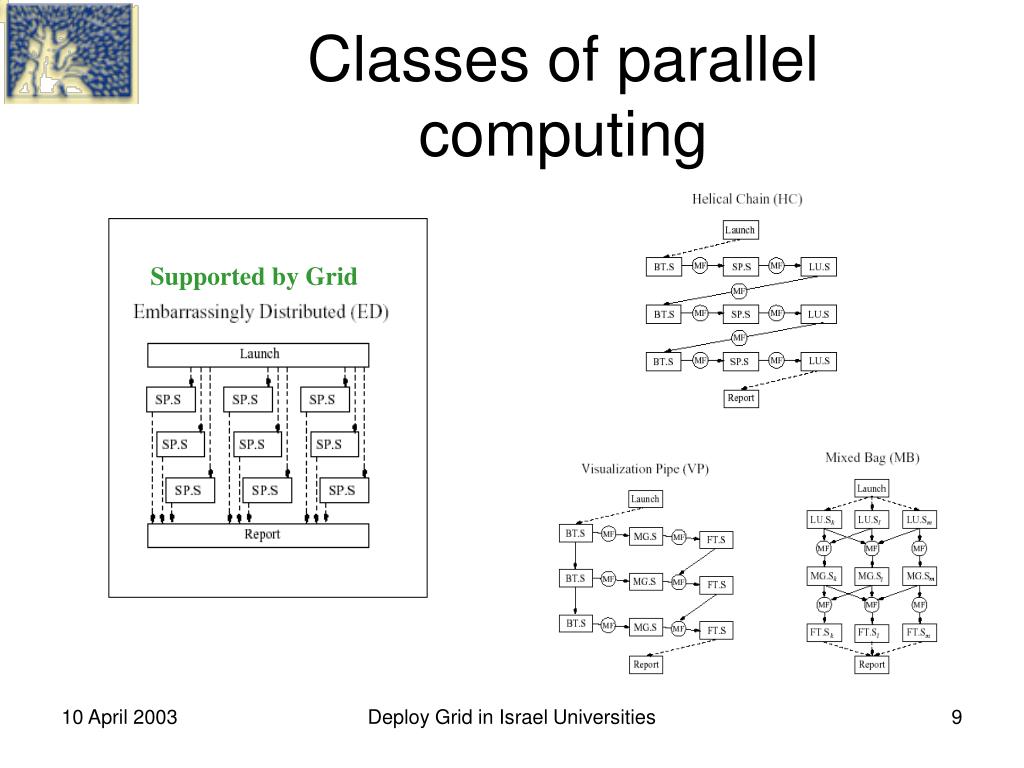

Classes of parallel computing

Supported by Grid

Deploy Grid in Israel Universities


Assumptions l.jpg
Assumptions

  • Grid should be functional

  • Users are scientists

  • Prefer open source

  • Run on Linux RedHat 7.3

Deploy Grid in Israel Universities


Slide11 l.jpg
How?

  • Define priorities for required functionality and suppliers of relevant SW packages

  • Support wide functionality scope. Each institution will select its subset

  • Find best, up-to-date, reasonably tested, set of SW packages

  • Honor Glue - USA-Europe collaboration

  • The actual content and versions will change because SW is evolving

  • Stick to one SW provider that does exactly that

Deploy Grid in Israel Universities


Lhc computing grid lcg l.jpg
LHC Computing Grid - LCG

  • LCG is the project that selects at tests computing grid SW for LHC experiments in CERN

  • LCG will supply highly integrated Grid SW

  • Utilizes American and European Grid SW

  • Honors GLUE: America-Europe collaboration

Deploy Grid in Israel Universities


Lcg main sw suppliers l.jpg
LCG main SW suppliers

  • Globus: A bag of Grid services

    • GSI: Grid Security Infrastructure

    • GRAM: Grid Resource Allocation & Management

    • MDS: Monitoring and Discovery Service

    • GridFTP: file transfer over the net

  • VDT:

    • Condor-G: Submit jobs and monitor job consistency

  • EDG:

    • Resource Broker: Select on what Computing Element (CE) to submit job

    • Data replication

    • VOMS: Virtual Organization Management System

    • TBD: LCFG: Installation and configuration

  • GLUE:

    • Make sure that USA and Europe grid SW work together

Deploy Grid in Israel Universities


Lhc computing grid lcg14 l.jpg

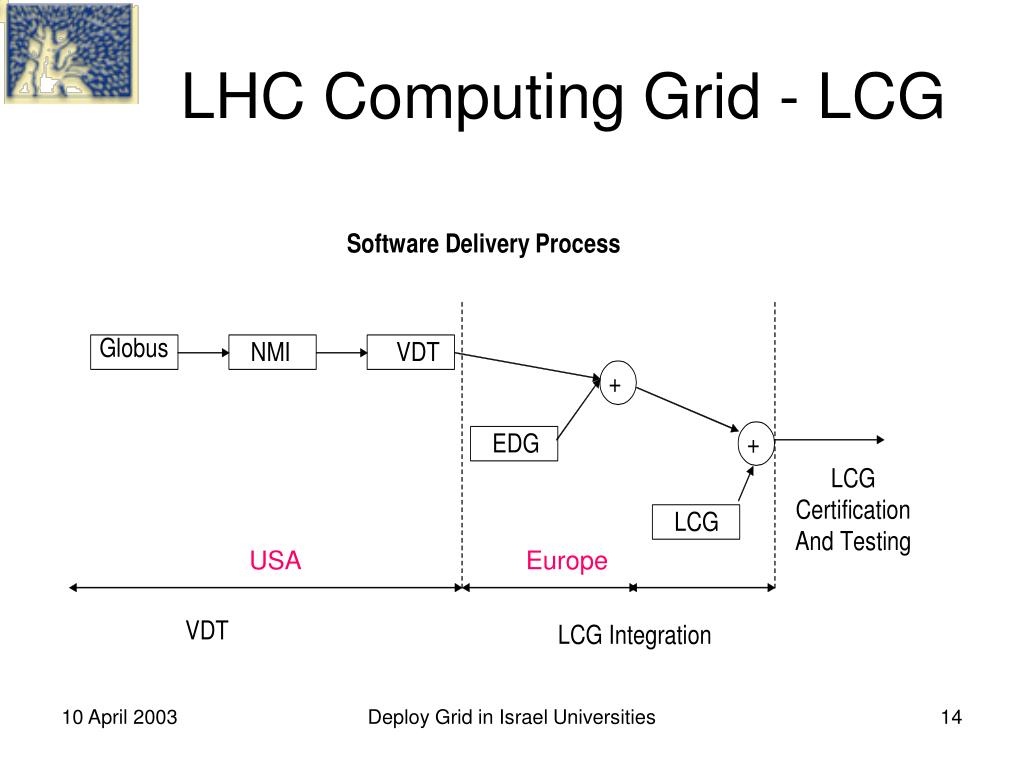

LHC Computing Grid - LCG

USA

Europe

Deploy Grid in Israel Universities


Lcg 1 components 1 2003 l.jpg
LCG-1 Components 1/2003

Deploy Grid in Israel Universities


Lcg 1 components 3 5 2003 l.jpg
LCG-1 Components 3-5/2003

Dilemma: Should the more advanced, but less tested version be used?

Deploy Grid in Israel Universities


Grid functionality security l.jpg

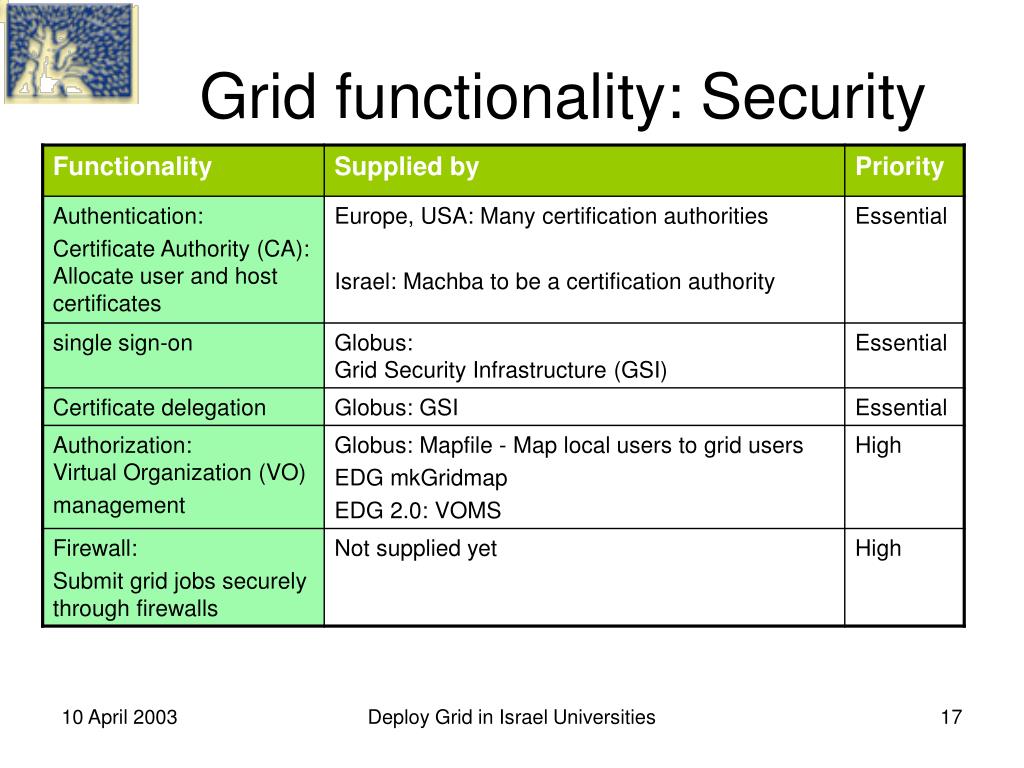

Grid functionality: Security

Deploy Grid in Israel Universities


Grid functionality job submission l.jpg
Grid functionality: Job submission

Deploy Grid in Israel Universities


Grid functionality data management l.jpg
Grid functionality: Data management

Deploy Grid in Israel Universities


Grid functionality information services l.jpg
Grid functionality: Information services

Deploy Grid in Israel Universities


Grid functionality graphical user interface gui l.jpg
Grid functionality: Graphical User Interface (GUI)

Deploy Grid in Israel Universities


Links l.jpg
Links

  • Globus Project™

    • www.globus.org

  • Global Grid Forum

    • www.gridforum.org

  • European Data Grid EDG

    • http://eu-datagrid.web.cern.ch/eu-datagrid/

Deploy Grid in Israel Universities
