Swe 423 multimedia systems l.jpg

SWE 423: Multimedia Systems

Chapter 3: Audio Technology (2)


Audio signal representation l.jpg

Audio Signal Representation

  • Waveform representation

    • Focuses on the exact representation of the produced audio signal.

  • Parametric form representation

    • Focuses on the modeling of the signal generation process.

    • Two major forms

      • Music synthesis (MIDI Standard)

      • Speech synthesis


Waveform representation l.jpg

Waveform Representation

Audio Source

Human Ear

Audio Capture

Playback (speaker)

Sampling & Digitization

Storage or Transmission

Digital to Analog

Receiver

Audio Generation and Playback


Digitization l.jpg

Digitization

  • To get audio (or video for that matter) into a computer, we must digitize it (convert it into a stream of numbers).

  • This is achieved through sampling, quantization, and coding.


Example signal l.jpg

Example Signal

Amplitude


Sampling l.jpg

Sampling

  • Sampling: The process of converting continuous time into discrete values.


Sampling process l.jpg

Sampling Process

  • Time axis divided into fixed intervals

  • Reading of the instantaneous value of the analog signal is taken at the beginning of each time interval (interval determined by a clock pulse)

  • Frequency of clock is called sampling rate or sampling frequency

    • The sampled value is held constant for the next time interval (sampling and hold circuit)


Sampling example l.jpg

Sampling Example

Amplitude


Quantization l.jpg

Quantization

  • The process of converting continuous sample values into discrete values.

    • Size of quantization interval is called quantization step.

    • How many values can a 4-bit quantization represent? 8-bit? 16-bit?

      • The higher the quantization, the resulting sound quality .............


Quantization example l.jpg

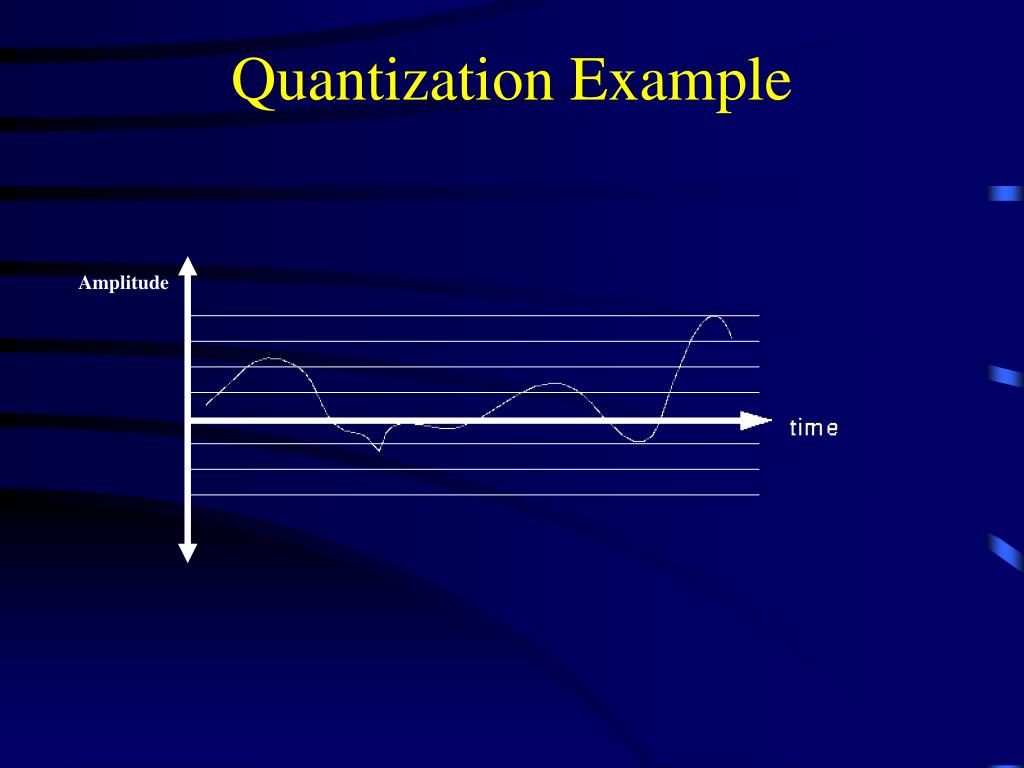

Quantization Example

Amplitude


Coding l.jpg

Coding

  • The process of representing quantized values digitally


Analog to digital conversion l.jpg

Analog to Digital Conversion

Amplitude


Midi interface l.jpg

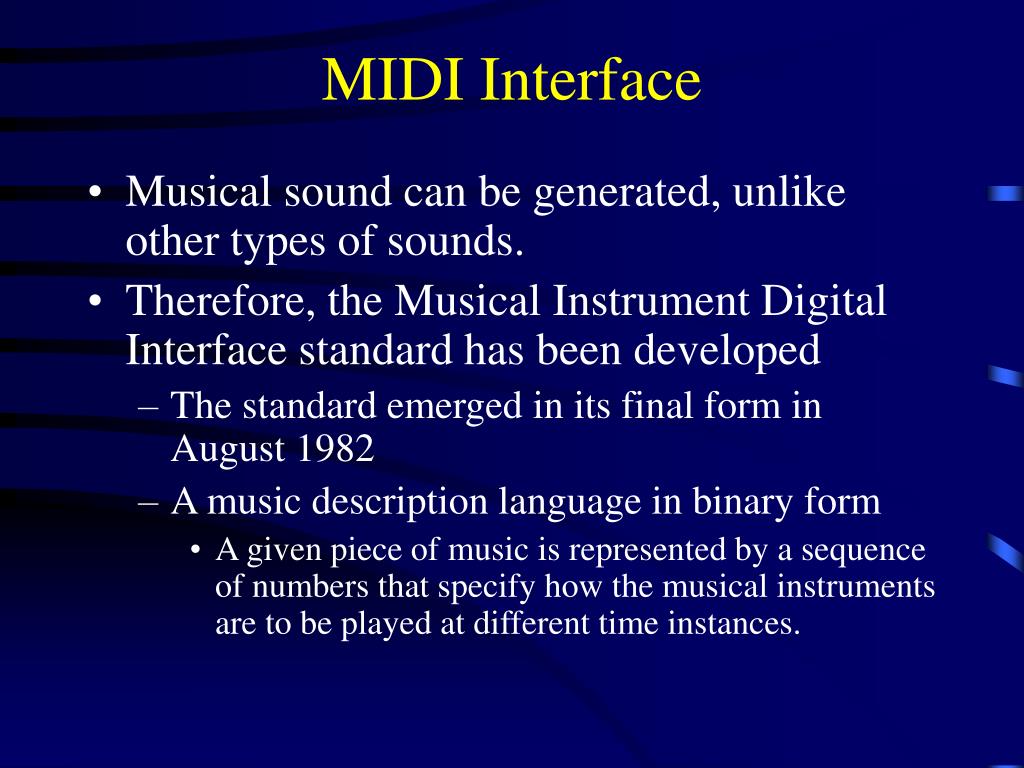

MIDI Interface

  • Musical sound can be generated, unlike other types of sounds.

  • Therefore, the Musical Instrument Digital Interface standard has been developed

    • The standard emerged in its final form in August 1982

    • A music description language in binary form

      • A given piece of music is represented by a sequence of numbers that specify how the musical instruments are to be played at different time instances.


Midi components l.jpg

MIDI Components

  • An MIDI studio consists of

    • Controller: Musical performance device that generates MIDI signal when played.

      • MIDI Signal: A sequence of numbers representing a certain note.

    • Synthesizer: A piano-style keyboard musical instrument that simulates the sound of real musical instruments

    • Sequencer: A device or a computer program that records a MIDI signal.

    • Sound Module: A device that produces pre-recorded samples when triggered by a MIDI controller or sequencer


Midi components15 l.jpg

MIDI Components


Midi data l.jpg

MIDI Data

MIDI File Organization

  • Describes

    • Start/end of a score

    • Intensity

    • Instrument

    • Basis frequency

    • ....

Track 1

Track 2

Header Chunk

Track Header

Track Chunk

Track Header

Track Chunk

Actual Music Data

Status Byte

Data Bytes

Status Byte

Data Bytes


Midi data17 l.jpg

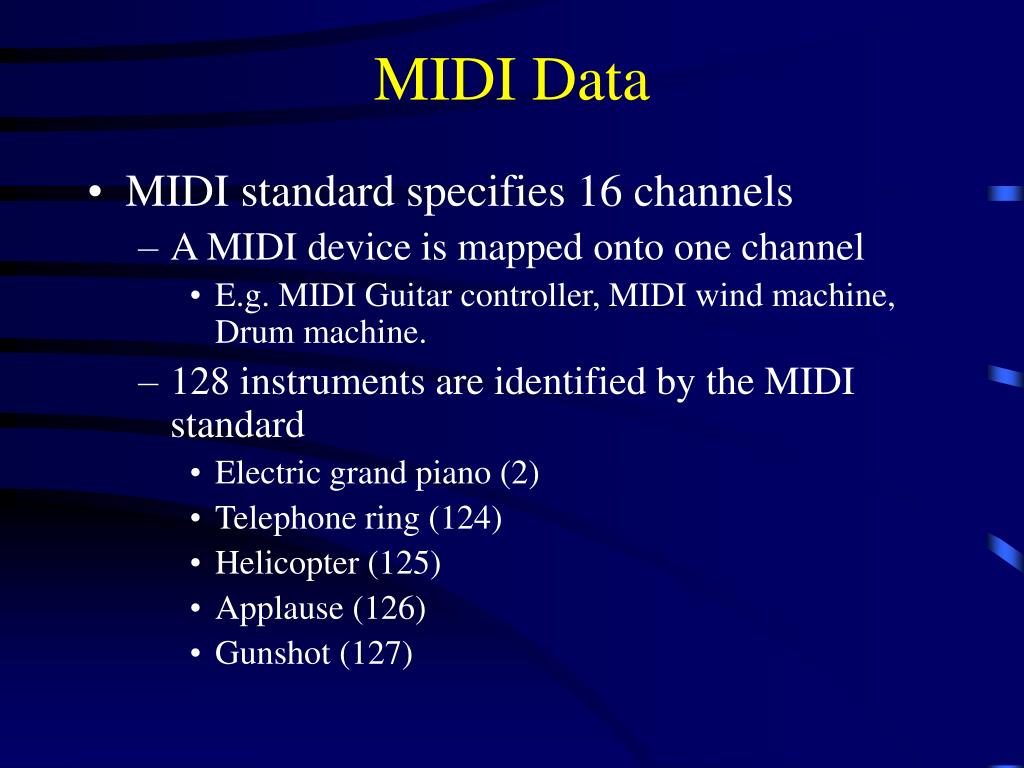

MIDI Data

  • MIDI standard specifies 16 channels

    • A MIDI device is mapped onto one channel

      • E.g. MIDI Guitar controller, MIDI wind machine, Drum machine.

    • 128 instruments are identified by the MIDI standard

      • Electric grand piano (2)

      • Telephone ring (124)

      • Helicopter (125)

      • Applause (126)

      • Gunshot (127)


Midi instruments l.jpg

MIDI Instruments

  • Can play 1 single score (e.g. flute) vs. multiple scores (e.g. organ)

  • Maximum number of scores that can be played concurrently is an important property of a synthesizer

    • 3..16 scores per channel.


3d sound projection l.jpg

3D Sound Projection

  • After experimentation, it was shown that the use of a two-channel sound (stereo) produces the best hearing effects for most people.


Spatial sound l.jpg

Spatial Sound

  • Direct sound path: The shortest path between the sound source and the auditor.

    • Carries the first sound waves to the auditors head.

  • All other sound paths are reflected

  • All sound paths leading to the human ear are influenced by the auditor’s individual head-related transfer function (HRTF)

    • HRTF is a function of the path’s direction (horizontal and vertical angles) to the auditor.

Pulse response in a closed room
