Presentation Transcript


How do i know if the cochlear implant is working l.jpg

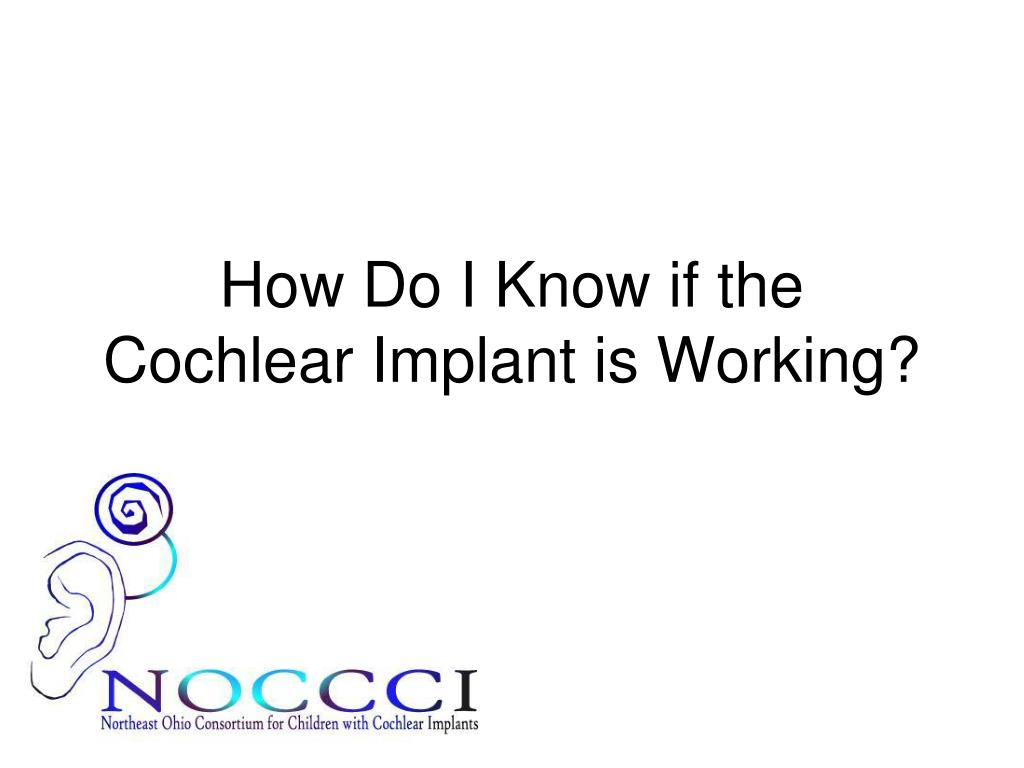

How Do I Know if the Cochlear Implant is Working?


Slide2 l.jpg

Gail S. Murray, Ph.D., CCC-A

Associate Professor, CWRU

Director, Audiology Services

Clinical Director, Cochlear Implant Program

UH Case Medical Center

Rainbow Babies & Children’s Hospital

August 5, 2009

Gail.murray@uhhospitals.org


Introduction l.jpg

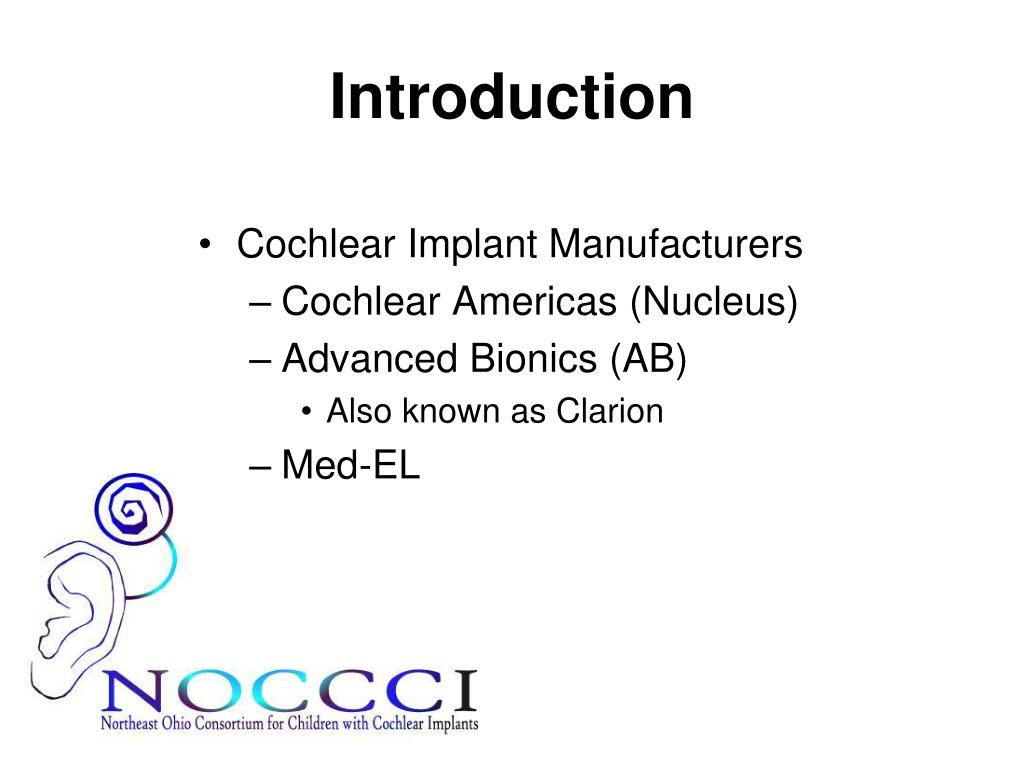

Introduction

  • Cochlear Implant Manufacturers

    • Cochlear Americas (Nucleus)

    • Advanced Bionics (AB)

      • Also known as Clarion

    • Med-EL


Introduction4 l.jpg

Introduction

  • Each manufacturer supports multiple sound processor models.

  • Each manufacturer has “current” sound processor technology that is back-ward compatible with “older” implant technology.

  • Each sound processor requires slightly different troubleshooting procedures.


Troubleshooting made easy l.jpg

Troubleshooting made easy . . .

Identical Main Modules

Different Controllers


Recommendations for schools l.jpg

Recommendations for Schools

  • At least one person at school become familiar with the student’s sound processor.

  • Learn the model name of your student’s sound processor.

  • Learn the components or parts of the sound processor by name.

  • Practice preventative maintenance


Troubleshooting toolbox l.jpg

Troubleshooting Toolbox

  • Be prepared to troubleshoot

  • Work with the parents & audiologist to have the following on hand:

    • Appropriate back-up batteries

    • Appropriate battery holder/rack

    • Monitor Headphones

    • Signal Check

    • Back-up transmitting cables

    • Lapel or Auxiliary Microphone


Nucleus freedom standard bte sound processor l.jpg

Nucleus Freedom Standard BTE Sound Processor

  • Sound Processing Module

  • Microphone(s)

  • Transmitting Coil/Cable Coil

  • Coil & Magnet

  • Controller

  • Batteries or Rechargeable Battery Module


Nucleus freedom body worn sound processor l.jpg

Nucleus Freedom Body Worn Sound Processor

  • Sound Processing Module

  • Microphone(s)

  • Transmitting Cable/Coil

  • Coil & Magnet

  • Controller

  • Controller Shoe & Cable

  • Batteries or Rechargeable Battery Module


Nucleus esprit 3g sound processor l.jpg

Nucleus Esprit 3G Sound Processor

  • Sound Processor

  • Microphone(s)

  • Transmitting Cable/Coil (missing in slide)

  • Coil & Magnet

  • (missing in slide)

  • Controls

  • Battery module


Advanced bionics harmony bte sound processor and components l.jpg

Advanced Bionics Harmony BTE Sound Processor and Components

  • Sound Processing Module & Controller

  • Microphone & Ear Hook

  • Transmitting Cable/ Coil

  • Coil & Magnet

  • Rechargeable Battery Module


Advanced bionics harmony bte sound processor and components13 l.jpg

Advanced Bionics Harmony BTE Sound Processor and Components

There are two other models of BTE processors

Auria

Platinum/CII BTE


Med el ear level speech processors l.jpg

MED-EL Ear-level Speech Processors

  • Tempo+/OPUS 1

    • Program/volume switches

    • Sensitivity dial

  • OPUS 2

    • Switch free design

    • FineTuner™


Med el tempo bte sound processor l.jpg

MED-EL Tempo+ BTE Sound Processor

  • Sound Processing Module & Controller

  • Microphone(s)

  • Transmitting Coil & Magnet

  • Transmitting Cable

  • Ear Hook

  • Battery Module


Med el opus bte sound processor l.jpg

MED-EL Opus BTE Sound Processor

  • Sound Processing Module & Microphone(s)

  • Coil & Magnet

  • Transmitting Cable

  • Earhook

  • Battery Module

  • Connecting piece


Basic troubleshooting concepts l.jpg

Basic Troubleshooting Concepts

  • Establish a two-way communication & notification method with the student’s parent.

  • Incorporate an action plan for daily equipment checks into the student’s IEP


Basic troubleshooting concepts18 l.jpg

Basic Troubleshooting Concepts

  • Establish reliable speech-base feedback tools to use for daily listening check.

    • Ling 6 sounds test (aa, oo, ee, sh, ss, mm)

    • Closed set spondees (baseball, airplane)

    • Closed set words (colors, familiar names)

    • Open set words/sentences (What did you eat for breakfast; Who drove you to school).


Ling 6 sound check l.jpg

Ling 6 Sound Check


Cochlear implant accessories to have on hand l.jpg

Cochlear Implant Accessories – to have on hand

  • Monitor Headphones

  • Lapel or Auxiliary Microphone

  • Signal Check or System Sensor

  • Battery Charging System

  • Earhooks (T-Mic, Direct Connect, etc)

  • Audio or Interface Cables

  • User Manual (CD)


Nucleus freedom bte accessories l.jpg

Nucleus Freedom BTE Accessories

  • Monitor Headphone

  • Lapel or Auxiliary Microphone

  • Signal Check/System Sensor

  • Battery Charging System

  • Earhooks (T-Mic, Direct Connect, etc)

  • Audio or Interface Cables

  • User Manual (CD)


Sprint body worn accessories l.jpg

Sprint Body Worn Accessories

  • Monitor Headphone

  • Lapel or Auxiliary Microphone

  • Signal Check/System Sensor

  • Battery Charging System

  • Audio or Interface Cables

  • User Manual (CD)


Freedom sound processor help messages l.jpg

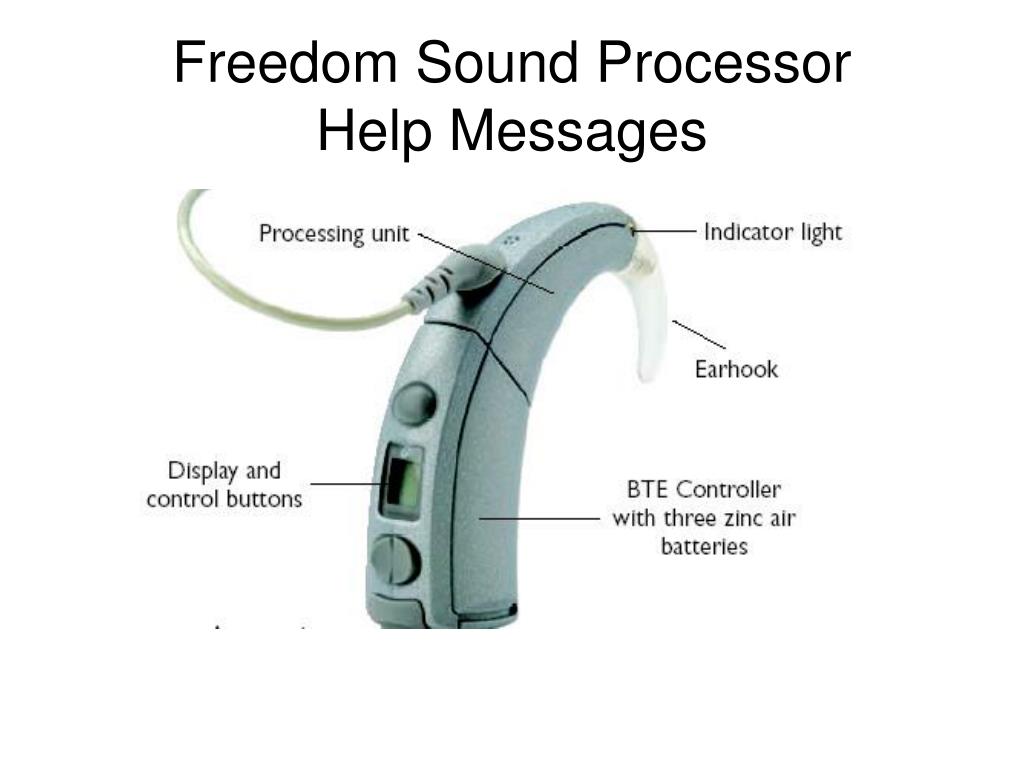

Freedom Sound ProcessorHelp Messages


Freedom sound processor help messages24 l.jpg

Freedom Sound ProcessorHelp Messages

  • H1 = Battery flat

    • Check for proper battery insertion

    • Change batteries; change battery holder

  • H2 = Battery low

    • Change batteries

  • H3 = Coil error

    • Check for proper coil insertion & placement

    • Check for cable damage

    • Change coil


Freedom sound processor help messages25 l.jpg

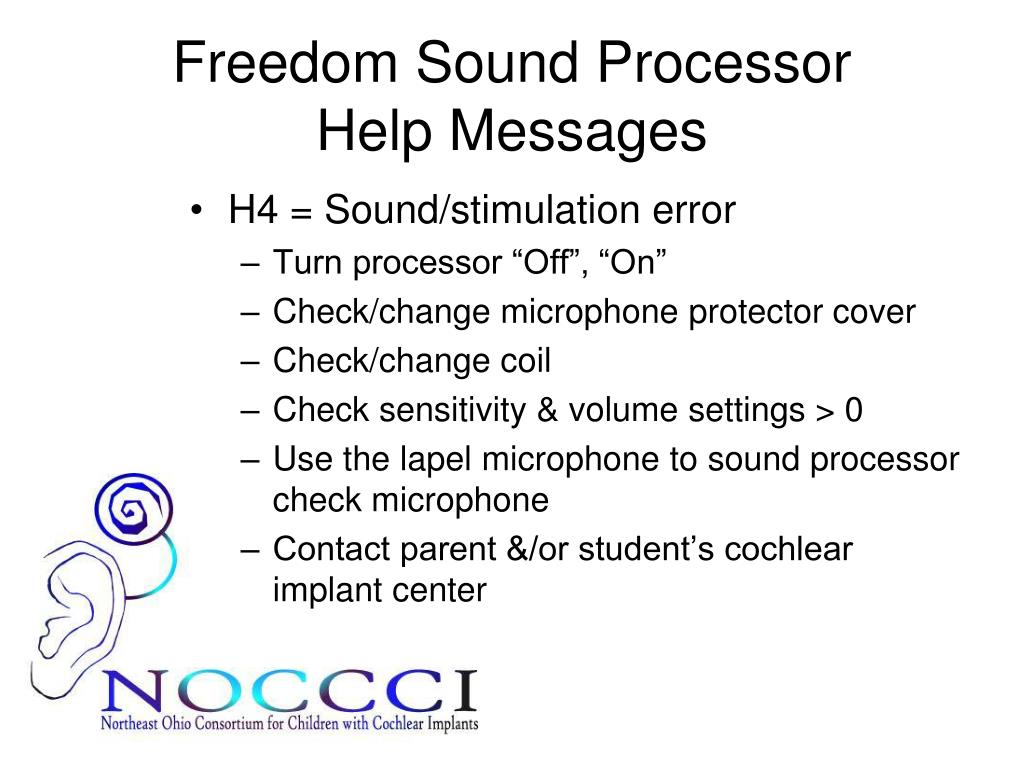

Freedom Sound ProcessorHelp Messages

  • H4 = Sound/stimulation error

    • Turn processor “Off”, “On”

    • Check/change microphone protector cover

    • Check/change coil

    • Check sensitivity & volume settings > 0

    • Use the lapel microphone to sound processor check microphone

    • Contact parent &/or student’s cochlear implant center


Freedom sound processor help messages26 l.jpg

Freedom Sound ProcessorHelp Messages

  • H5 = MAP corrupt

    • Try alternate program

    • Contact student’s cochlear implant center

  • H6 = RF interference

    • Contact student’s cochlear implant center


Harmony sound processor help messages l.jpg

Harmony Sound ProcessorHelp Messages


Harmony bte 3 color help messages l.jpg

Harmony BTE 3 Color Help Messages

  • Red:

    • A communication error with implant

    • Processor/ear is mismatched

    • Headpiece off or loss of communication

  • Green:

    • Microphone is working

    • Program slot is empty

  • Orange:

    • Battery is low

    • Battery needs to be changed/dead

    • Battery charge status


Med el verifying normal equipment function l.jpg

MED-EL: Verifying normal equipment function

  • The red LED will illuminate 4-5 seconds when the processor is first activated (brief flashes for Opus 2)

  • This uploads the map, & performs a diagnostic check.

  • LED light continues to blink only when communicating a problem.


Led indicator in med el processors l.jpg

LED Indicator in MED-EL Processors

  • Processor status

  • Program errors

  • Low battery

  • Flashing patterns can be deactivated by the CI audiologist


Med el tempo opus 1 l.jpg

MED-EL TEMPO+/OPUS 1


Finetuner tips l.jpg

FineTuner Tips

  • Not needed during the day unless:

    • Child has need of the telecoil feature

    • Child needs to make a program or volume change

  • If processor batteries are changed, it reverts to the same settings previously in use

    • One exception: Telecoil on reverts to mic on


Basic troubleshooting concepts33 l.jpg

Basic Troubleshooting Concepts

  • Check for power

    • Processor turned on & in proper program

    • Check for visible signal light or LCD display

    • Replace batteries


Power options l.jpg

Power Options

Ask parents to provide disposable battery pack option


Basic troubleshooting concepts35 l.jpg

Basic Troubleshooting Concepts

  • Check for visible defects

    • Frayed cables

    • Cracked casing or controller

    • Loose connections

      • Cables, component parts, batteries


Basic troubleshooting concepts36 l.jpg

Basic Troubleshooting Concepts

  • Check Transmitting Coil & Cables – Steps:

    1. Confirm that cable(s) is plugged in correctly.

    2. Hold the signal check over the transmitting coil when power is on.


Basic troubleshooting concepts37 l.jpg

Basic Troubleshooting Concepts

  • Check Transmitting Coil & Cables – Steps:

    3. Red light should illuminate.

    4. Replace transmitting coil one at a time; apply signal check after each component change.

    5. Check microphone if no transmission.

    MED-EL signal check: Nucleus:


Basic troubleshooting concepts advanced bionics l.jpg

Basic Troubleshooting ConceptsAdvanced Bionics


Basic troubleshooting concepts advanced bionics39 l.jpg

Basic Troubleshooting ConceptsAdvanced Bionics


Microphone check l.jpg

Microphone Check


Basic troubleshooting concepts41 l.jpg

Basic Troubleshooting Concepts

  • Microphone Check Steps:

    • Turn off sound processor

    • Attach monitor headphones

    • Turn sound processor on

    • Perform listening check

      • Use Ling sounds & running speech

      • Own voice should be clear & static free

      • Move cables around & listen for static or intermittency

    • Apply Aux mic & compare sound


Use of auxiliary microphone l.jpg

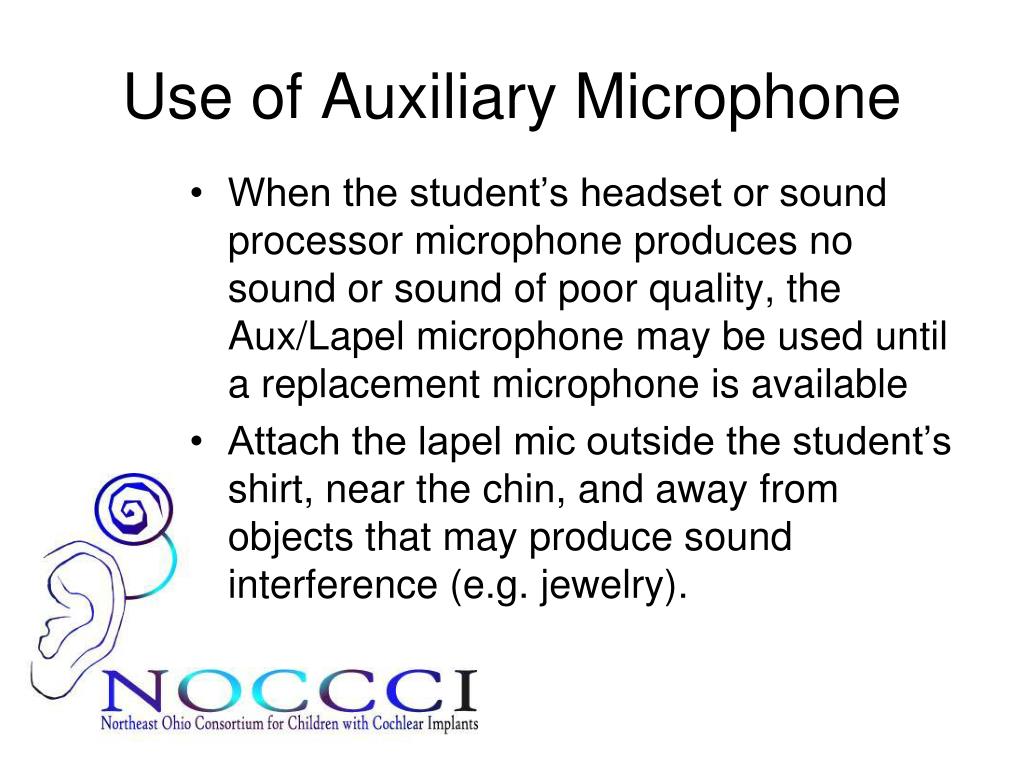

Use of Auxiliary Microphone

  • When the student’s headset or sound processor microphone produces no sound or sound of poor quality, the Aux/Lapel microphone may be used until a replacement microphone is available

  • Attach the lapel mic outside the student’s shirt, near the chin, and away from objects that may produce sound interference (e.g. jewelry).


Don t forget about the internal device l.jpg

Don’t forget about the internal device

  • When all else fails – refer the student back to the implant center &/or surgeon


Other learning tools l.jpg

Other Learning Tools

  • Join the hands-on demonstration at today’s Break-Out Sessions.

  • Accompany your student to the CI Center for a mapping session.

  • Attend the Greater Cleveland Cochlear Implant Support Group Meetings – 3 per year.


Help by phone l.jpg

Help by Phone . . .

  • Cochlear Americas 800-523-5798

  • Advanced Bionics 800-678-2575

  • MED-EL 888-633-3524

    Ask for Customer Service, or for the “Audiologist on call”

  • The student’s Cochlear Implant Audiologist


Help on the web l.jpg

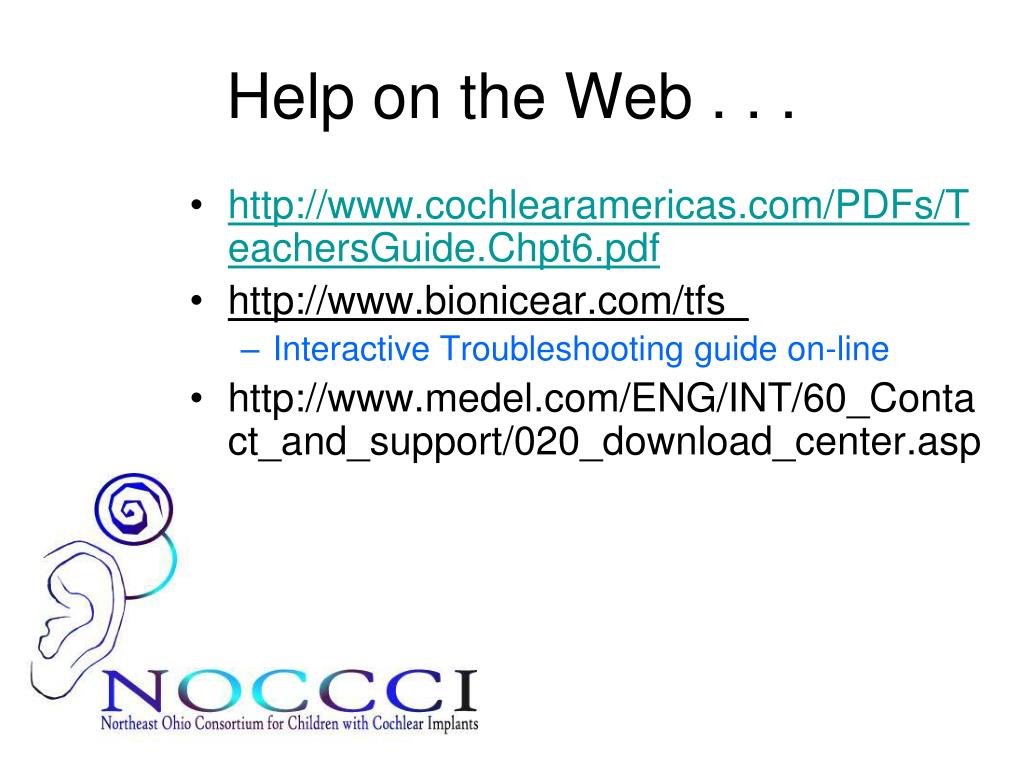

Help on the Web . . .

  • http://www.cochlearamericas.com/PDFs/TeachersGuide.Chpt6.pdf

  • http://www.bionicear.com/tfs_

    • Interactive Troubleshooting guide on-line

  • http://www.medel.com/ENG/INT/60_Contact_and_support/020_download_center.asp


Slide47 l.jpg

All questions will be honored and answered at the end of the morning proceedings. Please write your questions on a provided note card.
