Presentation Transcript

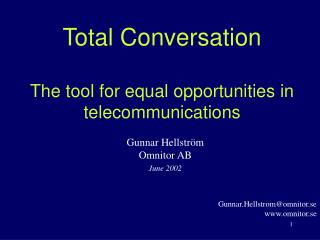

Total conversation the tool for equal opportunities in telecommunications l.jpg

Total ConversationThe tool for equal opportunities in telecommunications

Gunnar HellströmOmnitor AB

June 2002

[email protected]


Total conversation combines three features l.jpg
Total conversation combines three features

Total Conversation combines features of video telephony, text telephony and voice telephony

A standardised concept for telecommunication for all.

Video telephony

Text telephony

Total Conversation for all in video, text and voice.

Voice telephony


A total conversation user interface l.jpg

Example of a Total Conversation user interface

A Total Conversation user interface

Call control

Tal

Voice

Sign language

Text in multimedia

call.

Teckenspråk

Also for Text Telephony


Typical use between deaf users l.jpg
Typical use between deaf users

Deaf Deaf

Video for Sign Language

Text for phone numbers, addresses …


Typical use with hard of hearing user l.jpg
Typical use with hard-of-hearing user

Hard-of-hearing Hearing

Voice

Speech-reading

Text when needed


Typical use between deaf and hearing users l.jpg
Typical use between deaf and hearing users

Deaf Hearing

Text for the conversation

Video for recognition


Total conversation usability increase in personal communication l.jpg
Total Conversation: usability increase in personal communication

  • The combination of video, text and voice in conversation is a very strong accessible service of value for all.

    • Deaf

    • Hard-of-hearing

    • Speech impairments

    • Deaf-blind

    • Aphasia

    • Older

    • People in noisy environments

    • People in environments requiring silence

    • When submitting a booking number, and address etc.

    • When taking a language course on distance

    • All


Itu t t 140 the common base for text conversation l.jpg
ITU-T T.140, the common base for text conversation communication

  • Extremely simple text chat protocol

  • Unicode UTF-8 coding

  • Included in all Multimedia protocol standards for fixed and mobile networks.

What is the street address?

Alameda 34

Example of T.140 display


Total conversation a complete standardized family etsi itu ietf 3gpp approved l.jpg

GSM communication

Text

telephony

T.120 Data

H.324

H.320

3G.324

H.323

Mobile system

conferencing

Mobile system

Voice

Voice

Voice

Voice

and

and

and

T.140

and

T.140

T.140

T.140

T.140

T.140

voice

T.140

video

video

video

video

CTM

T.134

T.124

Equalizer for legacy

AL1

H.245

AL1

H.245

H.224

RTP

H.245

Trans

GCC

parent

Audio coding

H.223

H.221

H.223

H.225.0

T.123

Mobile

V.18

Network

Mobile

Network

V.34/V.80

transmission

access

transmission

access

PSTN

PSTN

ISDN

DATACONF.

IP

CS MM

Mobile

Total Conversation -a complete standardized familyETSI, ITU, IETF, 3GPP approved

IETF SIP

Voice

and

T.140

video

RTP

SDP

IP

Network

transmission

GSM text

IP

H.248 Text - aware Gateway (Annex F)

Total Conversation service defined in ITU-T F.703


Video quality for sign language and lip reading a prerequisite l.jpg
Video quality for sign language and lip reading – a prerequisite

  • Video communication quality level needed for signing and lip reading.

  • Requirements are documented in an ITU document. (ITU-T Series H, Suppl 1 )



Service level l.jpg
Service Level all

  • The Total Conversation service is defined in ”ITU-T F.703 Multimedia conversational service description”

  • The mobile corresponding definition is in 3GPP 22.226 Global Text and Total conversation service

  • Text telephony is a limited subset of Total Conversation, also defined in the same specs.


Transport level l.jpg
Transport Level all

  • Each Multimedia environment needs its own transport standards for the media streams.

  • Available now for:

    • IP for ITU-T H.323

    • IP for IETF SIP, also used in 3GPP Mobile IP Multimedia

    • Circuit switched in H.324 and in 3G.324

    • ISDN in H.320

    • Mobile voice channel – CTM modem in 3GPP

    • Text telephony

  • Gatewaying is also specified in ITU-T H.248 Annex F


Total conversation implementations l.jpg
Total Conversation Implementations all

  • Allan-10 from Omnitor was the first Total Conversation product. – for ISDN

  • Allan-10 now makes communication easy for many deaf users at work.

  • Tandberg videoconferencing units for ISDN now support Total Conversation

  • Allan eC from Omnitor is the first product for IP based Total Conversation.



Allan ec features l.jpg
Allan eC features all

  • IP Total Conversation through H.323

  • Good video quality

  • PC based

  • Univergsal alerting system connection

  • Multifunction opportunity – text telephone in the same user interface

  • Gateway configuration IP text telephony – PSTN text telephony (V.18).

  • Powered by eConf from France Telecom

  • The initial base for an eTEN proposal.


Allan ec text telephony interoperability l.jpg
Allan eC text telephony interoperability all

PSTN

V.18 modem

IP

Multifunction terminal mode


Slide18 l.jpg

Allan eC text telephony interoperability all

H.323 Total Conversation terminal

Allan eC H.323 / V.18

Text gateway

PSTN

V.18 modem

IP

IP

Text gateway mode


Slide19 l.jpg

Voice telephony interoperability all

IP Total Conversation terminal

IP networks

PSTN

IP Telephony gateway

IP Voice telephone

IP Total Conversation terminal


Conclusion l.jpg
Conclusion all

  • Total Conversation is a standardised concept.

  • Total Conversation brings equal opportunities to telecommunication

  • Total Conversation is designed for all

  • Total Conversation is a smooth way to harmonization and interoperability

  • Total Conversation is ready to use

  • Total Conversation is ready for rollout in an eTen project


Eten project l.jpg
eTEN-project all

  • TEN = TransEuropean Networks

    From Technical Validation

    through

    Organisational Coordination

    &

    “Business Models” confirmation

    to

    Service Provision


Slide22 l.jpg

Vision all

  • Everyone, everywhere should be able to communicate seamlessly in Europe with everyone else and to access information & services in his/her preferred mode of expression to a price comparable to todays telephone costs.


Slide23 l.jpg

Application areas in the all eTEN project

  • Social contacts

    • Hearing impaired, deaf, deaf-blind, aphasia, all

  • Elderly care and harmony in ageing

    • Care service centres, older people, relatives

  • E-learning

    • Personal contacts in distance education. E.g. Language courses.

  • Mediated personal communication

    • Sign language relay services and distant interpreting

    • Speech – to – speech with visual support

    • Text relay services

  • Government agencies accessible for all

    • Serve all citizens in the media that suits both parties.


Partner roles l.jpg
Partner roles all

  • Co-ordinator

  • Technology providers

  • Broadband, Wireless and 3G Operators

  • Care providers

  • E-learning providers

  • Mediated service providers

  • Accessible authority providers

  • Evaluation and assessment


Time schedule l.jpg
Time schedule all

  • Project outline June – Sep 2002

  • Partner search June - Oct 2002

  • Draft description Nov – Dec 2002

  • Call Nov 2002

  • Application deadline January 2003

  • Evaluation Feb-Mar 2003

  • Negotiations Apr – May 2003

  • Project start June -July 2003
