station augmentation

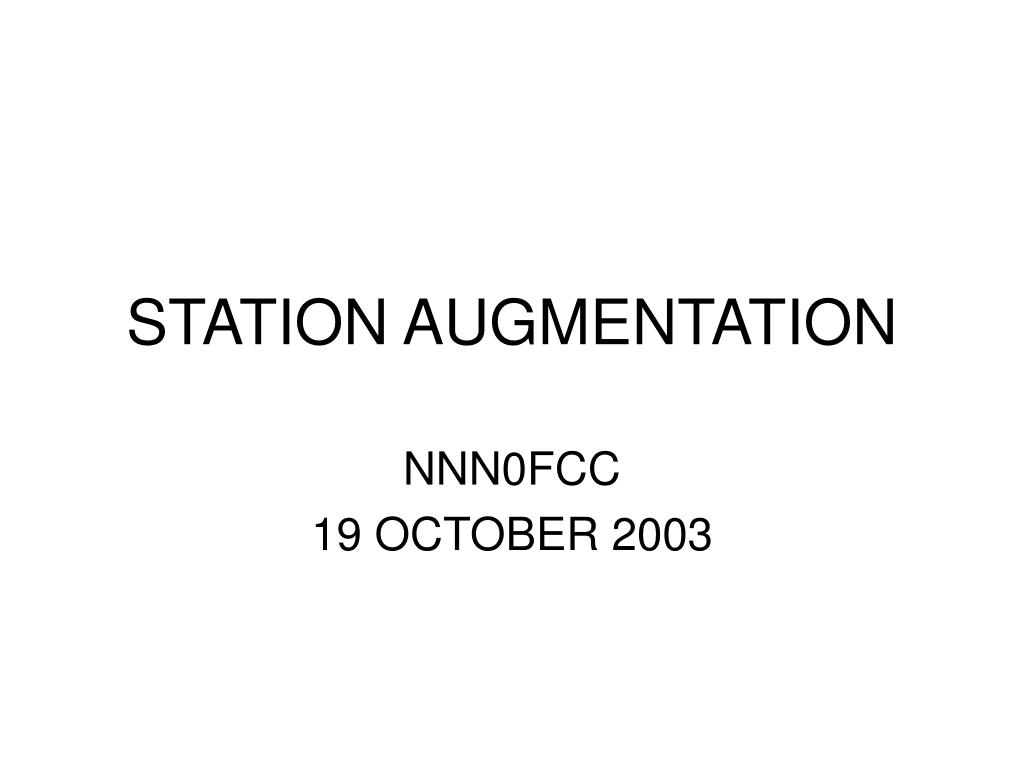

STATION AUGMENTATION

NNN0FCC

19 OCTOBER 2003

station 1

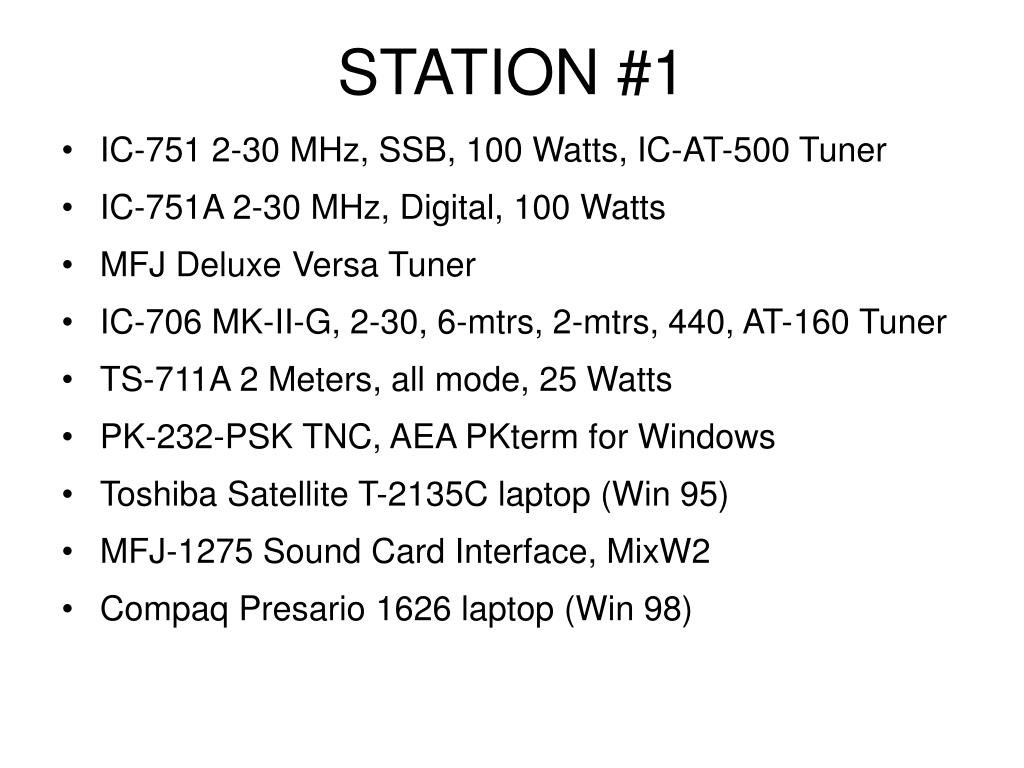

STATION #1
  • IC-751 2-30 MHz, SSB, 100 Watts, IC-AT-500 Tuner
  • IC-751A 2-30 MHz, Digital, 100 Watts
  • MFJ Deluxe Versa Tuner
  • IC-706 MK-II-G, 2-30, 6-mtrs, 2-mtrs, 440, AT-160 Tuner
  • TS-711A 2 Meters, all mode, 25 Watts
  • PK-232-PSK TNC, AEA PKterm for Windows
  • Toshiba Satellite T-2135C laptop (Win 95)
  • MFJ-1275 Sound Card Interface, MixW2
  • Compaq Presario 1626 laptop (Win 98)
station 2

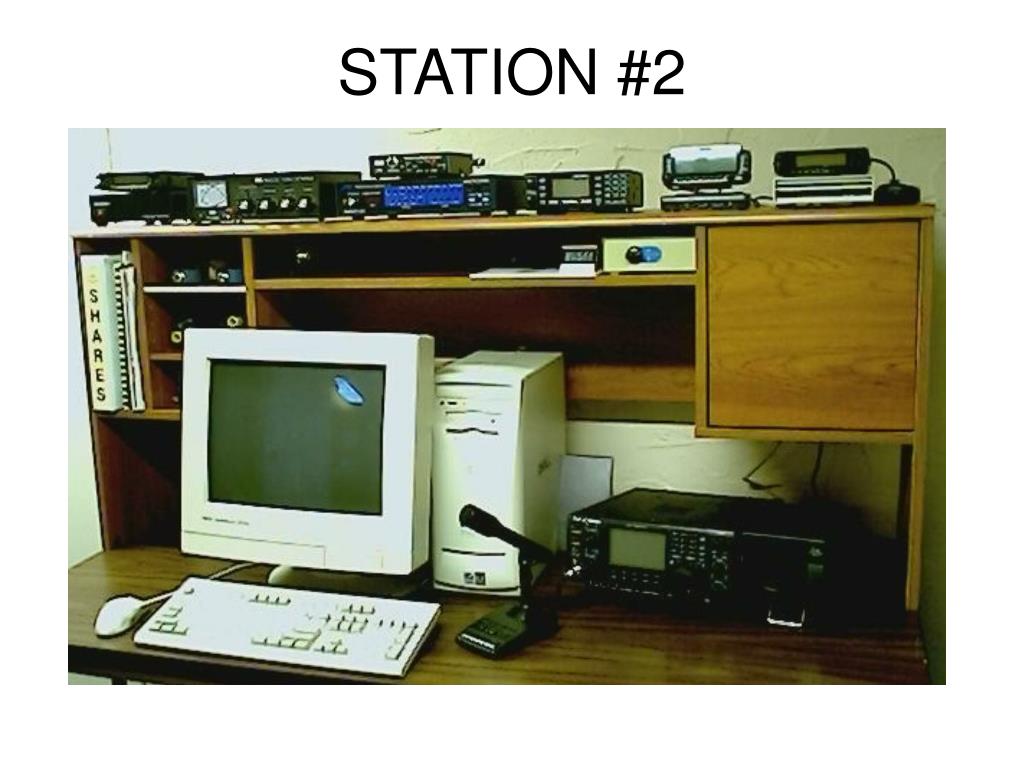

STATION #2
  • IC-746-PRO 2-30 SSB/Digital, 100 Watts
  • MFJ Deluxe Versa Tuner
  • FT-8900 10/6/2/440 FM/Digital, 50 Watts
  • Dell Dimension Desktop, Windows 2000
  • PK-232-MBX, AEA PLTerm for Windows
  • MFJ-1275 Sound Card Interface
additional equipment station 2

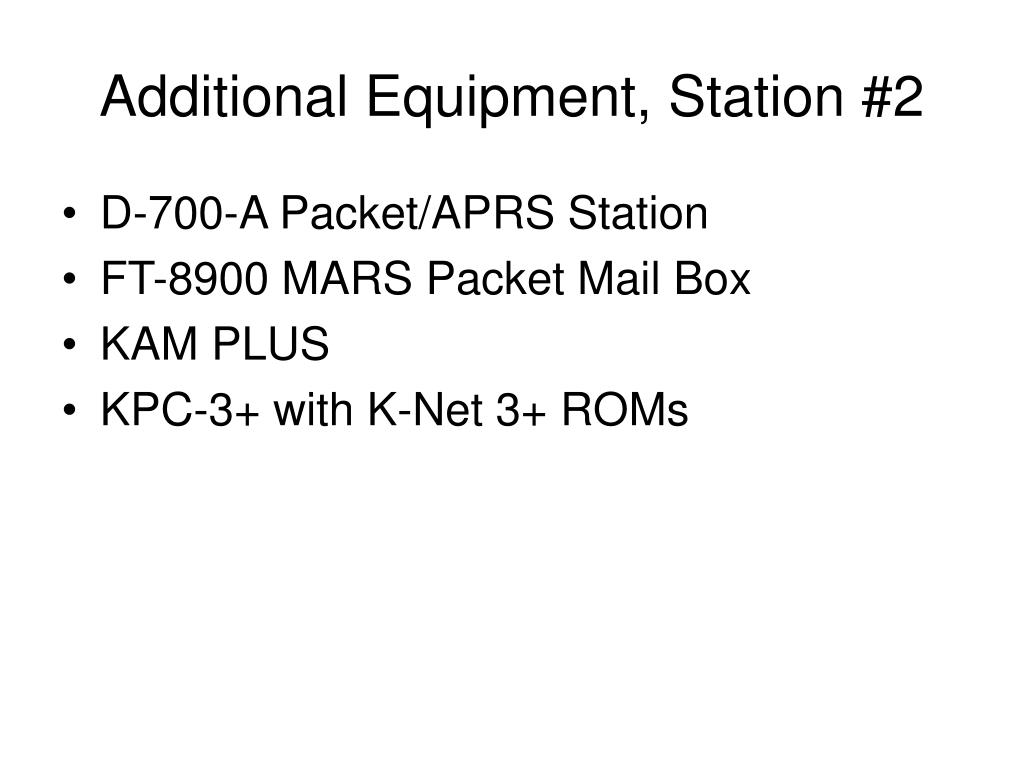

Additional Equipment, Station #2
  • D-700-A Packet/APRS Station
  • FT-8900 MARS Packet Mail Box
  • KAM PLUS
  • KPC-3+ with K-Net 3+ ROMs
nnn0fcc antenna farm
NNN0FCC ANTENNA FARM
  • 80 METER DIPOLE @ 17 feet
  • 160 METER LOADED DIPOLE @ 35 feet
  • 10 to 40 vertical, ground mounted
  • 2-30 B&W FOLDED DIPOLE @ 35 feet
  • AEA ISO-POLE 2 meter vertical @ 25 feet
  • Cushcraft 11-element beam @ 18 feet
  • AR-270 vertical @ 20 feet
  • Diamond 6-2-440 vertical @ 40 feet
  • Full size 6 meter vertical at 12 feet
emergency power

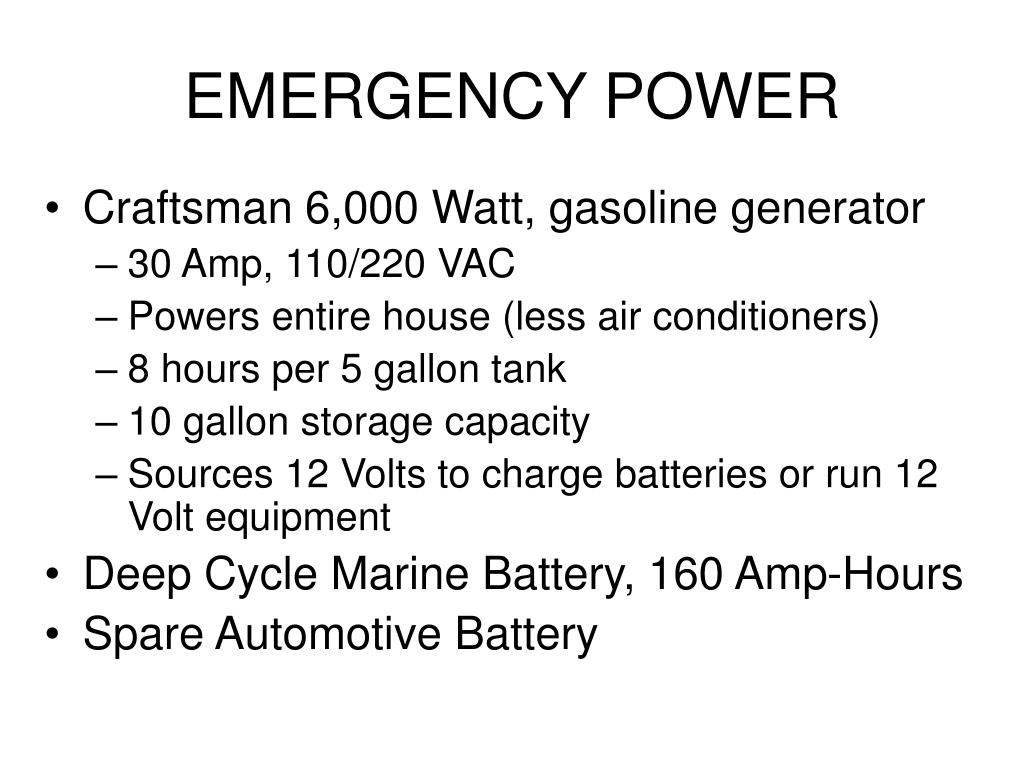

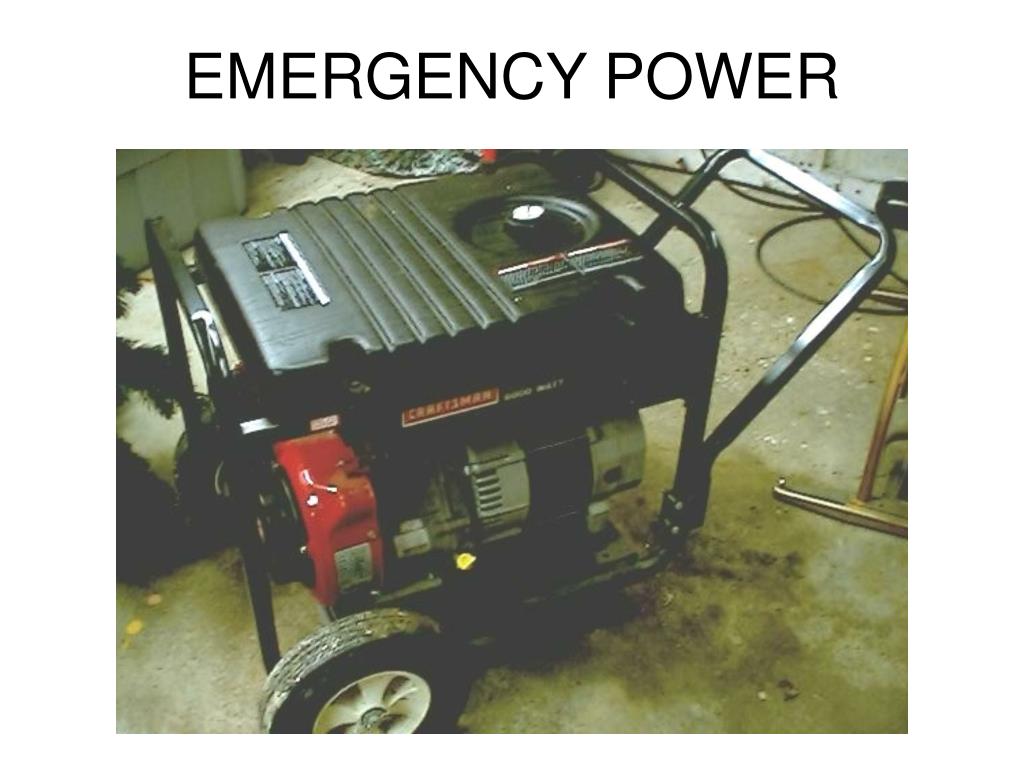

EMERGENCY POWER
  • Craftsman 6,000 Watt, gasoline generator
    • 30 Amp, 110/220 VAC
    • Powers entire house (less air conditioners)
    • 8 hours per 5 gallon tank
    • 10 gallon storage capacity
    • Sources 12 Volts to charge batteries or run 12 Volt equipment
  • Deep Cycle Marine Battery, 160 Amp-Hours
  • Spare Automotive Battery
additional radio equipment
Additional Radio Equipment
  • IC-T81-A, 6/2/440/1.2GHz hand-held, 5-Watts
  • IC-24AT 2/440 hand-held, 5-Watts
  • Uniden BC-580 trunking scanner
  • RCA Scantrak Scanner
  • Swan FM-2X, 2 Meter, Xtal-controlled
  • 80-watt, 2 Meter amplifier
