Sectional Anatomy

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Sectional anatomy l.jpg

Sectional Anatomy

Renal

CS-Renal-L.Zanin


Ultrasound techniques l.jpg

Ultrasound Techniques

  • Supine or decubitus

  • LLD - Rt kidney

  • RLD - Lt kidney

  • Kidney is scanned in sagittal, transverse, & coronal

  • Sagittal & coronal - renal capsule is smooth bean shaped

CS-Renal-L.Zanin


Ultrasound techniques3 l.jpg

Ultrasound Techniques

  • Transverse - shape varies at different levels

  • Upper & lower poles are round or oral shaped

  • Midportion slightly indented in the hilium region

  • Kidney develops from lobes that fuse together

  • They develop in the pelvis embryonicly and ascends to abdomen by birth

CS-Renal-L.Zanin


Renal upper pole l.jpg

Renal Upper Pole

CS-Renal-L.Zanin


Renal mid portion l.jpg

Renal Mid-portion

CS-Renal-L.Zanin


Renal lower pole l.jpg

Renal Lower Pole

CS-Renal-L.Zanin


Kidney anatomy l.jpg

Kidney Anatomy

  • Retroperitoneal organ

  • Kidney surrounded by fibrous capsule

  • Surrounding the encapsulated kidney is perinephric fat

  • Enclosing kidney’s, perinephric fat and adrenals is a fibrous sheath, called Gerotas Fascia

CS-Renal-L.Zanin

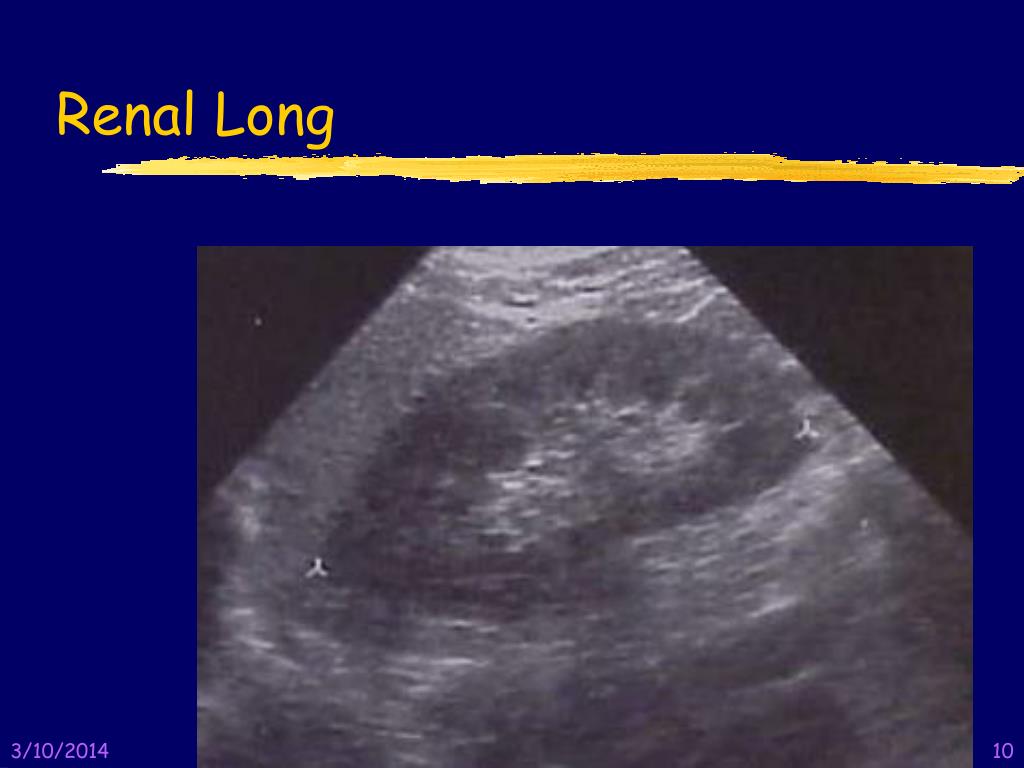

Renal long l.jpg

Renal Long

CS-Renal-L.Zanin


Renal long9 l.jpg

Renal Long

CS-Renal-L.Zanin


Renal long10 l.jpg

Renal Long

CS-Renal-L.Zanin


Renals l.jpg

Renals

CS-Renal-L.Zanin


Kidney anatomy12 l.jpg

Kidney Anatomy

  • Retroperitoneal organ

    Renal Parenchyma can be divided into:

    Renal Cortex (outer portion)

  • Consists of glomerula complex

  • Occupies outer 1/3 of parenchyma

  • Moderately hypoechoic outer zone

  • Slightly less echogenic than liver

    Medulla (inner portion)

  • Pyramids – contain collecting tubles and loops of Hnle

  • Column of bertin is cortical tissue that extends inward toward the renal sinus between the pyramids

  • Appears echogenic, when it is enlarged they appear as pseudotumers

CS-Renal-L.Zanin


Column of bertin l.jpg

Column of Bertin

CS-Renal-L.Zanin


Kidney anatomy14 l.jpg

Kidney Anatomy

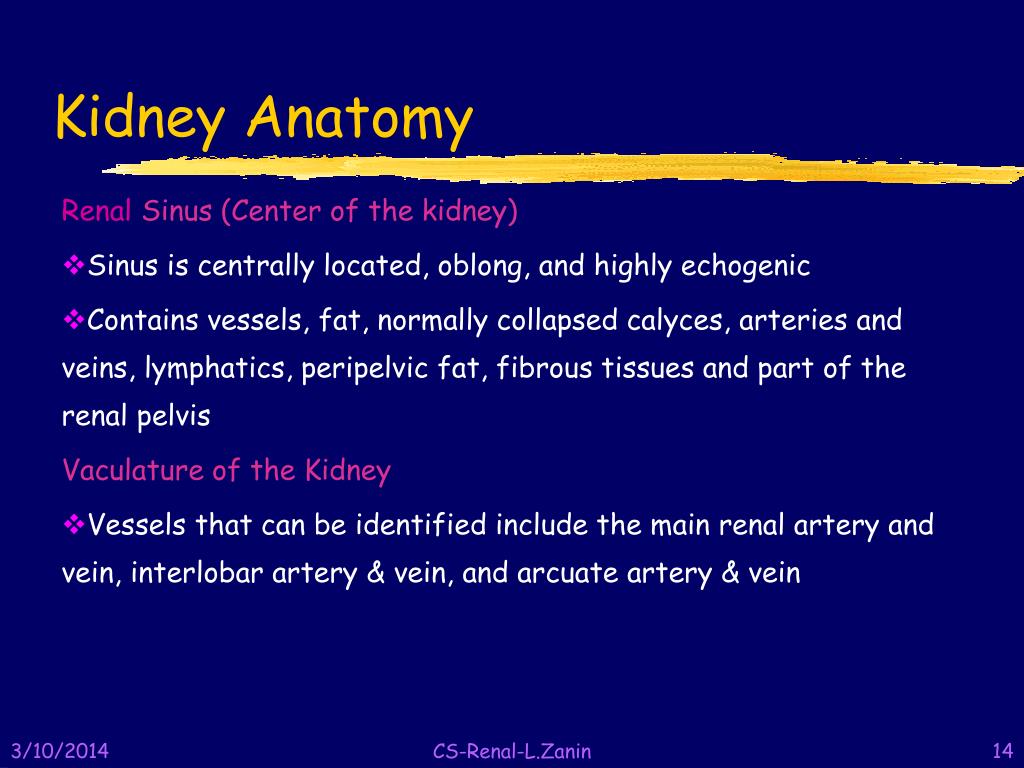

Renal Sinus (Center of the kidney)

  • Sinus is centrally located, oblong, and highly echogenic

  • Contains vessels, fat, normally collapsed calyces, arteries and veins, lymphatics, peripelvic fat, fibrous tissues and part of the renal pelvis

    Vaculature of the Kidney

  • Vessels that can be identified include the main renal artery and vein, interlobar artery & vein, and arcuate artery & vein

CS-Renal-L.Zanin

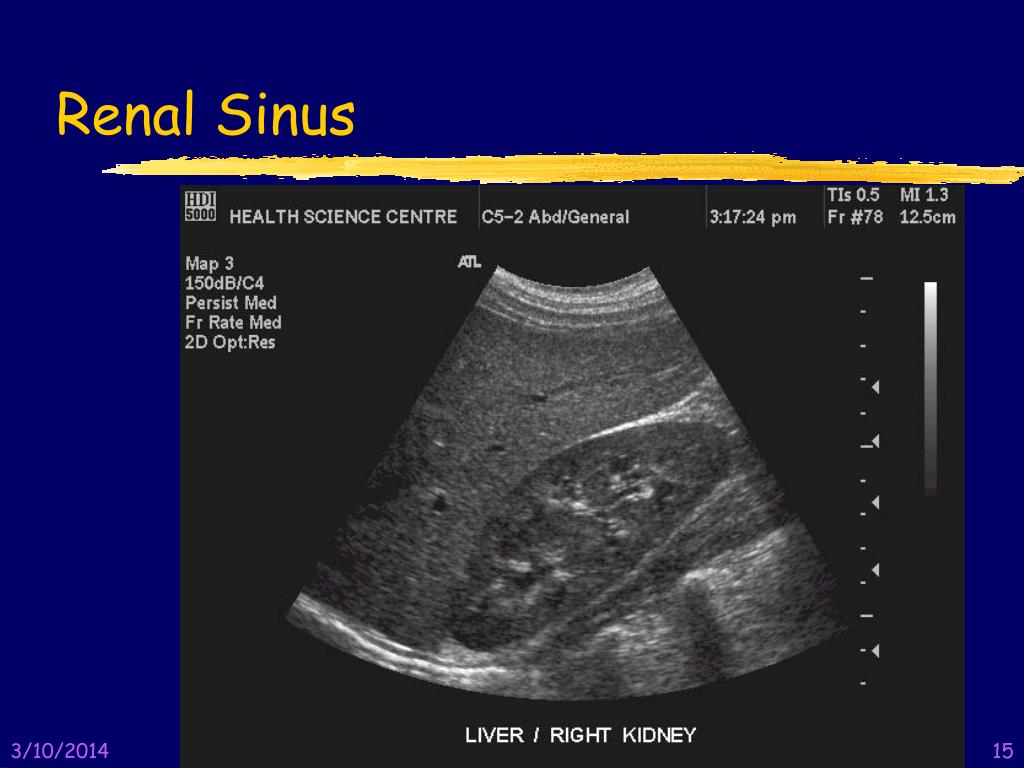

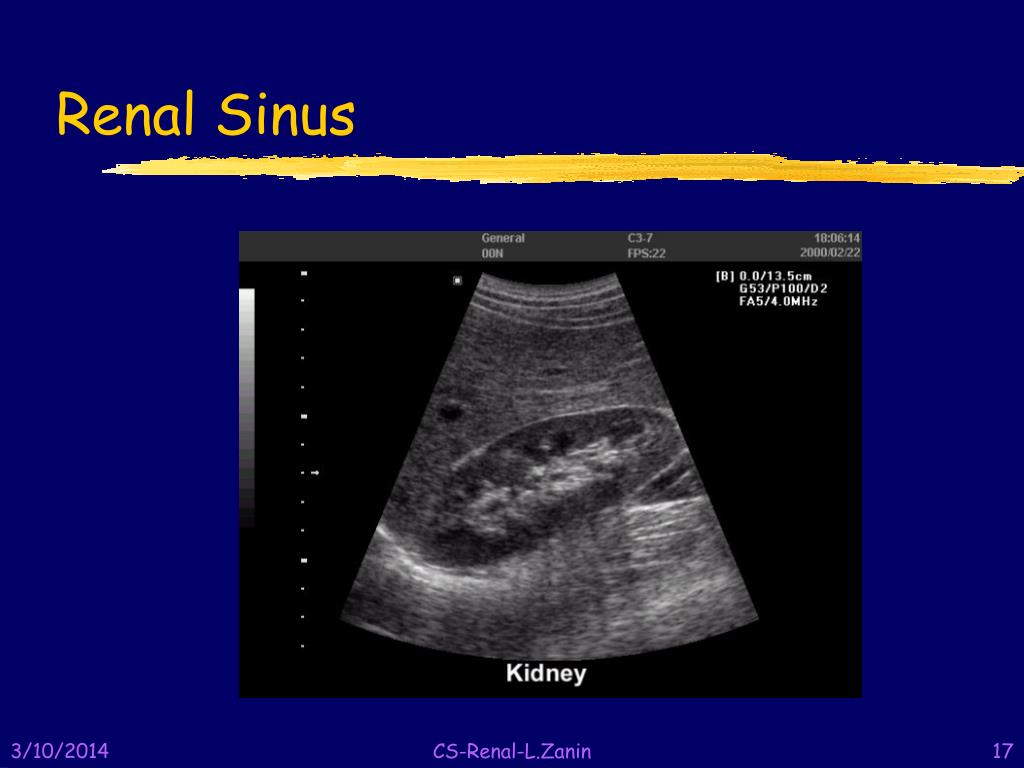

Renal sinus l.jpg

Renal Sinus

CS-Renal-L.Zanin


Renal sinus16 l.jpg

Renal Sinus

CS-Renal-L.Zanin


Renal sinus17 l.jpg

Renal Sinus

CS-Renal-L.Zanin


Renal anatomy l.jpg

Renal Anatomy

Collecting System

  • Minor caylces - 7-13 per kidney, they are found adjacent tot the renal pyramids and connect to the major calyces

  • Major caylces - 2-3 per kidney, they connect to the renal pelvis

CS-Renal-L.Zanin


Renal anatomy19 l.jpg

Renal Anatomy

CS-Renal-L.Zanin


Renal l.jpg

Renal

CS-Renal-L.Zanin


Left kidney l.jpg

Left Kidney

CS-Renal-L.Zanin

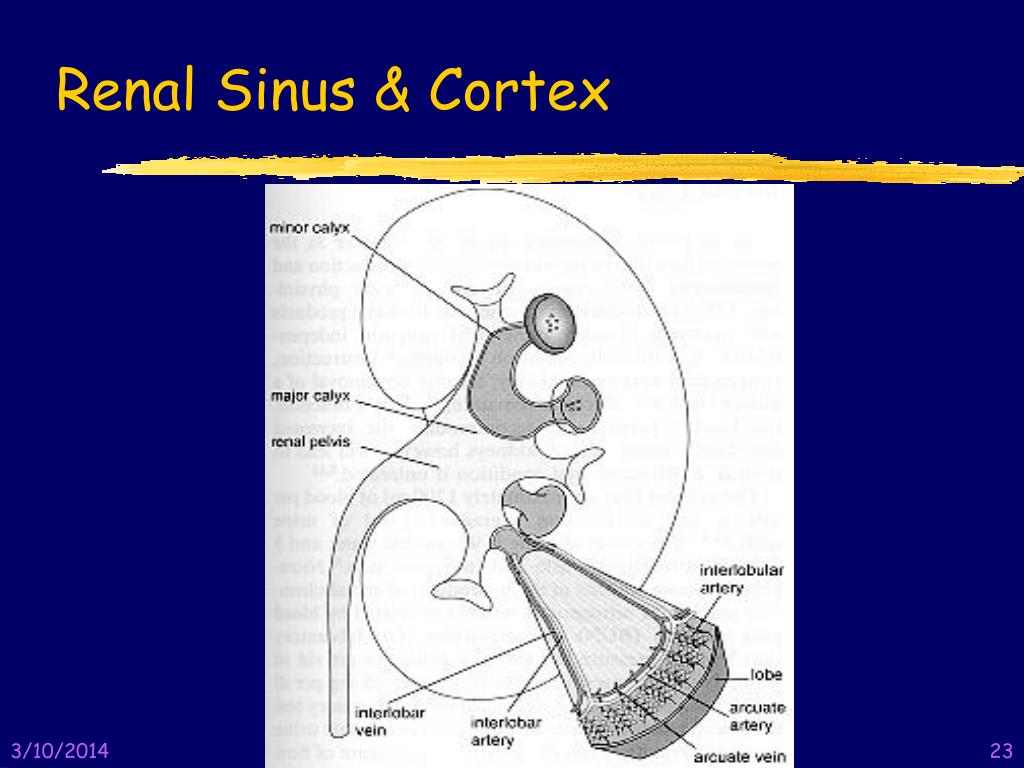

Renal sinus cortex l.jpg

Renal Sinus & Cortex

CS-Renal-L.Zanin


Renal sinus cortex23 l.jpg

Renal Sinus & Cortex

CS-Renal-L.Zanin


Sonographic appearance l.jpg

Sonographic Appearance

CS-Renal-L.Zanin


Renal25 l.jpg

Renal

CS-Renal-L.Zanin


Renal26 l.jpg

Renal

CS-Renal-L.Zanin


Kidney anatomy27 l.jpg

Kidney Anatomy

Renal Medulla (pyramids)

  • Occupies inner 2/3 of parenchyma

  • Triangular inner portion of kidneys that surrounds the renal sinus

  • Represents loops of Henley and the collecting tubules

  • Pyramids are separated from each other by bands of cortical tissue called columns of Bertin

CS-Renal-L.Zanin


Renal anatomy28 l.jpg

Renal Anatomy

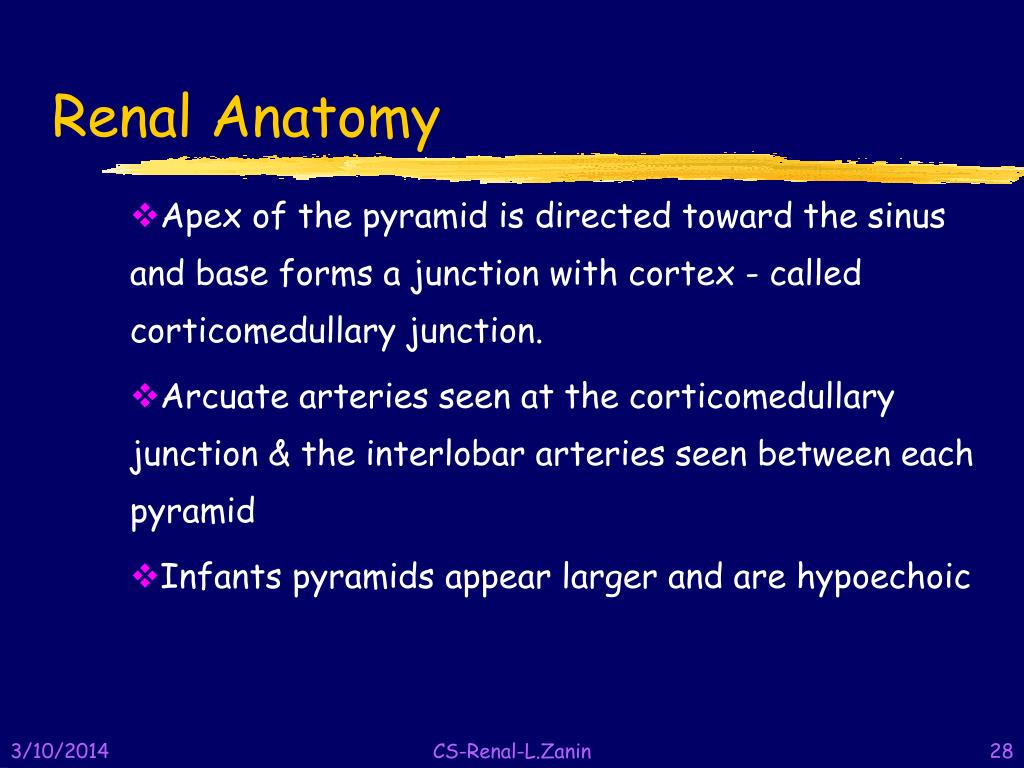

  • Apex of the pyramid is directed toward the sinus and base forms a junction with cortex - called corticomedullary junction.

  • Arcuate arteries seen at the corticomedullary junction & the interlobar arteries seen between each pyramid

  • Infants pyramids appear larger and are hypoechoic

CS-Renal-L.Zanin


Renal anatomy29 l.jpg

Renal Anatomy

CS-Renal-L.Zanin


Renals30 l.jpg

Renals

CS-Renal-L.Zanin


Renals31 l.jpg

Renals

CS-Renal-L.Zanin


Normal renal anatomy l.jpg

Normal Renal Anatomy

Normal adult kidney measures 8-13 cm in length and has smooth contour

  • Adult:11.5 X 6 X 3.5 (ap)

  • Renal Blood Supply

  • Renal artery enters the hilium, it branches into 4-5 segmental arteries

  • Interlobar arteries found between pyramids, they go up and over the pyramids to form arcuate arteries

  • Arcuate arteries branch to form interlobular arteries

CS-Renal-L.Zanin


Normal renal anatomy33 l.jpg

Normal Renal Anatomy

  • Interlobular arteries enter the glomeruli and empty into the capillaries

  • From the capillaries the blood travels through the interlobular, arcuate, interlobar, to the renal vein

CS-Renal-L.Zanin


Renal hilus l.jpg

Renal hilus

CS-Renal-L.Zanin

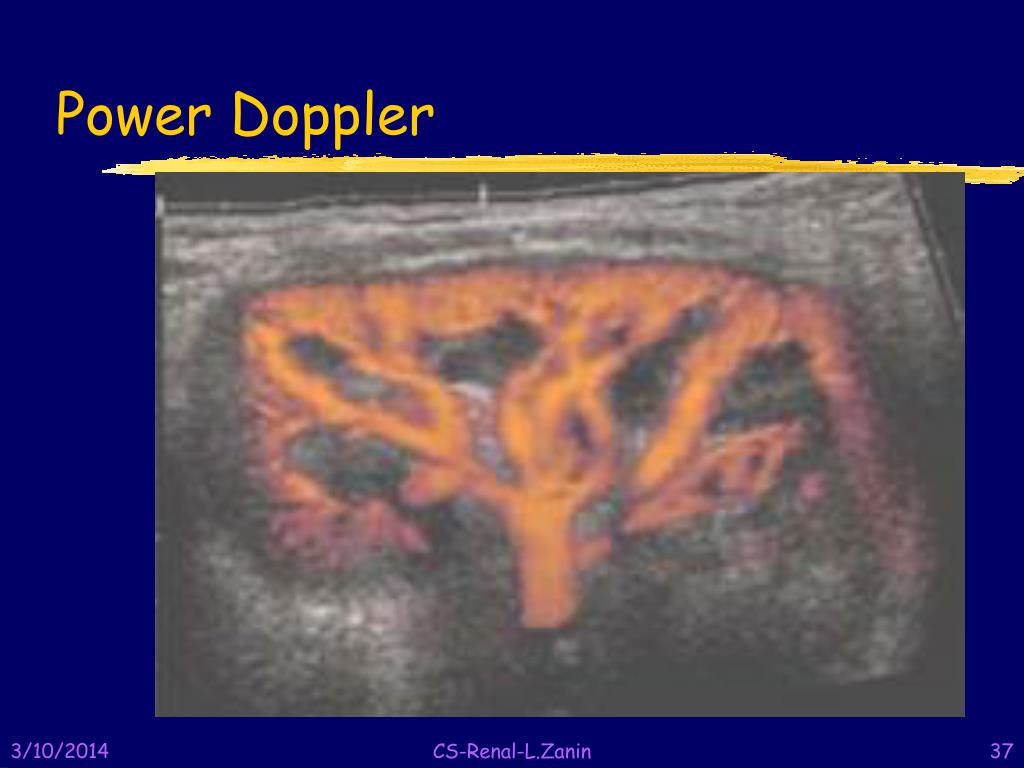

Power doppler l.jpg

Power Doppler

CS-Renal-L.Zanin


Power doppler36 l.jpg

Power Doppler

CS-Renal-L.Zanin


Power doppler37 l.jpg

Power Doppler

CS-Renal-L.Zanin

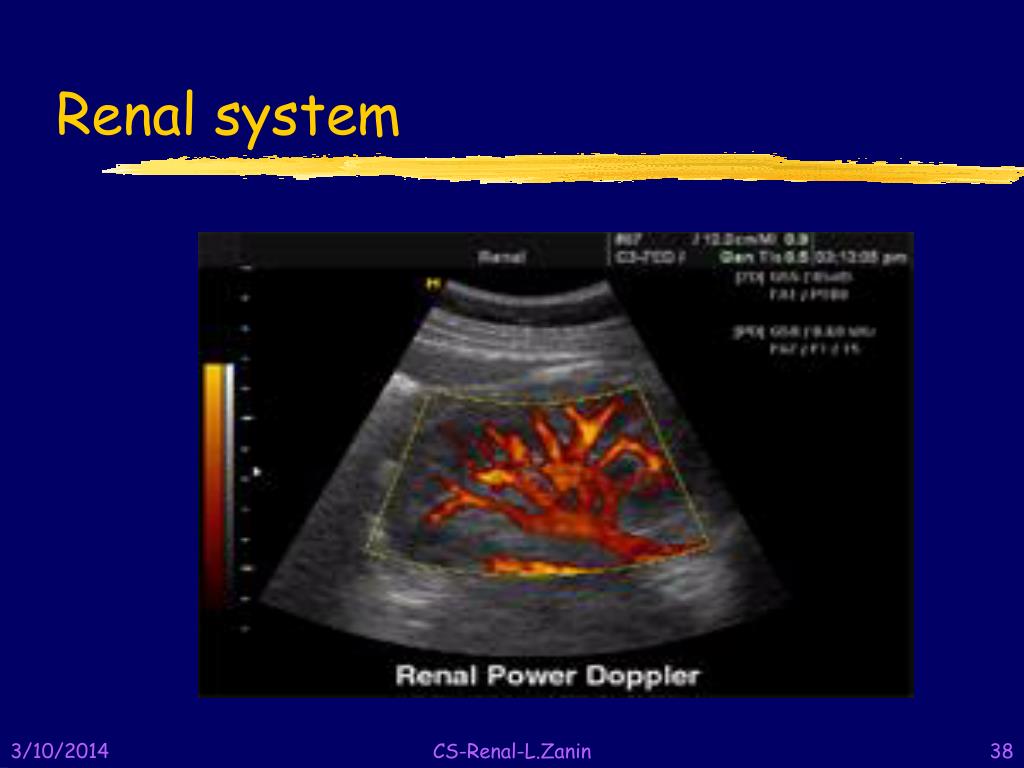

Renal system l.jpg

Renal system

CS-Renal-L.Zanin


Color doppler l.jpg

Color Doppler

CS-Renal-L.Zanin


Renal functions l.jpg

Renal Functions

Renal Function

1. Water regulation

  • Under influence of (ADH) anti-diuretic hormone, water absorption is controlled by blood osmosis

    2. Salt Balance

  • Essential to maintain fluid and maintain blood pressure

CS-Renal-L.Zanin


Renal functions41 l.jpg

Renal Functions

3. PH maintenance

  • Controlled by excretion of hydrogen

    4. Excretion of urea, creatinine, and other end products of metabolism

CS-Renal-L.Zanin


Lab values l.jpg

Lab Values

Serum Creatine

  • Measures renal function

  • Elevation means a disturbance in renal function which is due to a large number of nephrons being destroyed

  • More sensitive than BUN in determining renal dysfunction

CS-Renal-L.Zanin


Lab values43 l.jpg

Lab Values

BUN - (blood urea nitrogen)

  • Urea is an end product of protein metabolism and it is excreted by kidney's so blood urea concentrations is normally low

  • Rises when kidney's ability to excrete urea is impaired

  • Elevated levels may lead to mental confusion, disorientation & coma

  • Other diseases that may cause BUN to elevate: GI bleeding - Congestive heart failure - Shock

CS-Renal-L.Zanin


Normal anatomic variants l.jpg

Normal Anatomic Variants

Dromedary Hump

  • Bulging of the lateral aspect of the left kidney probably due to developmental relationship between the kidney & spleen

    Ultrasound Findings:

  • Coronal -lateral contour bulge of the kidney without evidence of parenchymal disruption

CS-Renal-L.Zanin


Normal anatomic variants45 l.jpg

Normal Anatomic Variants

CS-Renal-L.Zanin


Normal anatomic variants46 l.jpg

Normal Anatomic Variants

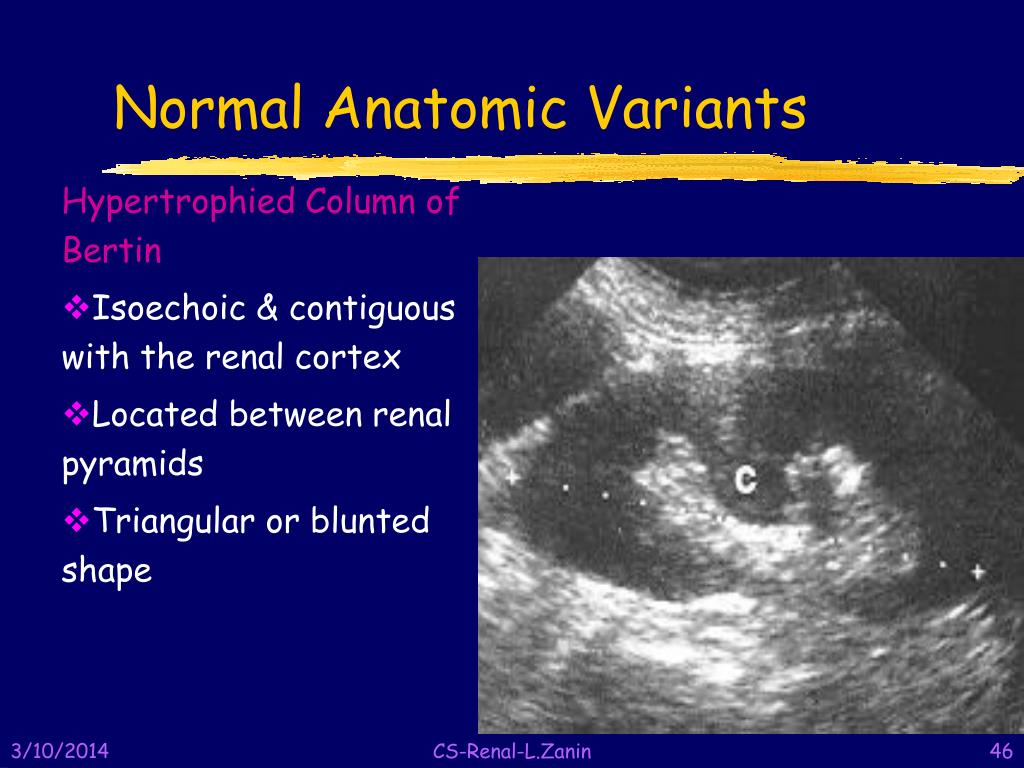

Hypertrophied Column of Bertin

  • Isoechoic & contiguous with the renal cortex

  • Located between renal pyramids

  • Triangular or blunted shape

CS-Renal-L.Zanin


Normal anatomic variants47 l.jpg

Normal Anatomic Variants

Renal Sinus Lipomatosis

  • Isoechoic and continuous with the perirenal & sinus fat

  • An increase in the renal sinus fat

  • No clinical significance

CS-Renal-L.Zanin


Congenital anomalies l.jpg

Congenital Anomalies

Solitary kidney

  • One normal functioning kidney with the other undeveloped and not seen, it is atrophied

    Unilateral renal agenesis

  • Absence of one side of the collecting system

  • No kidney or ureter developed

  • Associated with uterine or testicular variants

CS-Renal-L.Zanin


Congenital anomalies49 l.jpg

Congenital Anomalies

Bilateral Renal Agenesis

  • Fatal - not compatible with life

  • Infant dies shortly after birth

  • Associated with Potter's syndrome

CS-Renal-L.Zanin


Congenital anomalies50 l.jpg

Congenital Anomalies

Supranumerary Kidney

  • Duplication of the ureters and pelvis with a single kidney

  • Double collecting system

  • Sonographicly demonstrates two separate central sinus echoes separated by cortical tissue

CS-Renal-L.Zanin


Supranumerary kidney l.jpg

Supranumerary Kidney

CS-Renal-L.Zanin


Congenital anomalies52 l.jpg

Congenital Anomalies

Megacalyces/Megaureter

  • Congenital condition consists of nonobstructive enlargement of the calyces

  • There are usually less calyces with this condition

  • The appearance on ultrasound is identical to obstructive hydronephrosis or dilatation secondary to vesicoureteral reflux

CS-Renal-L.Zanin


Megacalyces megaureter l.jpg

Megacalyces/Megaureter

CS-Renal-L.Zanin


Congenital anomalies54 l.jpg

Congenital Anomalies

Pelvic Kidney

  • In the embryo the kidneys develop in the pelvis and migrate upward, they ascend and rotate to the adult position

  • Right kidney lower than left kidney

  • Ascend by 5-6 years

  • Incomplete ascension leads to ectopic kidneys

CS-Renal-L.Zanin


Pelvic kidney l.jpg

Pelvic Kidney

CS-Renal-L.Zanin


Congenital anomalies56 l.jpg

Congenital Anomalies

Horseshoe Kidney

  • Form of renal fusion

  • Fused at the lower pole with the connecting bridge located just anterior to the aorta

  • Isthmus (connection) is seen at about the level of the aortic bifurcation

    Cross-fused Renal Ectopia

  • Kidneys are positional in the same quadrant and are fused together

CS-Renal-L.Zanin


Horseshoe kidney l.jpg

Horseshoe Kidney

CS-Renal-L.Zanin


Mri of the kidneys l.jpg

MRI of the Kidneys

CS-Renal-L.Zanin


Mri of the kidneys59 l.jpg

MRI of the Kidneys

CS-Renal-L.Zanin
