  1. Quantifying e-Commerce Risk David Fishbaum, FSA Chuck McClenahan, FCAS MMC ENTERPRISE RISK CAS Seminar on Ratemaking - March, 2001

  2. The Problem • You’re the risk manager of a financial institution with a new web site • Your insurance broker has provided you a quote for new e-commerce risk insurance coverage: $350,000 - $450,000 with low limits • Your not exactly sure what the risks of the web site are • What to do?

  3. Background • The financial institution provides community banks with a product portfolio of ancillary products such as: • investments (mutual funds and stock trading) • insurance • other banking services • You provide web sites for these community banks for investments, insurance and lending

  4. What are the risks? • Failure of the web site • problems with the surroundings, power failure, fire or flooding • failure of the hardware • failure of the software • attack through virus or computer hacker

  5. Resultant damages are also varied • Delay in performing a service • Loss of brand value due to unreliability of service or transmission of computer virus • loss of value through failure to deliver • for example, an uncompleted stock trade

  6. Background: E-commerce insurance coverage • There is an intensive application • the problem is that you can’t figure out how complex or risky a web site you are running • A system audit is part of the insurance coverage • there is a bias to find fault

  7. How do you insure the high P/E ratio • Its 1999 and the price/earnings ratio of the e-commerce function seems to have broken down • The unspoken issue is how do you insure the value lost if something happens to the web site? • Not sure this is an issue today

  8. Why bring in Actuaries? • Looking for someone to quantify the risk • We brought a multidisciplinary team of actuaries, economists and policy expert • The actuaries provided the quantification and modeling skill sets

  9. Methodology • Model the web site • Stochastic testing • Scenario testing

  10. Model • MMC ER developed a computer program to model the economic performance of the e-commerce infrastructure • Used company’s performance statistics • Used a Monte Carlo simulation to produce expected revenue and branding values • Based on this quantification, valued the potential losses of a series of scenarios

  11. Flow of Information and quantification of failure probabilities ISP Provider Application Server/Firewall/Proxy Layer In our estimation of the probability of failure at the application host level, elements such as software outage, hardware outage, data base performance etc were considered.

  12. Assumptions • Visits per week • Usage over the week • Revenue • Customer value • Application acceptance • Downtime

  13. Results-Base Case

  14. The Scenarios • Denial of service • Physical damage to hardware location • New virus brings down complete system • Malicious employee • Threats/extortion • Theft of credit card numbers

  15. The Scenarios Denial of service • Attack causes a degradation of performance or loss of service to web site • Not covered under current coverage • Modeling assumption: site down for 3 hours • Income loss/Customer value loss

  16. The Scenarios Physical damage to hardware location • Location of where hardware is kept is disabled • Covered under current insurance • Modeling assumption: site down for 10 days • Income loss/Customer value loss • Client bank’s lost revenue

  17. The Scenarios New virus brings down complete system • Not covered under current coverage • Model assumption: system down for 2 days • Income loss/Customer loss

  18. The Scenarios Malicious Employee • Destruction of important data or programs • Cost of recovery process covered under current coverage • Not modeled • Theft of policyholder info or other intangible property • Not covered under current coverage

  19. The Scenarios Threats/extortion • Threat to commit a computer crime or to use information gained from a computer crime in exchange for money, personal gain or to embarrass the company • Would be covered under current kidnap and ransom policies

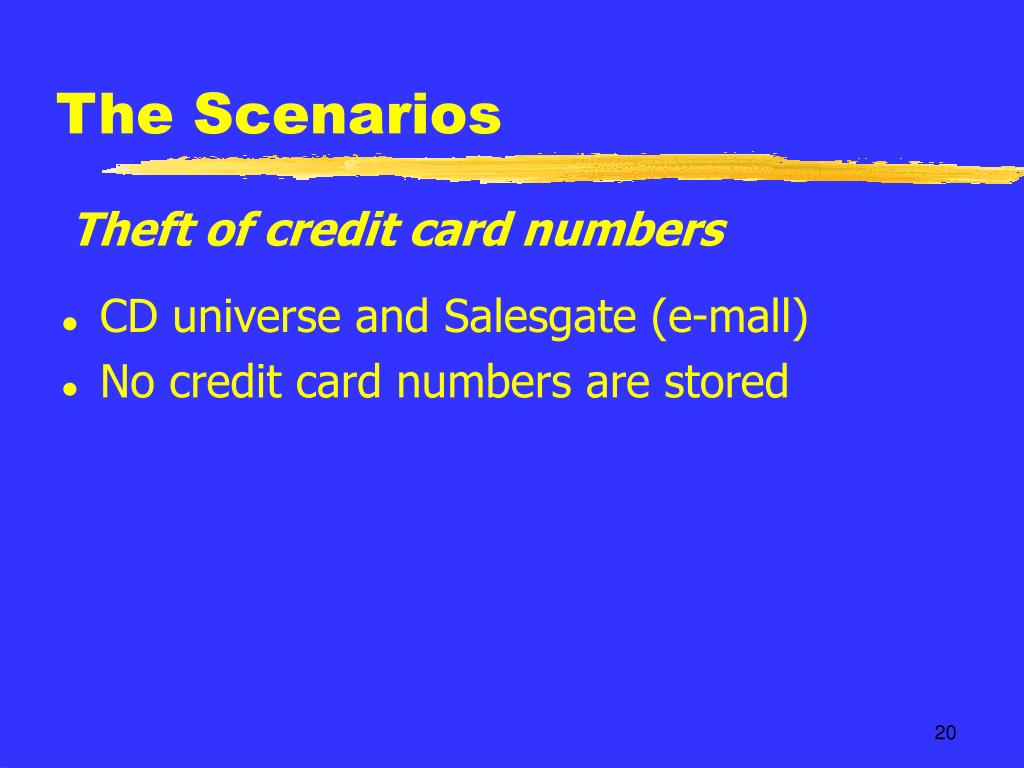

  20. The Scenarios Theft of credit card numbers • CD universe and Salesgate (e-mall) • No credit card numbers are stored

  21. Results of analysis • Biggest risk business interruption • Third party loss is minimal at this time though in time the Internet will affect its client relationship

  22. Conclusions • Better quantification of risks • Better able to make a purchase decision • Other risk management decisions • What isn’t at risk is also important

  23. Postscript • The website is still in operation • Strategy has been proven successful

  24. e-Commerce Risk • Bruce Schneier - Secrets and Lies(Wiley Computer Publishing, 2000) • “The insurance industry does this kind of thing all the time; it’s how they calculate premiums. They figure out the annual loss expectancy for a given risk, tack on some extra for their operational costs plus some profit and use the result”

  25. e-Commerce Risk • Bruce Schneier - Secrets and Lies(Wiley Computer Publishing, 2000) • “Of course there’s going to be a lot of guesswork in any of these; the particular risks we’re talking about are just too new and too poorly understood to be better quantized (sic).”

  26. e-Commerce Risk • Pricing e-Commerce Risk • Determine Strategy • Identify the Risks • Collect Available Data • Develop Model • Price According to Strategy

  27. e-Commerce Risk • Determine Strategy • “Guess and Confess” • Loss Leader • Self-Supporting • Franklin Approach

  28. e-Commerce Risk • Determine Strategy - “Guess and Confess” • Insurer uses best available judgment (usually discovered deep in the bowels of the marketing department) as to the proper rate • Alternatively, rely on advice of career agents

  29. e-Commerce Risk • Determine Strategy - Loss Leader • Aptly named, this strategy is based upon the assumption that the best way to develop experience and expertise is to write a lot of exposure

  30. e-Commerce Risk • Determine Strategy - Self-Supporting • Goal is to cover losses and expenses, including start-up expenses, over some reasonable period of time. This is a radical strategy and has rarely been adopted in the property-casualty industry.

  31. e-Commerce Risk • Determine Strategy - Franklin Approach • Focuses on loss avoidance • Underwrites against “undesirable” hazards, e.g. • large user base • large asset base • high public profile

  32. e-Commerce Risk • Identify the Risks • We have a good track record here • Medical Malpractice • Computer Leasing • Asbestos and Environmental

  33. e-Commerce Risk • How many do you recognize? • Daemon • Data mining • Digital wallet • Extranet • Luhn formula • Smart card • Thin client

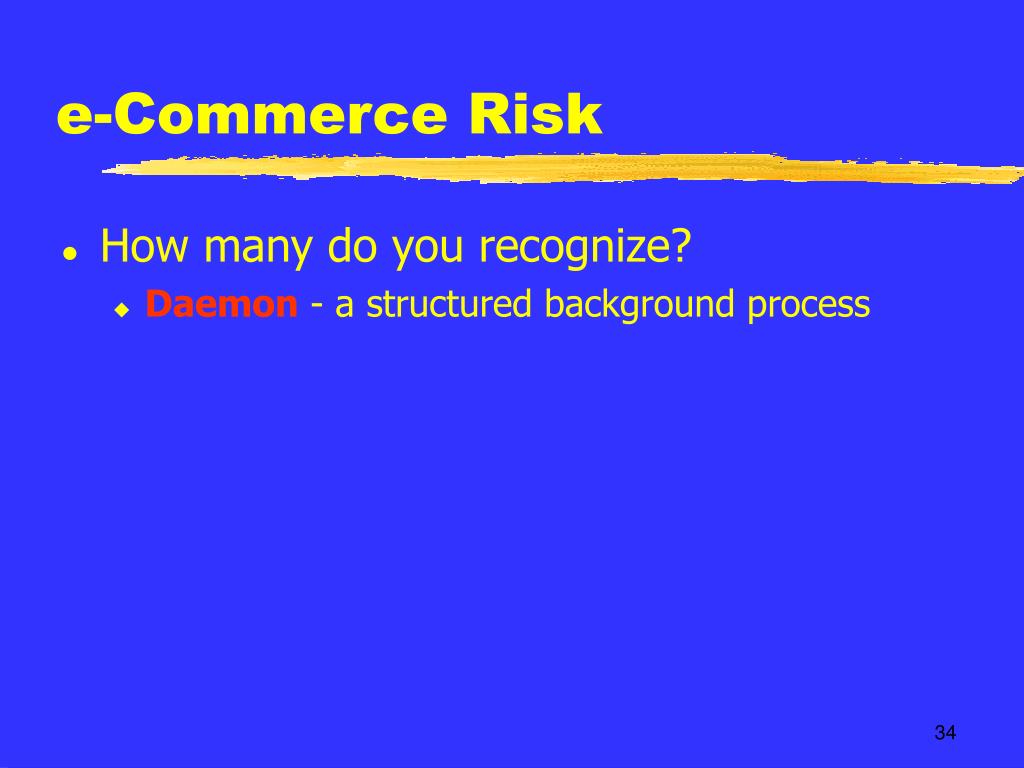

  34. e-Commerce Risk • How many do you recognize? • Daemon - a structured background process

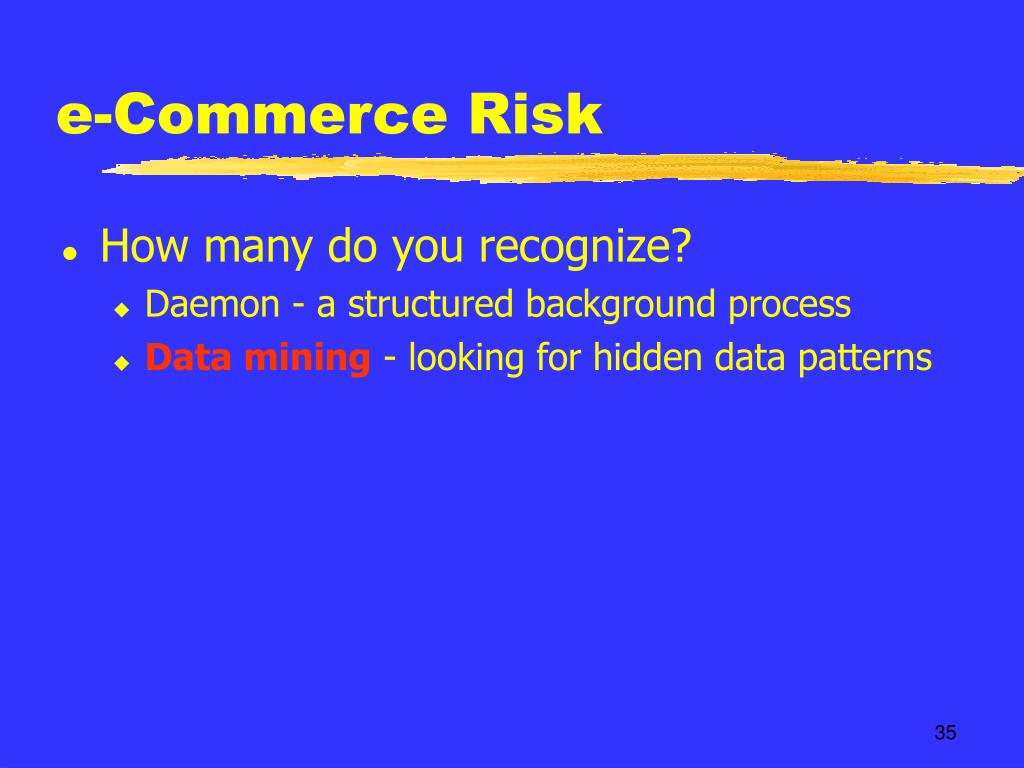

  35. e-Commerce Risk • How many do you recognize? • Daemon - a structured background process • Data mining - looking for hidden data patterns

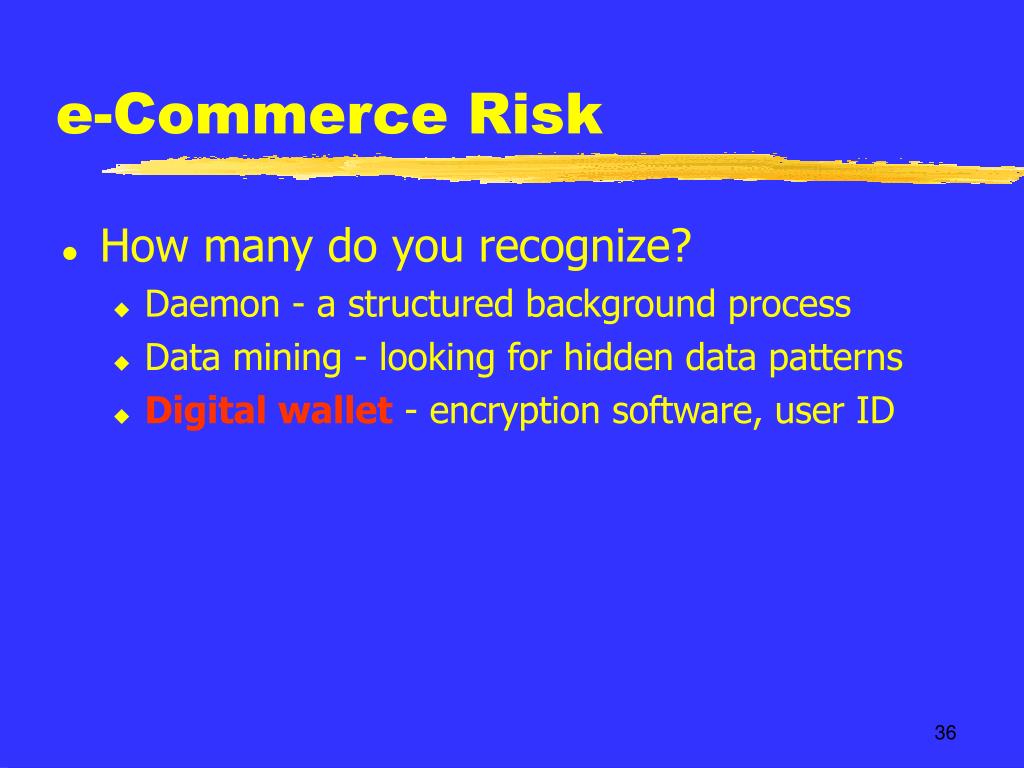

  36. e-Commerce Risk • How many do you recognize? • Daemon - a structured background process • Data mining - looking for hidden data patterns • Digital wallet - encryption software, user ID

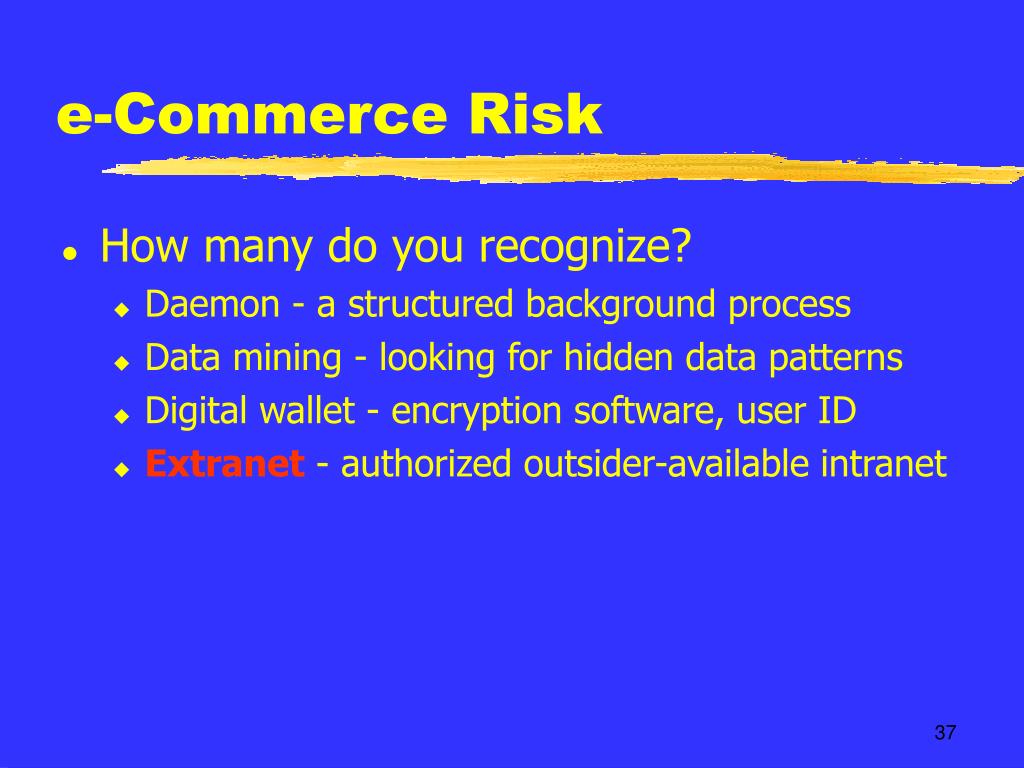

  37. e-Commerce Risk • How many do you recognize? • Daemon - a structured background process • Data mining - looking for hidden data patterns • Digital wallet - encryption software, user ID • Extranet - authorized outsider-available intranet

  38. e-Commerce Risk • How many do you recognize? • Daemon - a structured background process • Data mining - looking for hidden data patterns • Digital wallet - encryption software, user ID • Extranet - authorized outsider-available intranet • Luhn formula - credit card verifying algorithm

  39. e-Commerce Risk • Luhn formula (1) Start with penultimate digit and, moving left, double the value of each alternating digit. If you get a two digit number, add the two digits. (2) Add up all digits. Result must be zero mod 10

  40. e-Commerce Risk • Luhn formula • 1234 567890 12347 • 1438 537790 14387 • 1+4+3+8+5+3+7+7+9+0+1+4+3+8+7=70

  41. e-Commerce Risk • How many do you recognize? • Daemon - a structured background process • Data mining - looking for hidden data patterns • Digital wallet - encryption software, user ID • Extranet - authorized outsider-available intranet • Luhn formula - credit card verifying algorithm • Smart card - personal electronic memory card

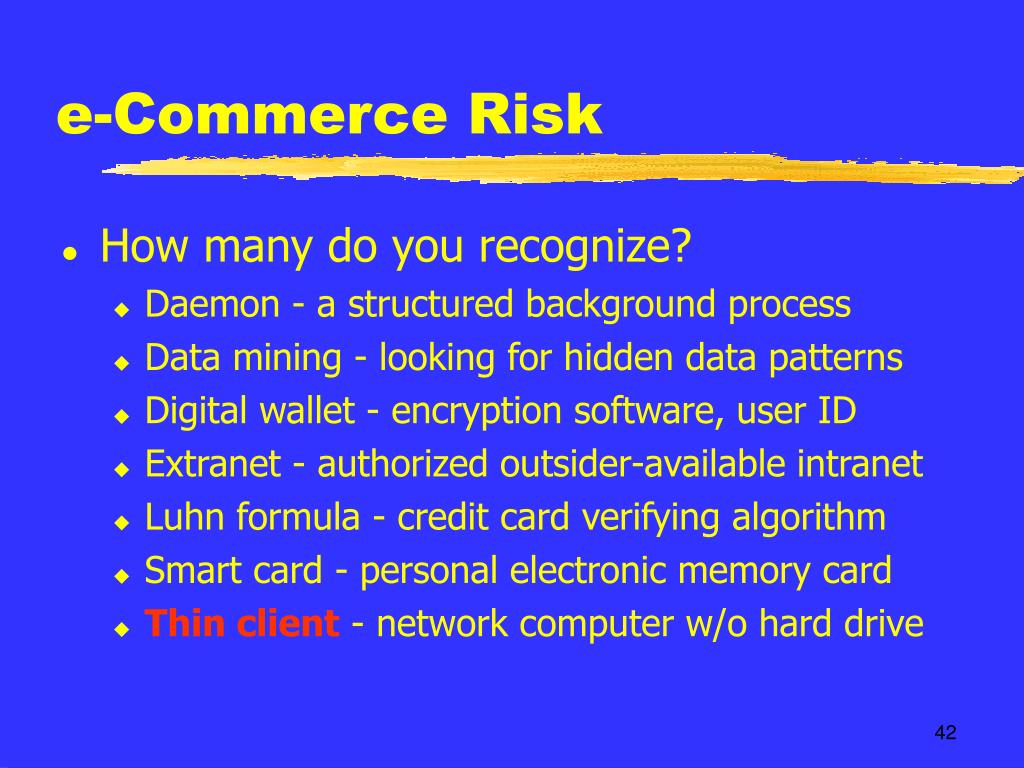

  42. e-Commerce Risk • How many do you recognize? • Daemon - a structured background process • Data mining - looking for hidden data patterns • Digital wallet - encryption software, user ID • Extranet - authorized outsider-available intranet • Luhn formula - credit card verifying algorithm • Smart card - personal electronic memory card • Thin client - network computer w/o hard drive

  43. e-Commerce Risk • Ingram Micro Inc. vs. American Guarantee & Liability Insurance Company • “The court finds that ‘physical damage’ is not restricted to the physical destruction or harm of computer circuitry, but includes loss of access, loss of use and loss of functionality.”

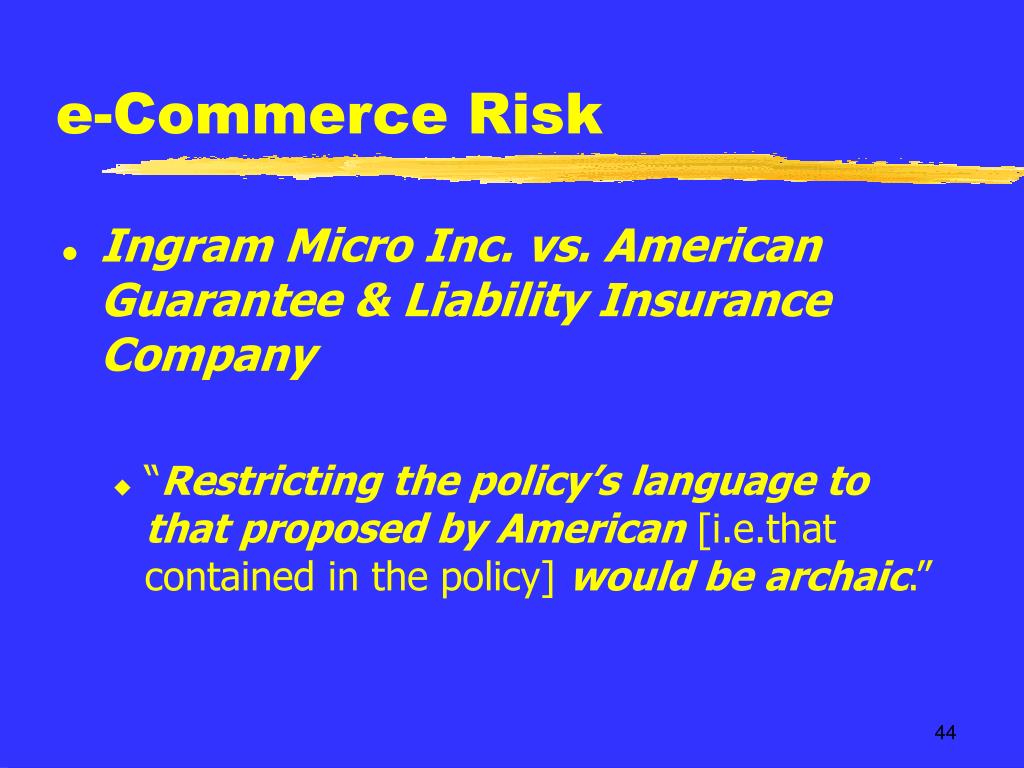

  44. e-Commerce Risk • Ingram Micro Inc. vs. American Guarantee & Liability Insurance Company • “Restricting the policy’s language to that proposed by American [i.e.that contained in the policy] would be archaic.”

  45. e-Commerce Risk • TD Waterhouse fined $225,000 for repeated outages which left customers unable to trade • 11 online brokers reported 88 outages for 1st 9 months 1999 (12th firm reported so many outages it didn’t keep track).

  46. e-Commerce Risk • Collect Available Data • Exposure base not well-defined • Economic costs of losses not disclosed • Industry is young and evolving • Threat base is also evolving

  47. e-Commerce Risk • Collect Available Data • Remember, “Lloyd’s List” was started in 1696 but it wasn’t until 75 years later that the Society of Lloyd’s was formed

  48. e-Commerce Risk • Develop Model • Identify major processes • Identify major threats • Relate threats to processes • Determine (or guess at) parameters

  49. e-Commerce Risk • Example - Distributed Denial of Service (DDoS)

  50. e-Commerce Risk • “Attack of the Zombies” - February,2000 • Monday, February 7 • Yahoo! portal rendered inaccessible for 3 hours • Tuesday, February 8 • Buy.com 90% inaccessible • eBay incapacitated • CNN 95% inaccessible • Amazon.com slowed to 5 minute access time • Wednesday, February 9 • ZDNet.com unreachable • E*Trade slowed “to a crawl” • Excite 60% inaccessible
