Non-Control-Data Attacks Are Realistic Threats. Shuo Chen †* , Jun Xu ‡ , Emre Sezer ‡ , Prachi Gauriar ‡ , Ravi Iyer †. † Center for Reliable and High-Performance Computing, University of Illinois at Urbana-Champaign ‡ Department of Computer Science, North Carolina State University

Download Presentation

Non-Control-Data Attacks Are Realistic Threats

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Non control data attacks are realistic threats

Non-Control-Data Attacks Are Realistic Threats

Shuo Chen†*, Jun Xu‡, Emre Sezer‡, Prachi Gauriar‡, Ravi Iyer†

† Center for Reliable and High-Performance Computing, University of Illinois at Urbana-Champaign

‡ Department of Computer Science, North Carolina State University

* Cybersecurity and Systems Management Group, Microsoft Research

USENIX Security Symposium, Baltimore, MD, 2005


Non control data attacks are realistic threats

Control Data Attack: Well-Known, Dominant

  • Control data attack: corrupt function pointers, jump targets and return addresses to run malicious code

    • E.g., code injection, mimicry attack and return-to-LibC

  • Currently the most dominant form of memory corruption attacks [CERT and Microsoft Security Bulletin]

    • By exploiting many vulnerabilities such as buffer overflow, format string bug, integer overflow, double free, etc.

  • Many current defense techniques: to enforce control data integrity to provide security.

USENIX Security Symposium, Baltimore, MD, 2005


Non control data attack

Non-Control-Data Attack

  • Non-control-data attacks: attacks not corrupting any control data

    • i.e., attacks preserving the integrity of control flow of the victim process

  • Currently very rare in reality

    • Very few instances documented in literature.

    • Several papers: theoretically possible to construct non-control-data attacks against synthetic programs.

    • Not yet considered as a serious threat

  • How applicable are such attacks against real-worldsoftware?

    • Why rare  attackers’ incapability or lack of incentives?

    • No focused investigation yet.

USENIX Security Symposium, Baltimore, MD, 2005


Motivating facts

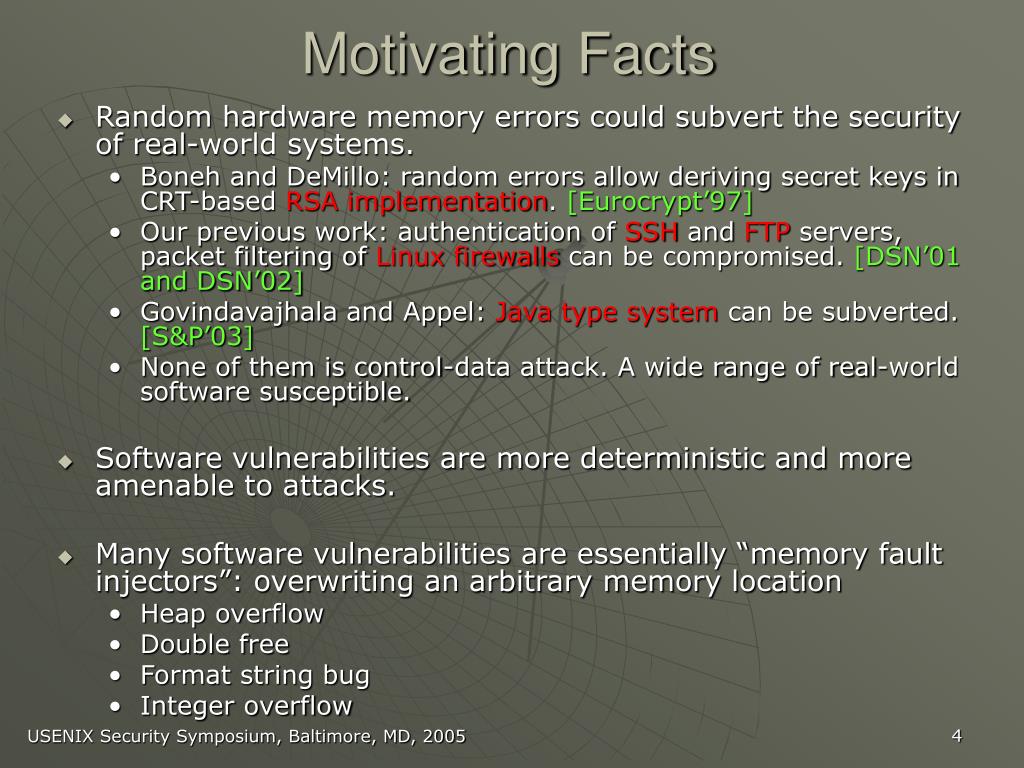

Motivating Facts

  • Random hardware memory errors could subvert the security of real-world systems.

    • Boneh and DeMillo: random errors allow deriving secret keys in CRT-based RSA implementation. [Eurocrypt’97]

    • Our previous work: authentication of SSH and FTP servers, packet filtering of Linux firewalls can be compromised. [DSN’01 and DSN’02]

    • Govindavajhala and Appel: Java type system can be subverted. [S&P’03]

    • None of them is control-data attack. A wide range of real-world software susceptible.

  • Software vulnerabilities are more deterministic and more amenable to attacks.

  • Many software vulnerabilities are essentially “memory fault injectors”: overwriting an arbitrary memory location

    • Heap overflow

    • Double free

    • Format string bug

    • Integer overflow

USENIX Security Symposium, Baltimore, MD, 2005


Our claim general applicability of non control data attacks

Our Claim: General Applicability of Non-Control-Data Attacks

  • The claim:

    • Many real-world software applications are susceptible to non-control-data attacks.

    • The severity of the attack consequences is equivalent to that due to control data attacks.

  • Goal of our project

    • Experimentally validate the claim

      • Construct non-control-data attacks to compromise the security of “representative” applications

    • Discuss the implications of the claim on current defensive techniques

    • Call for comprehensive defensive techniques

USENIX Security Symposium, Baltimore, MD, 2005


Selection of target applications

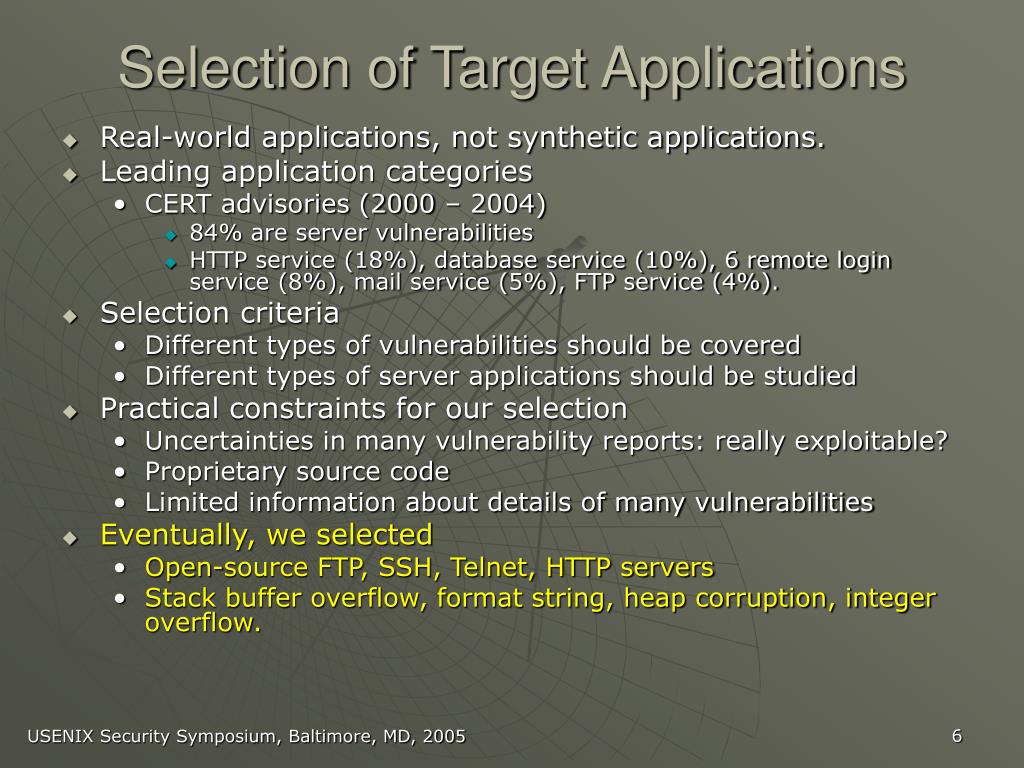

Selection of Target Applications

  • Real-world applications, not synthetic applications.

  • Leading application categories

    • CERT advisories (2000 – 2004)

      • 84% are server vulnerabilities

      • HTTP service (18%), database service (10%), 6 remote login service (8%), mail service (5%), FTP service (4%).

  • Selection criteria

    • Different types of vulnerabilities should be covered

    • Different types of server applications should be studied

  • Practical constraints for our selection

    • Uncertainties in many vulnerability reports: really exploitable?

    • Proprietary source code

    • Limited information about details of many vulnerabilities

  • Eventually, we selected

    • Open-source FTP, SSH, Telnet, HTTP servers

    • Stack buffer overflow, format string, heap corruption, integer overflow.

USENIX Security Symposium, Baltimore, MD, 2005


Non control data attack against wu ftpd server via a format string bug

x uninitialized, run as EUID 0

x=109, run as EUID 0

x=109, run as EUID 109. Lose the root privilege!

Get a special SITE EXEC command. Exploit a format string vulnerability.

x= 0, still run as EUID 109.

Get a data command (e.g., PUT)

x=0, run as EUID 0

x=0, run as EUID 0

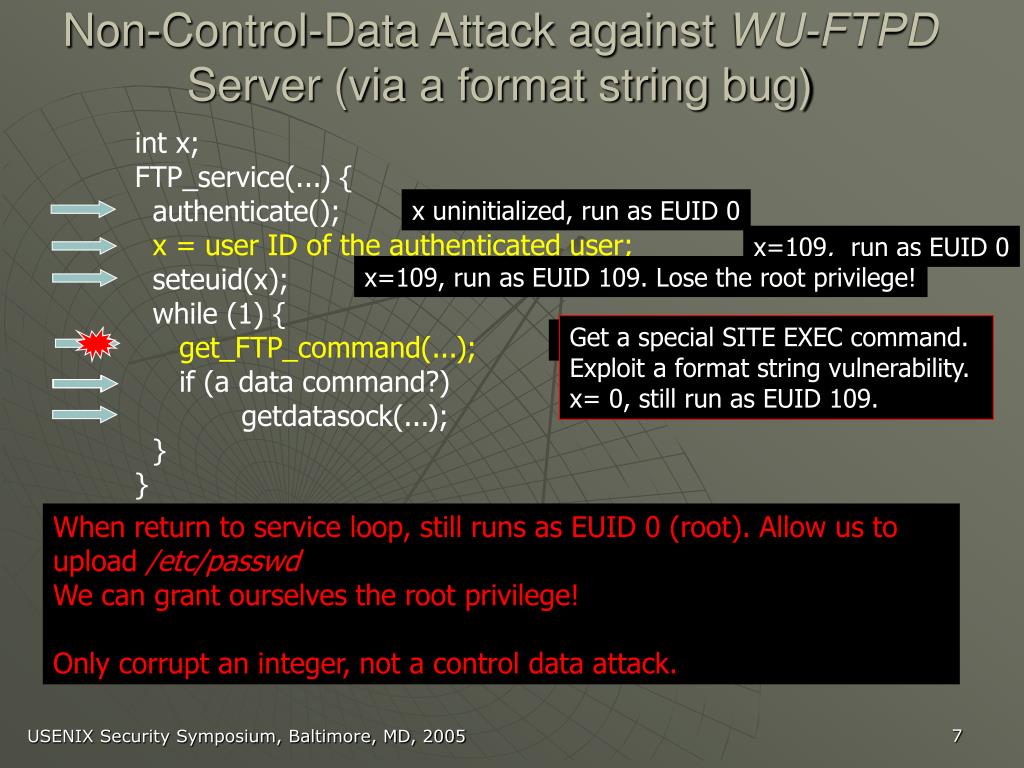

Non-Control-Data Attack against WU-FTPD Server (via a format string bug)

int x;

FTP_service(...) {

authenticate();

x = user ID of the authenticated user;

seteuid(x);

while (1) {

get_FTP_command(...);

if (a data command?)

getdatasock(...);

}

}

getdatasock( ... ) {

seteuid(0);

setsockopt( ... );

seteuid(x);

}

When return to service loop, still runs as EUID 0 (root). Allow us to upload /etc/passwd

We can grant ourselves the root privilege!

Only corrupt an integer, not a control data attack.

USENIX Security Symposium, Baltimore, MD, 2005


Non control data attack against null http server via a heap overflow bug

Non-Control-Data Attack against NULL-HTTP Server (via a heap overflow bug)

  • Attack the configuration string of CGI-BIN path.

  • Mechanism of CGI

    • suppose server name = www.foo.comCGI-BIN =

    • Requested URL = http://www.foo.com/cgi-bin

    • The server executes

  • Our attack

    • Exploit the vulnerability to overwrite CGI-BIN to /bin

    • Request URL http://www.foo.com/cgi-bin/sh

    • The server executes

/usr/local/httpd/exe

/usr/local/httpd/exe

/bar

/bar

/bin

/sh

The server gives me a root shell!

Only overwrite four characters in the CGI-BIN string.

USENIX Security Symposium, Baltimore, MD, 2005


Non control data attack against ssh communications ssh server via an integer overflow bug

auth = 0

auth = 0

auth = 1

auth = 1

Password incorrect, but auth = 1

Logged in without correct password

Non-Control-Data Attack againstSSH Communications SSH Server (via an integer overflow bug)

void do_authentication(char *user, ...) {

int auth = 0;

...

while (!auth) {

/* Get a packet from the client */

type = packet_read();

switch (type) {

...

case SSH_CMSG_AUTH_PASSWORD:

if (auth_password(user, password))

auth =1;

case ...

}

if (auth) break;

}

/* Perform session preparation. */

do_authenticated(…);

}

USENIX Security Symposium, Baltimore, MD, 2005


More non control data attacks

More Non-Control-Data Attacks

  • Against NetKit Telnet server (default Telnet server of Redhat Linux)

    • Exploit a heap overflow bug

    • Overwrite two strings:/bin/login –h foo.com -p (normal scenario) /bin/sh –h –p -p (attack scenario)

    • The server runs /bin/sh when it tries to authenticate the user.

  • Against GazTek HTTP server

    • Exploit a stack buffer overflow bug

      • Send a legitimate URL http://www.foo.com/cgi-bin/bar

      • The server checks that “/..” is not embedded in the URL

      • Exploit the bug to change the URL to http://www.foo.com/cgi-bin/../../../../bin/sh

      • The server executes /bin/sh

USENIX Security Symposium, Baltimore, MD, 2005


What non control data attacks imply

What Non-Control-Data Attacks Imply?

  • Control flow integrity is not a sufficiently accurate approximation to software security.

  • Many types of non-control data critical to security

    • User identify data, configuration data, user input data and decision-making data

  • Once attackers have the incentive, they are likely to succeed in non-control-data attacks.

USENIX Security Symposium, Baltimore, MD, 2005


Discussions on current defensive techniques

Discussions on Current Defensive Techniques

  • Defenses based on control flow integrity

    • Monitor system call sequences

    • Protect control data

    • Non-executable stack and heap

  • Pointer encryption PointGuard

    • Identifying pointers in low level code is really challenging

  • Address space randomization

    • Challenge: need to randomize every program segment

    • Limitation: 32-bit address space cannot provide sufficient entropy

  • Memory safety enforcement

    • Promising direction, e.g., CCured, Cyclone, CRED

    • Currently difficult to migrate existing large code bases to memory safe version. Incur runtime overhead. Difficult to ensure memory safety for low-level code.

  • Still open: to design a generic and secure defense

USENIX Security Symposium, Baltimore, MD, 2005


Mitigating factors

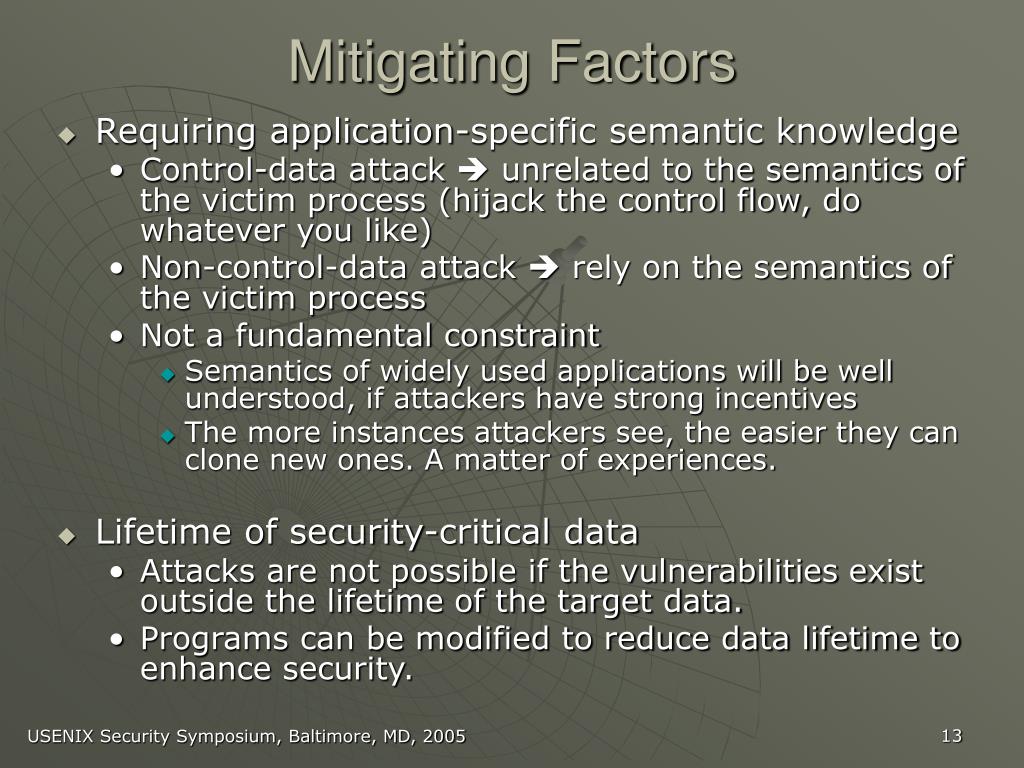

Mitigating Factors

  • Requiring application-specific semantic knowledge

    • Control-data attack  unrelated to the semantics of the victim process (hijack the control flow, do whatever you like)

    • Non-control-data attack  rely on the semantics of the victim process

    • Not a fundamental constraint

      • Semantics of widely used applications will be well understood, if attackers have strong incentives

      • The more instances attackers see, the easier they can clone new ones. A matter of experiences.

  • Lifetime of security-critical data

    • Attacks are not possible if the vulnerabilities exist outside the lifetime of the target data.

    • Programs can be modified to reduce data lifetime to enhance security.

USENIX Security Symposium, Baltimore, MD, 2005


Reducing data lifetime for security

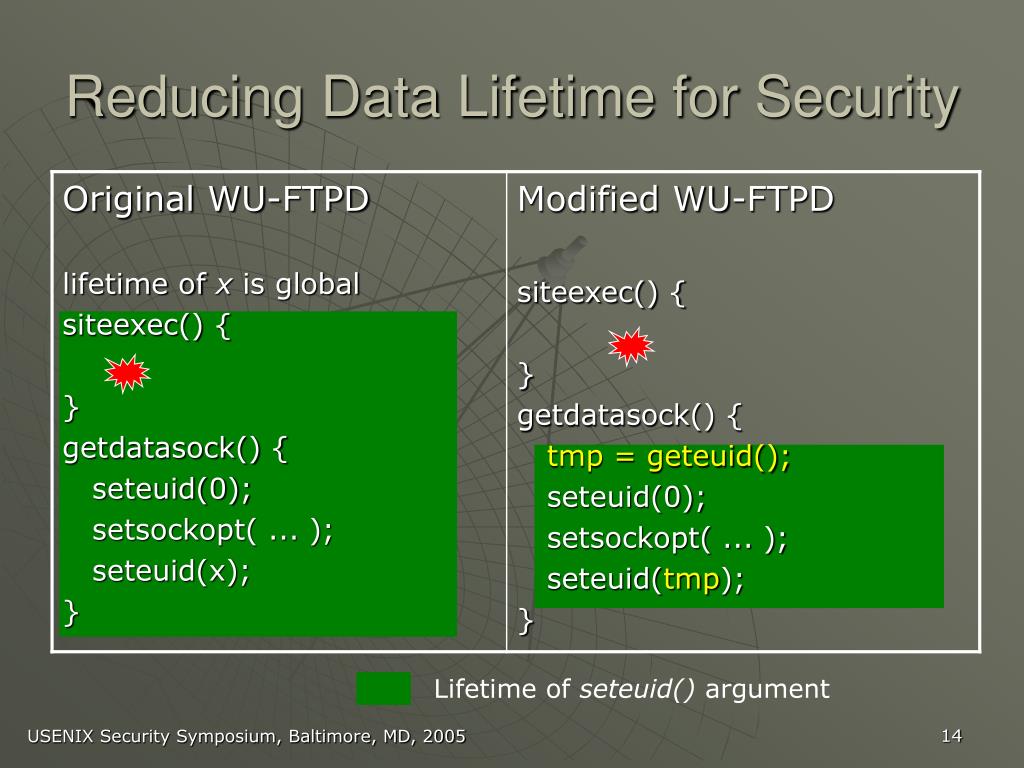

Reducing Data Lifetime for Security

Lifetime of seteuid() argument

USENIX Security Symposium, Baltimore, MD, 2005


Reducing data lifetime for security1

Reducing Data Lifetime for Security

Lifetime of auth flag

USENIX Security Symposium, Baltimore, MD, 2005


Conclusions

Conclusions

  • Major claim: many real-world software applications are susceptible to attacks that do not hijack program control flow.

  • Constructing a generic and secure defensive technique to defeat both control-data attacks and non-control-data attacks is still an open problem.

  • Reducing data lifetime is a secure programming practice to increase software resilience to attacks.

USENIX Security Symposium, Baltimore, MD, 2005


Links

Links

  • DEPEND Research Group, Univ. of Illinois

    • http://www.crhc.uiuc.edu/DEPEND

  • Prof. Jun Xu’s Research Group. North Carolina State University

    • http://www.csc.ncsu.edu/faculty/junxu/

  • Cybersecurity and Systems Management Group, Microsoft Research (a.k.a. the Strider team)

    • http://research.microsoft.com/csm

USENIX Security Symposium, Baltimore, MD, 2005
