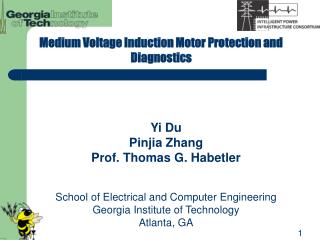

Medium Voltage Induction Motor Protection and Diagnostics

Yi Du

Pinjia Zhang

Prof. Thomas G. Habetler

School of Electrical and Computer Engineering

Georgia Institute of Technology

Atlanta, GA


Medium voltage facilities l.jpg

Medium Voltage Facilities


Medium voltage supply l.jpg

Medium Voltage Supply


Medium voltage laboratory l.jpg

Medium Voltage Laboratory


Slide15 l.jpg

Outline

  • Introduction

  • Heat transfer inside Motors

  • Thermal Model-Based Approaches

  • Parameter Model-Based Approaches

  • Other Approaches


Slide16 l.jpg

Medium voltage induction motors

  • Mostly used in the petroleum, chemical, mining and other industries,

  • Rated from 2300 V to 13200 V,

  • They are rotor limited during starting, and stator limited under overload.


Slide17 l.jpg

Overload Protection

  • Malfunctions of these motors are very costly due to loss of productivity,

  • The winding insulation failure is a typical malfunction, which is often caused by overload.


Slide18 l.jpg

Conventional Overload Relays

  • Conventional overload relays utilize simple thermal models and embedded temperature sensors.

  • Simple thermal models can not estimate the rotor temperature.

  • Disintegration of the connection, noise interference, and large time constant of the sensors often result in false alarm or trips.


Slide19 l.jpg

Requirements

  • Track the thermodynamic behavior of the motor's stator and rotor under steady and transient state conditions.

  • It should also take into account the important differences in the thermal behavior due to the motor size and the type of construction and ventilation.


Slide20 l.jpg

Possible Approaches

  • Higher order thermal model-based approaches

    Model the thermal behavior of the motor. The thermal parameters are calculated from the motor dimensions and offline experiments. This approach is robust, but measurements need be made for each motor.

  • Parameter-based approaches

    Estimate the temperature from the variation of the resistance of the stator and rotor. This method can respond to changes in the cooling conditions, and is accurate, but it is generally too sensitive.


Slide21 l.jpg

Outline

  • Introduction

  • Heat Transfer inside Motors

  • Thermal Model-Based Approaches

  • Parameter Model-Based Approaches

  • Other Approaches


Motor losses l.jpg

Motor Losses

  • The temperature rise inside a motor is caused by the losses accumulated in the motor.


Loss segregations l.jpg

Loss Segregations

Loss segregation for 15Hp motor

Compared with low power motors, high power motors have larger percentage of core loss and stray loss, and smaller percentage of copper loss.

Therefore, the thermal model only considering copper loss is not suitable for large motors.

Loss segregation for 200~2000Hp motors


Heat transfer l.jpg

Heat Transfer

The heat transfer inside a motor can be classified into

  • Conduction - transfer of heat due to the temperature difference.

    Shaft – rotor iron – rotor winding,

    Stator winding – stator iron – Frame, …

  • Convection - transfer of heat due to the fluid motion.

    Frame - external air, stator/rotor– airgap, rotor – endcap air, ...

  • Radiation - transfer of heat by electromagnetic radiation.

    Radiation is ignored since the motor temperature is relatively low.


Slide25 l.jpg

Thermal resistance and thermal capacitance

  • Thermal behavior of the motor can be analyzed by

    • Finite element methods (Time consuming)

    • Lumped-parameter thermal network, composed of thermal resistors, thermal capacitors and heat sources.

  • Some thermal resistances and thermal capacitances can be calculated directly from the motor dimensions.

  • Other thermal resistances are complex and can only be measured online.

    • Stator core to frame conduction resistance

    • Endwinding cooling resistance

    • Frame to ambient convection resistance


Slide26 l.jpg

Thermal Network

  • Given the difficulties to calculate certain thermal parameters, detailed thermal models can not guarantee good accuracy.

  • Simplification of the thermal network is preferred for online monitoring.

  • On the other hand, the thermal network should be complex enough to estimate the hot spot temperature.


Slide27 l.jpg

Outline

  • Introduction

  • Heat Transfer inside Motors

  • Thermal Model-Based Approaches

  • Parameter Model-Based Approaches

  • Other Approaches


Slide28 l.jpg

Thermal Model-based Approaches

  • Use thermal network to model the thermal behavior of the motor.

  • The Motor is divided into homogenous components wherein each part has a uniform temperature and heat transfer coefficients.

  • The heat flow paths are determined and thermal resistors are added between the nodes.

  • Losses and thermal capacitors are allocated to each node.


Slide29 l.jpg

First - order Thermal Model

  • Used in conventional relays for its simplicity,

  • Do not consider the rotor winding temperature,

  • The stator winding temperature is given by,


Slide30 l.jpg

First - order Thermal Model

  • Thermal resistance Rth and thermal capacitance Cth can be directly calculated from the trip class t6x and the service factor SF.

    • Assume the loss Ploss equals the stator copper loss

  • Cth is calculated using the trip class and the winding insulation class.


Slide31 l.jpg

First - order Thermal Model

  • Temperature rise is a complex combination of distributed thermal capacitances and resistances, single time constant is not enough.

  • Therefore, large margin is needed for safety and the motor is over protected.

  • The rotor temperature can not be monitored.


Slide32 l.jpg

Second - order Thermal Model

  • Stator and rotor are modeled separately,

  • Model B eliminate the node while maintaining the same function.

  • Parameters are calculated from offline experiments

Model A

Model B


Slide33 l.jpg

Second - order Thermal Model

  • Model C simplifies the rotor side, and less parameters are needed.

  • Second-order thermal model is a good tradeoff between accuracy and complexity.

Model C


Slide34 l.jpg

Higher - order Thermal Model

  • Model the hot spot, such as end windings, seperately.

  • The thermal model becomes complex and it is difficult to identify the parameters.


Slide35 l.jpg

Outline

  • Introduction

  • Heat Transfer inside Motors

  • Thermal Model-Based Approaches

  • Parameter Model-Based Approaches

  • Other Approaches


Slide36 l.jpg

Parameter-based Approaches

Estimate the temperature from the variation of the stator winding resistance and the rotor bar resistance.

k1 is 234.5 for 100% IACS conductivity copper

It is an online method and can respond to changes in the cooling conditions.


Slide37 l.jpg

Rotor Resistance

  • Rotor resistance can be calculated in the synchronous reference frame with the d-axis aligned with the stator current. Under the steady state, the rotor resistance, which is independent of the stator resistance, is given by

  • Rotor resistance can also be calculated in the stationary reference frame and rotor reference frame.

  • By these methods, the rotor resistance is independent of the stator resistance and is less sensitive to the parameter variations.


Slide38 l.jpg

Stator Resistance

  • Stator resistance is generally calculated based on rotor resistance.

  • In the synchronous reference frame with the d-axis aligned with the stator current, the stator resistance is given by,

  • Rotor speed can be calculated from the stator current harmonics.


Slide39 l.jpg

Outline

  • Introduction

  • Heat transfer inside Motors

  • Thermal Model-Based Approaches

  • Parameter Model-Based Approaches

  • Other Approaches


Slide40 l.jpg

Neural Network - based Approaches

  • Neural networks have been proposed to estimate the stator resistance and rotor resistance.

  • The advantages are that they do not require the motor parameters and can be easily implemented.

  • The drawbacks are they are still sensitive to the parameter changes since the network is trained using the data based on certain parameters.


Slide41 l.jpg

Hybrid Approaches

  • Combine thermal model – based approaches with parameter – based approaches,

  • Rotor temperature is estimated by parameter – based approaches since it is less sensitive to the parameter variations,

  • Stator temperature is monitored by thermal model – based approaches.


Slide42 l.jpg

Signal Injection-based Approaches

  • The stator resistance is estimated from the dc components of the voltage and current.

  • Relatively accurate since it is not affected by the inductance of the motor.

  • It is intrusive and introduces torque oscillation.


Overview of fault diagnostics for mv motors l.jpg

Overview of Fault Diagnostics for MV Motors

Induction Motor Fault Categories

Distribution of MV Induction Motor Failures


Outline l.jpg

OUTLINE

  • Overview of Fault Diagnostics for MV Motors

  • Bearing Failure and its Diagnostic

  • Stator Winding Inter-turn Fault and its Diagnostic

  • Rotor Fault and its Diagnostic

    • Broken Rotor Bar & End-Ring Faults and their Diagnostic

    • Rotor Eccentricity and its Diagnostic

  • Conclusions


Overview of fault diagnostics for mv motors45 l.jpg

Overview of Fault Diagnostics for MV Motors

Induction Motor Fault Categories

Distribution of MV Induction Motor Failures


Analysis of fault diagnostics for mv motors l.jpg

Analysis of Fault Diagnostics for MV Motors

Main differences between MV motors and small low-voltage motors:

  • High Insulation Requirement for Stator Winding: stator winding inter-turn fault

  • Large Output Torque: rotor and bearing- related mechanical faults

  • High Thermal Stress: stator insulation failure and rotor-related faults


Bearing failure monitoring l.jpg

Bearing Failure Monitoring

Bearing failure is the most common fault for MV motors.

Reasons for Bearing Failure

  • Electrical Stress:

    Stator, rotor or input voltage unbalance causes unbalanced magnetic flux, which induces shaft current, and potential voltage between bearing and ground.

  • Mechanical Stress:

    • Friction and rotor eccentricity can cause mechanical failure of bearings.

  • Thermal Stress:

    • Overheat causes the failure of lubricant, which lead to friction.

Outer raceway

Inner raceway

Ball

Cage


Bearing failure monitoring48 l.jpg

Bearing Failure Monitoring

Classification of Bearing Failure:

  • Single Point Defects:

    • Outer raceway

    • Inner raceway

    • Ball

    • Cage

  • Generalized Roughness

Existing Methods:

  • Standard vibration sensor method

  • Chemical analysis method

  • Temperature monitoring

  • Acoustic emission method

  • Sound pressure method

  • Current signature spectra method


Current signature spectra methods l.jpg

Current signature spectra methods

1.Single point defects:

  • Wavelet method

  • Neural network clustering method

  • Adaptive time-frequency method

  • Park vector trajectory method

  • Other methods

    2.Generalized roughness:

  • Mean spectrum deviation method

    Fundamentally: monitor the E-M torque harmonics corresponding to the mechanical vibration frequencies


Bearing failure monitoring50 l.jpg

Bearing Failure Monitoring

is the power supply frequency; is the vibration frequency;

is the corresponding stator current signature frequency.

Challenges for MV motors

For single point defects:

  • Poor Signal/Noise Ratio

    Due the large output torque, the torque vibration caused by bearing failure is more difficult to observe. So the low signal/noise ratio is a potential problem for current-based bearing diagnosis of large MV motors.

    For generalized roughness:

  • Separate measurement noise and bearing failure-related vibration noise


Stator winding inter turn faults l.jpg

Stator Winding Inter-turn Faults

Reasons for Stator Inter-turn Fault

  • Electrical Stress:

    • High voltage causes winding insulation failure

  • Thermal Stress

    • Motor life is reduced by 50% for every 10°C above limit

  • Mechanical Stress

    • Friction between stator and rotor caused by rotor eccentricity

  • Other Stress


Stator winding inter turn faults52 l.jpg

Stator Winding Inter-turn Faults

Existing Methods:

  • Negative Sequence Current

  • Negative Sequence Impedance

  • E-M Torque Harmonics

  • Current Spectrum

  • Current Park Vector Trajectory

  • Artificial Intelligent Methods

    Fundamentally: Monitor the unbalance of stator winding

Stator Inter-turn Fault


Stator winding inter turn fault and its diagnostic l.jpg

Stator Winding Inter-turn Fault and its Diagnostic

Challenges:

  • How to consider voltage unbalance in power supply

  • How to consider original stator winding unbalance

  • How to set threshold for negative-sequence impedance


Rotor related failures l.jpg

Rotor-related Failures

Rotor-related faults can be classified into:

  • Broken Rotor Bar

  • Broken Rotor End-Ring

  • Rotor Eccentricity (shaft misalignment)

    Reasons for rotor-related faults:

  • Mechanical stress: including rotor eccentricity, and stator-rotor friction

  • Thermal stress: overheat in rotor can cause rotor deterioration

  • Electrical stress: frequency starting and overload operations can cause thermal stress due to large current; unbalanced flux can induce unbalanced magnetic pull.


Broken rotor bar and end ring faults l.jpg

Broken Rotor Bar and End-Ring Faults

  • Broken rotor bar fault can cause unbalanced magnetic flux, and thus torque oscillation and stator current harmonics.

  • Due to large output torque, and large rotor current, broken rotor bar fault is more common on large MV motors than small motors

  • The effects of broken rotor end-ring are the same as broken rotor bar, in the sense that the rotor flux is asymmetric, and induces harmonics in the stator current.


Broken rotor bar and end ring faults56 l.jpg

Broken Rotor Bar and End-Ring Faults

Existing methods:

  • Signature current analysis

  • EM torque harmonics monitoring

  • Slot harmonic methods

  • Starting current analysis

  • Pattern recognition-based methods

  • Artificial intelligence-based methods

  • Other methods

  • Fundamentally: monitor the signature harmonics and slot harmonics in stator current

Broken Rotor Bar-related current harmonics


Rotor eccentricity l.jpg

Rotor Eccentricity

Rotor eccentricity is a possible reason for many kinds of motor faults, such as stator insulation failure, broken rotor bar and end-ring, and even shaft crack.

Rotor Shaft Crack

  • Rotor eccentricity is mainly caused by shaft misalignment, when the geometric center of the rotor does not coincide with the center of the stator.

  • The current harmonics related to rotor eccentricity are


Rotor related faults l.jpg

Rotor-related Faults

  • For MV motors, due to the high thermal stress on rotor, and the large output torque, especially the starting acceleration torque, rotor-related faults are quite common.

  • The fundamental methods for rotor-related faults are current signature analysis, as the signature frequencies related to broken rotor bar or eccentricity are well-known.

    Challenges for MV motors

  • Separating signature harmonics from load oscillation

    • The signature harmonics in stator current are caused by the unbalanced rotor flux, but the same harmonics can also be caused by the load oscillation.

  • Diagnostics for drive-connected motors

    • the low-frequency harmonics can be cancelled or reduced by the controller.


Conclusions l.jpg

Conclusions

Motor faults diagnostics:

  • Stator Inter-turn Fault

    monitor the unbalance of stator winding

  • Bearing Fault

    monitor the current harmonics caused by bearing-related torque vibration

  • Rotor Fault

    • Broken Rotor Bar/End-ring

    • Rotor Eccentricity

      monitor the current signature harmonics caused by unbalanced rotor flux


Conclusion of motor faults and their diagnostics for mv motors l.jpg

Conclusion of Motor Faults and their Diagnostics for MV Motors

Challenges for fault diagnostics of MV motors

  • Compensate for the effect of power supply and original motor unbalance

  • Cancel the effect of load oscillation on diagnostics

  • Reliable diagnosis even with low SNR

  • Fault diagnostics for drive-connected systems

  • Remote condition monitoring


Slide61 l.jpg

QUESTIONS?


  • Login
