  1. Fabrication of Nanoscale BLM Biosensors Tadahiro Kaburaki (Cornell) MR Burnham (Wadsworth Postdoc) M.G. Spencer (Cornell PI) James Turner (Wadsworth PI) Xinquin Jiang (Cornell)

  2. Presentation Contents • Objectives • Background • Fabricated devices • Signal Processing • Current Goals

  3. Objectives • Fabrication of a stable platform for transducing signals through artificial BLMs • Allow for the most stable BLM possible • Analysis of BLM impedance characteristics • Including signals produced with proteins • Packaging of a sensor with analytic capabilities on-chip

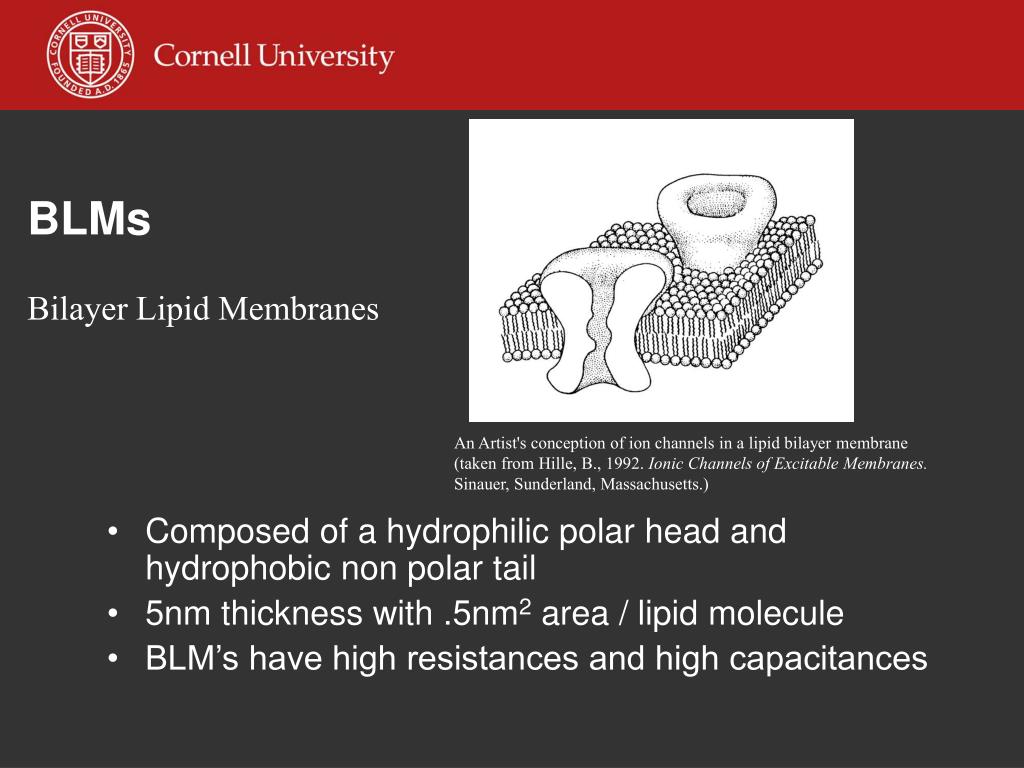

  4. BLMs Bilayer Lipid Membranes • Composed of a hydrophilic polar head and hydrophobic non polar tail • 5nm thickness with .5nm2 area / lipid molecule • BLM’s have high resistances and high capacitances An Artist's conception of ion channels in a lipid bilayer membrane (taken from Hille, B., 1992. Ionic Channels of Excitable Membranes. Sinauer, Sunderland, Massachusetts.)

  5. Why use a BLM/protein system? • Biosensors based on natural receptors (proteins) with BLMs provide a sensitive and selective method of sensing chemical species (ions or molecules) • Upon binding with analytes, transport proteins change their transport behavior across BLMs • These types of sensors are unique in that they have molecular recognition as well as signal tranduction properties.

  6. Electrochemical Impedance Spectroscopy (EIS) • A small amplitude sinusoidal voltage is applied across the device • The frequency dependant impedance is measured as a magnitude and phase angle electrodes device

  7. Electrochemical Impedance Spectroscopy (EIS)

  8. Electrochemical Impedance Spectroscopy (EIS)

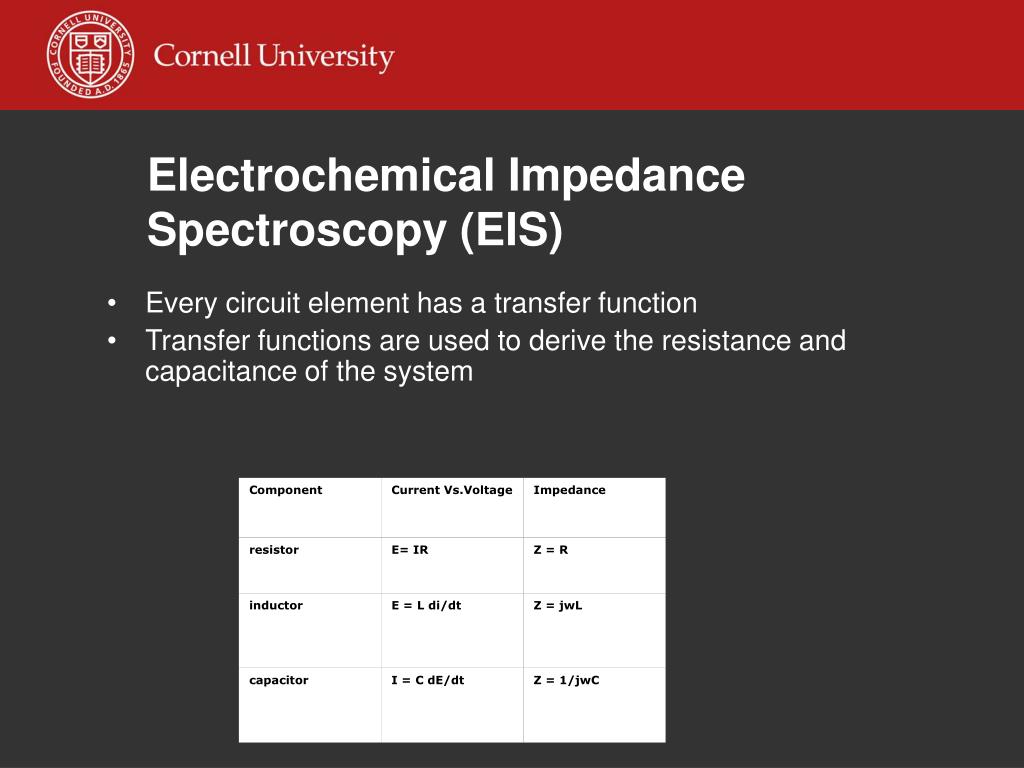

  9. Electrochemical Impedance Spectroscopy (EIS) • Every circuit element has a transfer function • Transfer functions are used to derive the resistance and capacitance of the system

  10. Electrochemical Impedance Spectroscopy (EIS) • The most basic circuit model utilized is • This circuit has a function of Zel

  11. Electrochemical Impedance Spectroscopy (EIS) • Assuming some knowledge of the circuit structure, a transfer function can be derived and the circuit parameters can be extracted.

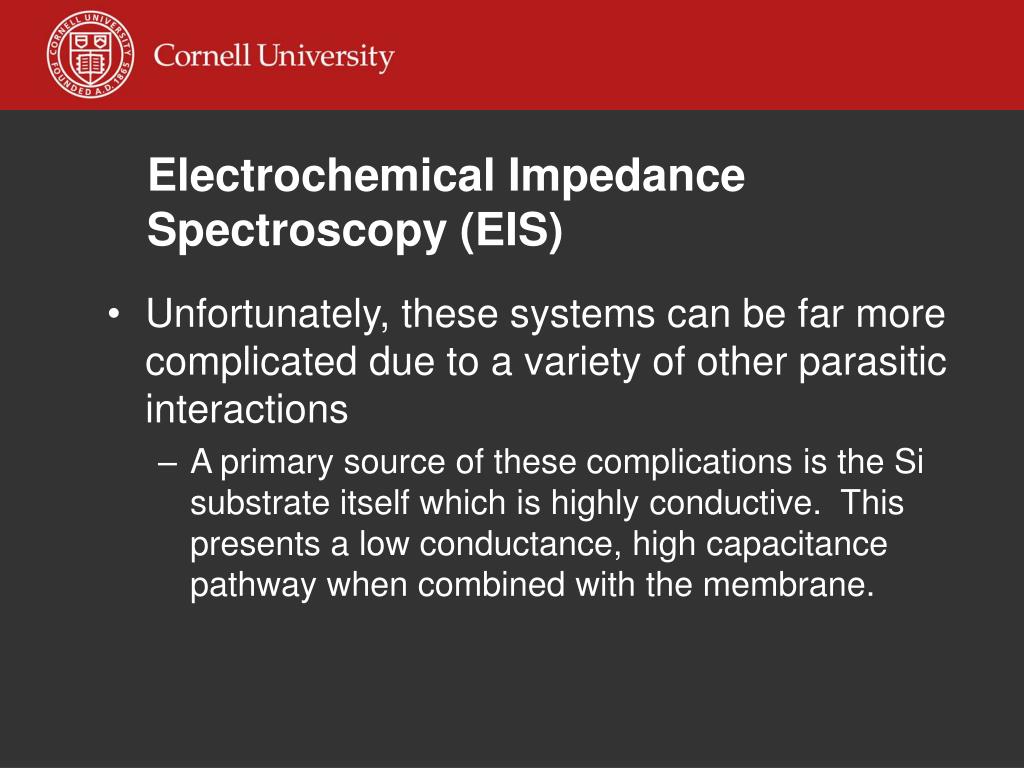

  12. Electrochemical Impedance Spectroscopy (EIS) • Unfortunately, these systems can be far more complicated due to a variety of other parasitic interactions • A primary source of these complications is the Si substrate itself which is highly conductive. This presents a low conductance, high capacitance pathway when combined with the membrane.

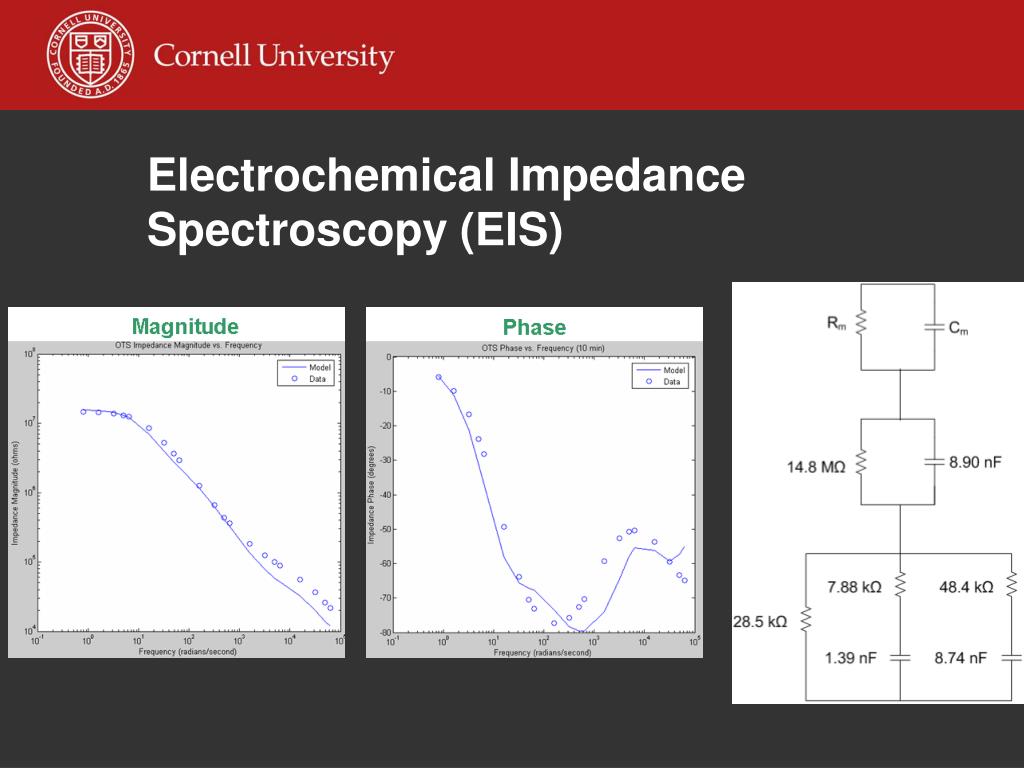

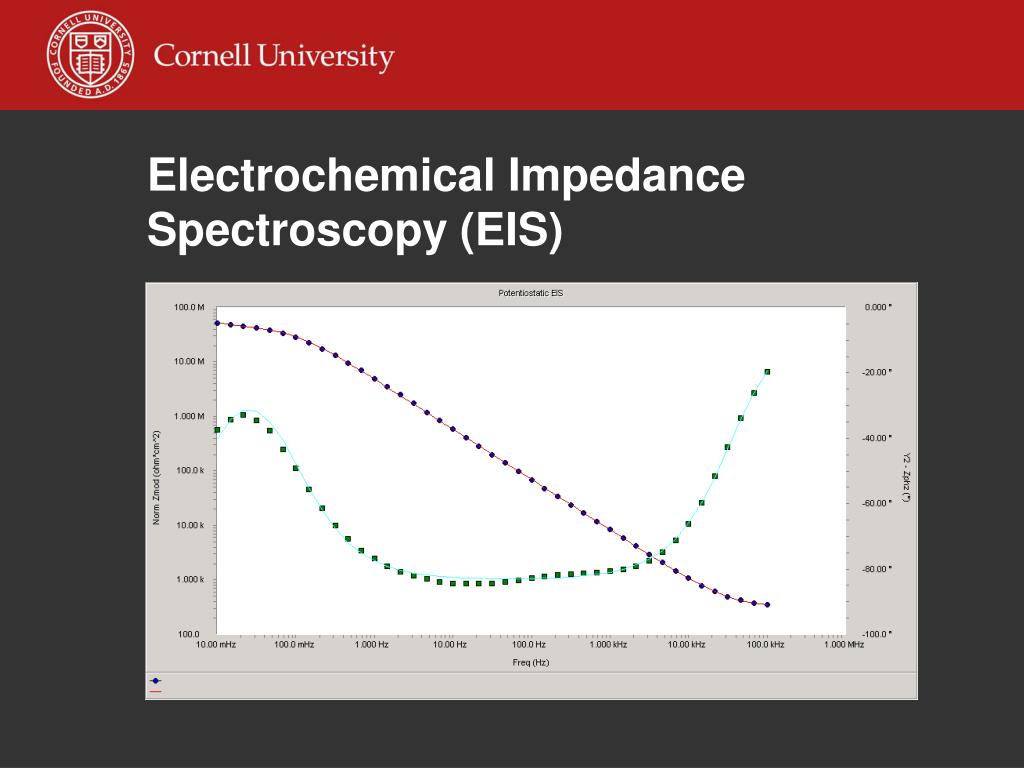

  13. Electrochemical Impedance Spectroscopy (EIS)

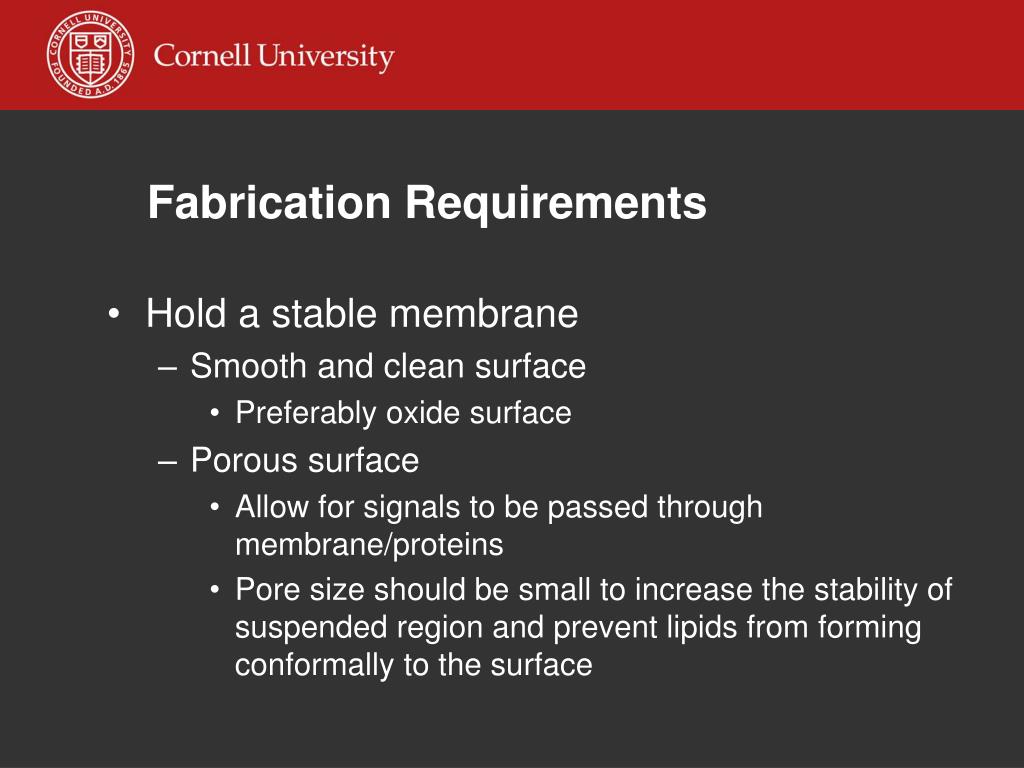

  14. Fabrication Requirements • Hold a stable membrane • Smooth and clean surface • Preferably oxide surface • Porous surface • Allow for signals to be passed through membrane/proteins • Pore size should be small to increase the stability of suspended region and prevent lipids from forming conformally to the surface

  15. Fabrication Requirements • Measure signals with a high S/N ratio • Need a high resistance, low capacitance substrate • Prevents capacitive coupling, capacitive signal leakage • High resistance allows for signals to be measured only through the membrane area • Good electrode placement • i.e. Ag/AgCl electrodes for Cl- measurement

  16. Porous alumina substrates • Designed by Xinquin Jiang (Spencer group) • Utilizes porous alumina formed

  17. Porous Alumina Substrate Fabrication • Use LPCVD (Low Pressure Chemical Vapor Deposition) to coat a 4” DSP (Double sided polish) wafer with Silicon Nitride Si Si3N4

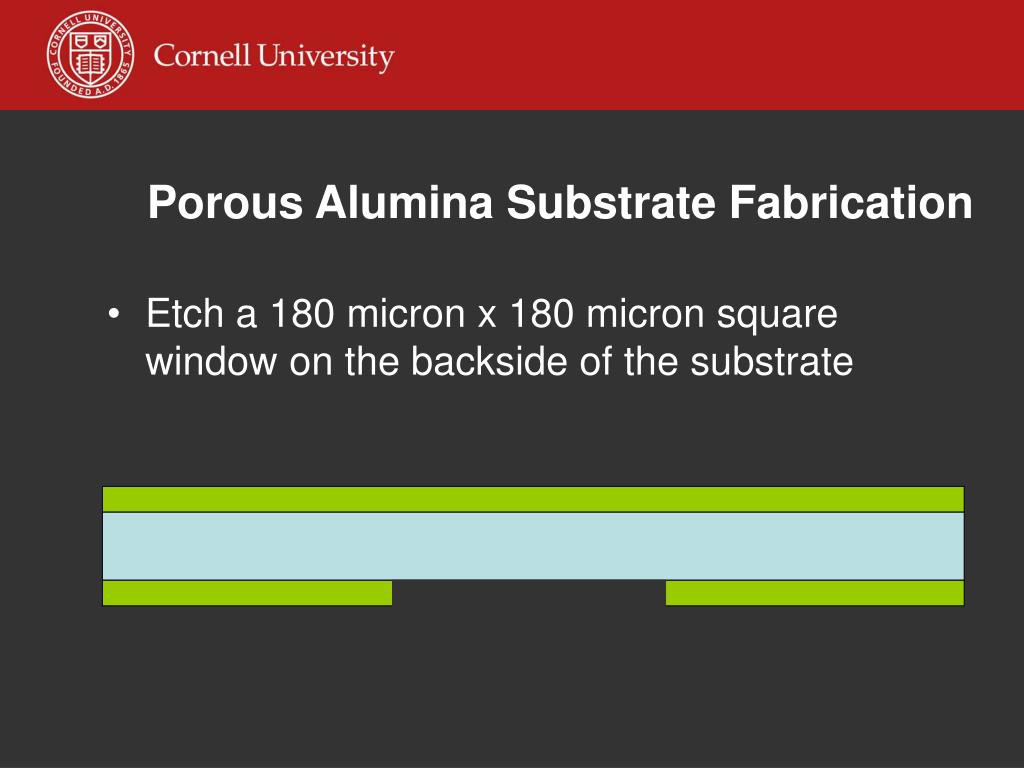

  18. Porous Alumina Substrate Fabrication • Etch a 180 micron x 180 micron square window on the backside of the substrate

  19. Porous Alumina Substrate Fabrication • Use KOH as a wet etchant to etch through the Si substrate • KOH preferentially etches <100> crystal plane, resulting in a “V-groove”

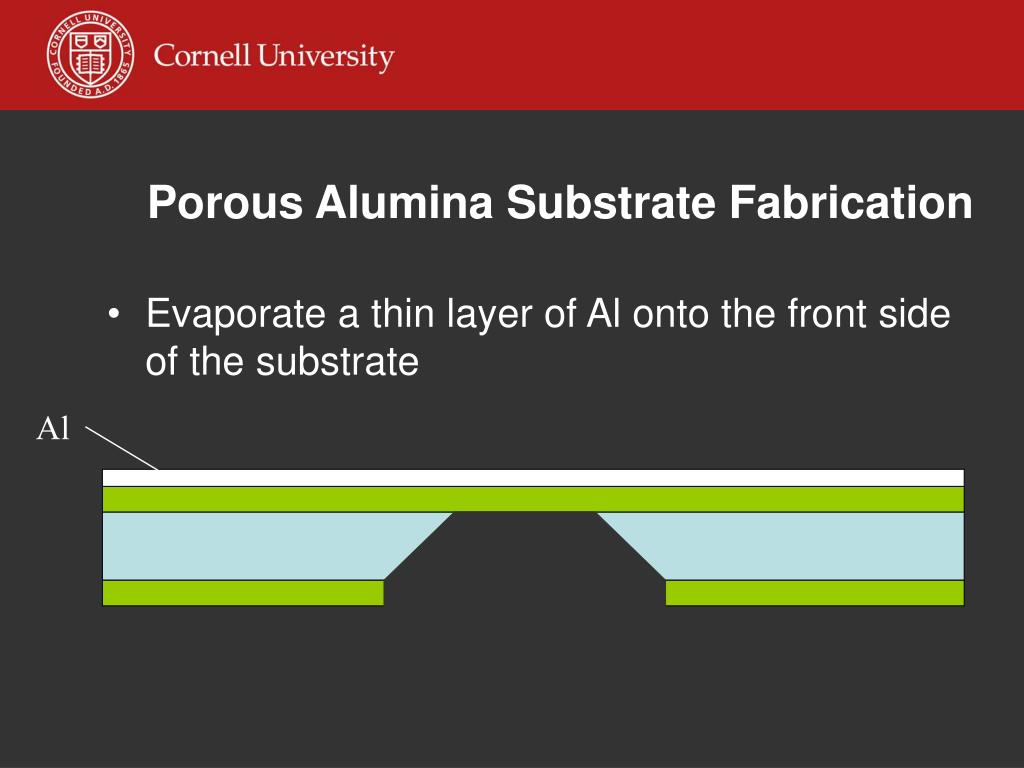

  20. Porous Alumina Substrate Fabrication • Evaporate a thin layer of Al onto the front side of the substrate Al

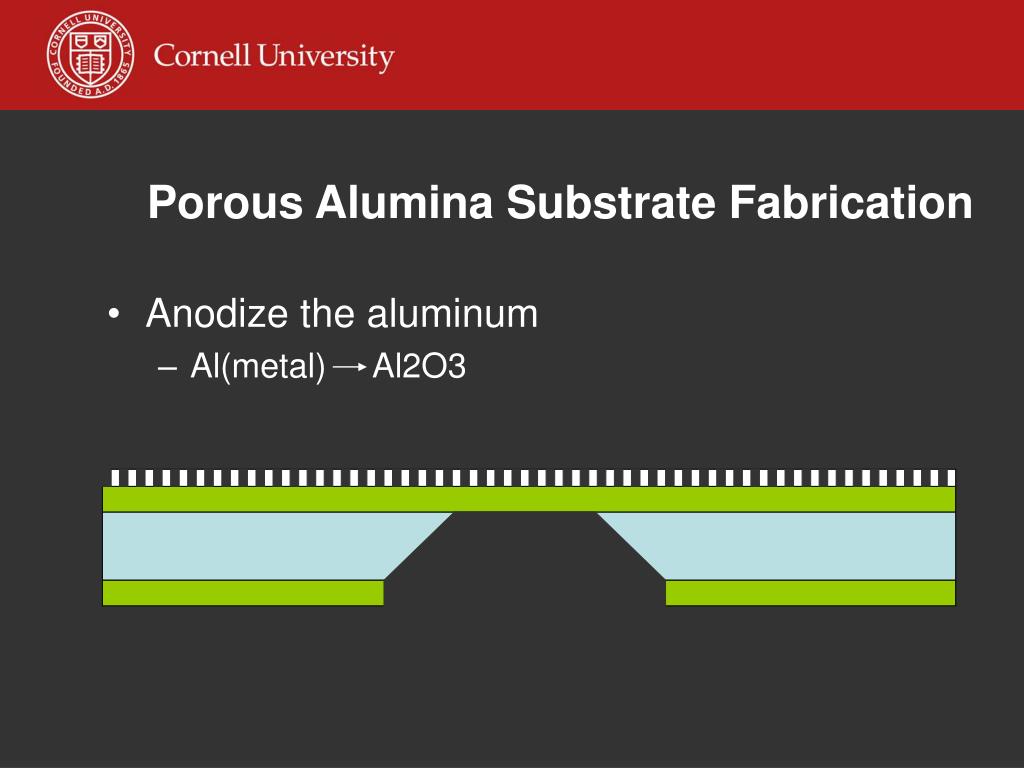

  21. Porous Alumina Substrate Fabrication • Anodize the aluminum • Al(metal) Al2O3

  22. Porous Alumina Substrate Fabrication • Etch the backside to remove the Si2N3

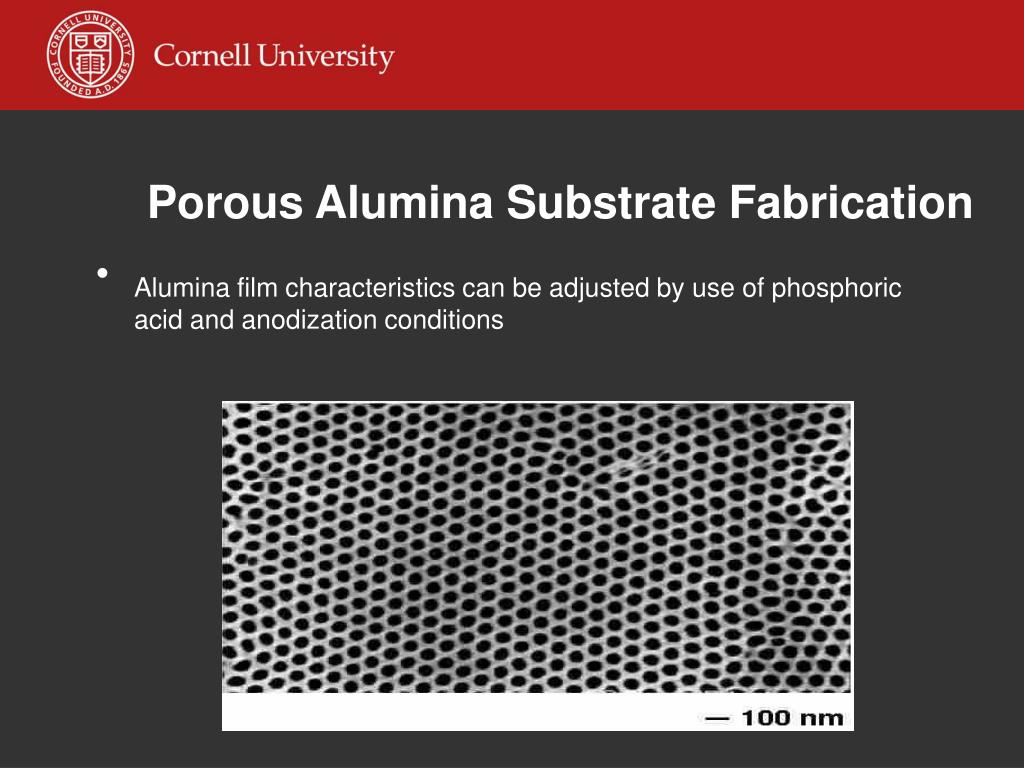

  23. Porous Alumina Substrate Fabrication • Alumina film characteristics can be adjusted by use of phosphoric acid and anodization conditions

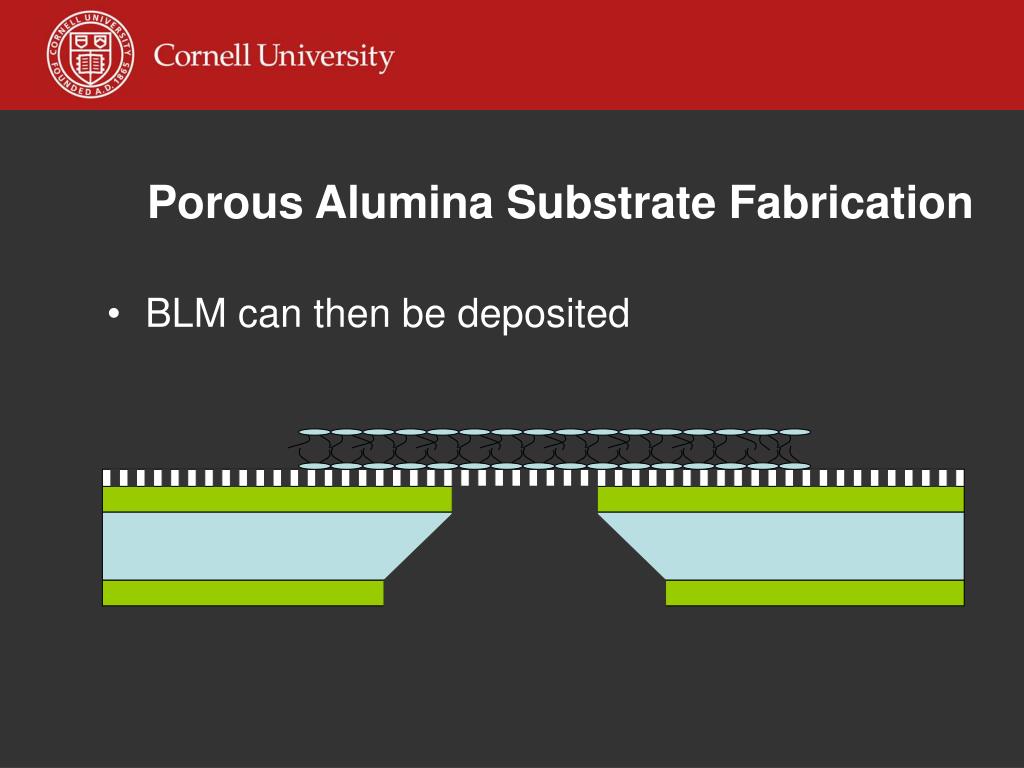

  24. Porous Alumina Substrate Fabrication • BLM can then be deposited

  25. Signals obtained from this system • Our results are comparable to state of the art systems • The results do require some amount of interpretation • This is because the systems on which the BLMs reside are not identical.

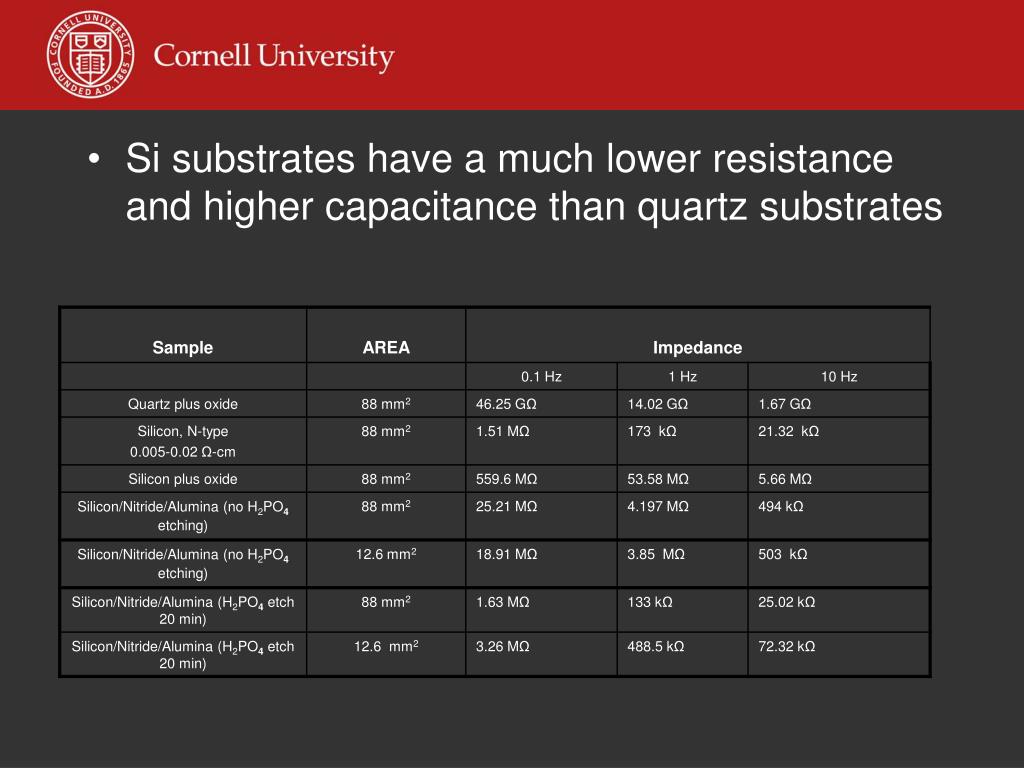

  26. Si substrates have a much lower resistance and higher capacitance than quartz substrates

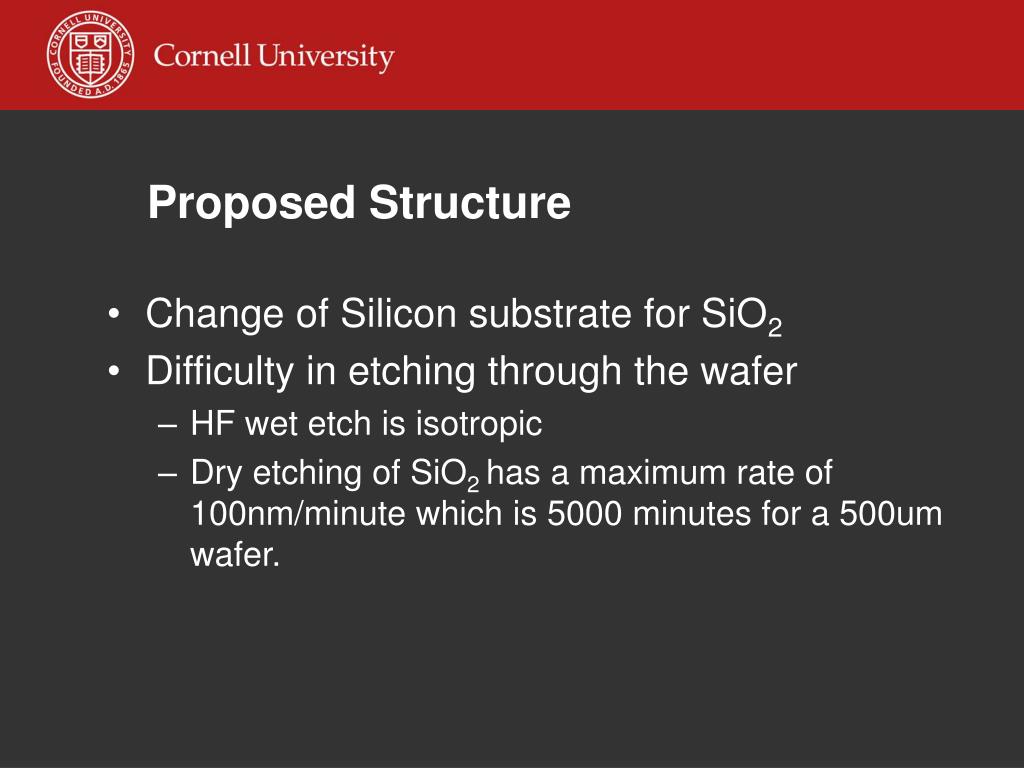

  27. Proposed Structure • Change of Silicon substrate for SiO2 • Difficulty in etching through the wafer • HF wet etch is isotropic • Dry etching of SiO2 has a maximum rate of 100nm/minute which is 5000 minutes for a 500um wafer.

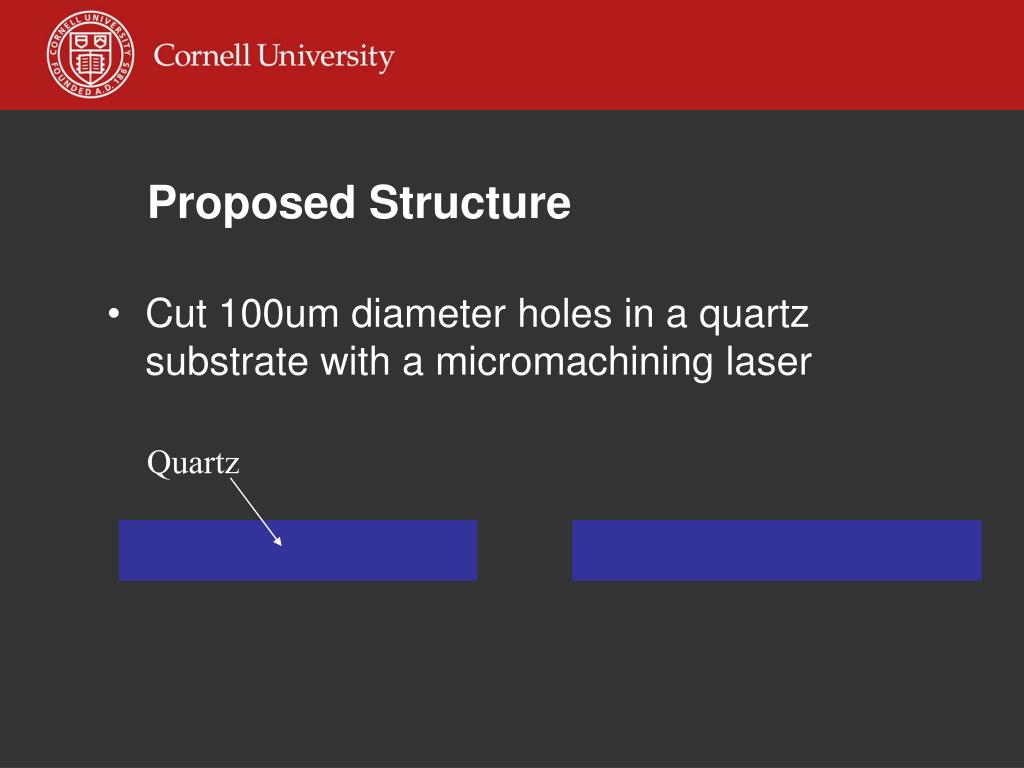

  28. Proposed Structure • Cut 100um diameter holes in a quartz substrate with a micromachining laser Quartz

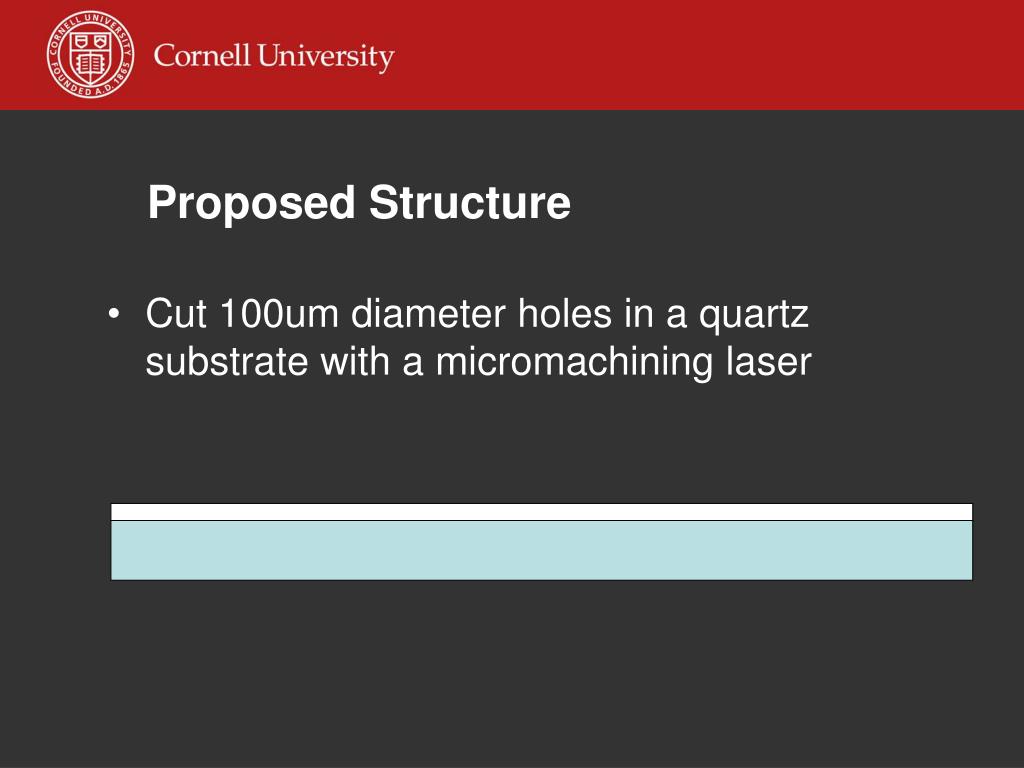

  29. Proposed Structure • Cut 100um diameter holes in a quartz substrate with a micromachining laser

  30. Proposed Structure • Anodize the aluminum • Al(metal) Al2O3

  31. Proposed Structure • Coat the surface with a polymer (polyimide or adhesive wax)

  32. Proposed Structure • Adhere the Si and quartz surfaces (hot press)

  33. Proposed Structure • Dry etch the Si wafer (Bosch etch process) at a rate of 1um/minute. Dry etch polymer (RIE)

  34. Proposed Structure • BLM can then be deposited

  35. The Next Step • Addition of proteins • The proteins are the mechanism by which the environment is actually measured • Measurements will be made at a single frequency that is chosen to maximize sampling while remaining in the resistive regime • Optimally this frequency will be in the kHz range

  36. Hirano from Nihon University used a patch clamp to measure current openings from a single gramicidin protein in response to different concentrations of ferritin avidin

  37. Opening percentage vs. FA concentration

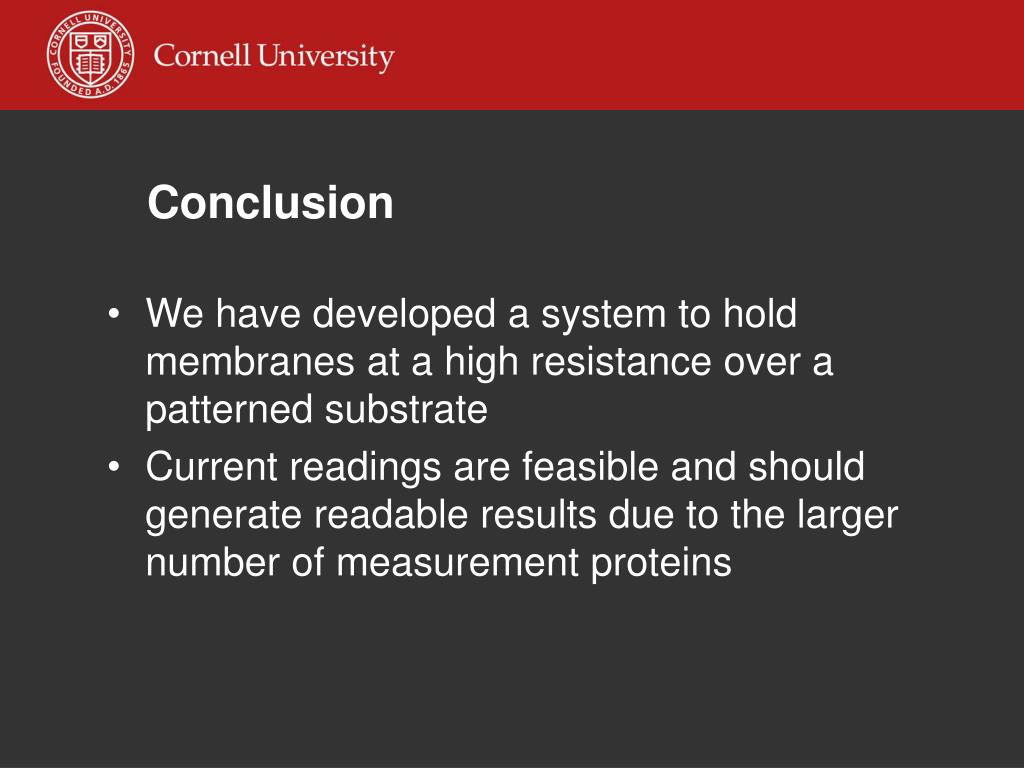

  38. Conclusion • We have developed a system to hold membranes at a high resistance over a patterned substrate • Current readings are feasible and should generate readable results due to the larger number of measurement proteins
