Presentation Transcript

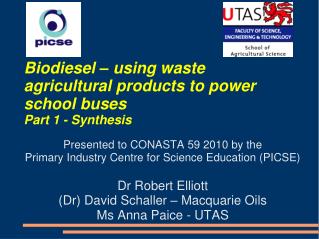

Biodiesel using waste agricultural products to power school buses part 1 synthesis l.jpg

Biodiesel – using waste agricultural products to power school busesPart 1 - Synthesis

Presented to CONASTA 59 2010 by the

Primary Industry Centre for Science Education (PICSE)

Dr Robert Elliott

(Dr) David Schaller – Macquarie Oils

Ms Anna Paice - UTAS


What is picse l.jpg
What is PICSE? school buses

  • Primary Industry Centre for Science Education based at UTAS

  • National program

  • 8 Activity Centres

  • Attracting talented students to study science, suffering from major skills shortages

  • Teacher PDs, class visits, Industry Placement Scholarship for yr 11/12, Science Camps yr 10, classroom resources, Science Investigation Awards yr 5-12



Slide4 l.jpg

Learning Outcomes school buses

  • Make climate debate concrete

  • Understand carbon neutral fuel

  • Understand why BD (not straight veg oil)

  • Chemistry: fats, soap and biodiesel

  • Poor BD synthesis - leads to investigation, experimentation, development


Slide5 l.jpg

Connections to curriculum school buses

  • Renewable fuels

  • Titration – acid/base

  • Saponification reaction

  • Organic compounds – naming

  • Esterification reaction

  • Factors effecting reaction rates, completion/equilibrium

  • Experimental design and process


Slide7 l.jpg

Driving around the world on school buses

straight vegetable oil (SVO)

(Biodiesel education project: Oil+Water -> http://www.naturalheroes.tv/vod.html )

http://susty.com/image/drive10.jpg

http://nrpw.com/rig.html


Slide8 l.jpg

Ignition by compression: school buses

no spark plug in diesels

http://www.youtube.com/watch?v=LcQcfoanCU0&feature=related


Slide9 l.jpg

High viscosity of school buses

straight vegetable oil (SVO)

http://bobbybilt-rhino.tripod.com/

http://sciencesquad.questacon.edu.au/activities/falling_marbles.html


Slide10 l.jpg

Biodiesel vs vegetable oil (SVO) school buses

Viscosity --> fine spray

Demo


Slide11 l.jpg

http://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971http://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971


Slide12 l.jpg

Engine damage from usinghttp://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971

straight vegetable oil (SVO)

http://forums.tdiclub.com/showthread.php?t=206587&page=2

http://www.biofuelsforum.com/svo_users/4379-direct_injection_landcruiser_factory_turbo_diesel_engine_insp_after_running_wvo.html


Slide13 l.jpg

Biodiesel vs vegetable oil (SVO)http://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971

Flammability (flash point)

Whoosh!


Slide14 l.jpg

Converting fats to biodiesel http://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971

glycerol

TG

(Fat)

DG

MG

+

+

+


Slide15 l.jpg

Safetyhttp://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971

Biodiesel is non-toxic,

but... making biodiesel...

  • Flammable – alcohol

  • Toxic- methanol

  • Corrosive – caustic soda

  • Heat/sparks...

Image from http://www.odec.ca/projects/2006/bach6k2/discuss.htm


Slide16 l.jpg

Ethanol-based biodiesel demos?http://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971

  • The original Dr Pepper methanol protocol

  • Existing small scale ethanol-based lesson

  • Our adaptation of the Dr. Pepper protocol to ethanol

http://www.biodieselcommunity.org/

http://attra.ncat.org/attra-pub/biodiesel.html#making

Or Small scale ethanol ref


Slide17 l.jpg

+ Hhttp://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/7251079712

+ H2O

+ alcohol

Margarine

+ H2

Soap (FFAs)

Biodiesel (FAMEs)

Alkanes


Slide18 l.jpg

Dry alcohol, dry NaOH,http://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971

dry/fresh oil: <1% FFAs,

dry glassware, dry air

Soap + H2O + oil + shaking = ???

Have you ever tried to burn soap?

Bonus: why doesn't soap burn?


Slide19 l.jpg

Making the catalyst with drain cleaner http://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971

+

http://www.northcoastchemicals.com.au/catalog/images/0210-2-shU1.JPG


Slide20 l.jpg

Progress of the transesterification reactionhttp://biodiesel.infopop.cc/eve/forums/a/tpc/f/159605551/m/725107971


Slide21 l.jpg

Burning glycerol makes a gummy mess you don't want in your engine!

http://www.impactlab.com/2008/08/14/marshmallow-cancer/

http://jumboempanadas.blogspot.com/2006/10/how-hard-could-it-be-to-make-fluffy.html


Slide22 l.jpg

'Pre-wash' helps glycerol separate engine!

+ 1 Tbs H2O

100 ml + 20ml = approximately 150 ml


Slide23 l.jpg

Washing with salt water engine! † to remove contaminates: NaOH, ethanol, soap


Slide24 l.jpg

Modifications to the Dr Pepper demo protocol engine!

  • Use less toxic ethanol

  • Dry ethanol using polenta (or rock salt)(Optional?)

  • Longer reaction times (heat?)

  • Trigger glycerol separation with H2O prewash

  • Prevent emulsions with salt washes

http://attra.ncat.org/attra-pub/biodiesel.html#making

Or Small scale ethanol ref

http://www.biodieselcommunity.org/


Bob elliott s biodiesel protocol l.jpg
Bob Elliott’s Biodiesel Protocol engine!

Add 30g NaOH to 200mL dry ethanol >95% in a conical flask, mix well. Use a hotplate to dissolve catalyst in the alcohol if required.

Use an empty, completely dry 1.25L soft drink bottle or 1L separating funnel. Add 300mL of new vegetable oil (canola, soy bean, olive, poppy, almond etc) then add the dissolved catalyst+alcohol mix.

Gently shake by inverting bottle or funnel several times and leave to settle overnight, or compare different reaction times eg 5 mins, 10 mins, 20 mins, 30 mins.

Wash the biodiesel
