Presentation Transcript


Salton sea species conservation habitat l.jpg

Salton Sea Species Conservation Habitat

Workshop •June 10, 2010


Meeting purpose l.jpg

Meeting Purpose

  • Provide Stakeholders the opportunity to guide the direction of the SCH Project


Agenda l.jpg

Agenda

  • Introductions

  • Goals and objectives

  • Critical screening criteria

  • Construction challenges


Introduction of presentation team l.jpg

Introduction of Presentation Team

  • Rick Davis – Davis Group

  • Arturo Delgado – California Department of Fish and Game

  • Ramona Swenson – ENTRIX, Inc.

  • Rob Thomson – ENTRIX, Inc.

  • Vince Thompson – Ducks Unlimited


Species conservation habitat project l.jpg

Species Conservation Habitat Project

Goals and Objectives


Need for sch project l.jpg

Need for SCH Project

  • Declining surface water elevation will lead to loss of Salton Sea habitat

  • Increasing salinity will lead to fishery collapse

  • Fishery collapse will result in loss of forage base for fish-eating birds


Sch project purpose l.jpg

SCH Project Purpose

  • SCH will provide conservation measures while the Legislature determines long-term action

  • Provides replacement for some near-term habitat losses as sea levels decline

  • Target: piscivorous bird species present in 2010 and dependent on the Sea for:

    • Foraging – fishery resources

    • Essential habitat components – foraging, nesting, roosting, loafing

    • Viability of a significant portion of their population


Goals and objectives l.jpg

Goals and Objectives

  • Goal 1: Develop a range of aquatic habitats that will support fish and wildlife species dependent on the Salton Sea

  • Objectives

    • Provide adequate foraging habitat for piscivorous (fish-eating) bird species

    • Develop habitats required to support piscivorous bird species

    • Support a sustainable, productive aquatic community

    • Provide suitable water quality for fish

    • Minimize adverse effects to desert pupfish

    • Minimize risk of selenium

    • Minimize risk of disease/toxicity impacts


Goals and objectives9 l.jpg

Goals and Objectives

  • Goal 2: Develop and refine information needed to successfully manage the SCH Project through an adaptive management process

  • Objectives

    • Identify uncertainties in achieving the objectives

    • Design science-based means to test alternatives and reduce uncertainty

    • Develop and implement a monitoring plan

    • Develop a decision-making framework

    • Provide proof-of-concept for future restoration efforts


Questions and feedback l.jpg

Questions and Feedback

Goal 1:Develop a range of aquatic habitats that will support fish and wildlife species dependent on the Salton Sea

Goal 2:Develop and refine information needed to successfully manage the SCH Project through an adaptive management process

  • Do you agree with these goals and objectives?

  • Are we missing any others?


Species conservation habitat project11 l.jpg

Species Conservation Habitat Project

Critical Screening Criteria


Screening criteria l.jpg

Screening Criteria

Two types of screening criteria

  • Exclusionary criteria

    • Factors essential to the successful completion of the SCH Project

  • Evaluative criteria

    • Factors considered in comparing Project components and alternatives

    • Not necessarily cause for elimination

      • Construction and operational costs

      • Environmental considerations

      • Other


Critical screening criteria l.jpg

Critical Screening Criteria

  • Exclusionary criteria used to begin refining the range of potential sites

  • Exclusionary criteria are

    • Adequate water supply (quantity, quality, and seasonal availability)

    • Available water rights

    • Available land

  • Three general locations being considered


Three generalized alternative locations l.jpg

Three Generalized Alternative Locations


Available land whitewater river l.jpg

Available Land – Whitewater River


Available land new river l.jpg

Available Land – New River


Available land alamo river l.jpg

Available Land – Alamo River


Questions and feedback18 l.jpg

Questions and Feedback

  • Are these the right criteria?

  • Are there others we should consider?


Species conservation habitat project19 l.jpg

Species Conservation Habitat Project

Construction Challenges


Construction of sch ponds l.jpg

Construction of SCH Ponds

  • Construction may occur in areas between -228 and -234 msl

    • Exposed playa with high groundwater

    • Shallow flooded areas

    • Water a few feet deep


Potential site conditions l.jpg

Potential Site Conditions

  • Examples of conditions that may be encountered during berm construction

    • Exposed moist but relatively firm soils

    • Shallow flooded relatively firm soils

    • Shallow flooded soft mucky soils

    • Water a few feet deep with soft or firm soils

  • Examples of water control structure installation

    • Localized dewatering

    • Structure support in soft soils


Receding sea water surface l.jpg

Receding Sea Water Surface


Building berms on exposed playa l.jpg

Building Berms on Exposed Playa

Example – Moist, relatively firm soils

  • Equipment

    • Low ground pressure tractors with carry-all scrapers

  • Method

    • Excavate, haul and place with the same piece of equipment

  • Haul distance

    • Short to Medium

  • Relative cost

    • Low


Low ground pressure tractors l.jpg

Low Ground Pressure Tractors


Building berms in shallow water l.jpg

Building Berms in Shallow Water

Example – Shallow water, relatively firm soils

  • Equipment

    • Excavators, low ground pressure dump trucks, bulldozers

  • Method

    • Excavate and load, haul with dump trucks, spread with dozers

  • Haul distance

    • Short to long

  • Relative Cost

    • High


Excavator load and haul l.jpg

Excavator, Load, and Haul


Dump and spread l.jpg

Dump and Spread


Building berms in shallow water28 l.jpg

Building Berms in Shallow Water

Example –Shallow water, soft mucky soils

  • Equipment

    • Amphibious excavators

  • Method

    • Excavate and drop

  • Haul distance

    • Adjacent

  • Relative Cost

    • High


Amphibious excavators l.jpg

Amphibious Excavators


Building berms in deeper water l.jpg

Building Berms in Deeper Water

Example – 2 feet of water, soft or firm soils

  • Equipment

    • Derrick barge with clamshell bucket

  • Method

    • Excavate and drop

  • Haul distance

    • Adjacent

  • Relative Cost

    • Medium


Derrick barge clamshell bucket l.jpg

Derrick Barge Clamshell Bucket


Layer height depends on strength l.jpg

Layer Height Depends on Strength

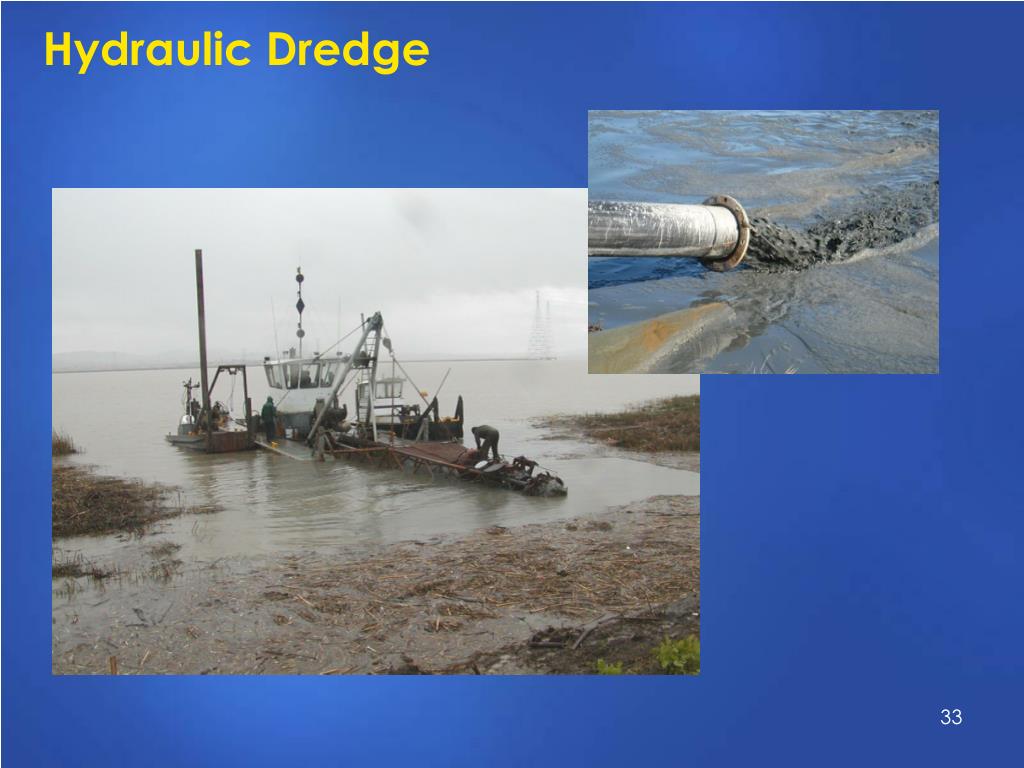

Hydraulic dredge l.jpg

Hydraulic Dredge


Site dewatering l.jpg

Site Dewatering


Water control structure l.jpg

Water Control Structure


Structure site dewatering l.jpg

Structure Site Dewatering

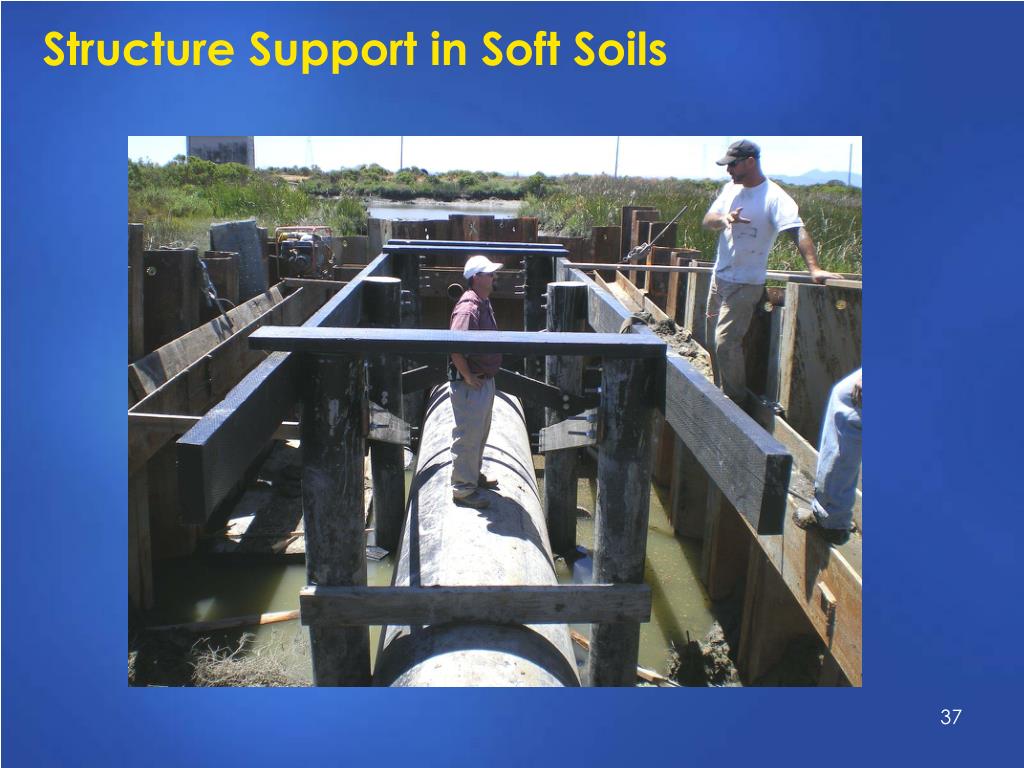

Structure support in soft soils l.jpg

Structure Support in Soft Soils


Functional wetland management l.jpg

Functional Wetland Management


Next step design considerations l.jpg

Next Step – Design Considerations

Preliminary Geotechnical Investigation

  • Sample and test soils at potential project sites

    • Previous investigations have not sampled locations around the river deltas

  • Assess construction feasibility at potential sites

    Preliminary Berm Stabilization Alternatives

  • Examples of design solutions to be considered

    • Source of embankment material

    • Dewatering

    • Base stabilization with geogrids

    • Berm stabilization with geotubes


Questions and feedback40 l.jpg

Questions and Feedback

  • Are there other issues we should address?


Contact information l.jpg

Contact Information

  • DFG Contact:

    Kim Nicol, Environmental Program ManagerCalifornia Department of Fish and Game78078 Country Club Drive, Suite 109Bermuda Dunes, CA 92203(760) 200-9178knicol@dfg.ca.gov

  • USACE Contact:

    Lanika Cervantes, Project ManagerSan Diego Section, Regulatory DivisionU.S. Army Corps of Engineers - Los Angeles District6010 Hidden Valley Road, Suite 105Carlsbad, CA 92011(760) 602-4838Lanika.L.Cervantes@usace.army.mil


Sch project website l.jpg

SCH Project Website

www.water.ca.gov/saltonsea


Usgs ponds l.jpg

USGS Ponds


Usgs pond construction l.jpg

USGS Pond Construction
