Presentation Transcript


Slide1 l.jpg

What is the genotype?

Hairless


Slide2 l.jpg

Lecture 4

Continued


Slide3 l.jpg

Example of Probabilities Using Sex Linkage:

XHY× XHXh

XHXH

XHXh

XHY1/4 normal male

XhY1/4 male with hemophilia

1/2 normal females


Slide4 l.jpg

Sex

malefemale

normal

hemophilia

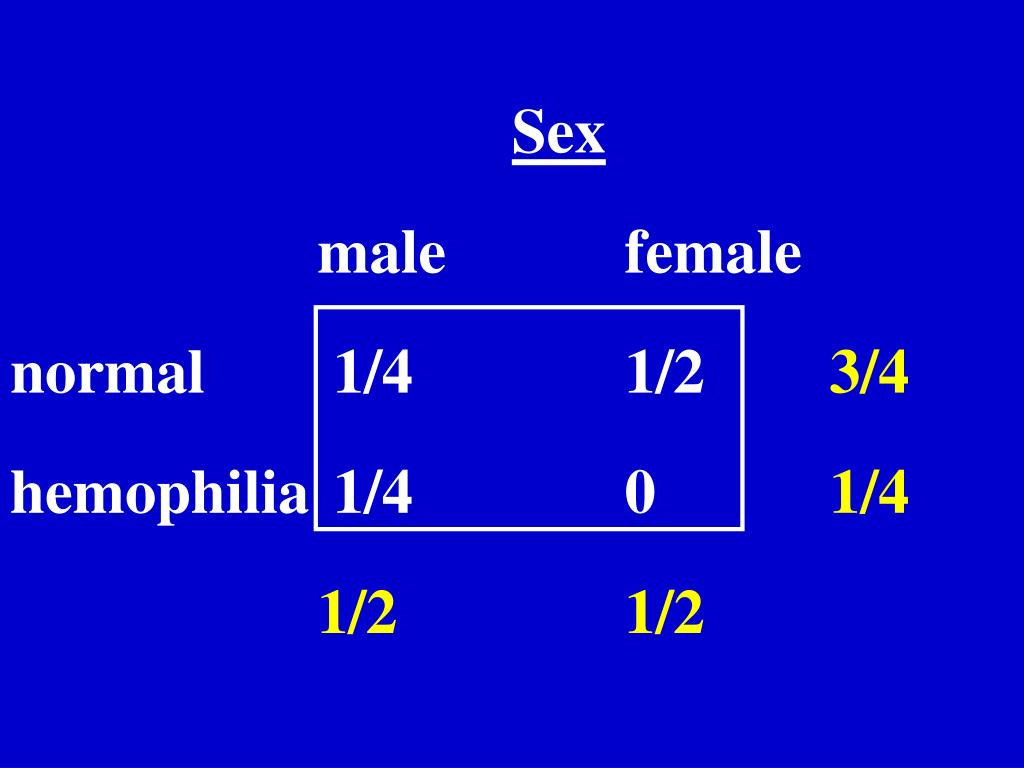

Slide5 l.jpg

Sex

malefemale

normal 1/41/23/4

hemophilia 1/401/4

1/21/2


Slide6 l.jpg

Conditional Probabilities

  • P(affected child) = 1/4

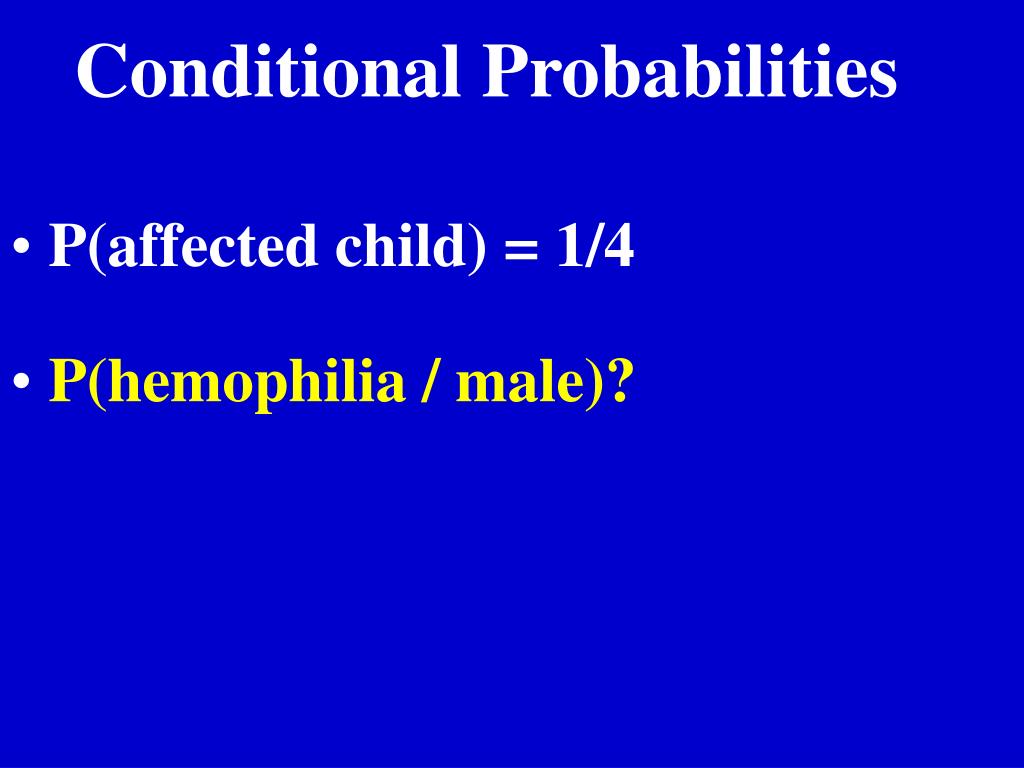

Slide7 l.jpg

Conditional Probabilities

  • P(affected child) = 1/4

  • P(hemophilia / male)?


Slide8 l.jpg

Sex

malefemale

normal 1/41/23/4

hemophilia 1/401/4

1/21/2


Slide9 l.jpg

Conditional Probabilities

  • P(affected child) = 1/4

  • P(hemophilia / male) = 1/4 = 1/21/2


Slide10 l.jpg

Conditional Probabilities

  • P(affected child) = 1/4

  • P(hemophilia / male) = 1/4 = 1/21/2

  • P(hemophilia / female) = 0 = 0 1/2


Slide11 l.jpg

Lecture 5

Exceptions to Mendel’s Ratios


Slide12 l.jpg

Sex Influenced


Slide13 l.jpg

Sex Influenced

  • Traits for which the expression of the phenotype depends on the sex of the individuals. Can occur with both autosomal or sex-linked loci.


Slide14 l.jpg

Example of Sex Influence:

Presence of horns in sheep:

Polled -- without horns

Horned -- with horns


Slide15 l.jpg

Sheep Example:

P = polled

p = horned


Slide16 l.jpg

Horned malePolled female

pp × PP


Slide17 l.jpg

Horned male Polled female

pp × PP

All progeny Pp


Slide18 l.jpg

Horned male Polled female

pp × PP

  • All progeny Pp but,

  • female -- polled P > p

  • male -- horned p > P


Slide19 l.jpg

malefemale


Slide20 l.jpg

malefemale

PPPolledPolled


Slide21 l.jpg

malefemale

PPPolledPolled

ppHornedHorned


Slide22 l.jpg

malefemale

PPPolledPolled

PpHorned

ppHornedHorned


Slide23 l.jpg

malefemale

PPPolledPolled

PpHornedPolled

ppHornedHorned


Slide24 l.jpg

malefemale

PPPolledPolled

PpHornedPolled

ppHornedHorned

p > P


Slide25 l.jpg

Sex Limited


Slide26 l.jpg

Sex Limited

  • A phenotype that is expressed in only one sex.


Slide27 l.jpg

Sex Limited

  • A phenotype that is expressed in only one sex.

  • Examples:

  • Antlers -- deer

  • Color -- pheasants and cardinals

  • Milk production -- dairy


Slide29 l.jpg

X Inactivation

In a sex-linked locus:


Slide30 l.jpg

X Inactivation

In a sex-linked locus:

T = black hairT = t

t = orange hair


Slide31 l.jpg

Cat Fanciers’ Association


Slide32 l.jpg

Cat Fanciers’ Association


Slide33 l.jpg

PhenotypeGenotype

malefemale

blackXTYXTXT

orange XtYXtXt


Slide34 l.jpg

PhenotypeGenotype

malefemale

blackXTYXTXT

orange XtYXtXt

tortoiseshellXTXt (unique)

-- calico = tortoiseshell with S_ --


Slide35 l.jpg

ss XTXt

Cat Fanciers’ Association


Slide36 l.jpg

S_ XTXt

Cat Fanciers’ Association


Slide37 l.jpg

  • Occasionally a tortoiseshell male happens:


Slide38 l.jpg

  • Occasionally a tortoiseshell male happens:

  • Nondisjuncture -- failure of chromosomes to separate properly during meiosis


Slide39 l.jpg

ParentsXTXt × XTY


Slide40 l.jpg

ParentsXTXt × XTY

GametesXTXt×XT Y


Slide41 l.jpg

ParentsXTXt × XTY

GametesXTXt×XT Y

Zygotes

  • XTXtXTtortoiseshell female

  • XTblack female

  • Ydies

  • XTXtYtortoiseshell male


Slide42 l.jpg

Non-disjuncture can occur in any chromosome.


Slide43 l.jpg

Non-disjuncture can occur in any chromosome.

  • trisomic 21 -- Down’s Syndrome -- incidence by age

Maternal ageIncidence/1000

 250.5

301.0

356.0

40 12.0

45 21.0

Not near as dramatic in males!

(?)


Slide44 l.jpg

Non-disjuncture can occur in any chromosome.

  • trisomic 21 -- Down’s Syndrome

  • trisomic 13 -- Patau -- 1/5000

  • trisomic 18 -- Edwards -- 1/14000


Slide45 l.jpg

Lethal Conditions


Slide46 l.jpg

Lethal Conditions

  • Gene or genotype that leads to the death of the individual.


Slide47 l.jpg

Postnatal Lethal Condition (Abnormalities)


Slide48 l.jpg

Postnatal Lethal Condition (Abnormalities)

Parrot jaw in cattle:

P = normalP > p

p = parrot jaw


Slide49 l.jpg

Pp × Pp


Slide50 l.jpg

Pp × Pp

3 P_ + 1 pp

normal parrot jaw (dies at young age)


Slide51 l.jpg

Embryonic Lethal

L = normalL > l

l = lethal


Slide52 l.jpg

Embryonic Lethal

Ll × Ll


Slide53 l.jpg

Embryonic Lethal

Ll × Ll

3 live + 1 dies

(not observed)


Slide54 l.jpg

Embryonic Lethal

Ll × Ll

3 live + 1 dies

(not observed)

  • Fertility studies needed to determine the presence of a recessive embryonic lethal.


Slide55 l.jpg

Recessive Sex Linked

XLXl × XLY


Slide56 l.jpg

Recessive Sex Linked

XLXl × XLY

2 XLX-normal female

1 XLYnormal male

1 XlYdies (not observed)


Slide57 l.jpg

Recessive Sex Linked

XLXl × XLY

2 XLX-normal female

1 XLYnormal male

1 XlYdies (not observed)

-- 2:1 sex ratio at birth --


Slide58 l.jpg

Embryonic lethals that are associated with other observable phenotypes.


Slide59 l.jpg

Embryonic lethals that are associated with other observable phenotypes.

H = hairless dogH > h

h = hair


Slide61 l.jpg

Hh × Hh

1 HH + 2Hh + 1hh


Slide62 l.jpg

Hh × Hh

1 HH + 2Hh + 1hh

dies

Embryonic lethal, not observed at birth!


Slide63 l.jpg

Hh × Hh

1 HH + 2Hh + 1hh

dies

hairless

(all heterozygotes)


Slide64 l.jpg

Hh × Hh

1 HH + 2Hh + 1hh

dies

hairless

hair

(all heterozygotes)


Slide65 l.jpg

Embryonic lethals that are associated with other observable phenotypes.

2:1 Ratio


Slide66 l.jpg

Other Examples

  • White in HORSES

  • Manx tails in CATS

  • Bluefrost coat color in MINK

  • Leg length and size in Dexter CATTLE

  • Creeper (leg length) in CHICKENS

  • Yellow color in MICE


Slide67 l.jpg

Multiple Alleles


Slide68 l.jpg

Multiple Alleles

  • There are > 2 allelic forms possible at a particular locus segregating in the population.


Slide69 l.jpg

Dog Example:

C series in dogs -- C is required for color and cc is albino.


Slide70 l.jpg

C Series

C -- color series expressed

c -- albino (pink nose and eyes)

C > c


Slide71 l.jpg

Dog Example:

C series in dogs -- C is required for color and cc is albino.

However, other alleles exist that don’t produce the albino phenotype.


Slide72 l.jpg

C Series

C -- color series expressed

cch -- chinchilla pattern

cd -- white coat (black nose, dark eyes)

cb-- Cornaz coat (blue eyes), pale gray

c -- albino (pink nose and eyes)

C > cch > cd > cb > c


Slide73 l.jpg

cdcd


Slide74 l.jpg

cchc × cdcb


Slide75 l.jpg

cchc × cdcb

2 cch_ chinchilla

1 cdcwhite

1 cbcCornaz


Slide76 l.jpg

Anomalies

  • Incomplete penetrance

  • Phenocopy

  • Variable expressivity


Slide77 l.jpg

Incomplete Penetrance


Slide78 l.jpg

Incomplete Penetrance

  • Failure of a genotype to be expressed with the phenotype normally associated with it.


Slide79 l.jpg

Incomplete Penetrance

  • Stripe marking on forehead of fox.


Slide80 l.jpg

Half Stripe

Full Stripe


Slide81 l.jpg

SS = full stripe

Ss = half stripe

ss = no stripe

SS × ss


Slide82 l.jpg

SS = full stripe

Ss = half stripe

ss = no stripe

SS × ss

Ss (18% no stripe)


Slide83 l.jpg

Phenocopy


Slide84 l.jpg

Phenocopy

  • An environmental influence causing an effect similar to a phenotype under genetic control.


Slide85 l.jpg

Phenocopy

  • An environmental influence causing an effect similar to a phenotype under genetic control.

  • Example -- plant toxins Thalidomide babies


Slide86 l.jpg

Variable Expressivity


Slide87 l.jpg

Variable Expressivity

  • Variation in phenotypic expression


Slide88 l.jpg

Variable Expressivity

  • Variation in phenotypic expression

  • Example -- Mice

  • Dwarfism: Still variations in weights of dwarf mice and may overlap with normal weights


Slide90 l.jpg

Anomalies: Callipyge


Slide91 l.jpg

GMBT16

BMS2382

OY3, 5, 15

Somewhere in this region

Callipyge

IDVGA30

CSSM18

Ovine Chromosome 18


Slide92 l.jpg

Alleles:

C= Callipyge

N = Normal

C

C

N

C

Genotypes:

M

F

M

F

C

N

N

N

M

F

M

F


Slide93 l.jpg

CN

NN

X

Callipyge males

Normal females

½CN : ½ N N

M

F

M

F

Expected: 1 callipyge to 1 normal

Actual: 203 callipyge and 209 normal


Slide94 l.jpg

NN

CN

X

Normal males

Callipyge females

½NC: ½ N N

M

F

M

F

Expected 1 callipyge : 1 normal

Actual 33 normal


Slide95 l.jpg

Polar overdominance

at the callipyge locus

Female callipyge chromosome

(C) “turns off” allele expression

F


Slide96 l.jpg

Maternal imprinting:

Maternally-derived allele is silent,

paternally-derived allele is

expressed

Silent allele is reactivated in

paternal germ line
